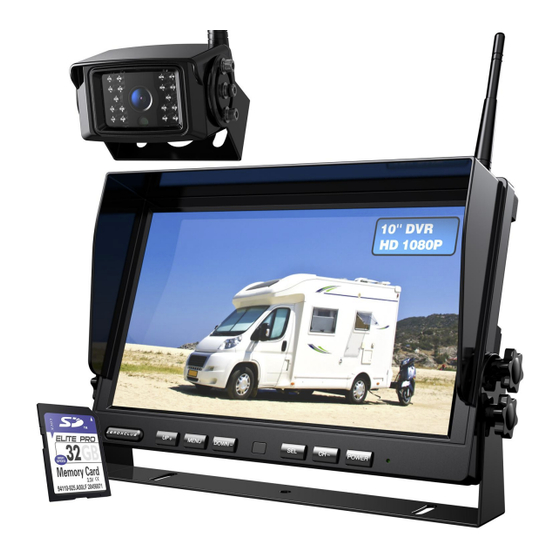

- Page 1 ZEROXCLUB INSTRUCTIONS MANUAL User Manual Model: BW101SL Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
- Page 2 ZEROXCLUB INSTRUCTIONS MANUAL FOREWORD: Thank you for purchasing this ZEROXCLUB product. ZEROXCLUB is committed to providing high-quality products and a pleasant shopping experience. Before operating this backup system, please read these instructions carefully and test it. Please keep this instruction manual in a safe place for future reference.
-
Page 3: Table Of Contents
ZEROXCLUB INSTRUCTIONS MANUAL Contents FOREWORD: ....................I 1 WHATS IN THE BOX？ ................1 2 INSTALL GUIDE ..................2 2.1 Installation Safety Precautions ............. 2 2.2 Make an Installation Plan ............. 2 2.3 Monitor Installation ..............3 2.4 Camera Installation ..............4 2.5 Powering Monitor &... -
Page 4: Whats In The Box
ZEROXCLUB INSTRUCTIONS MANUAL 1 WHATS IN THE BOX？ Make sure you have the following listed items included in the packaging. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you wrote the order number from Amazon include photos of the damaged or missing part in your email, so that we can handle the problem much more quickly. -
Page 5: Install Guide
ZEROXCLUB INSTRUCTIONS MANUAL 2 INSTALL GUIDE The system components are designed to be assembled without difficulty and with simple tools. 2.1 Installation Safety Precautions • Ensure the power supply circuit has circuit protection • Connect the rear camera to a 12-24V DC circuit only •... -
Page 6: Monitor Installation
ZEROXCLUB INSTRUCTIONS MANUAL Test and Calibrate the System Adjust the Camera(s) Views Secure the Camera(s)’ Power Cord 2.3 Monitor Installation The monitor is delivered with a metal U-shaped bracket. To assemble the monitor: attach the cradle using the four knob bolts. -
Page 7: Camera Installation
ZEROXCLUB INSTRUCTIONS MANUAL 2.4 Camera Installation 1. Install the Rear Cameras 1. Mark camera mounting position. Screw 2. Tighten the screws on both sides of the on according to the mark. camera. Adjust the camera angle as needed.. 1.Mark camera mounting 2. -
Page 8: Powering Monitor & Camera
ZEROXCLUB INSTRUCTIONS MANUAL 2.5 Powering Monitor & Camera Recommend to test system with temporary mounting and wiring before final installation. Mount the antennas to ② Connect the power cord or Power the camera ① ③ cameras and monitor car charger to camera and... - Page 9 ZEROXCLUB INSTRUCTIONS MANUAL REC: Recording video, there will be red REC in the ② upper-middle left of the display. In the event of SD card issues, re-format the SD card (RECORD menu). A Function Increase button. Select forward in display ③...
-
Page 10: Sd Card Access Port
ZEROXCLUB INSTRUCTIONS MANUAL Note: DOWN- If everything is backwards, press and hold the button a few seconds can rotate the screen. Note: Repeated presses of button will switch each camera channel on the screen as well as the dual camera channel or the quad camera channel (if Quad Split Screen mode is turned on). - Page 11 ZEROXCLUB INSTRUCTIONS MANUAL - Sub-menu items may highlight in red color. - To return from any selection press the MENU button or wait for a timeout. Software Management System Panels and Sub-panels Icons in the Sub-panels Main-panel Set up which cameras are assigned to which numbers,#1...
-
Page 12: Pairing Settings
ZEROXCLUB INSTRUCTIONS MANUAL (3) Re-start recording the second file when you switch channels. (4) The content displayed on the screen is the content recorded by the system. 4.2 PAIRING Settings This is a pairing icon, you can refer to the pairing steps to pair the camera and monitor. - Page 13 ZEROXCLUB INSTRUCTIONS MANUAL MENU 4. Press the button to enter menu interface and select PARIING, press to confirm, you will have 20 seconds for pairing. 5. The screen appears “Pairing Start” and begins to count down, then please plug in the power of the camera. （NOTE： Do not plug the camera into the power until the pairing count-down has already started.）...
-
Page 14: Picture Settings
ZEROXCLUB INSTRUCTIONS MANUAL completed within 20 seconds, otherwise, you need to retry pairing steps (4) If failed, please observe the monitor and camera are powered (cover the infrared sensor to create the low light condition, then the infrared lights on each side of the camera will turn on). -
Page 15: Mode Settings
ZEROXCLUB INSTRUCTIONS MANUAL Control camera mirroring and flipping, on a per camera basis. You can flip up and down or mirror the image of a certain a camera according to your needs: NORMAL The screen remains normal (default). -
Page 16: System Settings
ZEROXCLUB INSTRUCTIONS MANUAL You can select the next one by pressing the UP+/DOWN- button, the other operation steps are the same. If you want to see the camera from a certain numbered screen, you have to make sure it has been turned ON in this menu, so that it can display the image. -
Page 17: Play Settings
ZEROXCLUB INSTRUCTIONS MANUAL controlled individually on each camera screen. NOTE: If P-LINE is not turned on for the other screen channels, the parking guidelines will not be displayed. 4.8 PLAY Settings You can playback the recorded videos on the monitor, or playback on the computer by reading the memory card data on the computer. -
Page 18: Record Settings
ZEROXCLUB INSTRUCTIONS MANUAL ④When you open the video, press the SEL button to play it, and you can press the SEL button to replay the video after the playback is over. 4.9 RECORD Settings Memory card settings: REWRITE, FORMAT. - Page 19 ZEROXCLUB INSTRUCTIONS MANUAL Check if there any loose or faulty connections triggering such mishaps. There is moisture inside the camera’s lenses, please contact us in time at sales@uszeroxclub.com with the picture of the issue and your Amazon Order ID ...
- Page 20 ZEROXCLUB INSTRUCTIONS MANUAL Try another cigarette lighter or connect the screen with another power cord. Check the display to ensure that it is powering. Check if the power button on the display will light up. and press the monitor's power button waiting 2-4...
- Page 21 ZEROXCLUB INSTRUCTIONS MANUAL light up, please tell us the result and sales@uszeroxclub.com contact us at with your Amazon order ID Check if the camera unit is receiving Monitor displays “No power signal” Re-pair the camera to the monitor, the pairing method refers to 5.2.1 (Please...
- Page 22 ZEROXCLUB INSTRUCTIONS MANUAL Remove the SD card, reboot the system, Monitor not then check if the system is locked? responding to any of Unlock the system：Hold the MENU button a few seconds, a yellow unlock the buttons appears to the right of red lock and then press the SEL button to confirm.
-
Page 23: Faq
ZEROXCLUB INSTRUCTIONS MANUAL email us at sales@uszeroxclub.com. We're always there for you! 6 FAQ Why is it soundless? A: Due to sound holes will reduce the waterproof coefficient of the camera, so we didn't enable this feature. : Why I can’t choose “QUAD” by pressing the “CH-” button? A: You should open all cameras in CAM-SETUP and make sure the quad split mode has been chosen. - Page 24 ZEROXCLUB INSTRUCTIONS MANUAL when the SD capacity is full. What is FORMAT? A: When you turn it on, all recorded videos will be deleted and the formatting is always happening. 6.10 How to start recording a video? A: Press the "SEL" button once to record, a “·REC...
- Page 25 ZEROXCLUB INSTRUCTIONS MANUAL 6.14 Q: The monitor emits smoke after connection A: The positive and negative poles are connected in reverse and cause a short circuit. Please read the installation guide carefully before installation. 6.15 Q: Why doesn't the camera shine? A: The night vision mode will automatically turn on in the dark environment.
-
Page 26: General Information
ZEROXCLUB customer service. ● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB Rear camera system. Contact ZEROXCLUB customer service if the part is ever compromised ●... -
Page 27: Warranty
8 Warranty ZEROXCLUB offers a full 24 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come.
