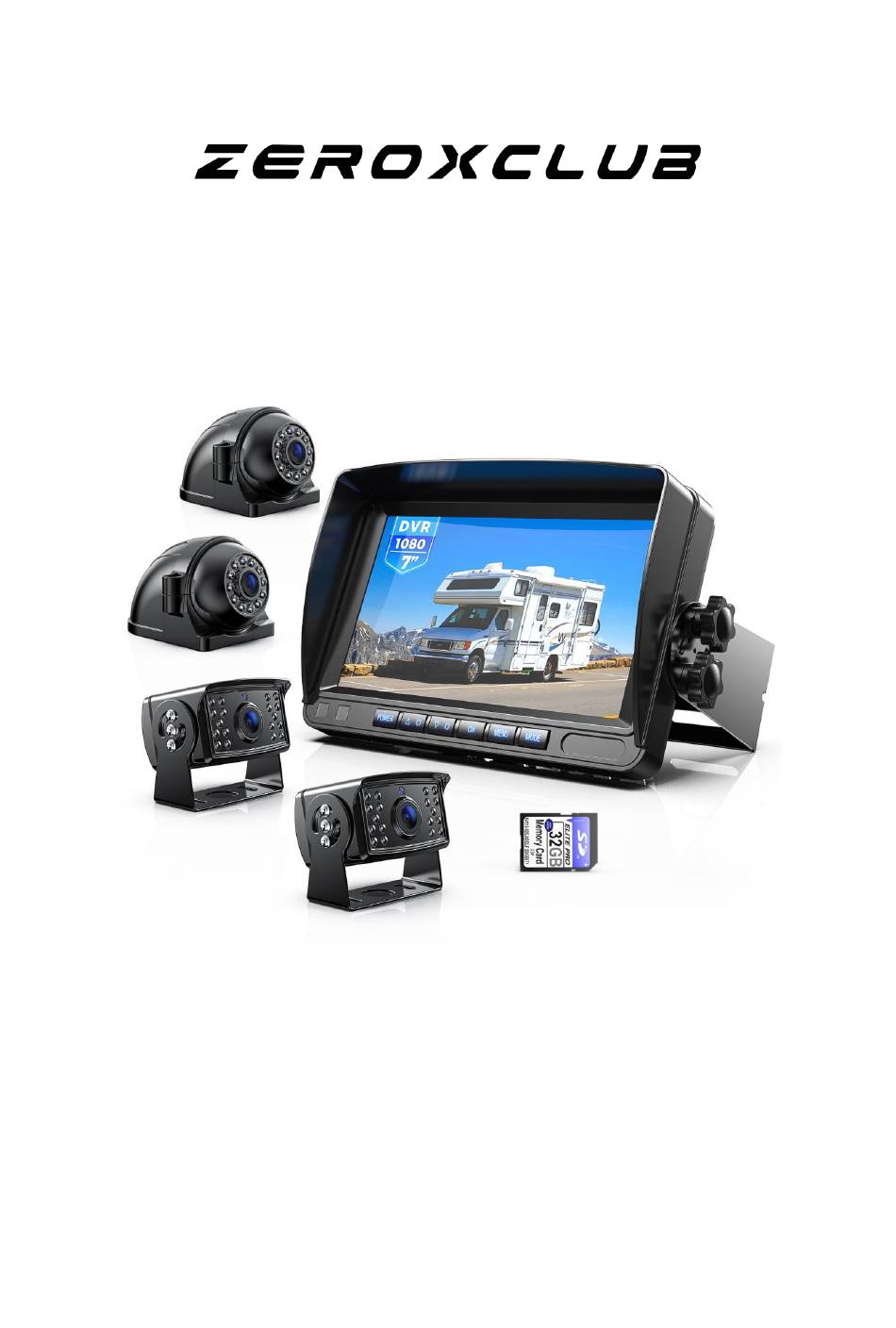

- Page 1 ZEROXCLUB Instructions Manual Installations manual & Owner’s Guide ZEROXCLUB Wired Camera System Model # BY704A Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
- Page 2 ZEROXCLUB Instructions Manual Before Using Make sure you have the following listed items included in the packaging. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you wrote the order number from Amazon include photos of the damaged or missing part in your email, so that we can handle the problem much more quickly.
- Page 3 ZEROXCLUB Instructions Manual Test the System To ensure that all components are working properly, please test the system before installation. 1. When the monitor is powered, the indicator light and buttons will light to indicate that the monitor is on and ready to work.
-
Page 4: Table Of Contents
ZEROXCLUB Instructions Manual Contents Before Using .................... 1 Test the System ..................2 1.Safety Information ................2 2.Installation ....................3 2.1 Installation Safety Precautions .............3 2.2 Monitor mounting ................3 2.3 Monitor-Cables Installation ............4 2.4 Camera Installation ..............6 2.4.3 Adjust the Camera View ............8 2.5 Camera-Cables Installation ............8... -
Page 5: Test The System
● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised ●... -
Page 6: Installation
ZEROXCLUB Instructions Manual 2.Installation 2.1 Installation Safety Precautions • Ensure the power supply circuit has circuit protection • Connect the rear camera to a 12-14V DC circuit only • Use insulated tools when working with power supply • Use correct safety equipment when working at elevated levels •... -
Page 7: Monitor-Cables Installation
ZEROXCLUB Instructions Manual Suction Cup Mount Installation: 2.3 Monitor-Cables Installation You will find a video wire with a 14 pin plug from your monitor, connect it to the 14 pin plug from the power cord. You will also find a 7 colors wire from the power cord, connect this those to the fuse box. - Page 8 ZEROXCLUB Instructions Manual The wiring method when product use, as follows: Yellow (1) Connect the wire to positive power( 12-24V) NOTE: Yellow wire needs to be powered for a long time. If the Yellow wire has no power, the system will lose all the settings you made on the screen.
-
Page 9: Camera Installation
ZEROXCLUB Instructions Manual circuit and connect the camera to CH2. NOTE: Green Connect the wire, the buttons on the display will be locked and cannot be operated, so please complete the screen operation before Green connecting the wire. (5) About other two color trigger line, you can choose connect it or not. - Page 10 ZEROXCLUB Instructions Manual The camera comes equipped with an adjustable flat mount base. You can adjust the lock-screws on the sides of the camera to adjust the lens of camera with a small Phillips screwdriver. A short 4 -pin aviation video cable is attached to the body of the camera.
-
Page 11: Adjust The Camera View
ZEROXCLUB Instructions Manual 2.4.3 Adjust the Camera View You can use the camera mount to mark where to drill holes ● which is wide enough for the 4 pin connector. ●Adjust the camera to the correct angle as needed. The camera should be adjusted to a horizontal position relative to the ground in order to provide the best view of the objects behind the vehicle. - Page 12 ZEROXCLUB Instructions Manual ●Connect the extension wire to 4pin plug from the monitor. All the cables you will need will come provided in the backup camera kit. ●Do not pull aggressively on the connector head of the cable when you are routing the cables though channels or tight spaces as this may damage the fine wires in the cable.
-
Page 13: Testing The System
ZEROXCLUB Instructions Manual 1) Before connecting, you need to confirm that the voltage of the battery is between 12-24V. 2)Rear cameras are usually powered by the reverse lights. This makes them more convenient to use as the monitor and the camera will automatically turn on when you shift the gear into reverse. -
Page 14: Operation
ZEROXCLUB Instructions Manual 3.Operation 3.1 Operate the Monitor ①POWER A power button turns the display device on or off. A Up/Increase button. Select forward in display ②△☼ operation A Down/Decrease button. Select backward in display ③▽☼ operation. A Channel Switch button. -
Page 15: Operate The Mini Remote Control
ZEROXCLUB Instructions Manual 3.2 Operate the Mini Remote Control The system comes with a mini remote control, only need to unplug the transparent plastic sheet at the bottom, you can use it. 4.Display Settings Display settings allow you to adjust various aspects of your display to ensure that the display works well with your camera. -
Page 16: Date Setting
ZEROXCLUB Instructions Manual exit the button lock. 4.1 Date Setting Change the Date and Time. Press MENU → Go into the Date Setting → SEL → △ ☼ / ▽ ☼ (Increase time/ decrease time)→SEL (confirm and go to the next date/time settings)→Until last complete set... -
Page 17: Playback
ZEROXCLUB Instructions Manual Press MENU → Go into the View settings → SEL → △ ☼ / ▽ ☼ (Increase / decrease )→SEL ( go to the next settings)→Until last complete set NOTE: Press the MENU button once to return to the menu, press twice to return to the camera view. -
Page 18: Split Setting
ZEROXCLUB Instructions Manual 4.4 Split Setting Press MENU→Go into the Split setting→SEL→△☼/▽☼→SEL 4.5 System More advanced display settings are available in the "System" page. (1) Reversing Lines: Off/ MODE 1/2/3 NOTE: Only the CH2 screen will be triggered for full screen with Parking Lines through Green wire. - Page 19 ZEROXCLUB Instructions Manual NOTE: We recommend you connect the Green wire to the reverse light, then CH2 screen can be triggered with parking lines to help you reversing. (2) Astern Delay: Off/ 3s/ 6s/ 9s This means that after the reversal trigger is over, it will return to the monitoring page after a set amount of time.
-
Page 20: Faq
ZEROXCLUB Instructions Manual 5.FAQ (1) How to return interface while viewing the file? A.Press the CH button, then it can back to the monitor page. At other time, press the Menu button to go back the monitor page. (2) How to rotating the image ? A.Menu-System-Setting "Rotate"... -
Page 21: Troubleshooting
ZEROXCLUB Instructions Manual 6.Troubleshooting The display will not Check the display to ensure that it is turn on powering. Check if the power button on the display will turn on the light. and press the monitor's power button waiting seconds then to see if there is any image? -
Page 22: Screen Black And White
ZEROXCLUB Instructions Manual infrared light will light up. If it still can't work well after try, please contact time sales@uszeroxclub.com, we will help you solve it. Blurry camera Check the external lenses. Fix this by simply wiping off the dirt. - Page 23 ZEROXCLUB Instructions Manual sales@uszeroxclub.com, we will help you solve it. Blue on monitor Do a hard reset, unplug all cables, leave screen them out for 1 minute, and then re-connect them. Check to ensure that the connection to the camera is tight.
- Page 24 ZEROXCLUB Instructions Manual The picture flashes Check the wiring firstly, or change another frequently camera for testing, or switch the screen for another viewing mode, to see whether it still flashes or not. If you don’t use the 4-pin cables when...
-
Page 25: Warranty
ZEROXCLUB Instructions Manual 7.Warranty ZEROXCLUB offers a full 24 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To obtain warranty support, or if you are not satisfied in any way, or have any issues with your purchase, please contact us first for help, we will try our best to make you satisfied.
