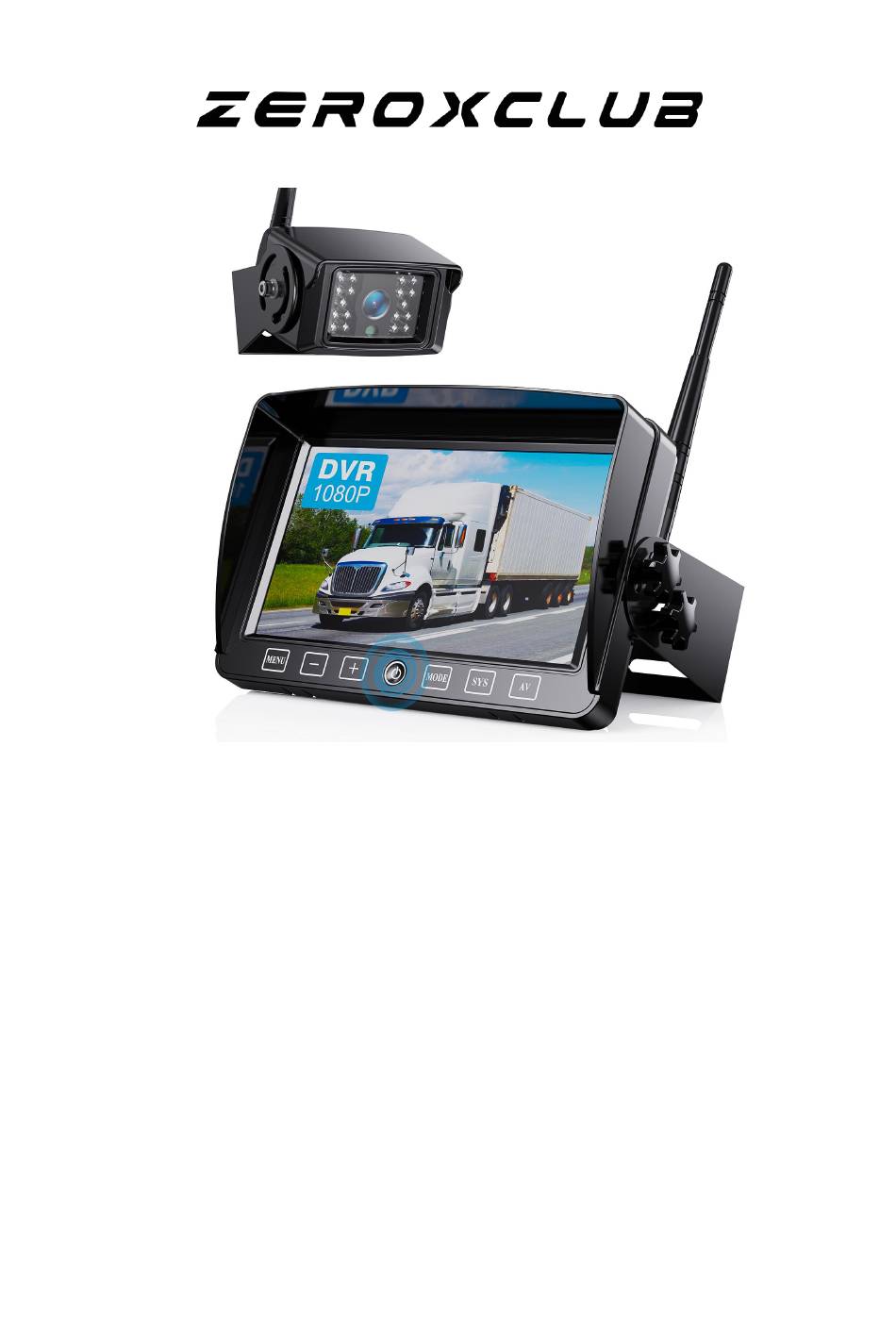

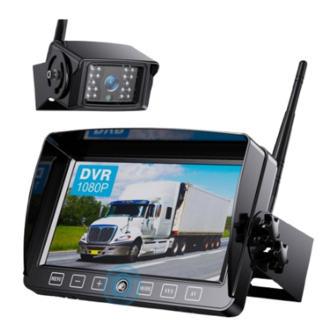

- Page 1 ZEROXCLUB INSTRUCTIONS MANUAL User Manual Wireless 7" Backup Camera System Model # B701 Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Foreword
ZEROXCLUB INSTRUCTIONS MANUAL FOREWORD: Thank you for purchasing this ZEROXCLUB product. ZEROXCLUB is committed to providing high-quality products and a pleasant shopping experience. Before operating this backup system, please read these instructions carefully and test it. Please keep this instruction manual in a safe place for future reference. -
Page 3: Table Of Contents
ZEROXCLUB INSTRUCTIONS MANUAL Contents FOREWORD: ..................I 1 WHATS IN THE BOX ..........错误！未定义书签。 2 Installation instructions ..............1 2.1 Installation Safety Precautions ..........2 2.2 Make an Installation Plan ............. 2 2.2.1 Suggested System Installation Sequence ......2 2.3 Monitor Installation ..............3 2.4 Camera Installation ........ - Page 4 ZEROXCLUB INSTRUCTIONS MANUAL 1 WHATS IN THE PACKAGE Our ZEROXCLUB backup camera system has provided many years of reliable service because our monitors, cameras, and cables are of the highest quality. Make sure you have the following listed items included in the packaging.
-
Page 5: Installation Instructions
ZEROXCLUB INSTRUCTIONS MANUAL 2 Installation instructions The system components are designed to be assembled without difficulty and with simple tools. 2.1 Installation Safety Precautions • Use the correct size cable and connector to power the rear camera. • Ensure the power supply circuit has circuit protection. -
Page 6: Monitor Installation
ZEROXCLUB INSTRUCTIONS MANUAL Install the Cables Install the Cameras Connect the Cameras Cables to the Monitor Test and Calibrate the System Adjust the Camera Views Secure the Camera Cables 2.3 Monitor Installation The monitor is delivered with a metal U-shaped bracket. -
Page 7: Camera Installation
ZEROXCLUB INSTRUCTIONS MANUAL Suction Cup Mount Installation: Suction Cup Mount Installation: 2.4 Camera Installation 1. Install the Rear Cameras 1.1 Use the original bracket, and install it 1.2 Use the updated bracket, and install it to the place you want. -
Page 8: Power Monitor & Camera
ZEROXCLUB INSTRUCTIONS MANUAL Connect the Power Cord to camera, then power it *Before fixing the camera, you can adjust the lens of it. 2.5 Power Monitor & Camera Recommend to test system with temporary mounting and wiring before final installation. - Page 9 ZEROXCLUB INSTRUCTIONS MANUAL Menu/Return button: Press to access menu or return to ①MENU the previous panel. Decrease/Rotate button: Select backward in menu ②－ operation. Press and hold for 5S to rotate. Increase button: Select forward in display operation ③＋ Power button: Turn on / off the monitor and standby ④POWER...
-
Page 10: Main Screen Interface
ZEROXCLUB INSTRUCTIONS MANUAL ▬ (3) If everything is backwards, press and hold button a few seconds can rotate the screen. (4) Repeated presses of button will switch each camera channel on the screen as well as the dual camera channel or the quad camera channel (if Quad Split Screen mode is turned on). -
Page 11: System Operation
ZEROXCLUB INSTRUCTIONS MANUAL (7) If the system does not recognize the memory card, a prompt will pop up on the right side of the screen: CARD. Please try to reinsert the memory card or format the memory card. 4 SYSTEM OPERATION 4.1 Menu Description... -
Page 12: Pairing Operation
ZEROXCLUB INSTRUCTIONS MANUAL Set up which cameras are assigned to which numbers,#1 Paring through #4 Picture Brightness, Contrast, Hue,Volume(invalid) Mir-flip Normal,Mirror,Flip,Mir-flip Split 1-2, Split 1-3, Split 1-4, Split 2-3, Split 2-4, Split 3-4, Mode Quad, H-split, Split-off Cam-setup CAM1: on/off, CAM2: on/off, CAM3: on/off, CAM3: on/off,... - Page 13 ZEROXCLUB INSTRUCTIONS MANUAL Before installing the cameras, you have to decide which cameras will be paired with which channel numbers so that the screen displays the ideal channel grouping when making channel selections. (If you need to renumber the cameras, you can re-pair them, see 4.2.1 for the pairing procedure).
-
Page 14: Picture Operation
ZEROXCLUB INSTRUCTIONS MANUAL the screen.） *If you lose signal reception, re-pair the camera. (The screen shows "NO SINGAL".) Please confirm the monitor and camera have installed the antennas. Please make sure that the camera view you need to be paired with has been turned on via the Menu >... -
Page 15: Mir-Flip Operation
ZEROXCLUB INSTRUCTIONS MANUAL NOTE: Volume has no operational effect. Because the system does not have a microphone, it cannot record sound. NOTE: Press MENU once to return the previous panel. 4.4 MIR-FLIP Operation Allows you to mirror the video. Press MENU→... -
Page 16: Cam-Setup Operation
ZEROXCLUB INSTRUCTIONS MANUAL 4.6 CAM-SETUP Operation You can choose from CAM 1, CAM 2, CAM 3, CAM 4 Press MENU→ →Go into CAM-SETUP Setting→Press MODE confirm→Press to choose ON or OFF the CAM screen→Press MODE You can select the next one by pressing the button, the other operation steps are the same. -
Page 17: Play Operation
ZEROXCLUB INSTRUCTIONS MANUAL COLOR-SYS Ignore this function AUTO-DIM When this option is "ON", the monitor will automatically increase the brightness when there is low light. Or you can set this option to "OFF". Auto Dimming Function. P-LINE If you need to display the parking guide on the camera screen, you need to switch the screen to the single screen display of the camera screen and turn on P-LINE. -
Page 18: Troubleshooting
ZEROXCLUB INSTRUCTIONS MANUAL It will automatically overwrite the previous videos when the SD card REWRITE is full. If you turn it on, please remember to save the video file in time if you need it to avoid it being overwritten. - Page 19 ZEROXCLUB INSTRUCTIONS MANUAL on the camera) with your hands. If the infrared light is on, it means the camera is successfully powered on and normal, refer to 4.2.1 Pairing Steps to re-pair it. If not, it means that the camera has not been powered on.
- Page 20 ZEROXCLUB INSTRUCTIONS MANUAL see if it returns to normal. pink 2. Cover the sensor (the camera will go into IR mode), then release the sensor to see if the picture returns to normal. If the image is still pink, there may be a ...
- Page 21 12V battery to try. If you gone all the checking points and the screen still has no picture or words, and the buttons are not bright, the monitor is broken, please contact ZEROXCLUB email at sales@uszeroxclub.com with the picture of the issue and your Amazon order number.
- Page 22 ZEROXCLUB INSTRUCTIONS MANUAL seconds, a yellow unlock appears to the right of red lock and then press the SEL button to confirm. 4. If the system is recording, please press SEL to exit the recording to see if the buttons can operate.
- Page 23 ZEROXCLUB INSTRUCTIONS MANUAL sales@uszeroxclub.com with the video of the issue and your Amazon Order ID, we will help you fix it. Please check if the camera is pointing at Pictures the sky (light source). If so, adjust it so...
-
Page 24: Faq
ZEROXCLUB INSTRUCTIONS MANUAL Access Menu Panel and go to the RECORD icon, then turn on REWRITE. If you have any questions not mentioned above, just feel free to email us at sales@uszeroxclub.com. We're always there for you! 6 FAQ... - Page 25 ZEROXCLUB INSTRUCTIONS MANUAL How to turn on/off the Parking Guideline? A: MENU → SYSTEM → P-LINE. (Before setting, please switch the screen on which you need to show the guideline to full screen.) What is REWRITE? A: If it turns on, it will automatically overwrite the original video record when the SD capacity is full.
- Page 26 ZEROXCLUB INSTRUCTIONS MANUAL cards. 6.13 Q: The monitor emits smoke after connection A: The positive and negative poles are connected in reverse and cause a short circuit. Please read the installation guide carefully before installation. 6.14 Q: Why doesn't the camera shine? A: The night vision mode will automatically turn on in the dark environment.
-
Page 27: General Information
ZEROXCLUB customer service. ● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB Rear camera system. Contact ZEROXCLUB customer service if the part is ever compromised. -
Page 28: Warranty
8 Warranty ZEROXCLUB offers a full 24 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come.
