Summary of Contents for ZEROXCLUB BD102

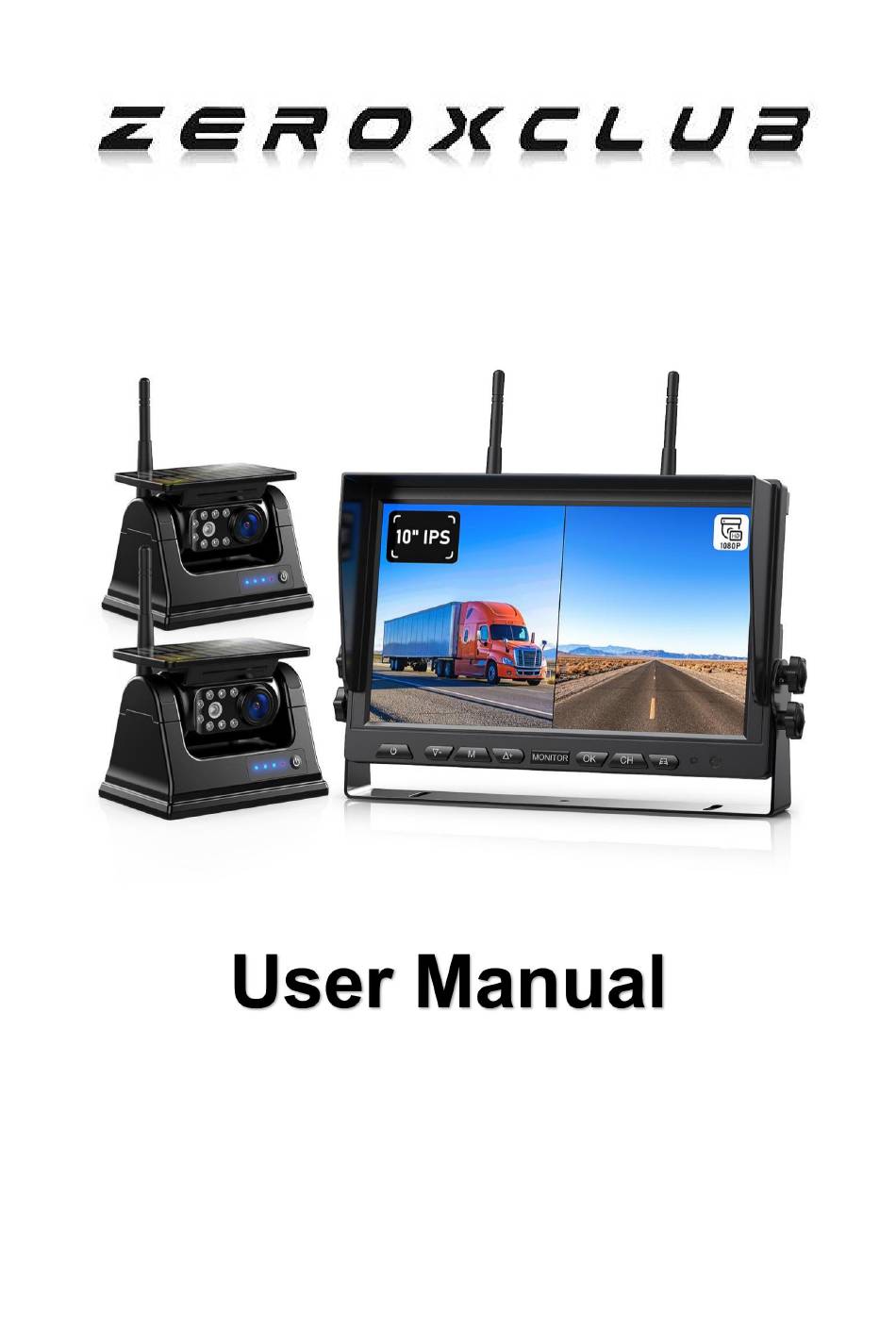

- Page 1 ZEROXCLUB Instructions Manual Solar Wireless Backup Camera System Model: BD102 Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Table Of Contents
ZEROXCLUB Instructions Manual TABLE OF CONTENTS TABLE OF CONTENTS ............... 1 WARRANTY ..................2 BEFORE USING ................... 2 CHARGE THE BATTERY ..............3 WAHT IS IN THE BOX ................. 4 ABOUT CAMERA ................. 4 INSTALLATION ..................6 Installation of the Antenna ..............6 Installation of the Camera .............. -
Page 3: Warranty
ZEROXCLUB Instructions Manual WARRANTY ZEROXCLUB offers a full 18 months warranty and 3 months replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To obtain warranty support, or if you are not satisfied in... -
Page 4: Charge The Battery
ZEROXCLUB Instructions Manual CHARGE THE BATTERY Fully Charge the battery before use via the supplied USB cable. 1. Connect the supplied USB-C cable to the Type-C port of the camera. 2. Plug the USB-C cable into the USB wall charger and Plug your charger into an outlet. -
Page 5: What Is In The Box
ZEROXCLUB Instructions Manual WHAT IS IN THE BOX 10-inch Monitor Backup Camera*2 12V Car Charge Suction Cup Installation Tools USB Wall Mount Charger*2 USB power U-Shaped cable Bracket Antenna*4 USB-C Cable*2 for Monitor ABOUT CAMERA 1. Two Charging Methods... - Page 6 ZEROXCLUB Instructions Manual The camera supports USB-C charging (5V DC charging) and Solar charging. Due to the inefficiency of solar charging caused by the limitation of solar panel area, it is best to use Type-C charging as the primary charging method.
-
Page 7: Installation
ZEROXCLUB Instructions Manual working time of the backup camera and reduce the charging times. But you need to charge the backup camera with Type-C Charging regularly according to the frequency of use, especially in the winter. c. Many vehicles provide constant power to the 12V outlet. If your outlet provides constant power, please remember to unplug the monitor when not in use to avoid draining the vehicle battery. -
Page 8: Installation Of The Monitor
ZEROXCLUB Instructions Manual NOTICE a. Aluminum and fiberglass magnets vehicle body is weakly attracted to a magnetic base. We recommend that you can purchase a metal plate and bolts from the local hardware store. After cutting it down to size and used the bolts that you through-bolted to the vehicle. - Page 9 ZEROXCLUB Instructions Manual 1. Clean and dry the mounting surface where the monitor can be easily seen inside the car, and does not obstruct your vision when driving. 2. Remove the plastic sheet of the suction cup, press it against the mounting surface and push the suction cup lock lever down to lock the suction cup.
-
Page 10: Operating Instruction
ZEROXCLUB Instructions Manual You can also use the DC power pigtail cable to power your monitor. (1)Connect Red wire to ACC power(which is the gear switch before starting up the car's motor).Vehicle turns on, monitor turns on automatically,Vehicle turns off, monitor will turn off. -
Page 11: Main Screen Interface
ZEROXCLUB Instructions Manual (2)The MENU button cannot be operated to access the menu panel if the system is recording. Please press first to stop recording. (3) If everything is backwards, press and hold the button a few seconds can rotate the screen. -
Page 12: Menu
ZEROXCLUB Instructions Manual Menu There are eight primary menu selections. Selected menu items are highlighted in yellow. Settings for Pairing/Picture/Mir-flip/ System/ Play/ Record. Use the Function Increase button or Function Decrease button to select the menu item. Sub-menu items may be highlighted in red. - Page 13 ZEROXCLUB Instructions Manual charged with at least 1 bar. Only power up one camera when pairing and pair it at a time. g. Fully charge the camera with a Type-C cable before first use. Single Camera Pairing Steps 1) Turn off the camera first.
-
Page 14: Picture Operation
ZEROXCLUB Instructions Manual PICTURE Operation 1) Press button to enter menu interface. 2) Press to select PICTURE. Press to confirm. △+ ▽- 3) Press to select BRIGHTNESS / CONTRAST / HUE , △+ ▽- press to confirm. Press to adjust settings. -
Page 15: Play Operation
ZEROXCLUB Instructions Manual 1) Press button to enter menu interface. to select SYSTEM. Press 2) Press to confirm. △+ ▽- 3) Press to select TIME / LANGUAGE / AUTO-DIM / △+ ▽- P-LINE / DEFAULT, press to confirm. Press △+ ▽-... -
Page 16: Troubleshooting
ZEROXCLUB Instructions Manual 1) Press button to enter menu interface. 2) Press to select RECORD. Press to confirm. △+ ▽- 3) Press to select REWRITE / FORMAT, press △+ ▽- confirm. Press to turn on/off. △+ ▽- After all settings are done, press to return to previous panel, press it again to exit the menu. - Page 17 ZEROXCLUB Instructions Manual 1) Check whether the camera still has the remaining power. If the blue power indicator is often on, it means that there is remaining power. If only one lamp is flickering, it means that the camera is out of power and need to be charging. Fully charge the camera first with the USB-C cable.
- Page 18 ZEROXCLUB Instructions Manual 1) Check if the wall socket is off or damaged. 2) Check if the cable or charger is damaged. Use another cable or another 5V/2A charger to charge the camera and put it in the wall socket. Or you may use other devices to verify the charger and USB-C cable could work well.
-
Page 19: Fqas
ZEROXCLUB Instructions Manual again, it works for a few minutes and then shuts off again. When the camera is low battery, it may cut off power after a few minutes, and then, when turned on again, it may work for a few more minutes before the power is cut off once more. - Page 20 ZEROXCLUB Instructions Manual center of the screen and the monitor will start to record. Press it again to stop record 1.Use a wall outlet to charge the camera: Plug the USB end of the charging cable into the USB wall charger.
-
Page 21: Safety Information
We will reply you within 24 hours. SAFETY INFORMATION ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised. ● Do not disassemble or attempt to repair any part of the camera system. -
Page 22: Specifications
ZEROXCLUB Instructions Manual ● Dropping the unit may cause possible mechanical failure. SPECIFICATIONS Monitor 10’’ LCD Display Monitor Connector DC female connector Item Weight 0.19 pounds Power Supply DC 12V Monitor Dimensions 10(L) x 6.5(H) x 0.94(D) in Camera Image Sensor...
