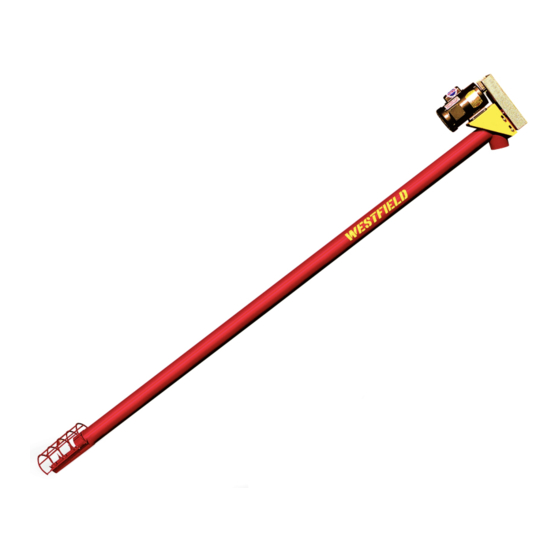

UB & UX 4" Series
Utility Grain Auger
Operator and Assembly Manual
This manual applies to:
AGI Westfield UB411, UX405, UX410
AGI UB411, UX405, UX410
AGI Hutchinson UB411, UX405, UX410
AGI Mayrath UB411, UX405, UX410
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
Part Number: 30264 R2
Revised: October 2024
Original Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGI UB 4 Series
Summary of Contents for AGI UB 4 Series
- Page 1 UB & UX 4" Series Utility Grain Auger Operator and Assembly Manual This manual applies to: AGI Westfield UB411, UX405, UX410 AGI UB411, UX405, UX410 AGI Hutchinson UB411, UX405, UX410 AGI Mayrath UB411, UX405, UX410 Read this manual before using product. Failure to...
- Page 2 This product has been designed and manufactured to meet general engineering standards. Other local regulations may apply and must be followed by the operator. All personnel must be trained in the correct operational and safety procedures for this product. Use the sign-off sheet below to record initial and periodic reviews of this manual with all personnel.
-
Page 3: Table Of Contents
UB & UX 4" SERIES – UTILITY GRAIN AUGER CONTENTS 1. Introduction ............................5 1.2 Intended Use ..........................6 1.2.1 Misuse ........................6 2. Safety............................... 7 2.1 Safety Alert Symbol and Signal Words..................7 2.2 General Safety Information....................... 7 2.3 Rotating Flighting Safety ......................8 2.4 Overhead Power Lines ...................... - Page 4 UB & UX 4" SERIES – UTILITY GRAIN AUGER 6. Troubleshooting............................ 29 7. Specifications ............................31 8. AGI Limited Warranty........................... 32 30264 R2...
-
Page 5: Introduction
Keep this manual handy for frequent reference and to review with new personnel. A sign-off form is provided on the inside front cover for your convenience. If any information in this manual is not understood or if you need additional information, please contact AGI or your representative for assistance. -
Page 6: Intended Use
1. INTRODUCTION UB & UX 4" SERIES – UTILITY GRAIN AUGER 1.2. Intended Use The utility auger is intended for use as listed below and described throughout this manual. Use in any other way is considered contrary to the intended use and is not covered by the warranty. Intended use for the utility auger •... -
Page 7: Safety
2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER 2. Safety 2.1. Safety Alert Symbol and Signal Words This safety alert symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury or death, carefully read the message that follows, and inform others. -
Page 8: Rotating Flighting Safety
2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER 2.3. Rotating Flighting Safety • KEEP AWAY from rotating flighting. • DO NOT remove or modify flighting guards, doors, or covers. Keep in good working order. Have replaced if damaged. •... -
Page 9: Guards Safety
2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER 2.7. Guards Safety • Keep guards in place. Do not operate with guard removed. • Do not walk on, step on, or damage guards. • Lock out power before removing a guard. •... -
Page 10: Personal Protective Equipment
2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER 2.9. Personal Protective Equipment The following Personal Protective Equipment (PPE) should be worn when operating or maintaining the equipment. Safety Glasses • Wear safety glasses at all times to protect eyes from debris. Coveralls •... -
Page 11: Safety Equipment
2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER 2.10. Safety Equipment The following safety equipment should be kept on site. Fire Extinguisher • Provide a fire extinguisher for use in case of an accident. Store in a highly visible and accessible place. - Page 12 2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER Figure 1. Safety Decal Locations 30264 R2...
- Page 13 2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER Table 1. Safety Decals Part Number Description 17098 DANGER ROTATING FLIGHTING HAZARD To prevent death or serious injury: • KEEP AWAY from rotating auger flighting. • DO NOT remove or modify auger flighting guards, doors, or covers.
- Page 14 2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 27709 WARNING MISSING GUARD HAZARD To prevent serious injury or death, shut off power and reattach guard before operating machine. 17101 WARNING ENTANGLEMENT HAZARD To prevent serious injury or death:...
- Page 15 2. SAFETY UB & UX 4" SERIES – UTILITY GRAIN AUGER Table 1 Safety Decals (continued) Part Number Description 17096 WARNING To prevent serious injury or death: • Read and understand the manual before assembling, operating, or maintaining the equipment. •...
-
Page 16: Assembly
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 3. Assembly 3.1. Assembly Safety • Do not take chances with safety. The components can be large, heavy, and hard to handle. Always use the proper tools, rated lifting equipment, and lifting points for the job. •... -
Page 17: Install The Intake Assembly
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 5. Secure the tube connector bands with 5/16" x 3/4" bolts and flange lock nuts. Figure 3. Installing tube connector bands 3.3. Install the Intake Assembly 1. Attach the guarded intake assembly to lower end of auger tube. 2. -
Page 18: Install The Hopper Assembly (Optional)
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 3.4. Install the Hopper Assembly (Optional) 1. Screw the stub shaft into the threaded pipe on the lower end of the auger flight. 2. Slide the hopper over the lower flighting. 3. -
Page 19: Install The Head Drive Assembly
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 3.5. Install the Head Drive Assembly 1. Remove all dirt from the upper end of flight shaft. 2. Insert the woodruff key. 3. Slide the pulley onto the flight shaft with the hub facing the auger. The washer should already be in place. -
Page 20: Install The Feed Control Assembly (Optional)
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 3.6. Install the Feed Control Assembly (Optional) 1. Loosely attach the tube clamp to the auger tube with two 5/16" x 3/4" bolts and flange lock nuts. Do not tighten at this time. -
Page 21: Install The Swivel Mount Assembly (Optional)
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 3.7. Install the Swivel Mount Assembly (Optional) 1. Attach the half tube clamps with two 5/16" x 3/4" bolts and flange lock nuts. Figure 8. Installing the Swivel Mount Assembly 2. -
Page 22: Site Installation Procedures
3. ASSEMBLY UB & UX 4" SERIES – UTILITY GRAIN AUGER 3.8. Site Installation Procedures Keep equipment away from overhead power lines and obstructions. Machine is not insulated and electrocution may occur without direct contact. Failure to keep away will result in serious injury or death. -
Page 23: Operation
4. OPERATION UB & UX 4" SERIES – UTILITY GRAIN AUGER 4. Operation For optimal operation, follow these safety precautions, checklists, and instructions. 4.1. Operation Safety • Keep away from rotating and moving parts, including the flighting, drive components, shafts, and bearings. -
Page 24: Operation - Electric Motor Models
4. OPERATION UB & UX 4" SERIES – UTILITY GRAIN AUGER 4.3. Operation — Electric Motor Models When equipped with an Electric Motor: 1. Turn the electric motor on. 2. Run until the utility auger is empty. 3. Turn off motor and lock out power source. 4.4. -
Page 25: Extended Shutdown / End Of Season
4. OPERATION UB & UX 4" SERIES – UTILITY GRAIN AUGER 4.8. Extended Shutdown / End of Season After the season’s use, the utility auger should be thoroughly inspected. Repair or replace any worn or damaged components and complete maintenance as described in Section 5. -
Page 26: Maintenance
• After maintenance is complete, replace all guards, service doors, and/or covers. • Use only genuine AGI replacement parts or equivalent. Use of unauthorized parts will void warranty. If in doubt, contact AGI or your local dealer. 5.2. Maintenance Schedule Follow the Maintenance Schedule below. -
Page 27: Visual Inspection
5. MAINTENANCE UB & UX 4" SERIES – UTILITY GRAIN AUGER 5.3. Visual Inspection Lock out power before inspecting. Check the following during a visual inspection: • Ensure all guards are in place and in good working order. • Examine the utility auger for damage or unusual wear. •... -
Page 28: Tension The Drive Belts
5. MAINTENANCE UB & UX 4" SERIES – UTILITY GRAIN AUGER 5.6. Tension the Drive Belts 1. Remove guard and push on the center of the belt span with a force of approximately 5 lb. The belts will deflect approximately 1" (25 mm) when properly tensioned. Figure 9. -
Page 29: Troubleshooting
The following section covers some causes and solutions to some of the problems that may be encountered. If there is a problem that is difficult to solve, even after having read through this section, please contact your representative or AGI. Have this manual and the serial number available. Auger Cause... - Page 30 6. TROUBLESHOOTING UB & UX 4" SERIES – UTILITY GRAIN AUGER Drive Cause Problem Solution Drive belts jumping off Motor misaligned Ensure drive and driven pulleys are pulleys. correctly aligned Belts mismatched Check Specifications section for correct belt sizes and only replace in pairs Belt tension inadequate Adjust tension Using a lower horsepower...
-
Page 31: Specifications
7. SPECIFICATIONS UB & UX 4" SERIES – UTILITY GRAIN AUGER 7. Specifications Table 2. Utility Auger Specifications & Sizes Specification 4" Upper Section Length Tube Extension Length 5' and 10' Pulley Size 8" Single Belt Size Flighting 3-1/2" OD Top Bearing 7/8"... - Page 32 8. AGI Limited Warranty This warranty relates to AGI Augers (the “Product”) sold by AGI, (referred to herein as the “Seller”) and applies only to the first user of the Product (meaning a purchaser directly from the Seller or from an authorized dealer or distributor of the Product, referred to herein as the “Buyer”).
- Page 33 8. AGI LIMITED WARRANTY UB & UX 4" SERIES – UTILITY GRAIN AUGER 30264 R2...
