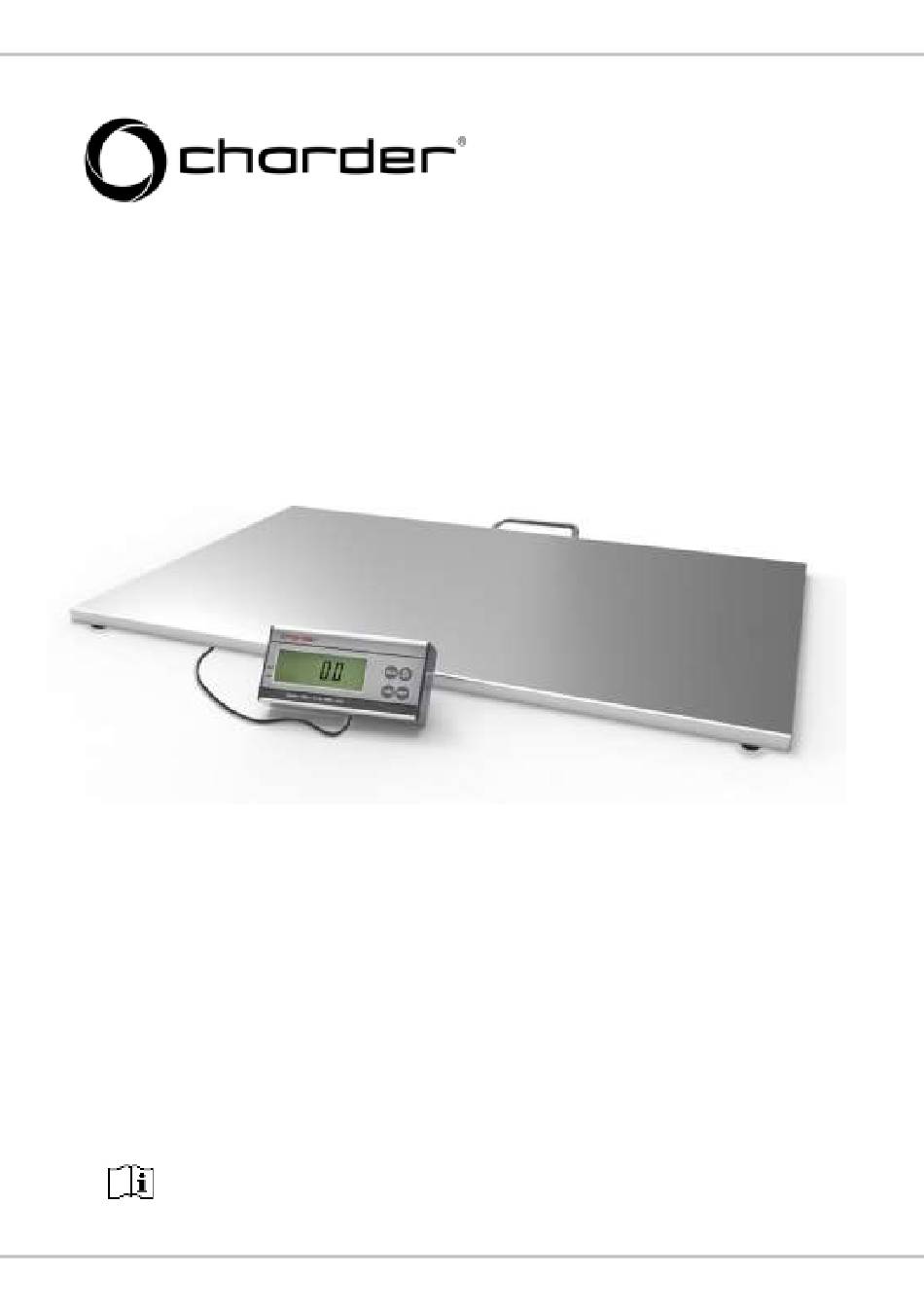

USER MANUAL
VS2400
Veterinary Scale
Please keep the instruction manual at hand all the time for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS2400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder VS2400

Summary of Contents for Charder VS2400

  • Page 1 USER MANUAL VS2400 Veterinary Scale Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Graphic Symbols on Label/Packaging Caution, consult Separate collection for waste of accompanying documents electrical and electronic before use equipment, in accordance with Directive 2002/96/EC Manufacturer of device Manufacturing year of device...
  • Page 3 This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual.

  • Page 4: Table Of Contents

    CONTENTS I. Safety Notes ................5 General Information ..............5 II. Product Specification ............... 7 III. Indicator and Key Functions ........... 8 A Indicator Panel ................ 8 IV. Using Device ................9 A. Basic Operation ..............9 B. Key Function ................9 C.

  • Page 5: Safety Notes

    I. Safety Notes General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 6 ◼ All maintenance, technical inspections, and repairs should be conducted by an authorized Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Disposal ◼...

  • Page 7: Product Specification

    II. Product Specification Model VS2400 (DP4510) Capacity 150 kg /330 lb 180 kg /400 lb Graduation 0.1 kg / 0.2 lb Weight Measurement Unit kg / lb LCD Screen 1.4-inch LCD screen (5 digits) Dimensions Overall 90 (W) x 50(D) x 2.5(H) cm Device Weight 6.2 kg...

  • Page 8: Indicator And Key Functions

    III. Indicator and Key Functions A Indicator Panel (Without hand wave motion) (With hand wave motion to TARE unwanted weight)

  • Page 9: Using Device

    IV. Using Device A. Basic Operation Switch on the device using [ON/OFF] key. The device will automatically perform self-calibration, displaying software version. Once "0.0kg" appears on indicator, device is ready for measurement. Note: If "0.0kg" does not display on indicator, press [TARE] key to zero the device.

  • Page 10: Tare

    D. Tare The tare function allows the user to deduct the weight of objects from the device's measurement result. 1. Place object that needs to be tared onto measurement platform. 2. Press [TARE] key after stable symbol appears on indicator. Display will indicate "0.00 kg".

  • Page 11: Device Setup

    V. Device Setup [TARE] When the device is switched on, press and hold the key for about 6 seconds, until the display shows the "SEt", followed by "Unit" (first option in setting menu). In device setup menu: [HOLD] to cycle through menu option. [TARE] to confirm selection / enter submenu.
  • Page 12 Backlight: Toggle backlight for better visual in low light environment. Backlight options: Auto / On / OFF Press [HOLD] to toggle between options, and [TARE] to confirm selection. Print Setting: Print options: Auto / OFF Press [HOLD] to toggle between options, and [TARE] to confirm selection.

  • Page 13: Port Interface

    IV. Port Interface A. DC Port – Power Supply Plug included AC adaptor into the DC port for power supply. Battery power supply is also available.

  • Page 14: Usb-B Port - Power Supply & Data Transmission

    B. USB-B Port – Power Supply & Data Transmission VS2400 can be powered by USB cable connection. Data transmission to PC software is also available via USB connection (refer to pg.16 Setup USB Connection to PC). C. Foot Switch (Optional) – Hands Free Tare Function...

  • Page 15: Rj45 Port - Scale Connection

    D. RJ45 Port – Scale Connection Connect the scale and indicator with RJ45 cable attached on scale. Modular design of indicator provides easy solution for parts maintenance if needed. Detachable design makes parts maintenance much easier.

  • Page 16: Setup Usb Connection To Pc

    For successful connection, PC hardware must be connected to device using manufacturer's designated USB cable. 1. Hyper Terminal freeware software can be used to connect the device to a PC. The software program can be downloaded from the Charder website: [LINK URL] https://www.chardermedical.com/download.htm 2.
  • Page 17 3. Select COM (1, 2, 3, 4...) under "Connect using" dropdown menu, then press [OK]. 4. Set Port Settings as below: Bits per second: 9600 ⚫ Data bits: 8 ⚫ Parity: None ⚫ Stop bits: 1 ⚫ Flow Control: Xon / Xoff ⚫...

  • Page 18: Send Results From Device To Pc

    B. Send results from device to PC Hyper Terminal will automatically retract data from device when weighing is stabilized.
  • Page 19 Notes _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________...

  • Page 20: Declaration Of Conformity

    Electromagnetic Compatibility Directive 2014/30/EU Electromagnetic Compatibility Regulations 2016 Low Voltage Directive 2014/35/EU Electrical Equipment (Safety) Regulations 2016 RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan CD-IN-00086 REV0005 10/2022...
