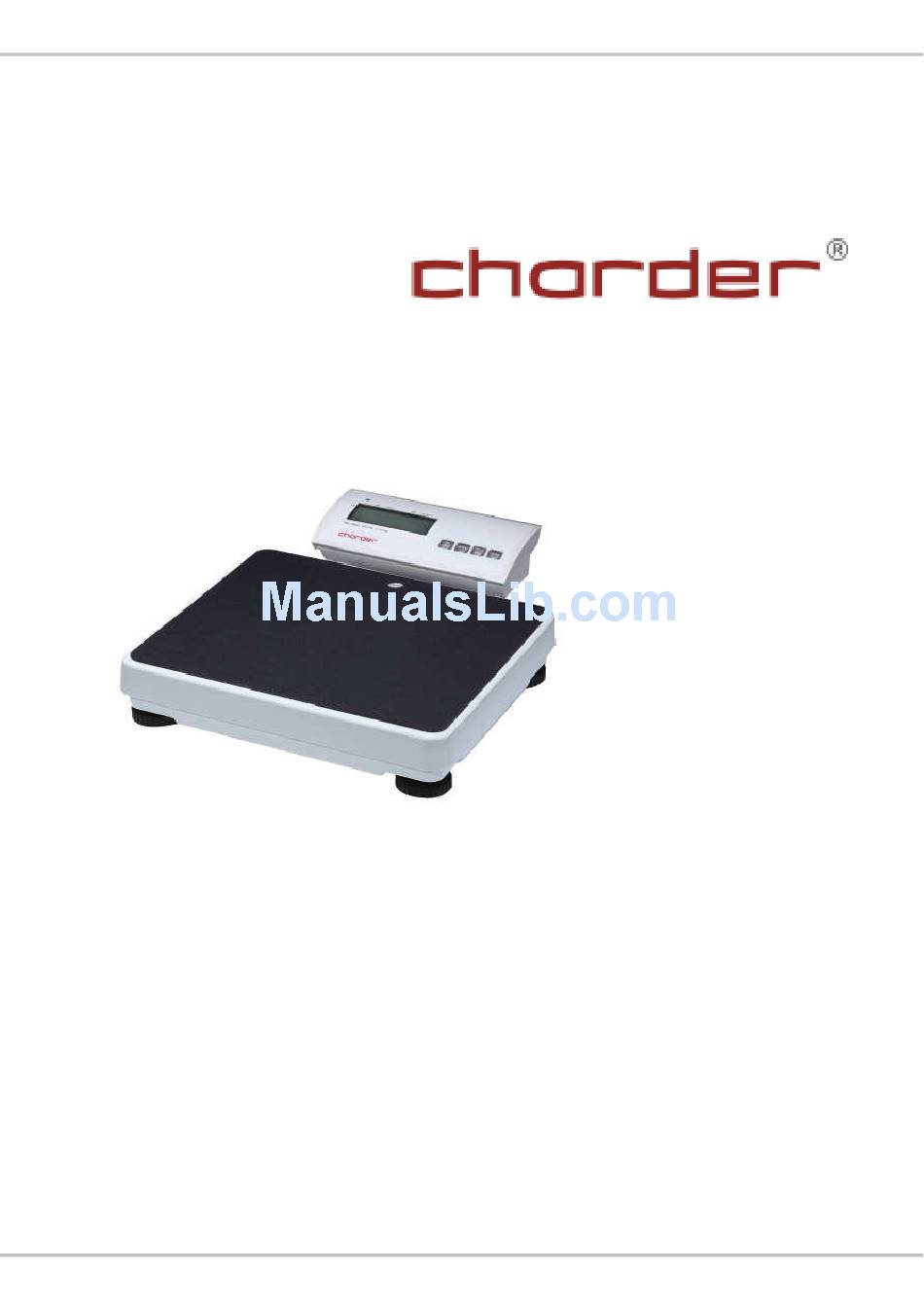

Page 1: User Manual
MS5710 / 5711 / 5712 Medical Scale USER MANUAL Please keep the instruction manual at hand all the time for future reference. -
Page 2: Table Of Contents
TABLE OF CONTENTS PREFACE..................... 2 GENERAL INFORMATION ............... 2 SAFETY INSTRUCTION................2 ENVIROMENTAL..................3 CLEANING....................3 MAINTENANCE..................3 WEIGHING OPERATION................4 WARRANTY-LIABILITY................4 DISPOSING OF THE SCALE..............6 EXPLANATION OF THE GRAPHIC SYMBOLS ........7 EMC GUIDANCE AND MANUFACTURER'S DECLARATION .... 9 SPECIFICATION .................. -
Page 3: Preface
PREFACE Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the operating... -
Page 4: Enviromental
These batteries should be kept away from all children. If swallowed, promptly seek medical assistance. If you have any problem, please contact your local CHARDER MEDICAL service partner. ENVIROMENTAL All batteries contain toxic compounds; disposal of batteries should be delegated to a competent organisation, complying with the deposit of Poisonous Waste Regulation 1972. -
Page 5: Weighing Operation
CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid. - Page 6 , overuse, chemical, electrochemical or electrical interference or humidity, unless this is attributable to negligence on the part of CHARDER MEDICAL.
-
Page 7: Disposing Of The Scale
If operating, climatic or any other influences lead to a major change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides and individual warranty, this means that the unit supplied will be free of faults for the length of the warranty period. -
Page 8: Explanation Of The Graphic Symbols
(Number as an example) “Please note the accompanying documents“ or “Observe operating instructions” Identification of manufacturer of medical product including address Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) Type B applied part... - Page 9 Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Charder scales. Transport and storage temperature limit indicating the upper and the +60°C lower limit (Transport and storage temperature -20°C...
-
Page 10: Emc Guidance And Manufacturer's Declaration
EMC GUIDANCE AND MANUFACTURER S DECLARATION Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE MS5710 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS5710 should assure that it is used in such an environment. Electromagnetic Emission test Compliance... - Page 11 Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE MS5710 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS5710 should assure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic Immunity test...
- Page 12 Power The MEDICAL SCALE 3 A/m 3 A/m frequency(50/60 MS5710 power Hz) magnetic frequency magnetic field IEC fields should be at levels 61000-4-8 characteristic of a typical location in a typical commercial or hospital environment. NOTE UT is the a.c. mains voltage prior to application of the test level. Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE MS5710 is intended for use in the electromagnetic environment specified below.
- Page 13 Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey should be less than the compliance level in each frequency range Interference may occur in the vicinity of equipment marked with the following symbol: Radiated RF 3 V/m 80MHz to 2,5 3 V/m IEC 61000-4-3 NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
- Page 14 Recommended separation distance between portable and mobile RF communications equipment and the MEDICAL SCALE The MEDICAL SCALE MS5710 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE MS5710 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MEDICAL SCALE MS5710 as recommended below, according to the maximum output power of...
-
Page 15: Specification
SPECIFICATION Model MS 5710 MS 5711 / MS5712 300kg x 0.1kg Capacity 300kg x 0.1kg OIML CLASS III ±150g ±200g Accuracy Weight Unit kg/lb Certificate Medical device/ Class III LCD Display 1.0 inch LCD display with 5 and 1/2 digits Dimension 360*410*120mm ON/OFF , UNIT ,... - Page 16 Adaptor type:...
-
Page 17: Panel
PANEL MS 5710 MS 5711 / MS5712... -
Page 18: Key Function
KEY FUNCTION MS 5710 / 5711 / 5712 Description Turn ON/OFF the scale Determine Body Mass Index , To hold weighing result on the display / determine stable weighing value Selecting measuring units between kg or lb. Tare weight during weighing process To reset the display to 0.0kg display / Zero the scale (±2% of full capacity) -
Page 19: Power Adaptor Standards
POWER ADAPTOR STANDARDS CAUTION: The device is only compatible with restricted power adaptors in dashed block below. -
Page 20: Lcd Display Symbols
LCD DISPLAY SYMBOLS Hold Indication NET WEIGHT Indication WEIGHT Indication BMI Indication Definitions Stable symbol: To indicate that the weight is stable. Minor weight: Weight under zero. Zero symbols: Weight is at zero point. Low battery: Battery need to charge or replaced Stable symbol Minor weight Zero symbol... -
Page 21: Using Scale
USING SCALE WEIGHING Switch on the scale using key. The diagnostic scale self-check is performed and the software version is displayed. The „0,00 kg” weight displays on the screen, now the scale is ready for weighing. Note: If „0,00 kg” won’t display on the screen, press key to zero the scale, can be used any time to zero the scale. - Page 22 Switch ‘ON’ the scale using key. The diagnostic self-checks is performed. The scale is ready for weighing when the „0.0 kg” displays on the screen. Place object/ person in the center of the scale plate. Press the key. When the triangle is flashing on the display, the scale records the fluctuating weight values and then calculates average weight and displays the result on the screen.
-
Page 23: Using Tare Function
USING TARE FUNCTION Tare allows the user to zero the instrument to cancel the weight of a container/ clothes from the reading of the instrument, thus giving the true weight of the product/ person being tested. Place the object need to be tare on the tread platform. Press key after the weight stabilizes and stable sign displays. -
Page 24: Using Bmi Feature
USING BMI FEATURE For BMI calculation, height is needed, therefore it is recommended to measure the height of subject before starting weighing procedure and the height must be in centimeters. MS 5710/5711/5712 1. Turn on the scale using key. 2. Proceed to weigh as normal. 3. -
Page 25: Ms 5710/5711/5712: Set-Up
7. The B.M.I. will display 8. Press again to return to normal mode. 9. Use to reset the display to 0.0kg/ Zero the scale Body Mass Index Categories Classification of weight for adults over 18 years on the basis of Body Mass Index according to WHO, 2000 EK IV and WHO 2004 (WHO - World Health Organization). - Page 26 MS 5710 / 5711 / 5712: Switch ON the scale and long press key for 3 seconds. First “SETUP” and then “A.OFF” will display successively. AUTO-OFF TIME SETUP This enables operator to select the auto turn OFF time of the device. BUZZER ON/OFF SETUP This enables operator to select beep sound ON/OFF.
-
Page 27: Print Function
PRINT FUNCTION The Weighing, BMI and Height results can be printed-out for records using RS232 interface cable (included in accessory kit), which is connected with the round plug at the back terminal. The format presented below is the standard format of results print-out and cannot be changed. - Page 28 RS232 Pin out PIN 2--TXD PIN 2--TXD PIN 3--RXD PIN 3--RXD PIN 5--GND PIN 5--GND Connecting with PC- MS 5710/5711/5712 can be connected to PC to transfer the weighing results. 1. Start Hyper Terminal Start Hyper Terminal program from clicking Start Menu →...
-
Page 29: Standard Accessories For Ms5712
2. New Connection Description Give new connection a name then click OK. 3. Select Your COM Port Click Connect to select your COM port. Usually there’s only one option for select. Then click OK. 4. Port Settings Click Bits per second to set up rate at 9600, Data bits at 8, Parity at None, Stop bits at 1 and Flow control at Hardware. - Page 30 Accessories Item Spec. Qty. Adjustable feet M6*15 Spacer ∮6.6*∮13 Fixed plate (top) SS-4961 Fixed plate (bottom SS-4971 Tapping Screw M3*10 User manual IN-1159 RS232 cable WR-2781 Adaptor Plastic anchor 1”(white) Screw 4*20...
-
Page 31: Instruction For Charging And Connecting
INSTRUCTION FOR CHARGING AND CONNECTING prompt displays on the LCD, please charge the scale with MS 5710/5711/5712 exclusive adaptor or replace the batteries. Locate adaptor plug-in at the back side of indicator. CAUTION: Always connect the AC adaptor with the indicator before connecting to the mains power supply. -
Page 32: Instruction For Replacing Batteries
INSTRUCTION FOR REPLACING BATTERIES 1. Removing the battery cover. 2. Take the battery housing out. 3. Replacing new batteries. 4. Batteries are well installed. 5. Installing the battery housing. 6. Reinstalling the battery cover. -
Page 33: Error Message
ERROR MESSAGE... -
Page 34: Troubleshooting
TROUBLESHOOTING Troubleshooting for defective modes: Original purchaser can enjoy the benefits under the effective Warranty against functional defects in material and workmanship subject to the terms and conditions listed in the yearly Warranty Program & Return Policy. Our warranty service program includes the following: 1. - Page 35 2. Indicator showing “0000” ZERO SPAN out of range Incorrect weighing result - Avoid damages by external environment force such as free-drop to the ground, collision by external objects, etc. Proper re-calibration procedure required to correct the setting of weighing accuracy. Interference due to RF disturbance, ground vibration…etc.
- Page 36 2. LCD display faulty Possible hardware defects include: Uneven brightness in the LCD display screen & texts color blurred, smeared rainbow screen, incorrect decimal display LCD PIN broken or short circuit PCB cooper foil broken & loosed welding Unable to save or read data – IC or transistor faulty, internal parts broken.
- Page 38 Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412 ,Taiwan (R.O.C.) FDA no.: D051882 (for model MS5710. MS5711) IN-1159 [10126M] 05/2017...
