Summary of Contents for Rice Lake Healthweigh H151-11-8

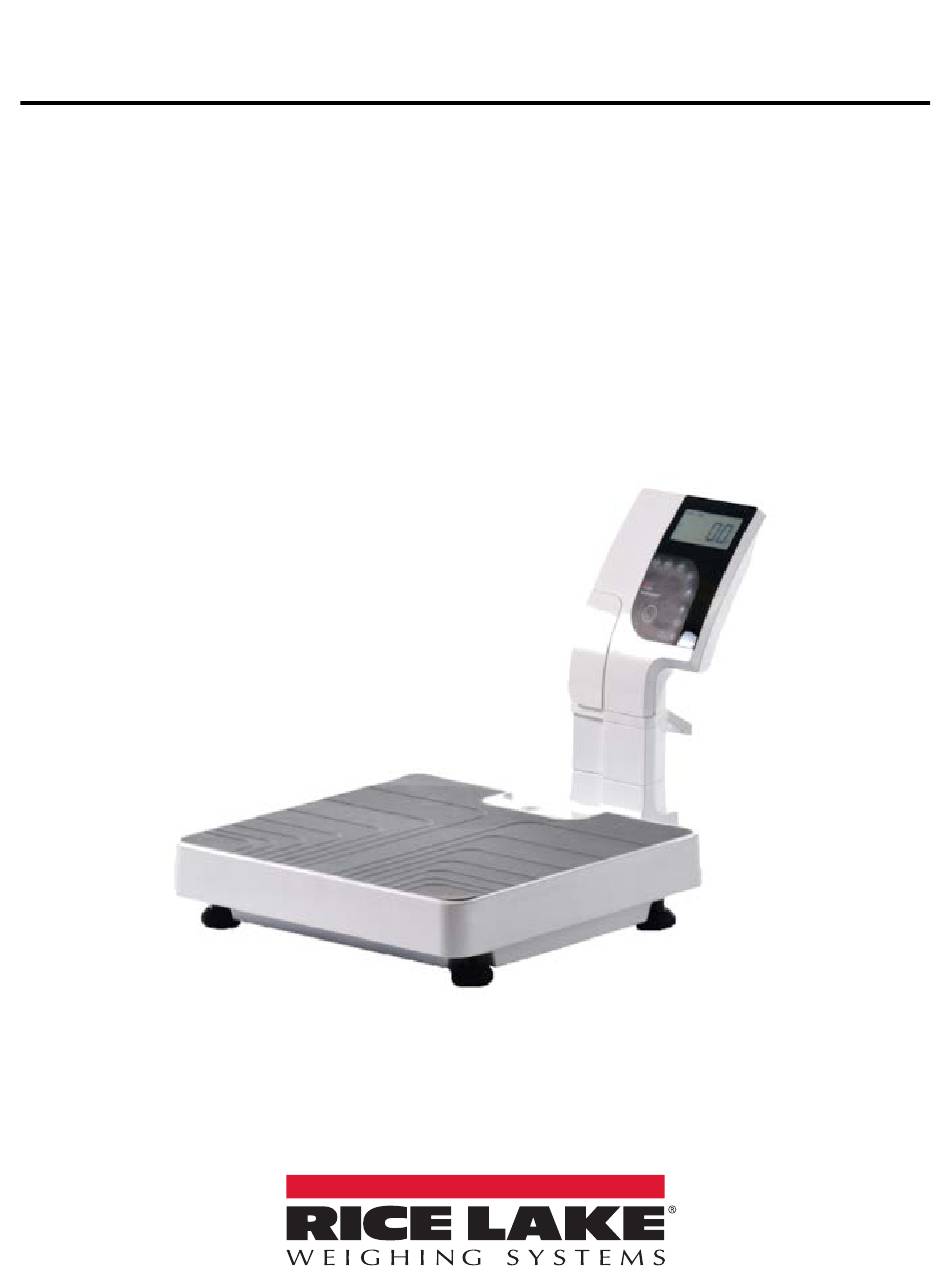

- Page 1 Healthweigh H151-11-8 ® Class I MDR Physician Scale Floor Level Operation Manual August 13, 2024 PN 217240 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Revision History
August 13, 2023 Updated compliance and certification sections Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. -
Page 4: Table Of Contents
6.0 Appendix ................20 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Product Disposal
Healthweigh H151-11-8 CAUTION: To prevent injury, never leave the person being weighed unattended while on the scale. To prevent injury, do not transport the scale while a patient is on the scale. Make sure no load is on the scale before transporting the scale. -
Page 7: Setup
Figure 2-1. Scale Platform (left) and Upper Pillar (right) CAUTION: Take care not to drop parts. Mishandling parts may cause damage to parts or injury to personnel. Use the following tools to assemble the scale: Philips screwdriver size 2 © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Assembling The Scale
Healthweigh H151-11-8 Assembling the Scale 1. Insert the bottom pillar to the scale platform, using the studs as guides. CAUTION: Take care NOT to catch the load cell cable between these parts. IMPORTANT: Pay attention that there are two screw holes on the bottom pillar, which on assembly needs to be position upward. -
Page 9: Setting The Device
Figure 2-4. Scale Footing 6. Align the scale by turning the foot screws the air bubble in the spirit level must be precisely positioned in the middle of the circle. Figure 2-5. Scale Footing © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Operation
Healthweigh H151-11-8 3.0 Operation Keypad Figure 3-1. Keypad Name Function On/Off Turns the scale on or off. Print kg/lb A long press will trigger a transmission of data sent out by RS232 (see Section 3.8 on page 14). When data is sent out from the port, the display flashes the word PRINT to acknowledge the data was sent. -
Page 11: Display
Indicates BMI calculation is on HOLD Indicates weight reading will remain on screen until release (by pressing the HOLD again) Unit of mass on the Imperial and US customary measurement systems Table 3-2. Display Descriptions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Scale Operation
Healthweigh H151-11-8 Scale Operation 1. To operate the scale, using the AC adapter, insert the AC adapter plug into the back of the scale and the AC adapter in to the wall power socket. 2. To operate the scale with dry batteries, insert the batteries (if it is the initial use). -
Page 13: Rechargeable Battery
No battery Table 3-3. Battery Status Indicators • If external power supply is connected the battery flag is turned off. • When on battery, the backlight power is reduced to 60 percent. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Power And Communication Connections
Healthweigh H151-11-8 Power and Communication Connections Serial Communication Port USB Communication Port Charge Indication LED Power Supply Connection (9VDC/0.5 Amp Figure 3-4. Back of Indicator Port Location Serial Communication Port The RS232 communication cable will be connected to the left connector, on the connectors’ panel marked with the word COM. -
Page 15: Print Button
For kg Unit of Measurement: PATIENT WEIGHT 60.1 kg PATIENT HEIGHT 170.0 cm PATIENT BMI 20.8 In case of underweight or overweight, the word UNDER or OVER will be sent accordingly. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Maintenance
Healthweigh H151-11-8 4.0 Maintenance This section provides instructions for maintenance, cleaning and troubleshooting Healthweigh scale models. IMPORTANT: Before first use and after periods of non-use, check the scale and batteries for proper operation and function. If the scale does not operate correctly, refer to qualified service personnel. -
Page 17: Troubleshooting
Definition Check/Replace A/D saturation Check loadcell - Call technician Error in reading Real Time Clock Battery of real time is empty or faulty board - Call technician Table 4-2. Error List © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Specifications
Healthweigh H151-11-8 5.0 Specifications H151-11-6 Capacity and Graduation Max 250 kg, Min 2 kg, Graduation (“e”) 0.1 kg Power Requirements Adapter 240V/100, 50/60Hz-9 VDC, 500mA Use only medically approved mains adapters compliant with EN60601-1 standards. Environmental Operating Temperatures: 0°C to 40°C / 32°F to 104°F Storage Temperatures: 0°C to 50°C / 32°F to 122°F... -
Page 19: Appendix
Immunity test level (A/m) 30 kHz 134.2 kHz Pulse modulation, 2.1 kHz 13.56 MHz Pulse modulation, 50 kHz : rated voltage(s); E.g. 25/30 cycles means 25 cycles at 50Hz or 30 cycles at 60Hz © Rice Lake Weighing Systems ● All Rights Reserved... - Page 20 Healthweigh H151-11-6 Guidance and Manufacture's Declaration – Electromagnetic Emissions The medical scale is suitable for use in the specified electromagnetic environment and it has meets the following standard’s emission requirements. Phenomenon Profession Healthcare Facility Environment Home Healthcare Environment Conducted and radiated RF emissions CISPR 11, Group 1, Class B CISPR 11, Group 1, Class B Harmonic distortion...
- Page 22 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 August 13, 2024 PN 217240 Rev B www.ricelake.com...
