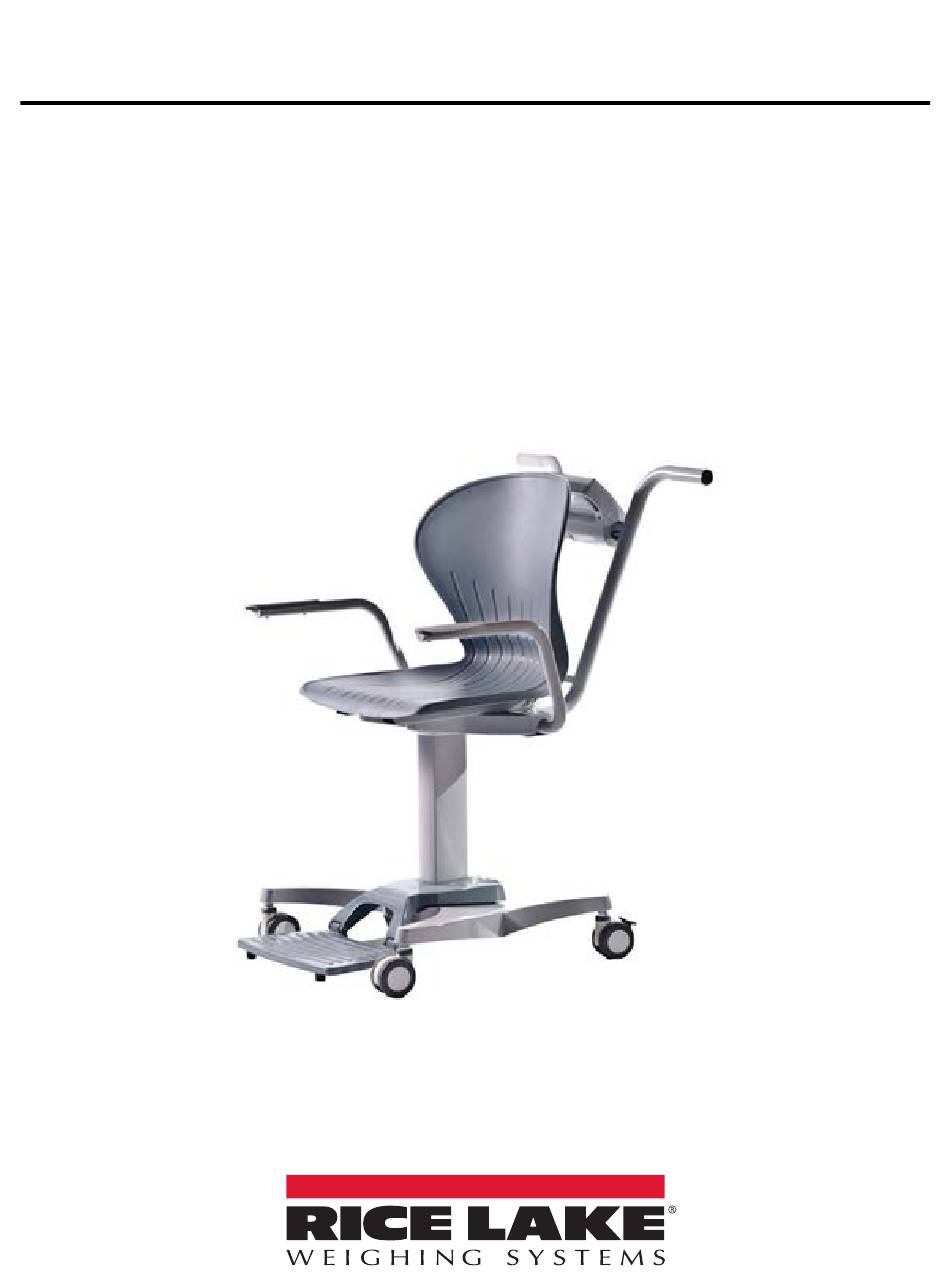

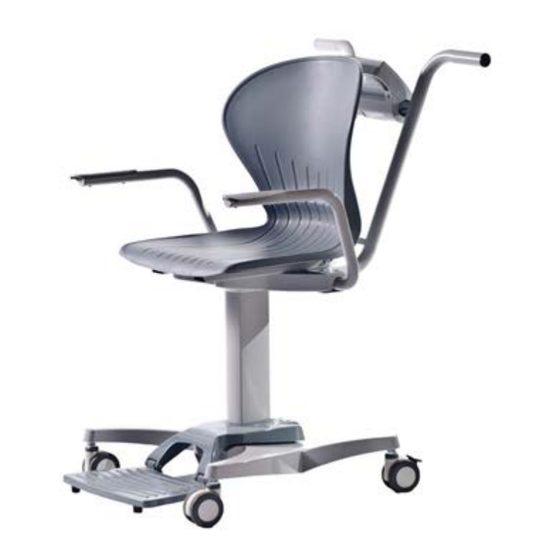

- Page 1 Healthweigh H551-10-1 ® Class I MDR Chair Scale Operation Manual August 13, 2024 PN 217725 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 August 13, 2024 Updated compliance and specification sections Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Appendix ................20 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Disposal
Healthweigh H551-10-1 WARNING: Failure to heed could result in serious injury or death. Do not use in the presence of flammable materials. Operating at other voltages and frequencies than specified could damage the equipment. Use only medical approved mains adapters compliant with EN60601-1 standard. -
Page 7: Setup
3. Use the Allen key from the Parts Inside box to release both the screws holding the back handle frame. IMPORTANT: Do not unscrew the screws completely. Figure 2-1. Remove the Chair from Packaging © Rice Lake Weighing Systems ● All Rights Reserved... - Page 8 Healthweigh H551-10-1 4. Rotate the main handle so the indicator will be facing up. 5. Insert the main handle into the frame and secure it with the screws. IMPORTANT: Position the load cell cable on the grooves to avoid damages to the cable.
-
Page 9: Transporting The Scale
4. Roll the scale to its new location. 5. Gently lay the scale on the ground. 6. Unfold the scale (see Section 2.2 on page 7. Plug the power adapter unit into the socket. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Operation
Healthweigh H551-10-1 3.0 Operation Keypad Figure 3-1. Keypad Name Function On/Off Turns the scale on or off. Print - kg A long press will trigger a transmission of data sent out by RS232 (see Section 3.8 on page 14). When data is sent out from the port, the display flashes the word PRINT to acknowledge the data was sent. -
Page 11: Display
Indicates BMI calculation is on HOLD Indicates weight reading will remain on screen until release (by pressing the HOLD again) Unit of mass on the Imperial and US customary measurement systems Table 3-2. Display Descriptions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Scale Operation
Healthweigh H551-10-1 Scale Operation 1. Power the scale using either method below: • Connect the scale to the wall outlet with the AC adapter. • Ensure rechargeable batteries are installed. 2. Press the ON/OFF button to turn the scale on. The display will show START, display test, version number and finally 0.000. -
Page 13: Rechargeable Battery
• When on battery, the backlight power is reduced to 60 percent. NOTE: Charge indicator LED will light RED upon connecting the power adapter. The LED will light GREEN when the rechargeable batteries are fully charged. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Power And Communication Connections
Healthweigh H551-10-1 Power and Communication Connections Charge Indication LED USB Communication Port Serial Communication Port Power Supply Connection (9VDC /0.5 Amp) Figure 3-4. Back of Indicator Port Location Serial Communication Port The RS232 communication cable will be connected to the lower right connector, on the connectors’ panel marked with the word COM. -
Page 15: Print Button
For kg Unit of Measurement: PATIENT WEIGHT 60.1 kg PATIENT HEIGHT 170.0 cm PATIENT BMI 20.8 In case of underweight or overweight, the word UNDER or OVER will be sent accordingly. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Maintenance
Healthweigh H551-10-1 4.0 Maintenance This section provides instructions for maintenance, cleaning and troubleshooting Healthweigh scale models. IMPORTANT: Before first use and after periods of non-use, check the scale and batteries for proper operation and function. If the scale does not operate correctly, refer to qualified service personnel. -
Page 17: Troubleshooting
Definition Check/Replace A/D saturation Check loadcell - Call technician Error in reading Real Time Clock Battery of real time is empty or faulty board - Call technician Table 4-2. Error List © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Specifications
Healthweigh H551-10-1 5.0 Specifications H551-10-1 Capacity and Graduation Max 300 kg, Min 2 kg, Graduation (“e”) 0.1 kg Power Requirements Adapter 240V/10, 50/60Hz-9 VDC, 500 mA Use only medically approved mains adapters compliant with EN60601-1 standards. Environmental Operating Temperatures: 0°C to 40°C Storage Temperatures: 0°C to 50°C... -
Page 19: Appendix
Immunity test level (A/m) 30 kHz 134.2 kHz Pulse modulation, 2.1 kHz 13.56 MHz Pulse modulation, 50 kHz : rated voltage(s); E.g. 25/30 cycles means 25 cycles at 50Hz or 30 cycles at 60Hz © Rice Lake Weighing Systems ● All Rights Reserved... - Page 20 Healthweigh H551-10-1 Guidance and Manufacture's Declaration – Electromagnetic Emissions The medical scale is suitable for use in the specified electromagnetic environment and it has meets the following standard’s emission requirements. Phenomenon Profession Healthcare Facility Environment Home Healthcare Environment Conducted and radiated RF emissions...
- Page 22 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 August 13, 2024 PN 217725 Rev B www.ricelake.com...
