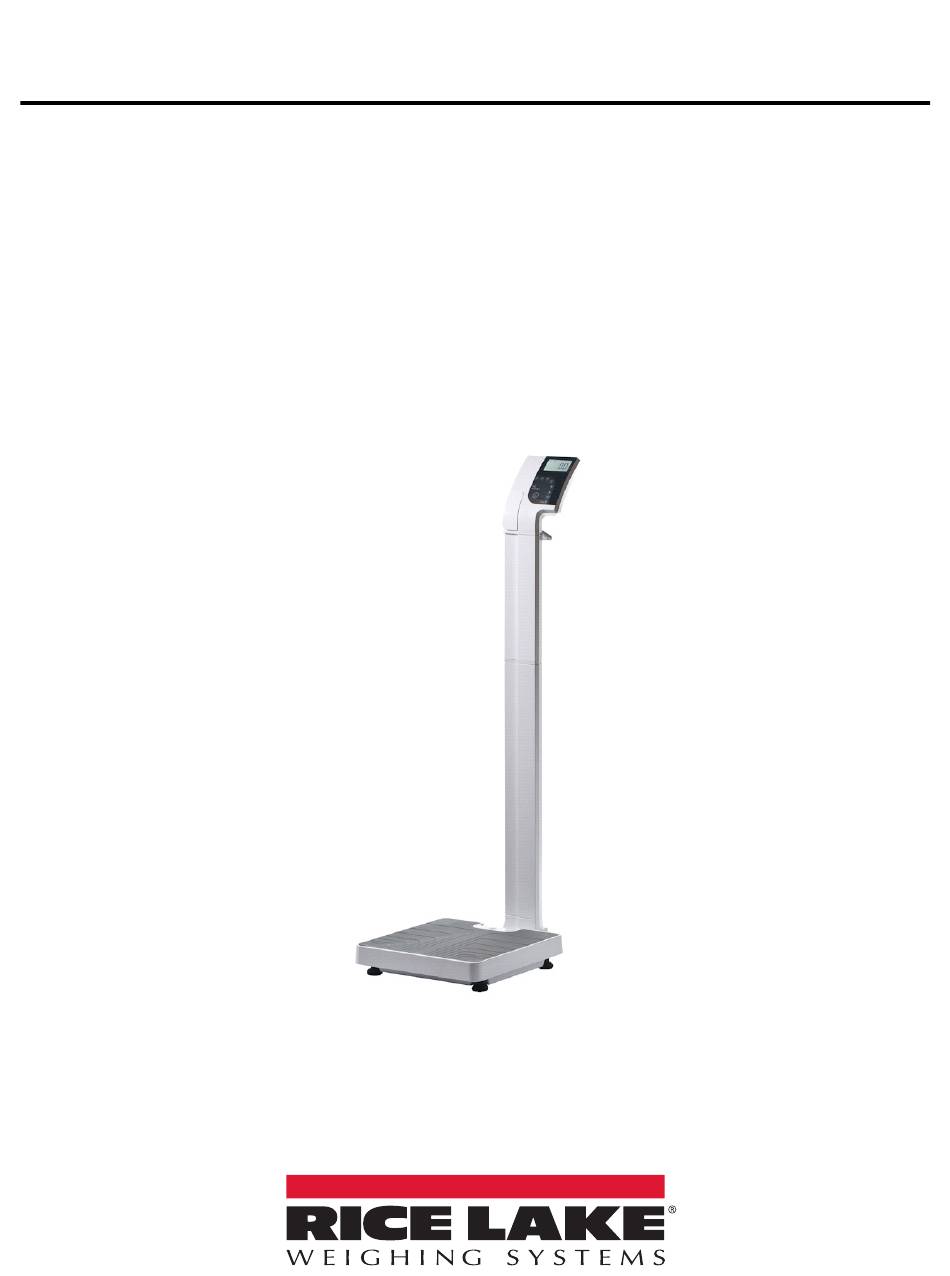

- Page 1 Healthweigh H151-11-6 ® Class I MDR Physician Scale Waist Level Operation Manual August 19, 2024 PN 217229 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 August 13, 2024 Updated compliance and certification sections Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Appendix ................21 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 6: Disposal
Healthweigh H151-11-6 CAUTION: To prevent injury, never leave the person being weighed unattended while on the scale. To prevent injury, do not transport the scale while a patient is on the scale. Make sure no load is on the scale before transporting the scale. -
Page 7: Setup
• Bottom pillar CAUTION: Take care not to drop parts. Mishandling parts may cause damage to parts or injury to personnel. Use the following tools to assemble the scale: Philips screwdriver size 2 © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Assembling The Scale
Healthweigh H151-11-6 Assembling the Scale 1. Insert the bottom pillar to the scale platform, using the studs as guides. CAUTION: Take care NOT to catch the load cell cable between these parts. IMPORTANT: Pay attention that there are two screw holes on the bottom pillar, which on assembly needs to be position upward. -
Page 9: Transporting The Scale
2. Tilt the scale back so it can freely move on the wheels. 3. Relocate the scale to its new location. 4. Set the device in an upright position. 5. Plug the power adapter unit into the socket. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Setting The Device
Healthweigh H151-11-6 Setting the Device 1. Setup the device so it only makes contact with the ground via the foot screw. 2. Setup the scale so that the weighing area does not touch other objects. 3. While you are weighing, ensure that the patient doesn’t touch the scale display or pole. -
Page 11: Operation
Enters BMI mode. Only works if there is a locked weight shown on the display and the function is turned on in the con- figuration settings. Up/Down Adjusts the value of the flashing digit/number. Table 3-1. Keypad Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Display
Healthweigh H151-11-6 Name Function Clear Causes the value to return to default (170.0 cm). In BMI final result display, pressing this key will return the scale to weighing mode. Enter Accepts the value of the parameter last entered and moves to the next stage. -
Page 13: Scale Operation
2. When the person steps off the scale the weight will remain the same. The zero flag will not turn on. 3. At this stage the ZERO key will not work. The only way to return to zero from here is to press the HOLD\RELEASE key once more. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Rechargeable Battery
Healthweigh H151-11-6 Rechargeable Battery For dry cell batteries, the indicator can be supplied with 6 AA dry cell batteries, which will be inserted at the back of the indicator. The batteries will be secured with a cover placed on the indicator back. -
Page 15: Power And Communication Connections
For the USB connection, the USB driver installation will be on Windows® systems. The USB driver can be downloaded from the distributor and installation will be with the distributor’s guidance. The scale support ESC protocol, for addition information contact distributor. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Print Button
Healthweigh H151-11-6 Print Button A long press will send data from both RS232 and USB ports. When data is transmitted out via a port the display flashes the word PRINT to acknowledge the data was sent. In weight mode PATIENT WEIGHT 60.1 kg... -
Page 17: Maintenance
WARNING: Inappropriate batteries placement - will cause damage to batteries and might ignite the batteries. Calibration Procedure Calibration to be performed by authorized personnel only. IMPORTANT: Scales with OIML Class III compliance have a seal to prevent any unauthorized person from performing calibration. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Troubleshooting
Healthweigh H151-11-6 Troubleshooting Refer to the following instructions to check and correct any failures before contacting service personnel. Symptom Possible Cause Corrective Action Connect scale to power source Dead battery Scale does not turn on when Replace batteries using rechargeable battery... -
Page 19: Specifications
Display Height: 133 cm Weight: 10.5 kg WARNING: In order to comply with EN60601-1, use UL/CE approved AC/DC adapter UE15WPC-1201255PA. The scale is not intended for use in the presence of flammable mixtures. © Rice Lake Weighing Systems ● All Rights Reserved... - Page 20 Healthweigh H151-11-6 6.0 Appendix Guidance and Manufacture's Declaration – Electromagnetic Immunity The medical scale is suitable for use in the specified electromagnetic environment and it has meets the following immunity test levels. Higher immunity levels may cause the medical scale’s essential performance lost or degraded.
-
Page 21: Appendix
DECT; LTE Band 1, 3, 4, 25; UMTS 2450 2400-2570 Bluetooth, Pulse modulation WLAN, 217Hz 802.11 b/g/n, RFID 2450, LTE Band 7 5240 5100-5800 WLAN 802.11 Pulse modulation 217Hz 5500 5785 © Rice Lake Weighing Systems ● All Rights Reserved... - Page 22 Healthweigh H151-11-6 www.RiceLake.com Visit our website...
- Page 24 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 August 19, 2024 PN 217229 Rev B www.ricelake.com...
