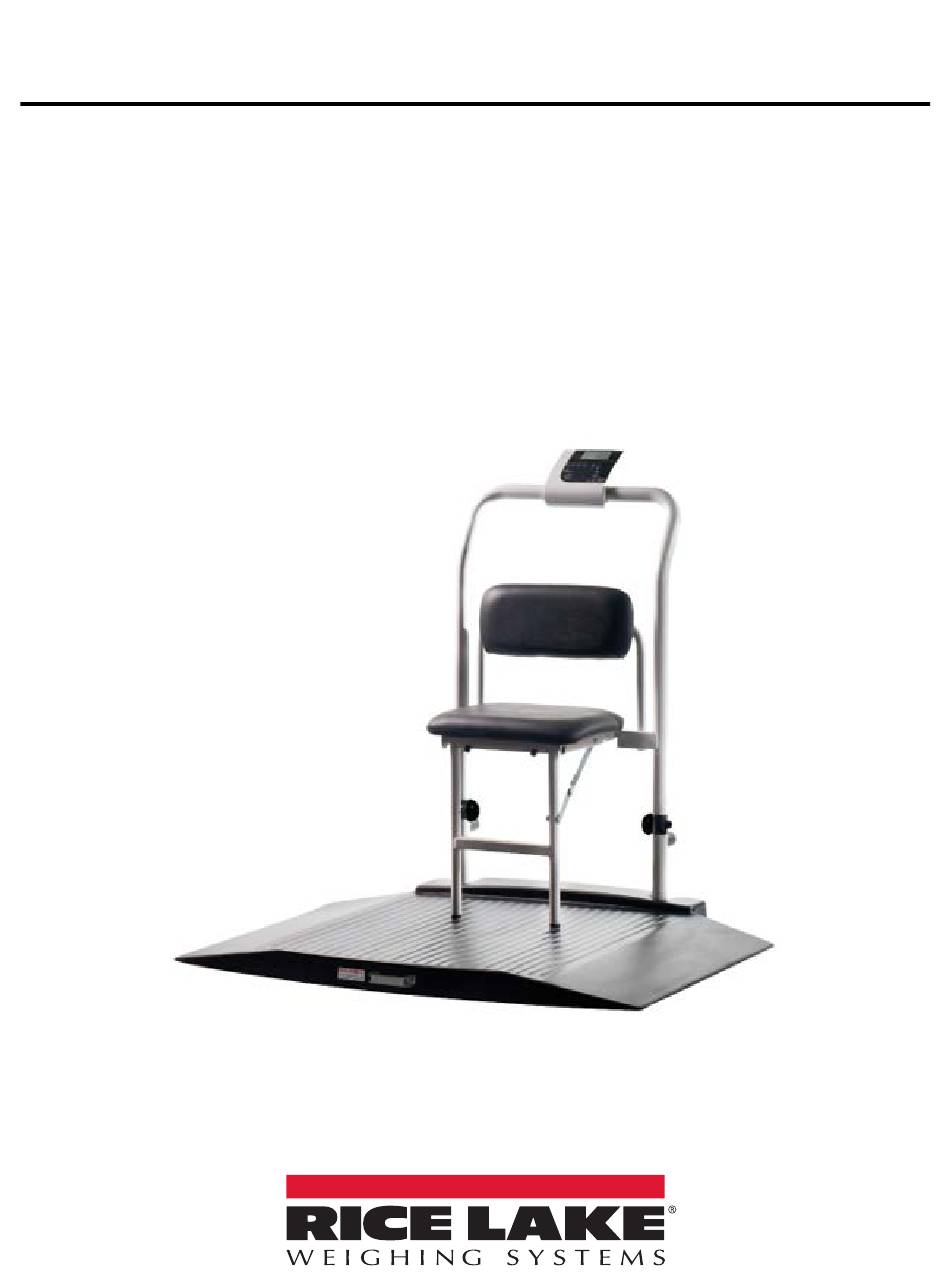

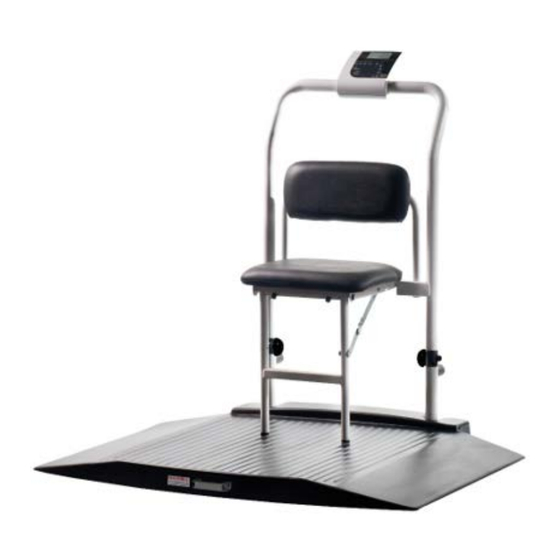

- Page 1 Healthweigh H351-10-4 ® Class I MDR Multifunctional Wheelchair Scale Operation Manual August 20, 2024 PN 217618 Rev C...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 August 20, 2024 Updated compliance and certification sections Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Appendix ................20 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. - Page 6 Healthweigh H351-10-4 CAUTION: To prevent injury, never leave the person being weighed unattended while on the scale. To prevent injury, do not transport the scale while a patient is on the scale. Make sure no load is on the scale before transporting the scale.
-
Page 7: Setup
The scale design is not explosion-proof. Flammable mixture can form from anesthetic means containing oxygen or nitrous oxide (laughing gas). Scale Parts Indicator Handrail Seat Brace Legs Brace Knobs Weighing Surface © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Unpacking The Scale
Healthweigh H351-10-4 Unpacking the Scale Visually inspect the scale to ensure all components are included in the box. The box should contain the scale, the indicator, this manual, a communication cable and a power adapter. Use the carrying handle on the front surface of the scale base to lift the scale out of the packaging. Place the scale gently on all four feet. -
Page 9: Configuring The Scale For Seated Use
Figure 2-4. Fold Into Horizontal Position 2. Lower the legs and extend leg brackets to their locked position. Extend and Lock Leg Brackets Lower Legs Figure 2-5. Lower Legs and Lock Leg Brackets © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Configuring The Scale For Wheelchair Use
Healthweigh H351-10-4 2.3.2 Configuring the Scale for Wheelchair Use Seat must be fully folded down to enable wheelchair access to the scale surface. 1. Bend leg brace up. 2. Fold seat leg in and under the seat. 3. Fold seat down. -
Page 11: Operation
Enters BMI mode. Only works if there is a locked weight shown on the display and the function is turned on in the con- figuration settings. Up/Down Adjusts the value of the flashing digit/number. Table 3-1. Keypad Functions © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Display
Healthweigh H351-10-4 Name Function Clear Causes the value to return to default (170.0 cm). In BMI final result display, pressing this key will return the scale to weighing mode. Enter Accepts the value of the parameter last entered and moves to the next stage. -
Page 13: Scale Operation
3. The ZERO indicator will not turn on. At this stage the Zero button will not work. The only way to return to zero from here is to press the HOLD\RELEASE key once more. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Rechargeable Battery
Healthweigh H351-10-4 Tare Function 1. When the weight is below the START parameter value press the TARE key. 2. The default tare value is displayed (factory programmed at 15.0 kg) while the ZERO annunciator is flashing. 3. Use the UP/DOWN key to adjust the value. -
Page 15: Power And Communication Connections
For the USB connection, the USB driver installation will be on Windows® systems. The USB driver can be downloaded from the distributor and installation will be with the distributor’s guidance. The scale support EMR protocol, for addition information contact distributor. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Print Button
Healthweigh H351-10-4 Print Button A long press will send data from both RS232 and USB ports. When data is transmitted out via a port the display flashes the word PRINT to acknowledge the data was sent. In weight mode PATIENT WEIGHT 60.1 kg... -
Page 17: Maintenance
WARNING: Replacing the rechargeable battery should be performed by qualified service personnel. Calibration Procedure Calibration to be performed by authorized personnel only IMPORTANT: Scales with OIML Class III compliance have a seal to prevent any unauthorized person from performing calibration. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Troubleshooting
Healthweigh H351-10-4 Troubleshooting Refer to the following instructions to check and correct any failures before contacting service personnel. Symptom Possible Cause Corrective Action Connect scale to power source Dead battery Scale does not turn on when Replace batteries using rechargeable battery... -
Page 19: Specifications
Width: 40 cm Depth: 27.5 cm WARNING: In order to comply with EN60601-1, use UL/CE approved AC/DC adapter UE15WPC-1201255PA. The scale is not intended for use in the presence of flammable mixtures. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 20: Appendix
Healthweigh H351-10-4 6.0 Appendix Guidance and Manufacture's Declaration – Electromagnetic Immunity The medical scale is suitable for use in the specified electromagnetic environment and it has meets the following immunity test levels. Higher immunity levels may cause the medical scale’s essential performance lost or degraded. - Page 21 DECT; LTE Band 1, 3, 4, 25; UMTS 2450 2400-2570 Bluetooth, Pulse modulation WLAN, 217Hz 802.11 b/g/n, RFID 2450, LTE Band 7 5240 5100-5800 WLAN 802.11 Pulse modulation 217Hz 5500 5785 © Rice Lake Weighing Systems ● All Rights Reserved...
- Page 22 Healthweigh H351-10-4 www.RiceLake.com Visit our website...
- Page 24 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 August 20, 2024 PN 217618 Rev C www.ricelake.com...
