DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWINGS Page ELECTRIC CIRCUIT SCHEMA Page... -
Page 2: Ageneral Information
DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty. -
Page 3: A1 Product Description

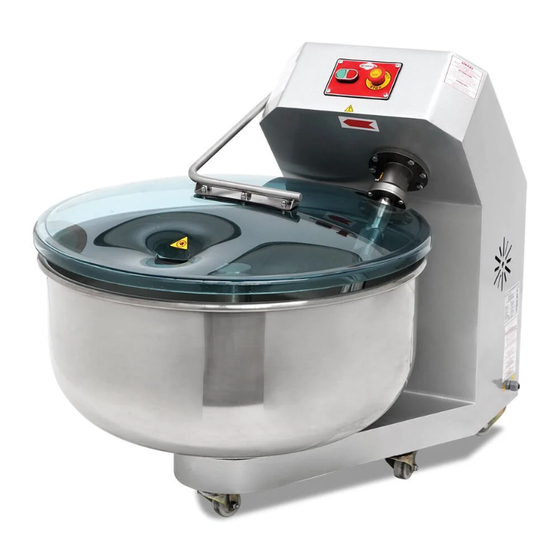

Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *Professional Spiral Dough Mixer,that provides high efficiency has been designed to be used in industrial kitchens. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) HY.01.K 518x858x771 550x960x930 HY.02.K 518x858x771 550x960x930 HY.03.K 593x908x772 590x1060x940 HY.04.K... -
Page 4: A3 Transportation
DOUGH KNEADING MACHINE TRANSPORTATION *This appliance can not be moved by hand from area to area.It must be moved on pallet with Kasap Tip Dik Buzdolapları forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol. -
Page 5: Csafety Instructions
DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ... -
Page 6: Doperation
Kasap Tip Dik Buzdolapları *Control Panel; A : Start Button B : Stop Button C : Urgent Stop Button HY.01.K-02.K-03.K-04.K-05.K-06.K-07.K-08.K-11.K-12.K *Operating; • Before operating,clean the bowl with a wet cloth and dry. • In order to operate the appliance,lift urgent stop button and press start button. -
Page 7: Cleaning & Maintenance Page
DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE ➢ CLEANING AND MAINTENANCE AFTER EVERY USE • Clean the mixer attachments after every kneading process.Otherwise dough remains that occur in these places may make appliance’s operating difficult. • Always turn off the appliance and disconnect from the power supply before cleaning. •... -
Page 8: Gspare Part List- Exploding Drawings
DOUGH KNEADING MACHINE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları HY.01.K / HY.02.K... -
Page 9: Product Name
DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: HY.01.K / HY.02.K PRODUCT NAME PRODUCT CODE ELECTRIC MOTOR - HY.01.K M.ELK-MTR-RSM-029 ELECTRIC MOTOR - HY.02.K M.ELK-MTR-RSM-024 MOTOR PULLEY YDK-ERS.HY-CN-0025 MOTOR FOOT TIRE M.ENJ-ERS-LST-017 VARIBELT BELT M.KYS-VKY-009 REDUCER M.MON-RDK-007... - Page 10 DOUGH KNEADING MACHINE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları HY.03.K / HY.04.K...
-
Page 11: Product Code
DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: HY.03.K / HY.04.K PRODUCT NAME PRODUCT CODE ELECTRIC MOTOR - HY.03.K M.ELK-MTR-RSM-029 ELECTRIC MOTOR - HY.04.K M.ELK-MTR-RSM-024 MOTOR PULLEY YDK-ERS.HY-CN-0025 MOTOR FOOT TIRE M.ENJ-ERS-LST-017 VARIBELT BELT M.KYS-VKY-009 REDUCER PULLEY YDK-ERS.HY-CN-0022 REDUCER... - Page 12 DOUGH KNEADING MACHINE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları HY.05.K / HY.06.K...
- Page 13 DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: HY.05.K / HY.06.K PRODUCT NAME PRODUCT CODE M.ELK-MTR-RSM-030 ELECTRIC MOTOR - HY.05.K ELECTRIC MOTOR - HY.06.K M.ELK-MTR-RSM-031 MOTOR PULLEY YDK-ERS.HY-CN-0025 M.ENJ-ERS-LST-017 MOTOR FOOT TIRE VARIBELT BELT M.KYS-VKY-009 REDUCER PULLEY YDK-ERS.HY-CN-0022 REDUCER...
- Page 14 DOUGH KNEADING MACHINE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları HY.07.K / HY.08.K...
- Page 15 DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE: HY.07.K / HY.08.K PRODUCT NAME PRODUCT CODE ELECTRIC MOTOR - HY.07.K M.ELK-MTR-RSM-032 ELECTRIC MOTOR - HY.08.K M.ELK-MTR-RSM-033 MOTOR PULLEY YDK-ERS.HY-CN-0026 REDUCER PULLEY YDK-ERS.HY-CN-0023 VARIBELT BELT M.KYS-VKY-036 REDUCER M.MON-RDK-009 REDUCER FLANGE M.MON-RDK-012...
- Page 16 DOUGH KNEADING MACHINE SPARE PART LIST-EXPLODING DRAWING Kasap Tip Dik Buzdolapları HY.11.K / HY.12.K...
-
Page 17: Motor Pulley
DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları SPARE PART LIST-EXPLODING DRAWING PRODUCT CODE : HY.11.K / HY.12.K PRODUCT NAME PRODUCT CODE POLYEMIDE WHEEL WITH BRAKE M.AKS-TKR-PSF-002 HOUSING BRACKET SCREW YTL-ERS.SH-KS-0009 HINGE SHAFT YTL-ERS.SH-KS-0002 MAGNETIC SENSOR M.ELK-SWC-KTG-001 CHASSIS SCHNEIDER LC1K0910M7 MINI CONTACTOR M.ELK-KNT-KNT-021 KONTAK M.ELK-SLT-KON-001... -
Page 18: Helectric Circuit Schema
DOUGH KNEADING MACHINE ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları CODE D/DK VOLT HY.02.K 0,55 1400 HY.04.K 0,55 1400 HY.06.K 0,75 1400 HY.08.K 1400 HY.12.K 0,37 1400 Terminal Magnetic Sensor Motor Motor side contactor Signal Lamp... - Page 19 DOUGH KNEADING MACHINE Kasap Tip Dik Buzdolapları ELECTRIC CIRCUIT SCHEMA CODE D/DK VOLT HY.01.K 0,75 1400 HY.03.K 0,75 1400 HY.05.K 0,55 1400 HY.07.K 1400 HY.11.K 1400 Terminal Magnetic Sensor Motor Motor side contactor Signal Lamp...
