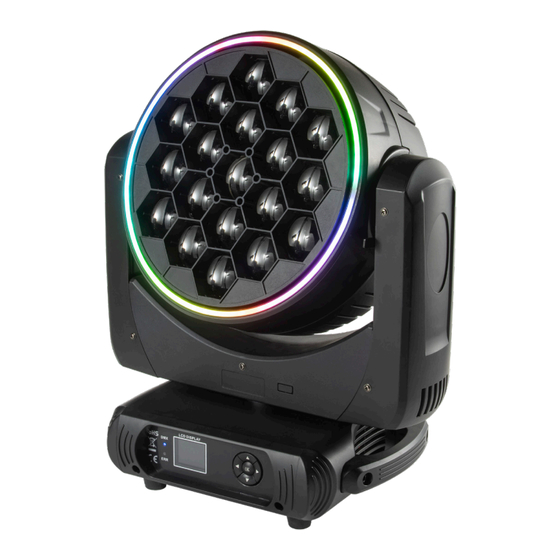

Flash DJ Series User Manual

Hide thumbs Also See for DJ Series:

Advertisement

Quick Links

Download this manual
DJ
SERIES:
19x40W ECO
User Manual
Instrukcja Obsługi
Art No F7100571

Advertisement

loading
Need help?

Need help?

Do you have a question about the DJ Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flash DJ Series

Summary of Contents for Flash DJ Series

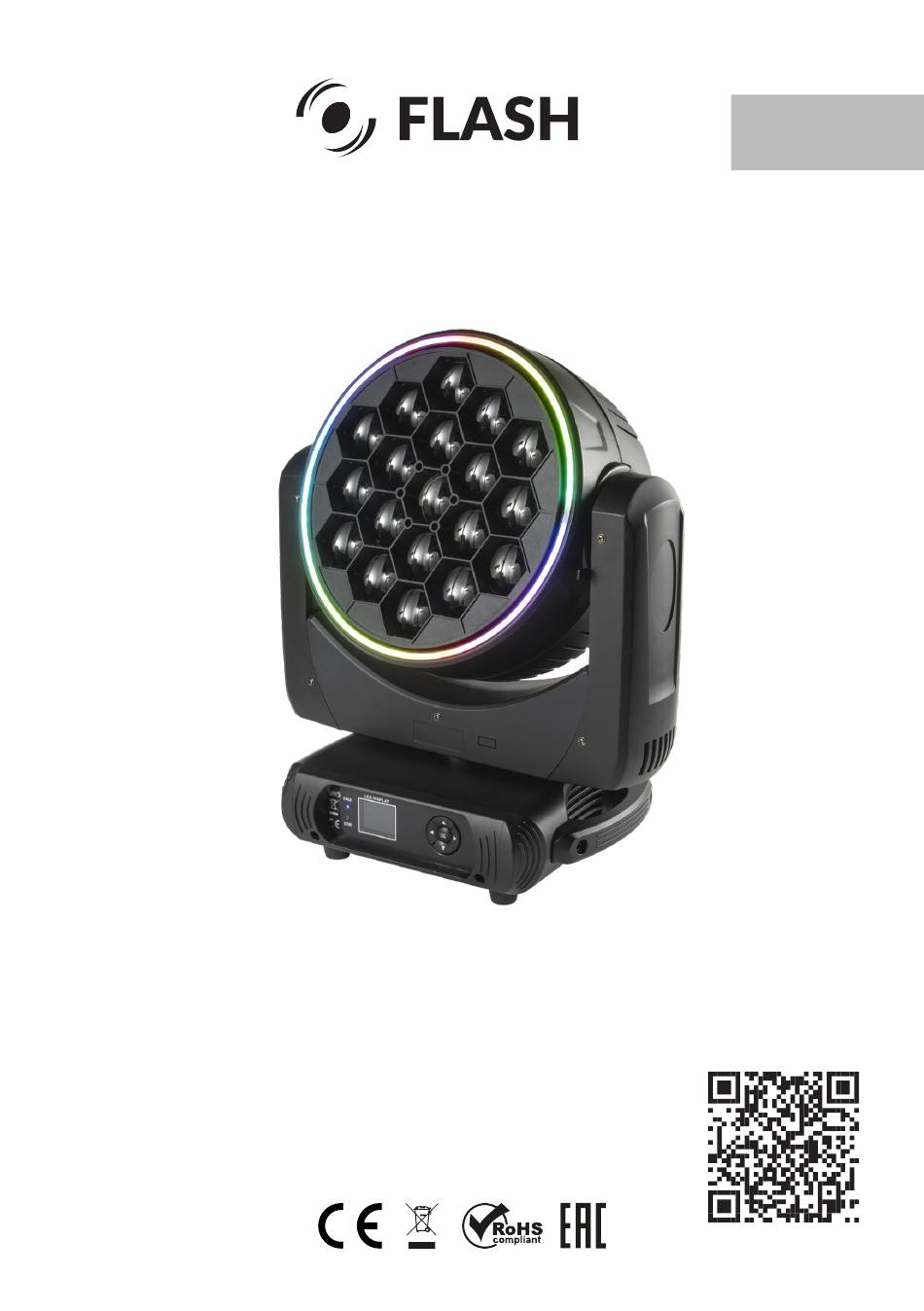

  • Page 1 SERIES: 19x40W ECO User Manual Instrukcja Obsługi Art No F7100571...
  • Page 2 Strony: 22-41 Pages: 2-21 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART WARNING! The Moving Head (MH) has a powerful pan and tilt motor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface.
  • Page 3 I N T R O D U C T I O N THANK YOU FOR PURCHASING 19x40W ECO. FOR SAFETY RE- ASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CARE- FULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N Please keep this User Manual In the event of serious ope- for future consultation.

  • Page 4: Light Source

    P R O D U C T I N F O R M AT I O N Light Source: Operating modes: DMX512, 19 LED x 40 W (4in1) Manual, Auto, Power consumption: 800 W Sound-controlled, Power supply voltage: Master/Slave 100-240V, 50/60Hz AC IP Rating: IP20 PAN range: 540°...
  • Page 5 CAUTION! At the last fixture, the SHIELD DMX signal has to be terminated SIGNAL (+) SIGNAL (-) with a terminator. Solder a 120Ω MALE FEMALE resistor between signal (-) and si- gnal (+) into a XLR plug and plug 3-PIN XLR it in the DMX output of the last fixture.
  • Page 6 The connection is performed using power cable with powerCON con- nector (included). The device must be operated by qualified personnel. CAUTION! In the case of cable damage do not attempt to repair. Repla- cement or repair can be made only on the manufacturer or by a person with appropriate permissions Using lamp, the change rate of power voltage should be within ±10%, if the voltage is too high, it will shorten the light’s life;...

  • Page 7: Dmx Chart

    D M X C H A R T DMX VALUE FUNCTION - 28 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255 0-255 MACRO COLOR 004-103 STROBE 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST...
  • Page 8 DMX VALUE FUNCTION - 30 CH 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 PAN /TILT SPEED 0-255 ZOOM 0-255 ZOOM ROTATION 0-255 DIMMER STROBO 004-103 STROBO SLOW TO FAST 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST 208-212 LIGHT ON 213-251...
  • Page 9 DMX VALUE FUNCTION - 30 CH 160-144 EFFECT 29 ..250-254 EFFECT 47 EFFECT 48 DYNAMIC EFFECT 000-009 LIGHT ON 010-014 EFFECT 1 015-019 EFFECT 2 020-024 EFFECT 3 ..140-144 EFFECT 27 DYNAMIC EFECT MACRO COLOR 145-149 EFFECT 28 150-154 EFFECT 29 155-159...
  • Page 10 DMX VALUE FUNCTION - 43 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255 0-255 MACRO COLOR STROBE 004-103 STROBO SLOW TO FAST 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST 208-212 LIGHT ON 213-251...
  • Page 11 DMX VALUE FUNCTION - 43 CH 0-255 STRIP GREEN 0-255 STRIP BLUE 0-255 STRIP EFECT 0-255 STRIP SPEED DMX VALUE FUNCTION - 85 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255...
  • Page 12 DMX VALUE FUNCTION - 85 CH 0-255 RED 2 0-255 GREEN 2 0-255 BLUE 2 0-255 RED 3 0-255 GREEN 3 0-255 BLUE 3 0-255 RED 4 0-255 GREEN 4 0-255 BLUE 4 0-255 RED 5 0-255 GREEN 5 0-255 BLUE 5 0-255 RED 6...
  • Page 13 DMX VALUE FUNCTION - 85 CH 0-255 RED 17 0-255 GREEN 17 0-255 BLUE 17 0-255 RED 18 0-255 GREEN 18 0-255 BLUE 18 0-255 RED 19 0-255 GREEN 19 0-255 BLUE 19 DMX VALUE FUNCTION - 100 CH 0-255 0-255 RED FINE 0-255...
  • Page 14 DMX VALUE FUNCTION - 100 CH 0-255 SHAPE BLUE 0-255 SHAPE WHITE 0-255 SHAPE DIMMER 0-255 BACKGROUND LIGHT DIMMER 0-255 SHAPE TRANSITION 0-255 SHAPE OFFSET 0-255 FORELIGHT STROBE 0-255 BACKGROUND LIGHT STROBE 0-255 BACKGROUND LIGHT SELECT 0-255 FREQENCY 0-255 STRIP DIMMER 0-255 STRIP STROBO 0-255...
  • Page 15 DMX VALUE FUNCTION - 100 CH 0-255 RED 10 0-255 GREEN 10 0-255 BLUE 10 0-255 RED 11 0-255 GREEN 11 0-255 BLUE 11 0-255 RED 12 0-255 GREEN 12 0-255 BLUE 12 0-255 RED 13 0-255 GREEN 13 0-255 BLUE 13 0-255 RED 14...
  • Page 16 DMX VALUE FUNCTION - 104 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255 0-255 MACRO COLOR STROBE 004-103 STROBO SLOW TO FAST 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST 208-212 LIGHT ON 213-251...
  • Page 17 DMX VALUE FUNCTION - 104 CH 0-255 WHITE 3 0-255 RED 4 0-255 GREEN 4 0-255 BLUE 4 0-255 WHITE 4 0-255 RED 5 0-255 GREEN 5 0-255 BLUE 5 0-255 WHITE 5 0-255 RED 6 0-255 GREEN 6 0-255 BLUE 6 0-255 WHITE 6...
  • Page 18 DMX VALUE FUNCTION - 104 CH 0-255 RED 15 0-255 GREEN 15 0-255 BLUE 15 0-255 WHITE 15 0-255 RED 16 0-255 GREEN 16 0-255 BLUE 16 0-255 WHITE 16 0-255 RED 17 0-255 GREEN 17 0-255 BLUE 17 0-255 WHITE 17 0-255 RED 18...
  • Page 19 DMX VALUE FUNCTION - 106 CH 0-255 0-255 MACRO 0-255 STATIC EFFECT 000-009 LIGHT ON 010-014 EFFECT 1 015-019 EFFECT 2 020-024 EFFECT 3 025-029 EFFECT 4 030-034 EFFECT 5 035-039 EFFECT 6 040-044 EFFECT 7 045-049 EFFECT 8 050-054 LIGT OFF 055-059 EFFECT 9...
  • Page 20 DMX VALUE FUNCTION - 106 CH DYNAMIC SPEED 0-255 BACKGROUND RED 0-255 BACKGROUND GREEN 0-255 BACKGROUND BLUE 0-255 BACKGROUND WHITE 0-255 RESET 0-255 STRIP DIMMER 0-255 STRIP STROBE 0-255 STRIP RED 0-255 STRIP GREEN 0-255 STRIP BLUE 0-255 STRIP EFFECT 0-255 STRIP SPEED 0-255...
  • Page 21 DMX VALUE FUNCTION - 106 CH 0-255 RED 9 0-255 GREEN 9 0-255 BLUE 9 0-255 WHITE 9 0-255 RED 10 0-255 GREEN 10 0-255 BLUE 10 0-255 WHITE 10 0-255 RED 11 0-255 GREEN 11 0-255 BLUE 11 0-255 WHITE 11 0-255 RED 12...

  • Page 22: Spis Treści

    Strony: 22-41 Pages: 2-21 S P I S T R E Ś C I WPROWADZENIE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA INFORMACJE O PRODUKCIE INSTALACJA POŁĄCZENIE TABELA DMX OSTRZEŻENIE! Ruchoma głowica LED (LMH) jest wyposażona w mocny silnik obrotu i pochylenia. Reakcja momentu obrotowego, gdy głowica jest nagle obracana, może spowo- dować...

  • Page 23: Informacje Dotyczące Bezpieczeństwa

    W P R O W A D Z E N I E DZIĘKUJEMY ZA ZAKUP 19x40W ECO. ZE WZGLĘDÓW BEZPIE- CZEŃSTWA I W CELU ZAPEWNIENIA BEZAWARYJNEJ PRACY NA- LEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ. INFORMACJE DOTYC ZĄCE BEZ PIEC Z EŃST WA Niniejszą...
  • Page 24 I N F O R M A C J A O P R O D U K C I E Źródło światła: Tryby pracy: DMX512, 19 LED x 40 W (4w1) Manual, Auto, Pobór mocy: 800 W Sound-controlled, Napięcie zasilania: Master/Slave 100-240V, 50/60Hz AC Stopień...
  • Page 25 SHIELD OSTROŻNIE! Na ostatnim urzą- SIGNAL (+) SIGNAL (-) dzeniu sygnał DMX musi być za- MALE FEMALE kończony terminatorem. Wlutuj rezystor 120Ω między sygnał (-) 3-PIN XLR a sygnał (+) do wtyczki XLR i pod- łącz go do wyjścia DMX ostatnie- SHIELD SIGNAL (-) go urządzenia.
  • Page 26 Używając lampy, szybkość zmiany napięcia zasilania powinna mieścić się w zakresie ±10%, jeśli napięcie jest zbyt wysokie, skróci to żywot- ność lampy; jeśli nie jest wystarczające, lampa będzie ciemna. Po wy- łączeniu światła należy je ponownie uruchomić na 20 minut, aż do pełnego schłodzenia.
  • Page 27 TA B E L A D M X DMX VALUE FUNCTION - 28 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255 0-255 MACRO COLOR 004-103 STROBE 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST...
  • Page 28 DMX VALUE FUNCTION - 30 CH 0-255 0-255 PAN FINE 0-255 TILT 0-255 TILT FINE 0-255 PAN /TILT SPEED 0-255 ZOOM 0-255 ZOOM ROTATION 0-255 DIMMER STROBO 004-103 STROBO SLOW TO FAST 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST 208-212 LIGHT ON 213-251...
  • Page 29 DMX VALUE FUNCTION - 30 CH 160-144 EFFECT 29 ..250-254 EFFECT 47 EFFECT 48 DYNAMIC EFFECT 000-009 LIGHT ON 010-014 EFFECT 1 015-019 EFFECT 2 020-024 EFFECT 3 ..140-144 EFFECT 27 DYNAMIC EFECT MACRO COLOR 145-149 EFFECT 28 150-154 EFFECT 29 155-159...
  • Page 30 DMX VALUE FUNCTION - 43 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255 0-255 MACRO COLOR STROBE 004-103 STROBO SLOW TO FAST 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST 208-212 LIGHT ON 213-251...
  • Page 31 DMX VALUE FUNCTION - 43 CH 0-255 STRIP GREEN 0-255 STRIP BLUE 0-255 STRIP EFECT 0-255 STRIP SPEED DMX VALUE FUNCTION - 85 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255...
  • Page 32 DMX VALUE FUNCTION - 85 CH 0-255 GREEN 2 0-255 BLUE 2 0-255 RED 3 0-255 GREEN 3 0-255 BLUE 3 0-255 RED 4 0-255 GREEN 4 0-255 BLUE 4 0-255 RED 5 0-255 GREEN 5 0-255 BLUE 5 0-255 RED 6 0-255 GREEN 6...
  • Page 33 DMX VALUE FUNCTION - 85 CH 0-255 GREEN 17 0-255 BLUE 17 0-255 RED 18 0-255 GREEN 18 0-255 BLUE 18 0-255 RED 19 0-255 GREEN 19 0-255 BLUE 19 DMX VALUE FUNCTION - 100 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255...
  • Page 34 DMX VALUE FUNCTION - 100 CH 0-255 SHAPE DIMMER 0-255 BACKGROUND LIGHT DIMMER 0-255 SHAPE TRANSITION 0-255 SHAPE OFFSET 0-255 FORELIGHT STROBE 0-255 BACKGROUND LIGHT STROBE 0-255 BACKGROUND LIGHT SELECT 0-255 FREQENCY 0-255 STRIP DIMMER 0-255 STRIP STROBO 0-255 STRIP RED 0-255 STRIP GREEN 0-255...
  • Page 35 DMX VALUE FUNCTION - 100 CH 0-255 BLUE 10 0-255 RED 11 0-255 GREEN 11 0-255 BLUE 11 0-255 RED 12 0-255 GREEN 12 0-255 BLUE 12 0-255 RED 13 0-255 GREEN 13 0-255 BLUE 13 0-255 RED 14 0-255 GREEN 14 0-255 BLUE 14...
  • Page 36 DMX VALUE FUNCTION - 104 CH 0-255 0-255 RED FINE 0-255 GREEN 0-255 GREEN FINE 0-255 BLUE 0-255 BLUE FINE 0-255 WHITE 0-255 WHITE FINE 0-255 0-255 MACRO COLOR STROBE 004-103 STROBO SLOW TO FAST 104-107 LIGHT ON 108-207 PULS STROBO SLOW TO FAST 208-212 LIGHT ON 213-251...
  • Page 37 DMX VALUE FUNCTION - 104 CH 0-255 WHITE 3 0-255 RED 4 0-255 GREEN 4 0-255 BLUE 4 0-255 WHITE 4 0-255 RED 5 0-255 GREEN 5 0-255 BLUE 5 0-255 WHITE 5 0-255 RED 6 0-255 GREEN 6 0-255 BLUE 6 0-255 WHITE 6...
  • Page 38 DMX VALUE FUNCTION - 104 CH 0-255 RED 15 0-255 GREEN 15 0-255 BLUE 15 0-255 WHITE 15 0-255 RED 16 0-255 GREEN 16 0-255 BLUE 16 0-255 WHITE 16 0-255 RED 17 0-255 GREEN 17 0-255 BLUE 17 0-255 WHITE 17 0-255 RED 18...
  • Page 39 DMX VALUE FUNCTION - 106 CH 000-009 LIGHT ON 010-014 EFFECT 1 015-019 EFFECT 2 020-024 EFFECT 3 025-029 EFFECT 4 030-034 EFFECT 5 035-039 EFFECT 6 040-044 EFFECT 7 045-049 EFFECT 8 050-054 LIGT OFF 055-059 EFFECT 9 060-064 EFFECT 10 065-069 EFFECT 11...
  • Page 40 DMX VALUE FUNCTION - 106 CH 0-255 BACKGROUND BLUE 0-255 BACKGROUND WHITE 0-255 RESET 0-255 STRIP DIMMER 0-255 STRIP STROBE 0-255 STRIP RED 0-255 STRIP GREEN 0-255 STRIP BLUE 0-255 STRIP EFFECT 0-255 STRIP SPEED 0-255 RED 1 0-255 GREEN 1 0-255 BLUE 1 0-255...
  • Page 41 DMX VALUE FUNCTION - 106 CH 0-255 WHITE 9 0-255 RED 10 0-255 GREEN 10 0-255 BLUE 10 0-255 WHITE 10 0-255 RED 11 0-255 GREEN 11 0-255 BLUE 11 0-255 WHITE 11 0-255 RED 12 0-255 GREEN 12 0-255 BLUE 12 0-255 WHITE 12...
  • Page 44 FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
