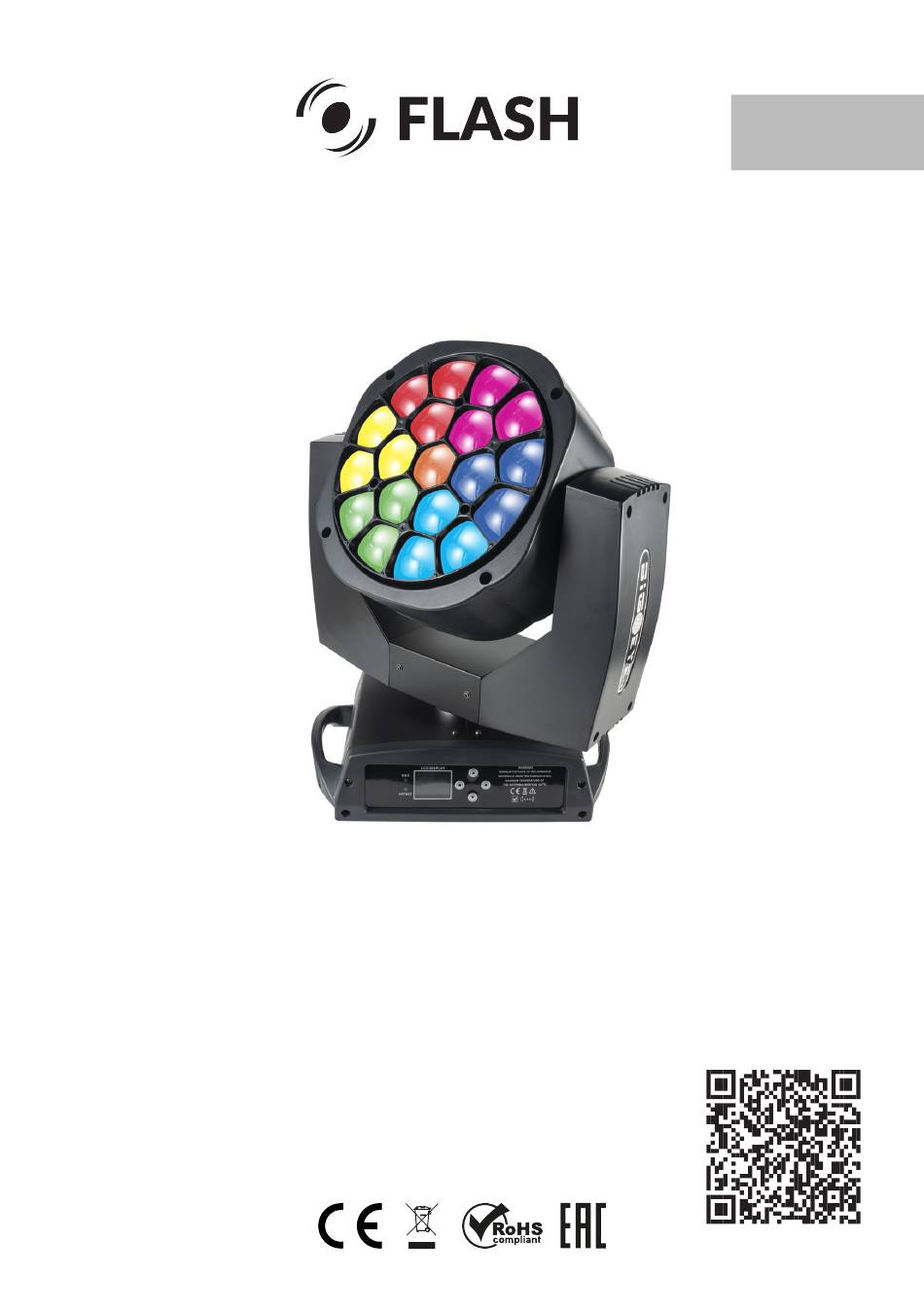

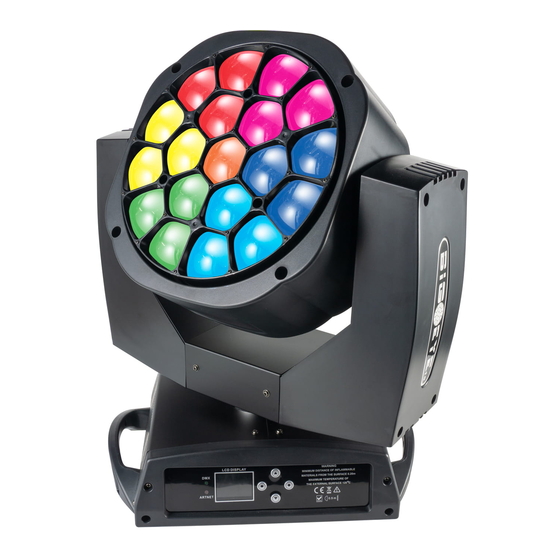

- Page 1 SERIES: LED MOVING HEAD 19x15W BIG EYE User Manual EAN 5905358808481 (ver.05.23) 21/35/78/97/112 CH Art No F7100768...
- Page 2 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART PHOTOMETRICS WARNING! The Led Moving Head (LMH) has a powerful pan and tilt mo- tor. The torque reaction when the head is panned suddenly can cause the base to move if the fixture is standing unsecured on a surface.
- Page 3 I N T R O D U C T I O N THANK YOU FOR PURCHASING 19x15W BIG EYE. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CA- REFULLY READ THE INSTRUCTIONS. In the latest version of this Head, the colors in the macro channel have been improved, making them more natural and consistent with the pattern.
-
Page 4: Available Versions
P R O D U C T I N F O R M AT I O N Light Source: DMX channel mode 19 pcs x 15W 4in1 LEDs 21/35/78/78/97/112 Power consumption: 300W IP Rating: IP65 Power supply voltage: Housing made: ABS 110-245V, 50/60Hz AC Integrated fastening hooks PAN range: 540°... - Page 5 ❺ User ❹ Manual ❷ ❸ ❶ F7100768 [EAN 5905358808481]: 1x Moving Head 19x15W Big Eye SET ver.05.23 (carton package) ❸ User ❹ Manual ❷ ❶ ❶ - Moving Head (1pc) The following item ❷ - powerCON cable (1pc) are included inside the box: ❸...
- Page 6 C O N N E C T I O N The device is equipped with the following interfaces: 1. DMX (in/out): XLR 3(5)-pin socket 2. Power (in/out): powerCON socket The connection is performed using cable with XLR-female -> XLR-Male plugs. CAUTION! At the last fixture, the SHIELD DMX signal has to be terminated...
- Page 7 The connection is performed using power cable with powerCON TRUE1 connector (included). The device must be operated by qualified personnel. CAUTION! In the case of cable damage do not attempt to repair. Repla- cement or repair can be made only on the manufacturer or by a person with appropriate permissions Using lamp, the change rate of power voltage should be within ±10%, if the voltage is too high, it will shorten the light’s life;...
-
Page 8: Dmx Chart
D M X C H A R T 21 CH 35 CH CHANNEL MODE CHANNEL MODE Red fine Red fine Green Green Green fine Green fine Blue Blue Blue fine Blue fine White White White fine White fine Linear CTO Linear CTO Macro colour Macro colour... - Page 9 RGBW CHANNEL MODE CHANNEL MODE Red LED 1 Red LED 1 Green LED 1 Green LED 1 Blue LED 1 Blue LED 1 White LED 1 … Red LED … … Red LED … … Green LED … … Green LED … …...
- Page 10 P H O T O M E T R I C S Distance 1m: Measurements under laboratory conditions were made on a spectrometer GL SPECTIS 1.0 26280,24 lx 6480 K Ra 75 RGBW...
- Page 12 FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
