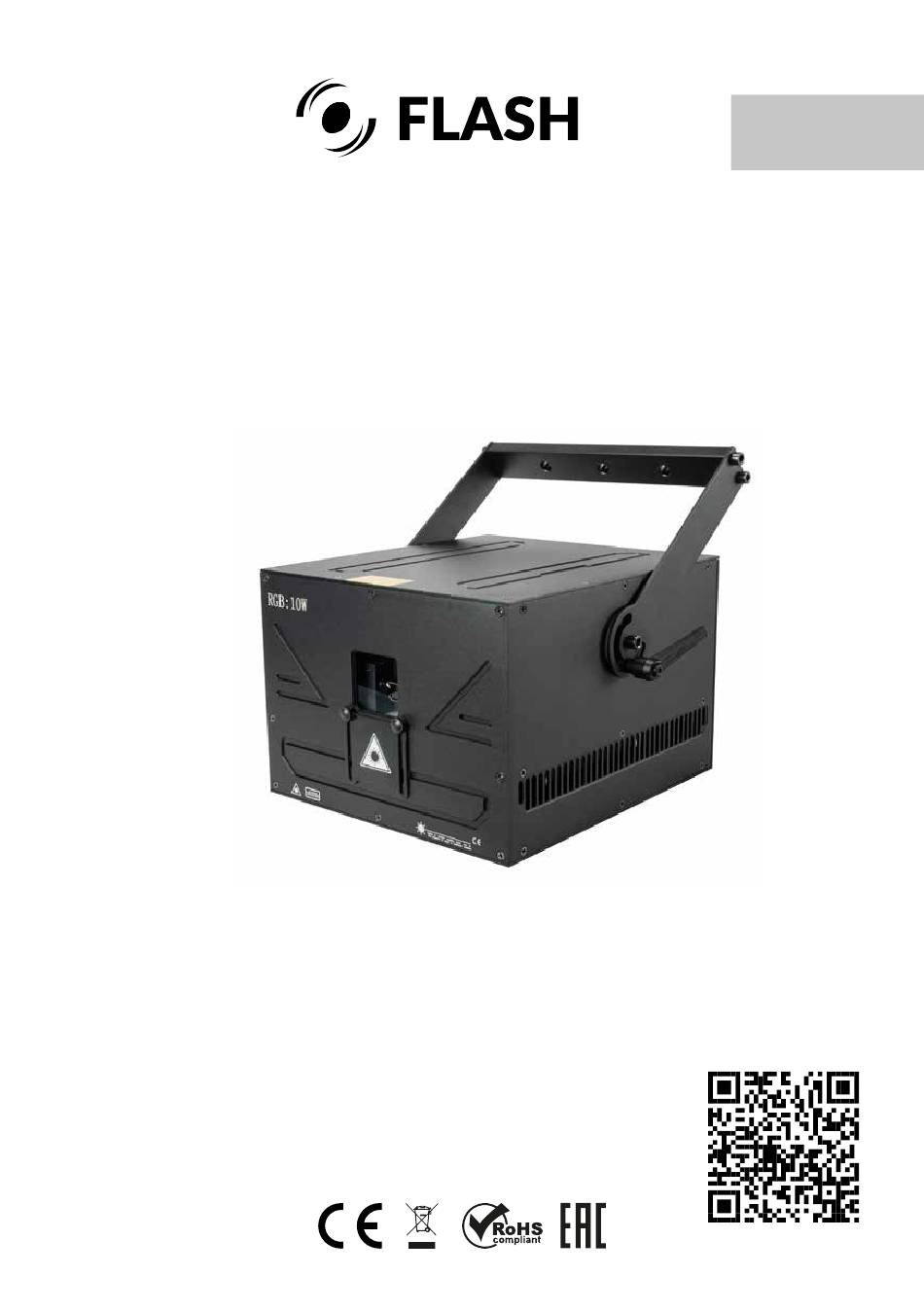

- Page 1 SERIES: LASER 10W RGB User Manual Art No F4000171...
- Page 2 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECT DMX CHART DANGER! LASER RADIATION. AVOID DIRECT BEAM IRRADIATION. NIEBEZPIECZENSTWO! CLASS 4 LASER PRODUCT. PROMIENIOWANIE LASEROWE UNIKAJ BEZPOŚREDNIEGO OPROMIENIOWANIA WIĄZKĄ PRODUKT LASEROWY KLASY 3B WARNING! Use a clamp to secure the device. Lock the clamp with the fasteners.
- Page 3 I N T R O D U C T I O N THANK YOU FOR PURCHASING LASER 10W. FOR SAFETY RE- ASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CARE- FULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N Please keep this User Manual In the event of serious ope- for future consultation.
- Page 4 P R O D U C T I N F O R M AT I O N Voltage: 90-250V/AC, 50/60Hz 8 Working Modes: Rated Power: 180W ILDA mode (PC control), Waterproof Level: IP20 DMX512 (18/25 CH), PRG Work Enviroment: outdoor and (TF card program), ILD (TF card indoor, -30°C - 40°C program), SOUD (Sound...
- Page 5 C O N N E C T The device is equipped with the following interfaces: 1. DMX (in/out): XLR 3(5)-pin socket 2. Power (in/out): powerCON socket The connection is performed using cable with XLR-female -> XLR-Male plugs. CAUTION! At the last fixture, the SHIELD SIGNAL (+) DMX signal has to be terminated...
- Page 6 7. Always replace with the exact same otherwise, do not insert the card. type fuse, replacement with anything To read a Flash memory program, you other than the specified fuse can cause need to Load Flash the program. After fire or electric shock and damage your...
- Page 7 LCD table lists the functions of the menus: 1 Menu 2 Menu 3 Menu 1. DMX-512 Mode/DMX-512 2. Auto Mode 1. Function Mode 3. Music Mode 4. ILDA Mode/ILDA Choose List 2. Show Listing All The List Choose List 3. Play Show All The List Play Setup 1.
-
Page 8: Dmx Chart
D M X C H A R T 1. STD/Normal mode: 10CH CHANNEL VALUE DESCRIPTION Turn off the lights Open to turn off the lights 1-255 Turn on the light 1-100% Stroboscopic 1-255 Stroboscopic speed selection Pattern size 0-255 Patterns are chosen from large to small A horizontal Select the horizontal position. - Page 9 1. STD/Normal mode: 34CH CHANNEL VALUE DESCRIPTION Turn off the lights Open to turn off the lights 1-255 Turn on the light1-100% Stroboscopic 1-255 Pattern size 0-255 Patterns are chosen from large to small A horizontal Select the horizontal position. The value 128 is the 0-255 position middle position.
- Page 10 CHANNEL VALUE DESCRIPTION 1-127 Rotate Y Angle choice Rotate the Y 128-255 Rotation Y speed choice The level of 1-127 Horizontal move position selection mobile Vertical 128-255 Horizontal movement speed selection movement The zoom 1-127 Vertical move position selection Gradually draw 128-255 Vertical movement speed selection The level of...
- Page 11 CHANNEL VALUE DESCRIPTION Line scanning 0-127 Line scan speed selection speed Point sweep 128-255 Point scan speed selection speed Pattern library Select one pattern library and one effect library for and effect 0-255 every 8 values library 1-127 Rotate Z Angle selection Rotate the Z 128-255 Rotate Z speed selection...
- Page 12 FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
