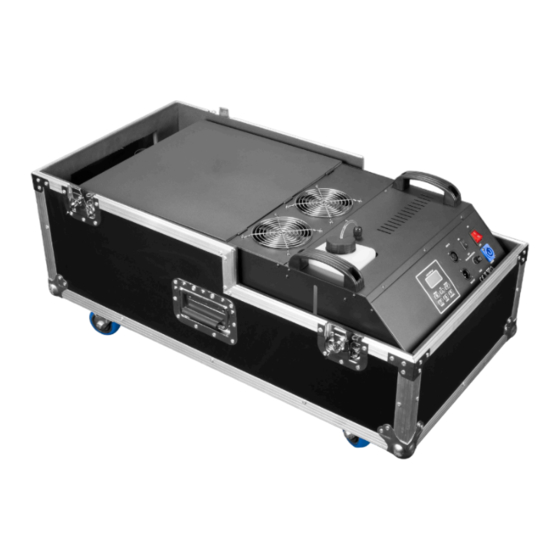

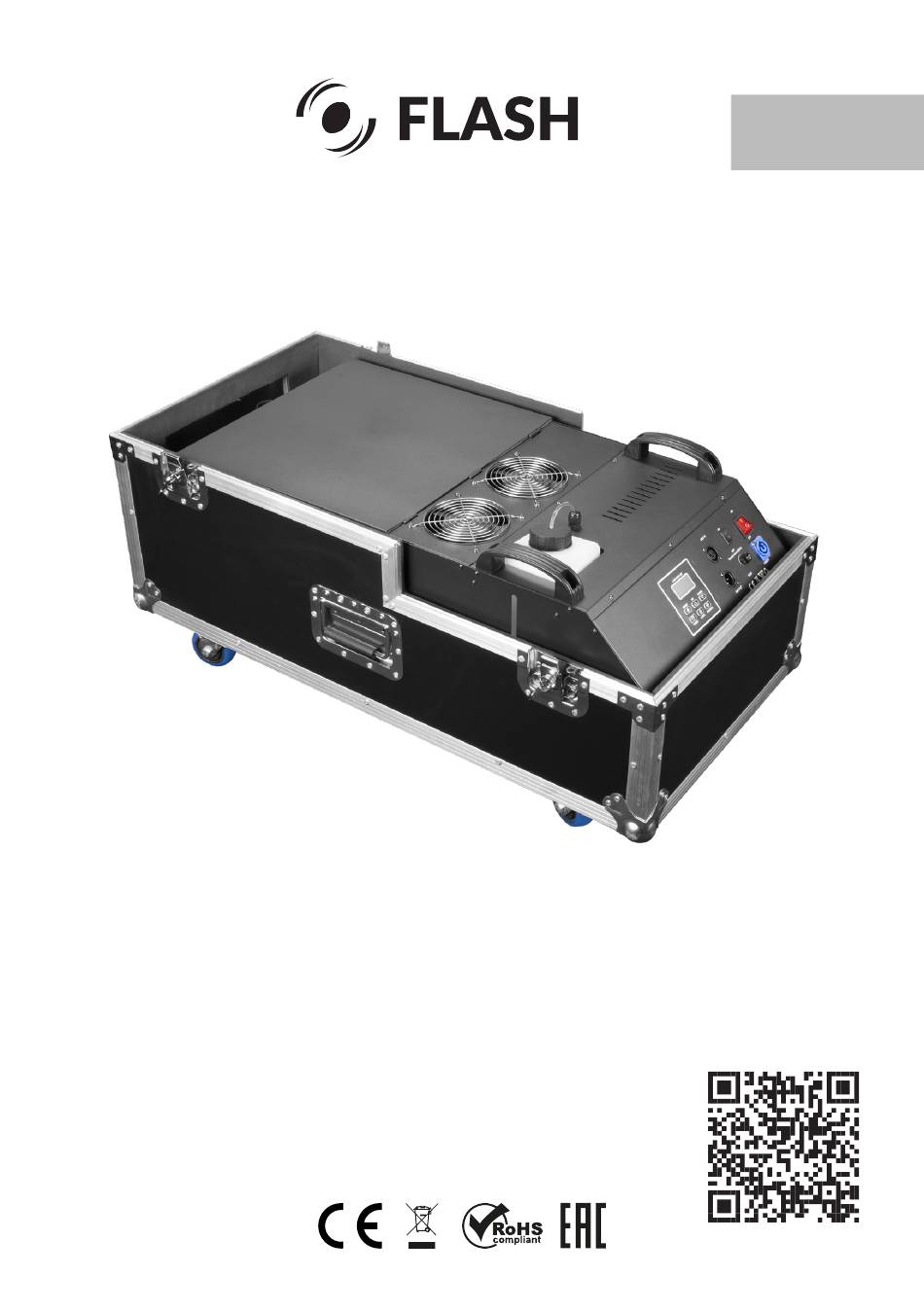

- Page 1 SERIES: WATER BASE MACHINE II User Manual Art No F5100349...
-
Page 2: Table Of Contents
C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART IMPORTANT: Do not direct strong light from other devices onto the WBMII, as intense illumination can damage components. -
Page 3: Introduction
I N T R O D U C T I O N THANK YOU FOR PURCHASING Water Base Machine II. FOR SAFETY REASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CA- REFULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N Please keep this User Manual In the event of serious ope- for future consultation. -
Page 4: Product Information
P R O D U C T I N F O R M AT I O N Power consumption: 1700W Housing: steel Supply voltage: 220-240V AC IN: powerCON Voltage frequency: 3-Pin XLR DMX Input/Output 50/60Hz AC Gross Weight: 43.5 kg DMX standard: DMX512 Dimensions with packaging: Number of DMX channels: 2... -
Page 5: Connection
C O N N E C T I O N The device is equipped with the following interfaces: 1. DMX (in/out): XLR 3(5)-pin socket 2. Power (in/out): powerCON socket The connection is performed using cable with XLR-female -> XLR-Male plugs. CAUTION! At the last fixture, the SHIELD DMX signal has to be terminated... - Page 6 Control Panel. ① ② ③ ④ ⑥ ⑤ ① - Control panel ⑤ - Power socket ② - DMX IN powerCON ③ - Remote control switch ⑥ - DMX OUT control ④ - Power switch MENU - press UP and DOWN 1-900 seconds can be set.
- Page 7 Operation: 1. Open the air box, and the rear cover, and then pour water into the atomizer tank. The water should cover the atomizer (atomizer) plates, but there should be no more than above the plastic marker placed on the plate (Fig. 1). Then close the tank. 2.
- Page 8 (Fig. 1) Maximum water level Minimum level water Power Specifications. Input Voltage Total Power Frequency 100~240V AC 3000W 50/60Hz...
-
Page 9: Dmx Chart
D M X C H A R T CHANNEL DMX VALUE FUNCTION 0-255 Pump - Amount of smoke produced 0-100% 0-255 Smoke blowing speed from the preset in the Menu to 100% (Factory setting 30-100%) - Page 12 FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
