System assembly

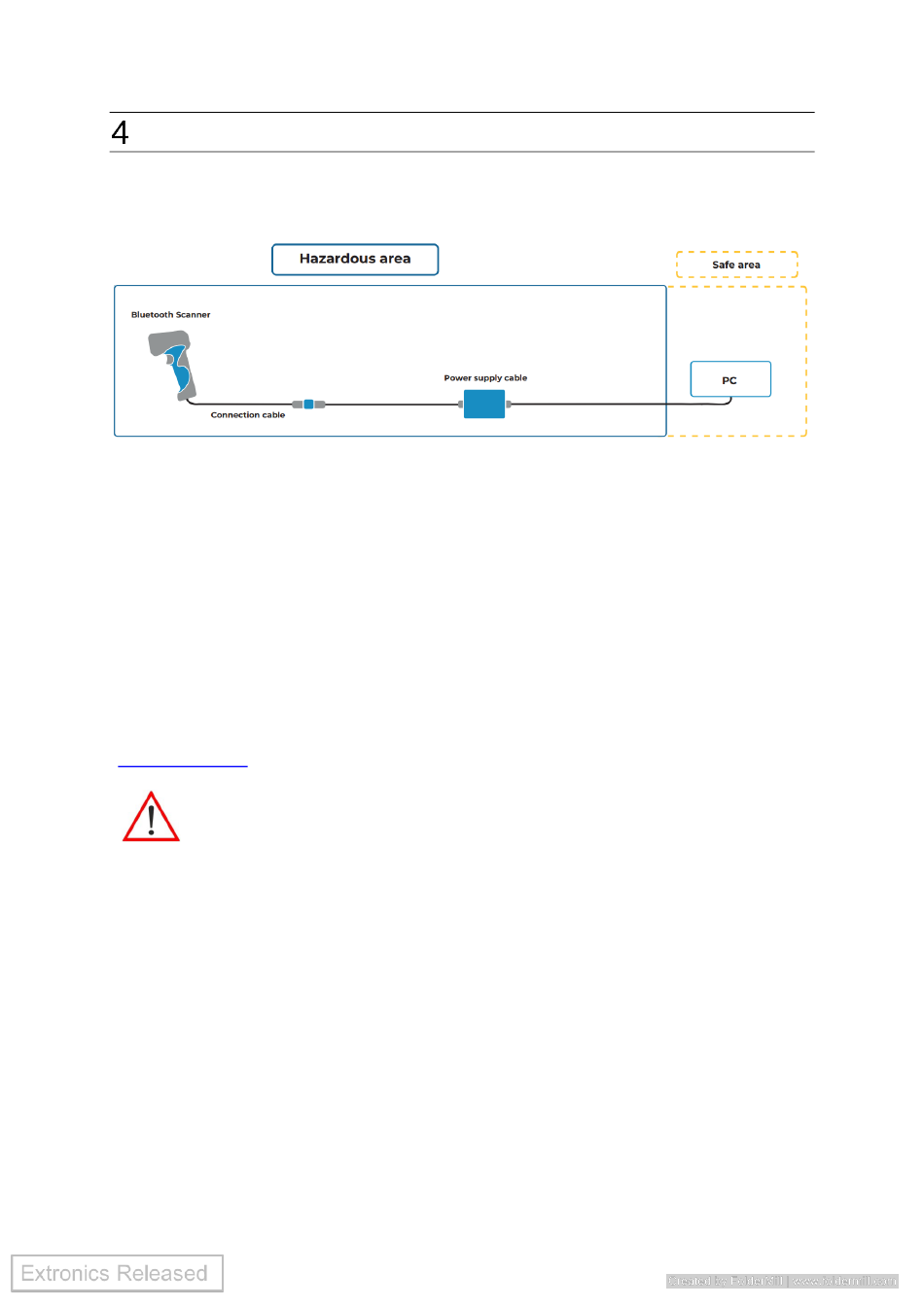

4.1 Assembly description – USB
The wired handheld scanner was designed for use in Zone 2/22 hazardous areas.
Normal operation requires a power supply, a connection cable between power
supply and scanner, and connection cable(s) between power supply. For a
connection to the PC in the non-hazardous area, a mini USB plug is attached to the
USB supply line so that the cable can be routed through a cable gland.
External connection cables:
Data cable: USB 0.2 - 2.5 mm², 4-wire
RS232 0.2 - 2.5 mm², 3-wire
Power cable: 0.2 - 2.5 mm², 3-wire
The handheld scanner and the power supply can be connected and operated in the
hazardous area. The current rating of the connection cables must be checked before
use. For safe installation please refer to the manual issued by SICK AG
(www.SICK.com)
The warnings and notes of caution contained in these operating
instructions and in the manual issued by SICK AG (www.SICK.com)
must be adhered to.
10
