Supply and data transfer with USB interface to the higher-level system outside
the hazardous area
Ex e connection
There is an adapter from mini USB to USB A included. If the supply
voltage of the USB interface is not able to supply a current > 500mA for
corresponding barcode system assemblies, the
enclosed Y-cable can be used. The operating instructions of the host
system must be observed.

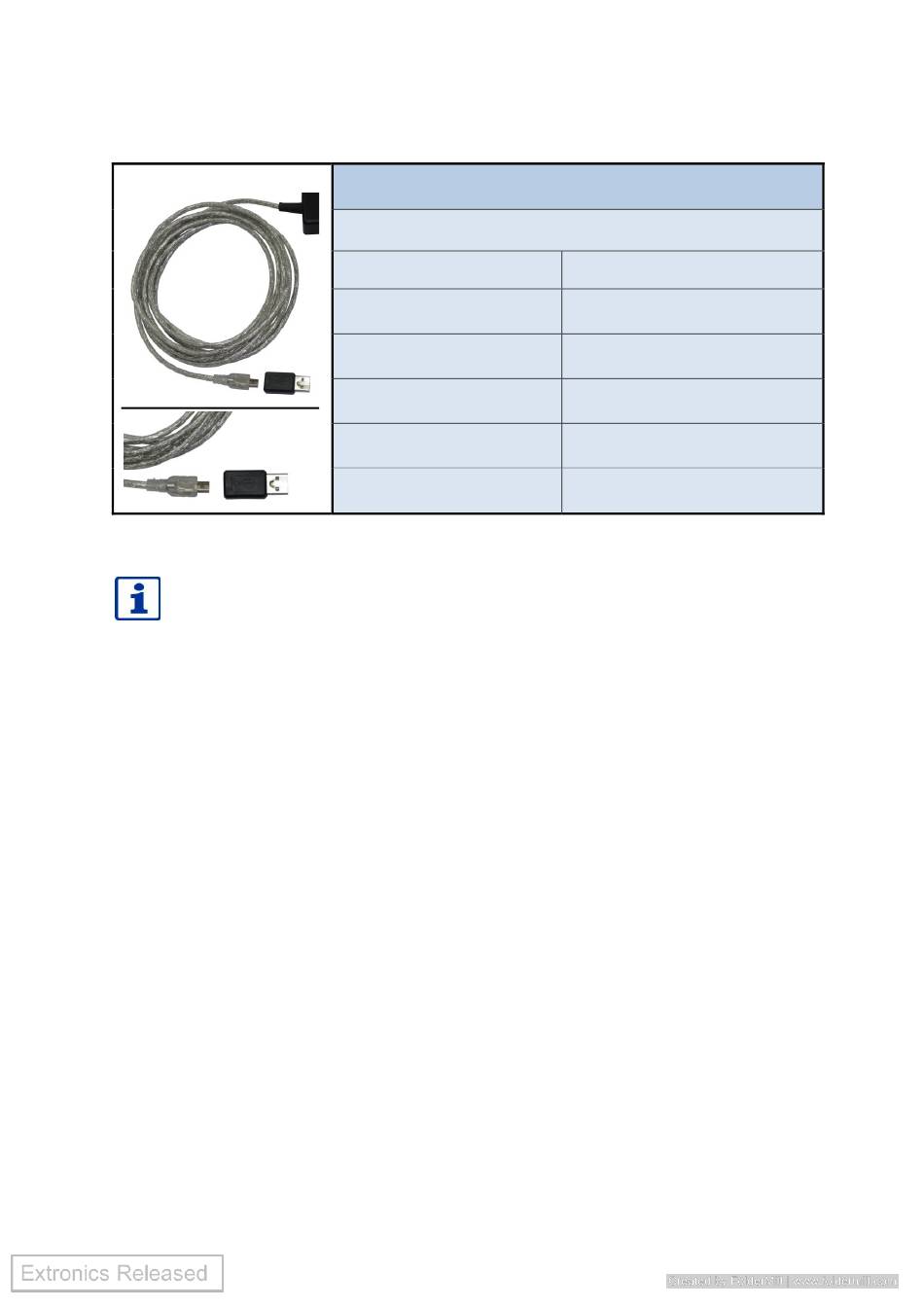

Supply cable Type: iSCANPSCABU
wires
Definition
+ UB
D -
D +
ID
GND
15
Mini USB Pin
1 (red)
2 (white)
3 (green)
4
5 (black)
