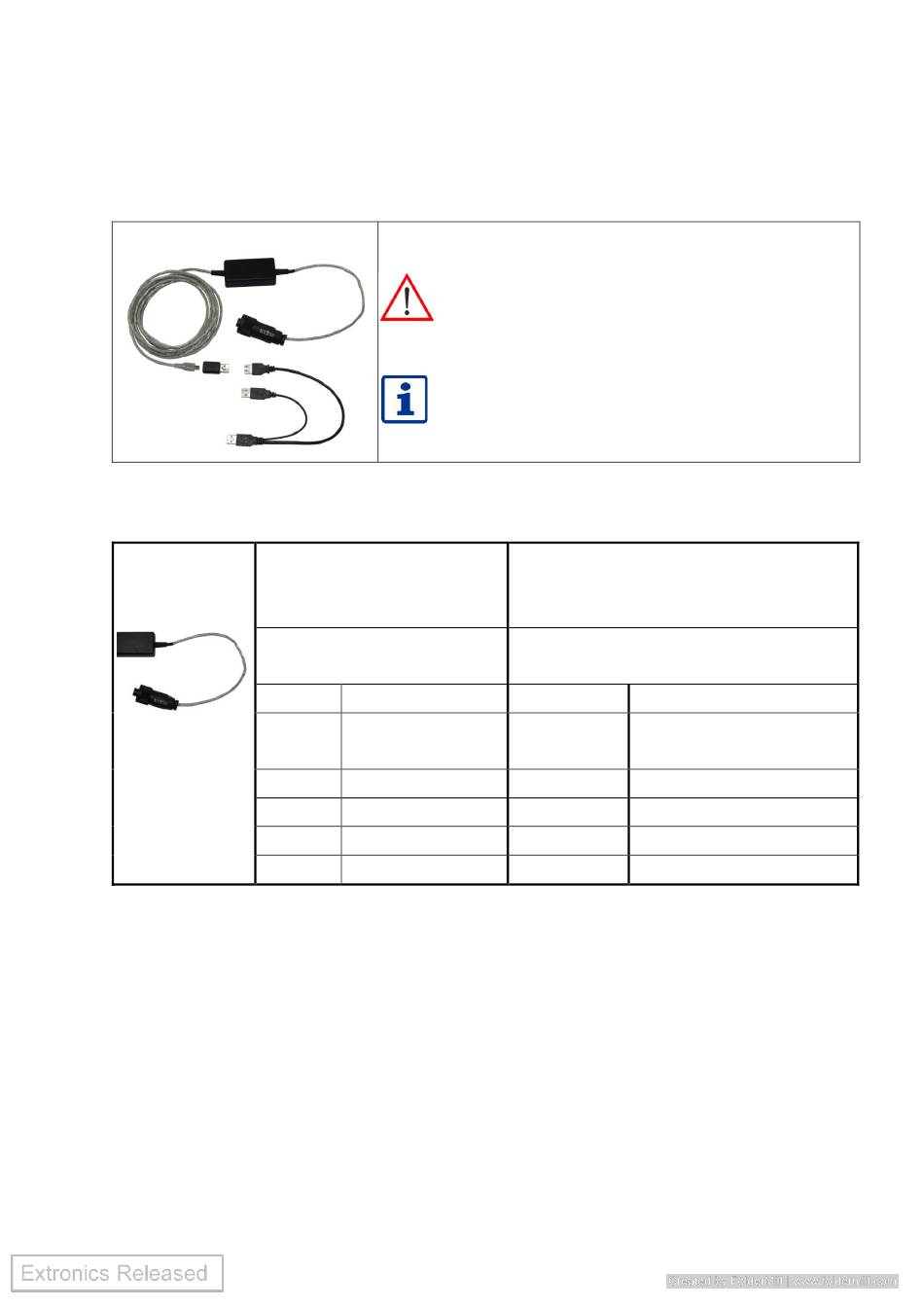

5.2 Connection of RS232 and USB iSCANPSCABx power supply

USB interface
Connection of a wired handheld scanner zone 2/22 to the supply cable USB via plug
connection − plug / coupling
Pin assignment
connector plug
Pin
1
EX i
connection
2
3
4
Caution: Do not open the housing.
Before operating the device in a hazardous area
you have to ensure that the enclosure has been
closed fully and all screws have been tightened.
Changes at the pin assignment may only be
made by trained personnel.
USB Cable
iSCANPSCABU
Definition
=UB
(brown/red)
D- (white)
D= (green)
GND (Black)
14
Supply Cable
iSCANX4C-CAB3 and
iSCANX4C-CAB4
Connector Coupling
Pin Definition
1 +UB (red)
2 D- (white)
3 D+ (green)
4 GND (black)
