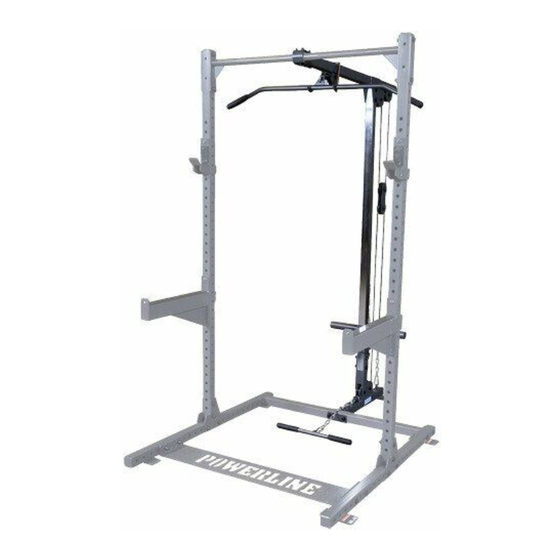

- Page 1 PLA500 HALF RACK LAT ATTACHMENT Owner’s Manual WWW.BODYSOLID.COM V PLA500-092018...
- Page 2 #DWRULE-4 WARNING Safety and Maintenance of Cables IMPORTANT: Cables are wear items. It is your responsibility to prevent unexpected breakage.
-
Page 3: Table Of Contents
PLA500 TABLE OF CONTENTS • SAFETY INSTRUCTIONS....... PAGE 4 • PREPARATION........PAGE 5 • PART/HARDWARE LIST......PAGE 6 • HARDWARE ILLUSTRATION....PAGE 7 • ASSEMBLY INSTRUCTIONS....PAGE 10 • EXPLODED VIEW........PAGE 17 • CONTACT PAGE........PAGE 18... -
Page 4: Safety Instructions
PLA500 SAFETY INSTRUCTIONS The PLA500 is designed for your enjoyment. By When using exercise equipment, following these precautions and using common sense, you should always take basic you will have many safe and pleasurable hours of precautions including the healthful exercise with your Powerline Half Rack Lat following: Attachment. • Read all instructions before using the PLA500. These After assembly, you should check all functions to instructions are written to ensure your safety and to protect the unit. ensure correct operation. If you experience problems, first recheck the assembly instructions to locate any • Do not remove any safety labels from the possible errors made during assembly. If you are machine. • Do not allow children on or near the equipment. unable to correct the problem, call the dealer from whom you purchased the machine or call 1-800-556- • Use the equipment only for its intended purpose 3113 for the dealer nearest you. as described in this guide. Do not use accessory attachments that are not recommended by the manufacturer. Such attachments might cause serious Obtaining Service... -
Page 5: Preparation
PLA500 PREPARATION Required tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each step. the PLA500 include but are not limit to: While you may be able to assemble the PLA500 using the • Standard Wrench Set illustrations only, important safety notes and other tips may be included in the text. • Metric Wrench Set Some pieces may have extra holes that you will not use. Use • Adjustable Wrench only those holes indicated in the instructions and illustrations. • Standard / Metric Allen Key Set NOTE: With so many assembled parts, proper alignment and adjustment is critical. While tightening the nuts and bolts, be sure to leave Installation Requirements room for adjustments. Follow these installation requirements when assembling the PLA500: NOTE: The bottles that are marked “Poison” is your touch up paint. Keep away from children. Set up the PLA500 on a solid, flat surface. A smooth, flat surface under the machine helps keep it level. CAUTION: Obtain assistance! If you feel like you can’t assemble the PLA500 by yourself then do Provide ample space around the machine. Open space not attempt to do so as this could result in around the machine allows for easier access. injury. Review the Installation Requirements before proceeding with the following steps. For aesthetic purposes, insert all bolts in the same direction unless specified (in text or illustrations) to do otherwise. -
Page 6: Part/Hardware List
PLA500 PART LIST Part # DESCRIPTION TOP FRAME BRACKET BASE FRAME CHROME UPRIGHT SLIDING CARRIAGE TOP FRAME LAT BAR LOW ROW BAR PULLEY BRACKET M12x80mm HEX HEAD BOLT M10x65mm HEX HEAD BOLT M10x45mm HEX HEAD BOLT M10 LOCK WASHER M12 WASHER M10 WASHER M12 NYLON LOCKNUT M10 NYLON LOCKNUT... -
Page 7: Hardware Illustration
PLA500 HARDWARE ILLUSTRATION Part #1 M12x80mm hex head bolt QTY . 12 Part #2 M10x65mm hex head bolt QTY. 1 Part #3 M10X45mm HEX HEAD BOLT QTY. 6 Part #4 M10 LOCK WASHER QTY.1... - Page 8 PLA500 HARDWARE ILLUSTRATION Part #5 M12 WASHER QTY. 24 Part #6 M10 WASHER QTY . 15 Part #7 M12 NYLON LOCK NUT QTY. 12 ...
- Page 9 PLA500 HARDWARE ILLUSTRATION Part #20 M6x25mm SET SCREW QTY. 2...
-
Page 10: Assembly Instructions
PLA500 STEP 1 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware FIRST. wrench tighten all hardware at the END of step 1F. some components may be pre-assembled. attach Base Frame (B) to Rear Base Frame (K) of the Rack using: 2 - (#1) m12x80mm hex head bolt 4 - (#5) m12 flat washer... - Page 11 PLA500 STEP 1 above shows step 1 assembled and completed...
- Page 12 PLA500 STEP 2 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: finger tighten all hardware FIRST. wrench tighten all hardware at the END of step 2F. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 2A.
- Page 13 PLA500 STEP 2 above shows step 2 assembled and completed...
- Page 14 PLA500 STEP 3 BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT THEY ARE PRESENTED. NOTE: some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, must wrench tighten. 3A. Attach Lat Bar (F) to Top Cable (#17). 3B.
- Page 15 PLA500 STEP 3 above shows step 3 assembled and completed...
- Page 16 PLA500 NOTE...
-
Page 17: Exploded View
PLA500 EXPLODED VIEW... -
Page 18: Contact Page
PLA500 please write your serial number in the boxes below 014756-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST...
