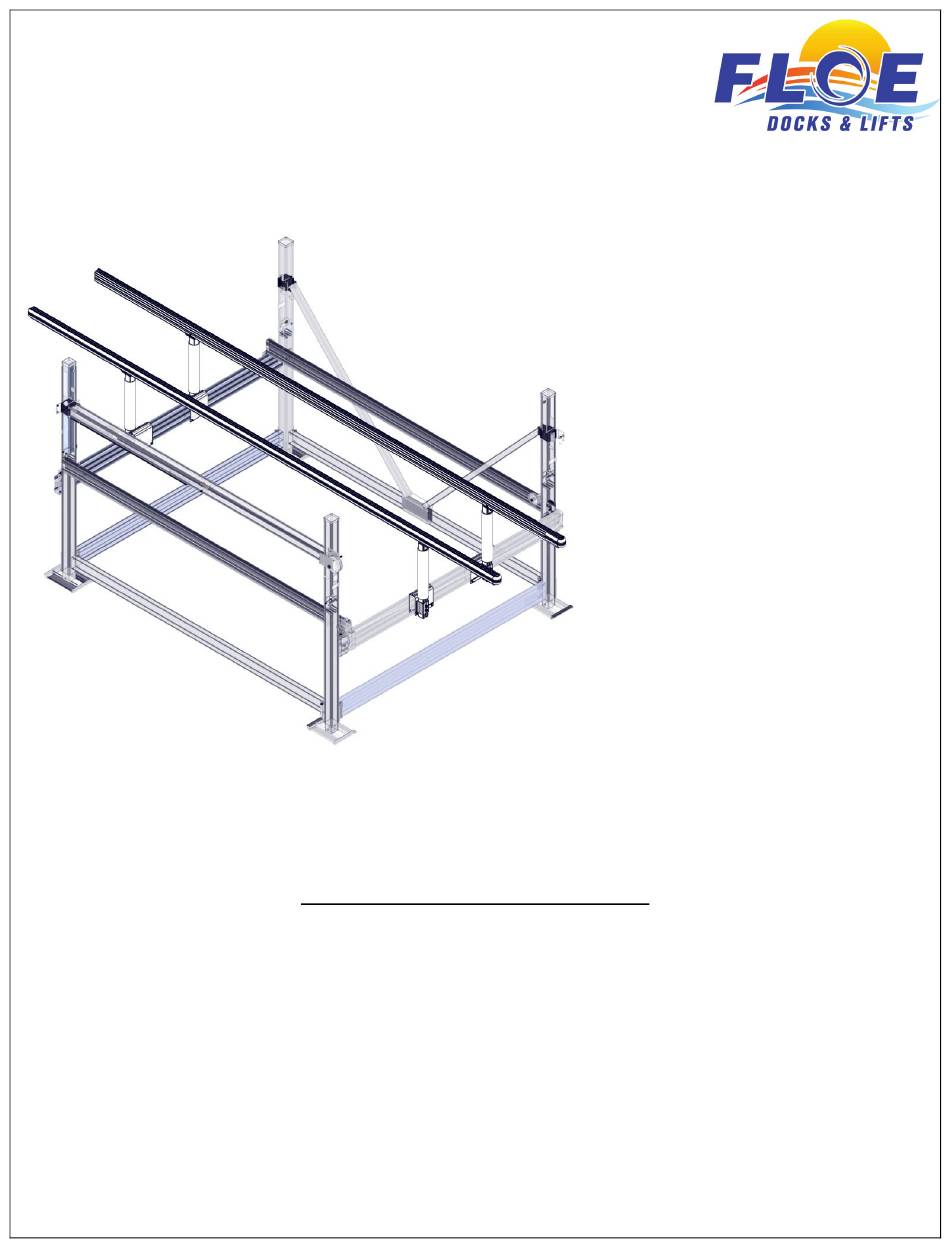

Floe 511-02484-01 Assembly Instructions Manual

In/bunk vsd6500-vsd10,000 wide
Hide thumbs

Advertisement

Quick Links

Download this manual
FLOE PONTOON GUIDE-IN/BUNK
VSD6500-VSD10,000 WIDE
ASSEMBLY INSTRUCTIONS
KIT P/N 511-02484-01, 511-02485-01, 511-02486-01
DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY
RECOMMEND THAT YOU CONSULT WITH YOUR BOAT'S MANUFACTURER TO
ENSURE THAT YOU ARE SUPPORTING YOUR BOAT PROPERLY TO AVOID ANY
INSTRUCTION P/N: 611-02485-01
RELEASED 6/14/22
BUNK/CRADLE PAD DISCLAIMER
POTENTIAL DAMAGE.
SHEET 1 OF 20
TOOLS REQUIRED
-(2) 9/16" SOCKET/WRENCH
-15/16" SOCKET/WRENCH
-TAPE MEASURE
-TORQUE WRENCH
-RECIPROCATING SAW OR
EQUIVALENT WITH METAL BLADE
AND PVC BLADE (OPTIONAL, SEE
SHEETS 12 & 16)
-0.406" (13/32") DRILL BIT & DRILL
(MAY BE NECESSARY FOR
VSD10,000 WIDE LIFTS LIFTS)
*LIFT NOT INCLUDED
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
