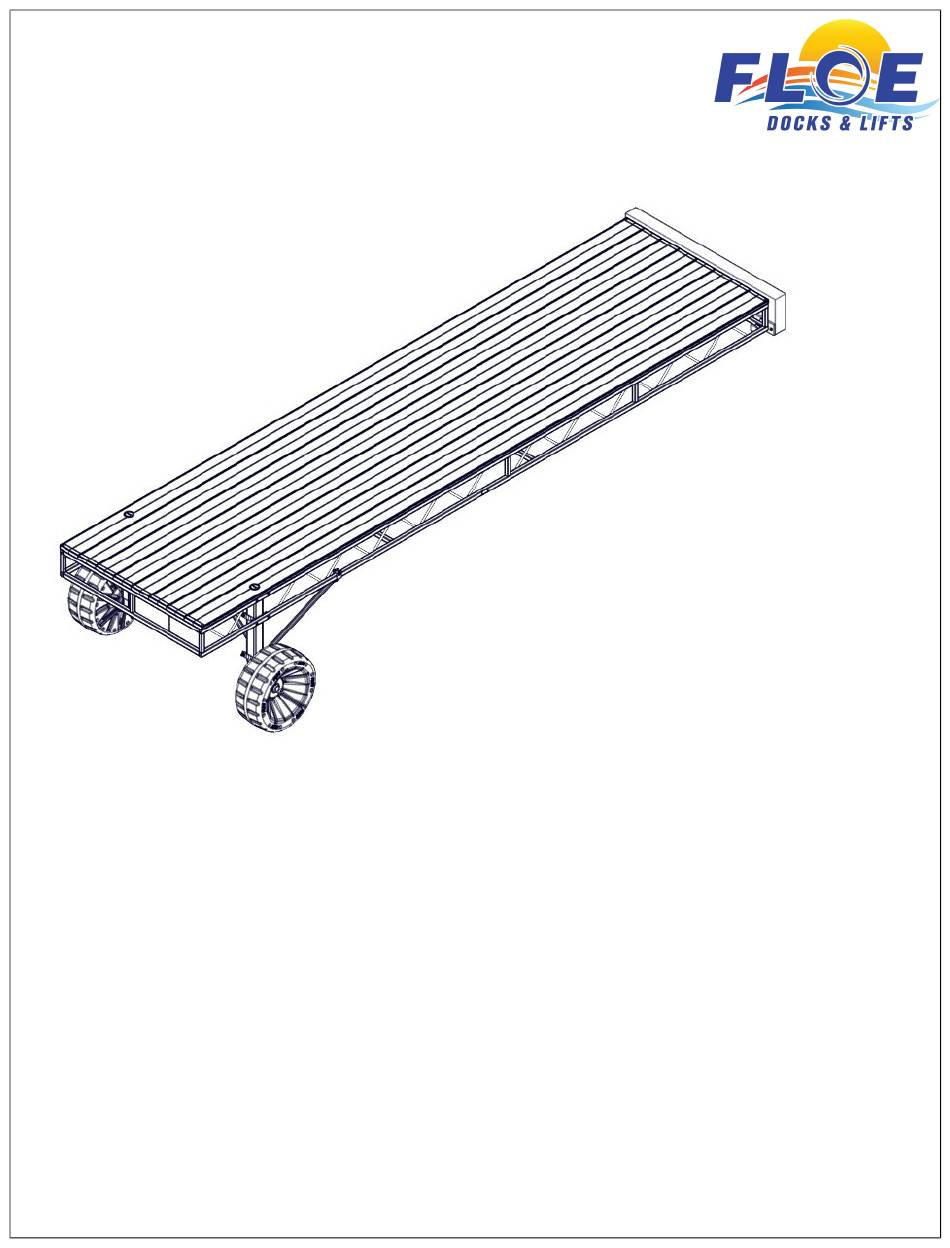

FLOE ROLL-IN SEAWALL CONNECTION KIT
ASSEMBLY INSTRUCTIONS
KIT P/N 510-35100-00
*DOCK SECTION & WHEEL KIT NOT INCLUDED
INSTRUCTION P/N: 610-35100-00
RELEASED 9/1/20
SHEET 1 OF 4
TOOLS REQUIRED
-9/16" SOCKET/WRENCH
-1/4" DRILL BIT
-CORDLESS DRILL
-TAPE MEASURE
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com
Advertisement
Related Manuals for Floe 510-35100-00
Summary of Contents for Floe 510-35100-00
- Page 1 FLOE ROLL-IN SEAWALL CONNECTION KIT ASSEMBLY INSTRUCTIONS KIT P/N 510-35100-00 *DOCK SECTION & WHEEL KIT NOT INCLUDED TOOLS REQUIRED -9/16” SOCKET/WRENCH -1/4” DRILL BIT -CORDLESS DRILL -TAPE MEASURE © Manufactured by: Floe International Inc. 48473 State Hwy. 65 SHEET 1 OF 4...
- Page 2 BILL OF MATERIALS P/N 510-35100-00 SEAWALL ATTACHMENT KIT, ROLL-IN DOCKS NUMBER PART NUMBER DESCRIPTION 001-74527-00 SCREW, LAG – 3/8” X 4” SS 18-8 110-00082-00 WELD’T, SEAWALL ATTACH. BRACKET SHEET 2 OF 4...
- Page 3 ASSEMBLY FIRST, DETERMINE WHERE THE ATTACHMENT BRACKETS SHOULD BE ON THE SEAWALL. MEASURE BETWEEN THE SIDE FRAME TUBES, INSIDE TO INSIDE TO DETERMINE PROPER SPACING FOR OTHER DOCKS. FOR EXAMPLE, BRACKETS INSTALLED FOR A 4’ DOCK WILL BE PLACED APPROXIMATELY 46” APART (FIGURE 1.1).
- Page 4 FIND THE CENTER OF THE SEAWALL AND TRANSFER MEASUREMENT TAKEN FROM DOCK (FIGURE 1.3) ONCE THE BRACKETS ARE PLACED, DRILL (2) PILOT HOLES PER BRACKET, THEN ATTACH TO THE SEAWALL USING (2) 3/8” X 4” LAG SCREWS (FIGURE 1.4). PLACE THE DOCK SECTION INTO THE BRACKETS INTO THE INNERMOST SLOT IN THE BRACKET (FIGURE 1.5).
