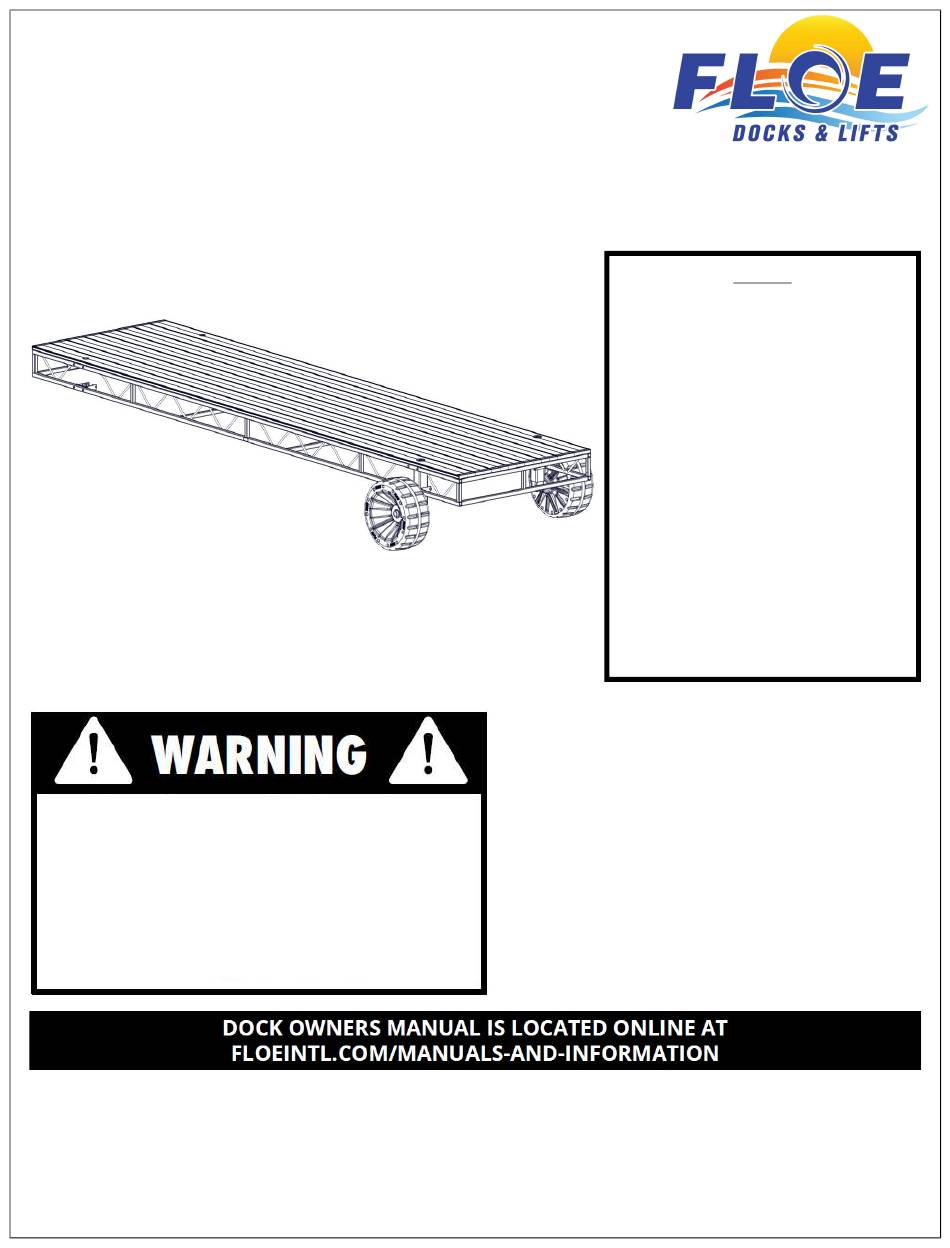

FLOE ROLL IN
X-SHALLOW WHEEL KIT
ASSEMBLY INSTRUCTIONS AND OWNERS MANUAL
4', 5', 6' & 8' WIDE DOCK SECTIONS
KIT P/N 510-17100-00
*DOCK NOT INCLUDED
NEVER ADJUST YOUR DOCK LEGS WITH
AN IMPACT WRENCH. NEVER ADJUST
YOUR DOCK LEGS WITH MORE THAN 15
FT-LBS OF FORCE. APPLYING TOO MUCH
FORCE TO YOUR DOCK LEGS WILL
DAMAGE THE MECHANISM.
INSTRUCTION P/N: 610-17100-00
RELEASED 3/3/21
SHEET 1 OF 16
NOTE:
FOR USE IN UP TO
APPROXIMATELY 13" OF
WATER.
WE RECOMMEND THAT THE
LOWER DOCK FRAME IS A
MINIMUM OF 8" ABOVE THE
WATER WHEN PROPERLY
ADJUSTED. HOWEVER, IF YOU
HAVE HIGH WAVE
CONDITIONS THAT
COMMONLY EXCEED 15", WE
RECOMMEND THAT YOU RAISE
YOUR DOCK ACCORDINGLY.
TOOLS REQUIRED
-(2) 9/16" SOCKETS/WRENCHES
-CORDLESS DRILL WITH SOCKET
ADAPTER & 1-1/8" SOCKET OR
FLOE SPEED WRENCH
-TORQUE WRENCH
-TAPE MEASURE
-LEVEL
-BLOCKING MATERIAL
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55760
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-SHALLOW 510-17100-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Floe X-SHALLOW 510-17100-00

Summary of Contents for Floe X-SHALLOW 510-17100-00

  • Page 1 FLOE ROLL IN X-SHALLOW WHEEL KIT ASSEMBLY INSTRUCTIONS AND OWNERS MANUAL 4’, 5’, 6’ & 8’ WIDE DOCK SECTIONS KIT P/N 510-17100-00 NOTE: FOR USE IN UP TO APPROXIMATELY 13” OF WATER. WE RECOMMEND THAT THE LOWER DOCK FRAME IS A MINIMUM OF 8”...

  • Page 2: Leg Adjustment

    LEG ADJUSTMENT NOTE: FOR USE IN UP TO APPROXIMATELY 13” OF WATER. NEVER ADJUST YOUR DOCK LEGS WITH WE RECOMMEND THAT THE LOWER DOCK AN IMPACT WRENCH. NEVER ADJUST FRAME IS A MINIMUM OF 8” ABOVE THE WATER YOUR DOCK LEGS WITH MORE THAN 15 WHEN PROPERLY ADJUSTED.
  • Page 3 BILL OF MATERIALS/EXPLODED VIEW 510-17100-00 WHEEL KIT, X-SHALLOW (PAIR) BZ NUMBER PART NUMBER QTY. DESCRIPTION 001-02311-00 FASTENERS, SHALLOW W/K PAIR 002-02080-00 CONNECT, QUICK - DOCK 110-01209-00 ASS’Y, W/K LEG (X-SHALLOW) BRONZE 001-02311-00 FASTENERS, SHALLOW W/K PAIR NUMBER PART NUMBER QTY. DESCRIPTION 001-26728-00 CLIP, STAINLESS STEEL SPINDLE...
  • Page 4 STEP 1 TURN DOCK UPSIDE DOWN AND BLOCK CORNERS (OR USE A SOFT SURFACE) TO PROTECT THE DECK SURFACE (FIGURE 1.1). INSERT WHEEL KIT LEGS INTO THE POCKETS THAT ARE PRE-INSTALLED ON THE DOCK (FIGURE 1.2). FIGURE 1.1 FIGURE 1.2 SHEET 4 OF 16...
  • Page 5 UNDER NORMAL CONDITIONS, THE WHEEL KITS ARE MOUNTED AS SHOWN IN FIGURE 1.2A. IF NECESSARY, WHEEL KITS MAY BE TURNED 180° FOR BOAT LIFT CLEARANCE. HOWEVER, SOME STABILITY MAY BE LOST (FIGURE 1.2B). REFER TO DOCK OWNER’S MANUAL FOR SPECIAL CONDITIONS ON SETTING UP YOUR DOCK.
  • Page 6 STEP 2 SLIDE WHEEL(S) (SOLD SEPARATELY) ONTO THE SPINDLE ON THE WHEEL KIT AND PLACE A 2-1/2” WASHER ONTO THE SPINDLE (FIGURE 2.1). INSERT SPINDLE CLIP LEG INTO ONE OF THE HOLES IN THE SPINDLE, THEN PULL CLIP DOWN TO SNAP OTHER CLIP LEG INTO THE SECOND HOLE (FIGURE 2.2).
  • Page 7 STEP 3 TURN DOCK RIGHT SIDE UP (FIGURE 3.1). ATTACH QUICK CONNECTS TO THE WHEEL KIT END OF THE DOCK SECTION IF ANOTHER SECTION IS TO BE CONNECT TO IT. TO ATTACH DOCK SECTIONS IN A STRAIGHT LINE, QUICK CONNECTS SHOULD BE ASSEMBLED AS SHOWN. SPACE THE QUICK CONNECTS AS FAR OUT AS POSSIBLE (FIGURE 3.2).
  • Page 8 WHEN ANOTHER DOCK SECTION CONNECTS TO A SIDE OF THE DOCK, QUICK CONNECTS SHOULD BE PLACED AS SHOWN (FIGURE 3.3). ATTACH USING (1) 3/8” X 2-1/2” BOLT, (2) 3/8” WASHERS, AND (1) 3/8” NUT PER BRACKET (FIGURE 3.4). FIGURE 3.3 FIGURE 3.4 SHEET 8 OF 16...
  • Page 9 TORQUE TO 30 FT-LBS (FIGURE 3.5). QUICK CONNECTS SHOULD BE SPREAD APART AS FAR AS POSSIBLE TO KEEP THE JOINING SECTION FROM SHIFTING SIDEWAYS. PLACE CONNECTING DOCK SECTIONS IN THE QUICK CONNECT INSTALLATION/REMOVAL POSITION WHEN INSTALLING OR REMOVING MULTIPLE SECTIONS. PUSH THE DOCKS INTO POSITION IN THE WATER. ONCE THE DOCKS ARE IN POSITION, PUT THEM IN THE QUICK CONNECTS SET POSITION (FIGURE 3.6).
  • Page 10 USING A FLOE SPEED WRENCH OR 1-1/8” SOCKET AND DRILL, ADJUST THE HEIGHT OF THE DOCK SO THE BOTTOM FRAME OF THE DOCK IS APPROXIMATELY 8” ABOVE THE WATER. *SEE NOTE ON SHEET 1. TURN THE DOCK ADJUSTING NUT ON THE TOP OF THE DOCK CLOCKWISE TO LOWER THE DOCK AND COUNTERCLOCKWISE TO RAISE THE DOCK.
  • Page 11 NOTES SHEET 11 OF 16...
  • Page 12 NOTES SHEET 12 OF 16...
  • Page 13 New Warranty Guidelines - Effective September 1, 2004 Two-Year Parts and Labor Warranty FLOE INTERNATIONAL, INC. will repair or replace, at their option, any portion of the dock system which fails as a result of a defect in material or workmanship during the first two years after the date of purchase. Items purchased by FLOE INTERNATIONAL, INC. are warranted by the original manufacturer and warranty is extended only to the original retail purchaser.
  • Page 14 FLOE or an authorized FLOE dealership, with the exception of claims covered by the two-year parts and labor warranty that provides service up to 15 miles from the dealer. FLOE INTERNATIONAL reserves the right to inspect and perform rework at its main facility (F.O.B.) McGregor, Minnesota. Specifications may change without notice or obligation.

  • Page 15: Warranty Registration

    Instantly register your FLOE products online! www.floeintl.com/registration WARRANTY REGISTRATION NOTE: FLOE products must be registered within 15 days of purchase to validate warranty. Please photocopy and fill out the form below and place in an envelope with proper postage or quickly register online. Please complete all information requested. FLOE INTERNATIONAL, INC. is not responsible for lost, stolen or misplaced warranty registrations. If you are mailing in your registration please address it to: FLOE International Inc., Warranty Registration Dept. 48473 State Hwy 65, McGregor, MN 55760-9514 NAME: _________________________________________________________________ PHONE: ______ / _______________ ADDRESS: ____________________________________________CITY: __________________ STATE: __________ ZIP: ________ DATE PURCHASED: ________/ ________/ ________ DEALER PURCHASED FROM: _______________________________________ E-mail: _____________________________________________  Yes please  No you cannot contact me via e-mail with great offers and special promotions from FLOE International and it’s quality authorized dealers. PRODUCT PURCHASED Please check all that apply  FLOE TRAILER......Size: _________ Model: __________ V IN#:__________________________________ ...
  • Page 16 SHEET 16 OF 16...
