Page 1

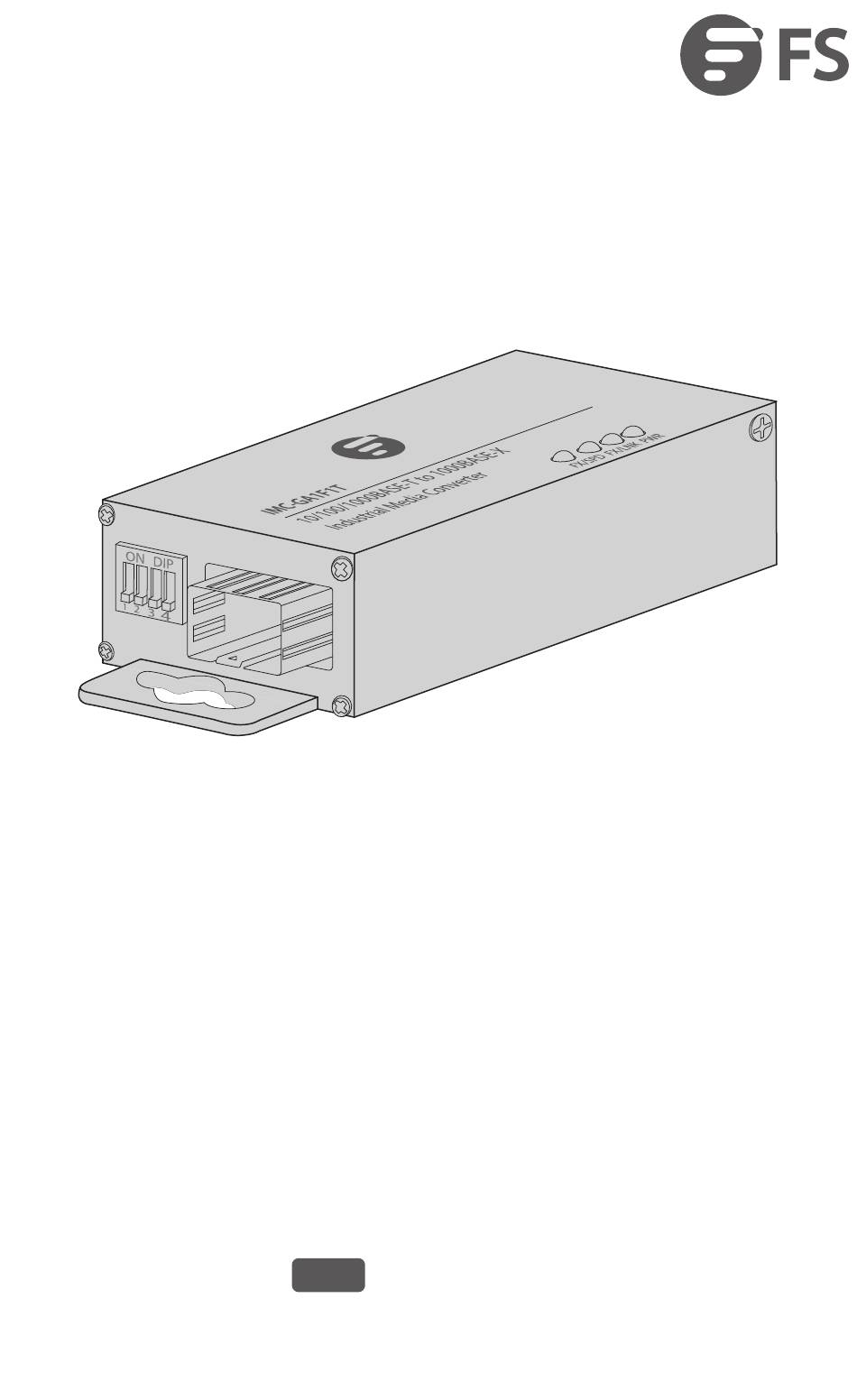

MINI INDUSTRIAL ETHERNET MEDIA CONVERTERS INDUSTRIELLE MINI ETHERNET-MEDIENKONVERTER MINI CONVERTISSEUR DE MÉDIAS ETHERNET INDUSTRIEL ミニ産業用イーサネットメディアコンバータ Quick Start Guide V2.0 Quick-Start Anleitung Guide de Démarrage Rapide クイックスタートガイド...
Page 2
Introduction Thank you for choosing FS Mini Industrial Ethernet Media Converters. This guide is designed to familiarize you with the layout of the media converters and describes how to deploy them in your network. IMC-GA1F1T IMC-GA1SC1T-SM...
Page 3
IMC-GA1SC1T-MM Accessory Power Adapter x1 NOTE: The power adapter will be packed according to the plug standard of di erent regions. It may vary from illustration, please prevail in kind.
Hardware Overview Panel Ports IMC-GA1F1T RJ45 Ports Description RJ45 10/100/1000Base-T RJ45 port for Ethernet connection Hot swappable SFP port for 1000Base-X ber connection...
Page 5
IMC-GA1SC1T-SM/IMC-GA1SC1T-MM RJ45 Ports Description RJ45 10/100/1000Base-T RJ45 port for Ethernet connection SC port for duplex SC single mode or multimode ber connection Panel LEDs SPD LNK/ACT...
Page 6
FX/SPD FX/LNK LEDs State Description The twisted pair is connected well, but there is no data transmission. LNK/ACT Blinking The port is sending or receiving data. The port is operating at 1000Mbps (TP). The port is operating at 10M/ 100Mbps(TP). The port is operating at 1000M (FX).
Power Panel The converter needs DC 12V input and it injects the DC power into the pin of the twisted pair cable. Bottom Panel (DIP Switch) IMC-GA1F1T Function State Description Disable LFP Function Enable Disable ALS Function (Only for SFP)
Page 8
NOTE: 1. LFP: Link Fault Pass Through Function. 2. ALS: Automatic Laser Shutdown Function. 3. FX Reset: If it is enabled, when the FX link is down, the power will shut down. A few seconds later, the power will restart automatically. IMC-GA1SC1T-SM/IMC-GA1SC1T-MM Function State...
Installation Requirement Do not operate it in an area that exceeds an ambient temperature of 75°C. The installation site should be well-ventilated. Be sure that the media converter is level and stable to avoid any hazardous conditions. The installation site must be free from leaking or dripping water, heavy dew, and humidity.
Grounding the Media Converter 1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the converter is mounted. 2. Secure the grounding lug to the grounding point with the screw and washers. CAUTION: The earth connection must not be removed unless all supply connections have been disconnected.
Page 11
Connecting the RJ45 Port 1. Connect an Ethernet cable to the RJ45 port of the media converter. NOTE: Cat 6a/7 cable is required for 10G and Cat 6 cable for 1000M. Make sure that the media converter supports the corresponding rate. 2.
Page 12
Connecting the SFP Port 1. Insert an SFP transceiver into the SFP port. 2. Connect a ber optic cable to the SFP transceiver and the other end of the cable to the ber network. NOTE: Both multimode and single mode cablings are supported. Make sure both sides of the SFP transceiver are with the same media type.
Page 13
Connecting the SC Port Connect a ber optic cable to the SC port and the other end of the cable to the ber network. TX and RX must be paired at both ends. NOTE: The media converter is installed with the SC port by default. Please verify whether the SC cable matches the converter (single mode or multimode).
Connecting to the Power 1. Loosen the wire-clamp screws and insert positive and negative DC power wires into the terminal block for power. 2. Tighten the wire-clamp screws to prevent the wires from loosening. 3. Connect the terminal block to the media converter.
Page 15
4. Plug the other end of the power adapter into the power source and verify that the power LED lights up.
Troubleshooting The per Port LED Is Not Lit Check the cable connection of the media converter. The Performance Is Bad Check the speed duplex mode of the partner device. The media converter usually runs in auto-negotiation mode. If the partner is set to half duplex, the performance will be poor.
Contact Us https://www.fs.com/contact_us.html Product Warranty FS ensures our customers that for any damage or faulty items due to our workmanship, we will o er a free return within 30 days from the day you receive your goods. This excludes any custom-made items or tailored solutions.
Page 18
Einführung Vielen Dank, dass Sie sich für die industriellen mini Ethernet- Medienkonverter von FS entschieden haben. Diese Anleitung soll Sie mit dem Aufbau der Medienkonverter vertraut machen und beschreibt, wie Sie sie in Ihrem Netzwerk einsetzen. IMC-GA1F1T IMC-GA1SC1T-SM...
Page 19
IMC-GA1SC1T-MM Zubehör Netzadapter x1 HINWEIS: Der Netzadapter wird entsprechend dem Steckverbinder- Standard der verschiedenen Regionen verpackt. Bitte beachten Sie, dass der Steckverbinder von der Abbildung abweichen kann.
Page 20
Hardware-Übersicht Panel-Ports IMC-GA1F1T RJ45 Ports Beschreibung 10/100/1000Base-T-RJ45-Port für die Ethernet- RJ45 Verbindung Hot-Swap-fähiger SFP-Port für 1000Base-X- Glasfaseranschluss...
Page 21
IMC-GA1SC1T-SM/IMC-GA1SC1T-MM RJ45 Ports Beschreibung 10/100/1000Base-T-RJ45-Port für die Ethernet- RJ45 Verbindung SC-Port für Duplex SC Singlemode- oder Multimode- Glasfaseranschluss Panel-LEDs SPD LNK/ACT...
Page 22
FX/SPD FX/LNK LEDs Status Beschreibung Das Twisted-Pair ist korrekt angeschlossen, aber es ndet keine Datenübertragung statt. LNK/ACT Der Port sendet oder empfängt gerade Blinkt Daten. Der Port arbeitet mit 1000 Mbps (TP). Der Port arbeitet mit 10M/100 Mbps (TP). Der Port arbeitet mit 1000M (FX). FX/SPD Der Port arbeitet mit 10M/100M (FX).
Strom-Panel Der Konverter benötigt einen DC-Stromeingang mit 12 Volt und speist den DC-Strom in den Pin des Twisted-Pair-Kabels ein. Unterseite (DIP-Schalter) IMC-GA1F1T Funktion Status Beschreibung Deaktivieren LFP-Funktion Aktivieren Deaktivieren ALS-Funktion (nur für SFP) Aktivieren Deaktivieren FX Reset Aktivieren FX 1000M...
Page 24
HINWEIS: 1. LFP: Link Fault Pass Through Funktion 2. ALS: Automatic Laser Shutdown Funktion 3. FX-Reset: Wenn diese Funktion aktiviert ist, schaltet sich das Gerät aus, wenn die FX-Verbindung unterbrochen wird. Einige Sekunden später schaltet sich das Gerät automatisch wieder ein. IMC-GA1SC1T-SM/IMC-GA1SC1T-MM Funktion Status...
Page 25
Installationsanforderungen Betreiben Sie das Gerät nicht in einem Bereich, in dem die Umgebungstemperatur 75 °C übersteigt. Der Aufstellungsort sollte gut belüftet sein. Achten Sie darauf, dass der Medienkonverter eben und stabil ist, um gefährliche Situationen zu vermeiden. Der Aufstellungsort muss frei von austretendem oder tropfendem Wasser, starkem Tau und Feuchtigkeit sein.
Page 26
Erdung des Medienkonverters 1. Schließen Sie ein Ende des Erdungskabels an eine geeignete Erdung an, z. B. an das Rack, in dem der Konverter montiert ist. 2. Befestigen Sie die Erdungslasche mit der Schraube und den Unterlegscheiben an dem Erdungspunkt. ACHTUNG: Der Erdungsanschluss darf erst dann entfernt werden, wenn alle Stromversorgungsanschlüsse getrennt wurden.
Page 27
Anschließen des RJ45-Port 1. Schließen Sie ein Ethernet-Kabel an den RJ45-Port des Medienkonverters an. HINWEIS: Für 10G ist ein Cat 6a/7-Kabel erforderlich, für 1000M ein Cat 6-Kabel. Stellen Sie sicher, dass der Medienkonverter die entsprechende Rate unterstützt.
Page 28
2. Schließen Sie das andere Ende des Ethernet-Kabels an ein Netzwerkgerät (Switch, IP-Kamera, SPS usw.) an. Anschließen des SFP-Ports 1. Stecken Sie einen SFP-Transceiver in den SFP-Port. 2. Schließen Sie ein LWL-Kabel an den SFP-Transceiver und das andere Ende des Kabels an das Glasfasernetzwerk an.
Page 29
HINWEIS: Es werden sowohl Multimode- als auch Singlemode-LWL- Kabel unterstützt. Stellen Sie sicher, dass beide Seiten des SFP- Transceivers den gleichen Medientyp aufweisen. Anschließen des SC-Ports Schließen Sie ein LWL-Kabel an den SC-Port und das andere Ende des Kabels an das Glasfasernetz an. TX und RX müssen an beiden Enden gepaart sein.
Anschließen der Stromversorgung 1. Lösen Sie die Schrauben der Drahtklemmen und stecken Sie die positiven und negativen DC-Stromkabel in den Anschluss- Klemmblock. 2. Ziehen Sie die Schrauben der Drahtklemmen fest, damit sich die Drähte nicht lockern können. 3. Schließen Sie den Anschluss-Klemmblock an den Medienkonverter an.
Page 31
4. Stecken Sie das andere Ende des Netzteils an das Stromnetz an und überprüfen Sie, ob die Power-LED au euchtet.
Fehlerbehebung Die Port-LED leuchtet nicht auf Überprüfen Sie die Kabelverbindung des Medienkonverters. Die Leistung ist schlecht Überprüfen Sie den Geschwindigkeits-Duplex-Modus des Partnergeräts. Der Medienkonverter läuft normalerweise im Autonegotiationsmodus. Wenn der Partner auf Halbduplex eingestellt ist, ist die Leistung schlecht sein. Die Port-LED leuchtet, aber der Datenverkehr ist unregelmäßig Vergewissern Sie sich, dass das angeschlossene Gerät nicht auf...
Page 33
Kontakt https://www.fs.com/de/contact_us.html Produktgarantie FS garantiert seinen Kunden, dass wir bei Schäden oder fehlerhaften Artikeln, die auf unsere Verarbeitung zurückzuführen sind, eine kostenlose Rückgabe innerhalb von 30 Tagen nach Erhalt der Ware anbieten. Dies gilt nicht für Sonderanfertigungen oder maßgeschneiderte Lösungen.
Page 34
Introduction Nous vous remercions d'avoir choisi le Mini Convertisseur de Média Ethernet Industriel FS. Ce guide est conçu pour vous familiariser avec la con guration du convertisseur de média et décrit comment procéder à son déploiement. IMC-GA1F1T IMC-GA1SC1T-SM...
Page 35
IMC-GA1SC1T-MM Accessoires Adaptateur d'Alimentation x1 NOTE : L'adaptateur d'alimentation est fourni conformément aux normes de prise de courant spéci ques à chaque région. Il peut varier par rapport à l'illustration, veuillez en tenir compte.
Présentation du Matériel Ports du Panneau IMC-GA1F1T RJ45 Ports Description Port RJ45 10/100/1000Base-T pour connexion RJ45 Ethernet Port SFP remplaçable à chaud pour connexion bre 1000Base-X...
Page 37
IMC-GA1SC1T-SM/IMC-GA1SC1T-MM RJ45 Ports Description Port RJ45 10/100/1000Base-T pour connexion RJ45 Ethernet Port SC pour connexion duplex SC en bre monomode ou multimode LED du Panneau SPD LNK/ACT...
Page 38
FX/SPD FX/LNK État Description Le l torsadé est bien connecté, mais Allumé il n'y a pas de transmission de données. LNK/ACT Le port est en cours de transmission Clignotant ou réception de données. Allumé Le port fonctionne à 1000Mbps (TP). Le port fonctionne à...
Page 39
Panneau d'Alimentation Le convertisseur a besoin d'une entrée de 12V DC pour injecter l'énergie en courant continu (DC) dans la broche du câble à paires torsadées. Panneau Inférieur (interrupteur DIP) IMC-GA1F1T Function State Description ÉTEINT Désactivé Fonction LFP ALLUMÉ Activé...
Page 40
NOTE : 1. LFP : Fonction "Link Fault Pass Through" (passage d'un défaut de liaison). 2. ALS : Fonction d'arrêt automatique du laser. 3. FX Reset (réinitialisation FX) : Si cette fonction est activée, lorsque la liaison FX est interrompue, l'alimentation s'arrête. Quelques secondes plus tard, le système se remettra automatiquement en marche.
Conditions d'Installation Ne pas installer l'appareil dans un endroit où la température ambiante est supérieure à 75°C. Le site d'installation doit être bien ventilé. Veillez à ce que le convertisseur de média soit à niveau et stable a n d'éviter tout risque. Le site d'installation doit être exempt de fuites d'eau et d'humidité.
Page 42
Mise à la Terre du Convertisseur de Média 1. Connectez une extrémité du câble de mise à la terre à une terre appropriée, telle que le rack dans lequel le convertisseur est installé. 2. Fixez la cosse de mise à la terre au point de mise à la terre à l'aide des vis et des rondelles.
Page 43
Connexion du Port RJ45 1. Connectez un câble Ethernet au port RJ45 du convertisseur de média. NOTE : Un câble Cat 6a/7 doit être utilisé pour 10G et un câble Cat 6 pour 1000M. Assurez-vous que le convertisseur de média prend en charge le débit correspondant.
Page 44
2. Connectez l'autre extrémité du câble Ethernet à un périphérique réseau (switch, caméra IP, PLC, etc.). Connexion du Port SFP 1. Insérez un émetteur-récepteur SFP dans le port SFP. 2. Connectez un câble à bre optique à l'émetteur-récepteur SFP et l'autre extrémité du câble au réseau à bre optique.
Page 45
NOTE : Les câbles multimodes et monomodes sont pris en charge. Assurez-vous que les deux extrémités de l'émetteur-récepteur SFP sont du même type de support. Connexion du Port SC Connectez un câble à bre optique au port SC et l'autre extrémité du câble au réseau à...
Connexion à l'Alimentation 1. Desserrez les vis du serre- ls et insérez les ls d'alimentation en courant continu (DC) positif et négatif dans le bornier d'alimentation. 2. Serrez les vis du serre- l pour éviter que les ls ne se desserrent. 3.
Page 47
4. Branchez l'autre extrémité de l'adaptateur d'alimentation sur la source d'alimentation et véri ez que l'indicateur d'alimentation est allumé.
Dépannage L'Indicateur LED du Port N'Est Pas Allumé Véri er la connexion du câble du convertisseur de média. La Performance N'Est Pas Optimale Véri ez la vitesse et le mode duplex de l'appareil partenaire. Le convertisseur de média fonctionne généralement en mode auto- négociation.
Contactez-Nous https://www.fs.com/fr/contact_us.html Garantie du Produit FS garantit à ses clients que tout article endommagé ou défectueux en raison de sa fabrication pourra être retourné gratuitement dans un délai de 30 jours à compter de la date de réception de la marchandise. Cette garantie ne s'applique pas aux articles fabriqués sur mesure ou aux solutions personnalisées.
Compliance Information Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 67
FS.COM GmbH hereby declares that this device is in compliance with the Directive 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863. A copy of the EU Declaration of Conformity is available at www.fs.com/company/quality_control.html.
UKCA Hereby, FS.COM Innovation Ltd declares that this device is in compliance with the Directive SI 2016 No. 1091, SI 2016 No. 1101 and SI 2012 NO. 3032. FS.COM INNOVATION LTD Unit 8, Urban Express Park, Union Way, Aston, Birmingham, B6 7...
