FS MMC-GASFP-V Quick Start Manual

FS MMC-GASFP-V Quick Start Manual

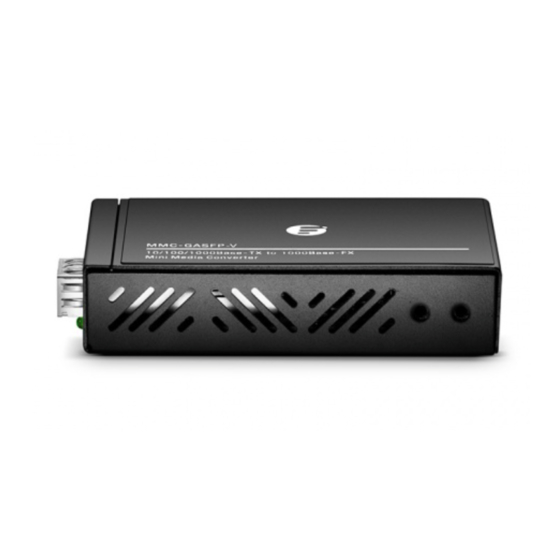

Mini unmanaged ethernet media converter

Advertisement

P W R
MMC-GASFP-V
MINI UNMANAGED ETHERNET MEDIA
CONVERTER
Quick Start Guide
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMC-GASFP-V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FS MMC-GASFP-V

  • Page 1 P W R MMC-GASFP-V MINI UNMANAGED ETHERNET MEDIA CONVERTER Quick Start Guide V1.0...
  • Page 2 Introduction Thank you for choosing FS Mini Unmanaged Ethernet Media Converter. This guide is designed to familiarize you with the layout of the media converter and describes how to deploy it in your network. P W R Accessories Power Adapter x1...
  • Page 3: Hardware Overview

    Hardware Overview Front Panel Ports TP/LNK 1000M FX/LNK RJ45 Port SFP Port Ports Description RJ45 10/100/1000Base-T RJ45 port for Ethernet connection Hot swappable SFP port for 1G ber connection Front Panel LEDs 1000M FX/LNK TP/LNK TP/LNK 1000M FX/LNK Status Description Link through copper port is successfully Green established.
  • Page 4 Status Description Green Copper port is operating at 1000Mbps. 1000M Copper port is operating at 10/100Mbps. Link through ber port is successfully Green established. Blinking Fiber port is actively sending or FX/LNK Green receiving data. Fiber port is linked down. Green Power is detected.
  • Page 5 Bottom Panel (DIP Switch) Function Status Description Disable LFP Function * Enable Disable ALS Function (Only for SFP) ** Enable Disable FX Reset *** Enable FX 1000M FX Speed Set FX 100M/1000M * LFP (Link Fault Pass Through) Function: If enabled, when a device is connected to the converter and the TP/ ber line loses the link, the converter's ber will disconnect the link of transmit.
  • Page 6: Site Environment

    Site Environment Do not operate it in an area that exceeds an ambient temperature of 40°C. The installation site should be well ventilated. Be sure that the Media Converter is level and stable to avoid any hazardous conditions. Do note install the equipment in a dusty environment. The installation site must be free from leaking or dripping water, heavy dew, and humidity.
  • Page 7 Rack Mounting (Use with MFMC-12DP 12 Slots Mini Media Converter Chassis) 1. Install the hanging ears on the left rear side of the media converter with two screws. 2. Install the media converters in the chassis in sequence (First install the lower level, then the upper level).
  • Page 8 3. Place the chassis into the rack. Align the brackets to the side holes on the rack and use the rack screws to secure the chassis to the rack. Connecting to the Power...
  • Page 9 P W R 1. Desk Mounting: Connect the power adapter to the media converter and verify that the Power LED lights up. 0 / 6 0 H Z - 2 4 0 V 5 A C 1 0 0 IN P U T : F U S E :3 .1 F A N O F F...
  • Page 10 Connecting to the RJ45 Port P W R 1. Connect an Ethernet cable to the RJ45 port of the media converter. S 3 9 0 0 -2 4 T 4 S 2. Connect the other end of the Ethernet cable to the network device (switch, PC, router, etc.).
  • Page 11 Connecting to the SFP Port 1. Insert an SFP module into the SFP slot. 2. Connect a ber optic cable to the SFP module. Plug the other end of the ber optic cable to the ber network. TX and RX must be paired at both ends. Both multimode and single mode cablings are supported.
  • Page 12: Troubleshooting

    Troubleshooting The per port LED is not lit Check the cable connection of the Media Converter. Performance is bad Check the speed duplex mode of the partner device. The Media Converter usually runs in auto-negotiation mode. If the partner is set to half duplex, the performance will be poor.
  • Page 13: Online Resources

    Online Resources Download https://www.fs.com/download.html https://www.fs.com/service/help_center.html Help Center Contact Us https://www.fs.com/contact_us.html...
  • Page 14: Product Warranty

    Product Warranty FS ensures our customers that any damage or faulty items due to our workmanship, we will o er a free return within 30 Days from the day you receive your goods. This excludes any custom made items or tailored solutions.
