Chapter 3 Installing the Cisco 7206
Secure the cable in the power supply AC receptacle by sliding the cable-retention clip down until it fits
Step 3
around the connector. The cable-retention clip provides strain relief for the AC power cable (refer to
Figure
Note
The AC power supply for the Cisco 7206 has double pole/neutral fusing.
Warning

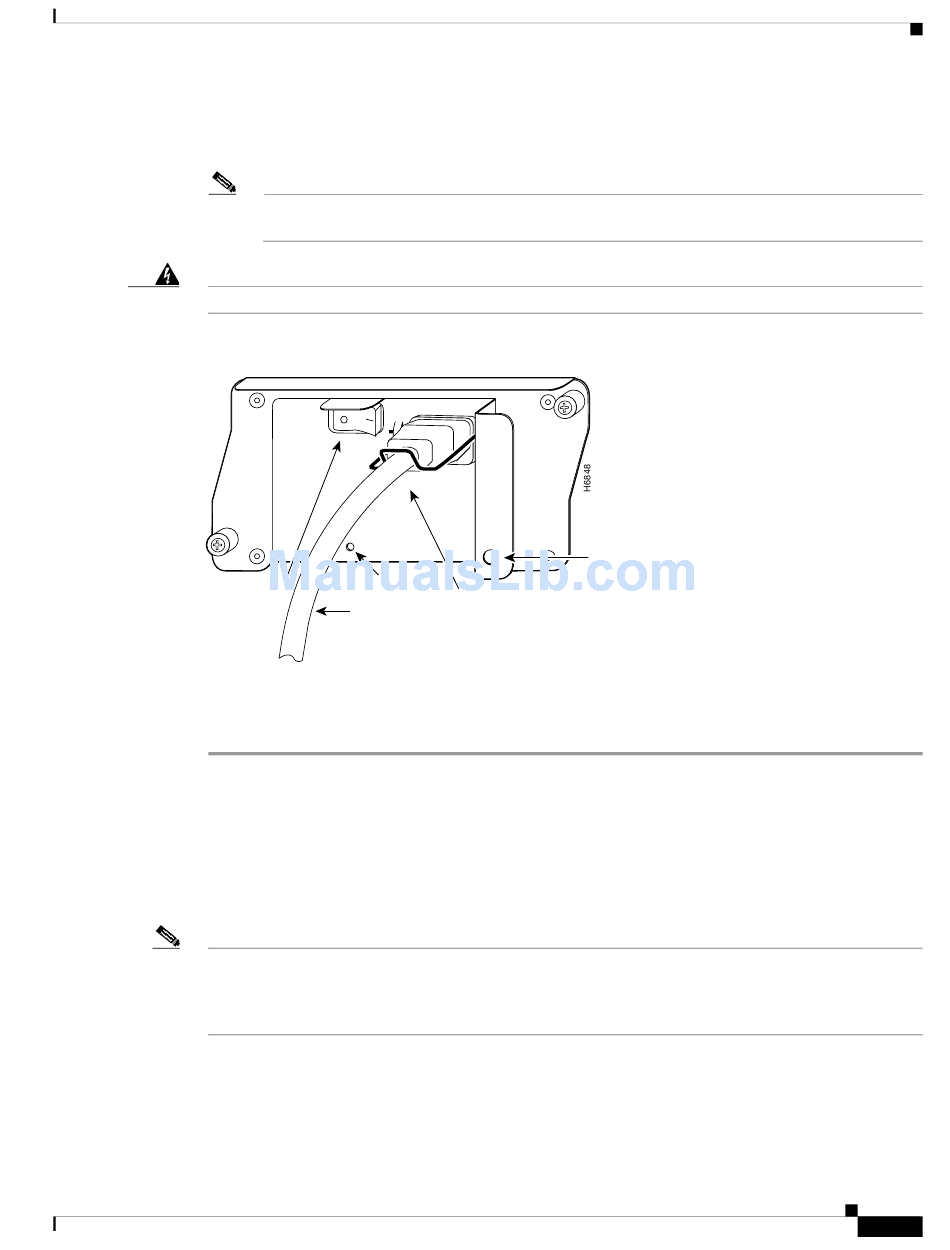

Figure 3-21 Connecting AC-Input Power
Power switch
Plug the AC power supply cable into the AC power source.
Step 4
Repeat Step 1 through Step 4 for the second power supply (if present).
Step 5
This completes the procedure for connecting AC-input power.

Connecting DC-Input Power

Connect a 280W DC-input power supply as follows:
The color coding of the DC-input power supply leads depends on the color coding of the DC power
Note
source at your site. Typically, green or green/yellow is used for ground. Make certain the lead color
coding you choose for the DC-input power supply matches lead color coding used at the DC power
source.
OL-5102-02
3-21).
For additional AC power cable strain relief, secure the cable to the power supply handle by
inserting a nylon cable tie through the hole in the handle and around the cable.
PWR OK LED
AC power cable
Hole for nylon
cable tie
Cable-retention
clip
Cisco 7206 Installation and Configuration Guide
Connecting Power
3-21
