Chapter 3 Installing the Cisco 7206
Use the following procedure to attach the grounding lug to the chassis grounding receptacles on your
router chassis:
Step 1 Locate the chassis grounding receptacles on your router chassis. (See
Step 2 Insert the two screws through the holes in the grounding lug. (See
grounding lug does not interfere with other router hardware, such as power supplies or the network
processing engine.

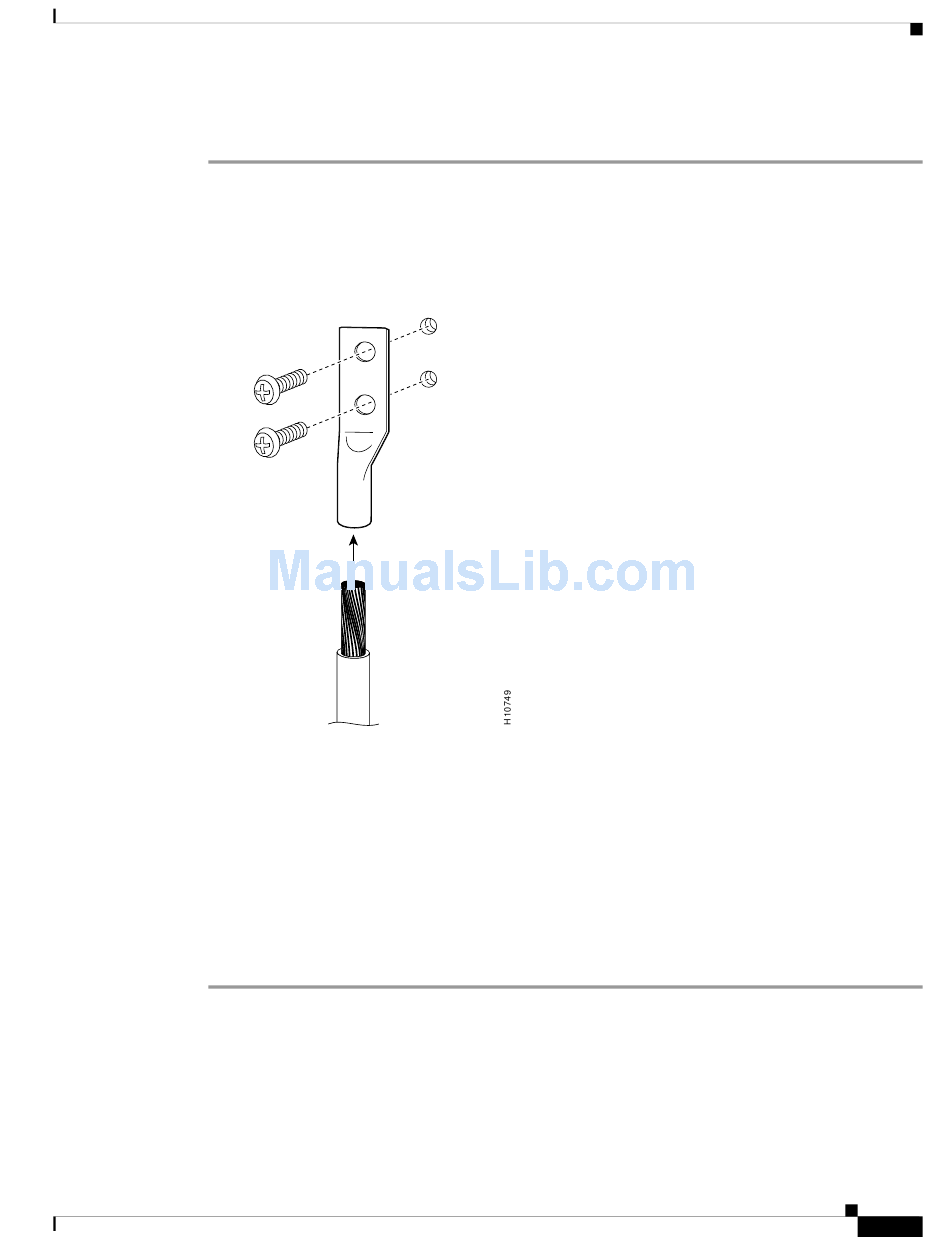

Figure 3-12 Attaching a Grounding Lug to the Chassis Grounding Receptacles
Screws
Grounding lug
Use the Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly to the
Step 3
chassis. Do not overtighten the screws.
Use the wire stripper to strip one end of the 6-AWG wire approximately 0.75 inches (19.05 mm).
Step 4
Insert the 6-AWG wire into the wire receptacle on the grounding lug. (See
Step 5
Step 6 Use the crimping tool to carefully crimp the wire receptacle around the wire; this step is required to
ensure a proper mechanical connection.
Step 7 Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure
an adequate chassis ground.
This completes the procedure for providing a chassis ground connection.
