Rack-Mounting the Cisco 7206

Installing the Brackets on the Front of the Chassis

To install the rack-mount and cable-management brackets on a Cisco 7206 for a front rack-mount
configuration, complete the following steps:
Locate the threaded holes in the front sides of the chassis. If you plan to use the cable-management
Step 1
brackets in your rack-mount configuration, proceed with Step 2. If you do not plan to use the
cable-management brackets, skip to Step 3.
Step 2 If you want the front of the chassis protruding from the rack, align the first rack-mount bracket and the
first cable-management bracket to the threaded holes in the right side of the chassis as shown in
Figure
If you want the front of the chassis recessed in the rack, align the first rack-mount bracket to the threaded
holes in the right side of the chassis as shown in
Figure 3-6
Cisco 7206 Installation and Configuration Guide
3-6
3-6.

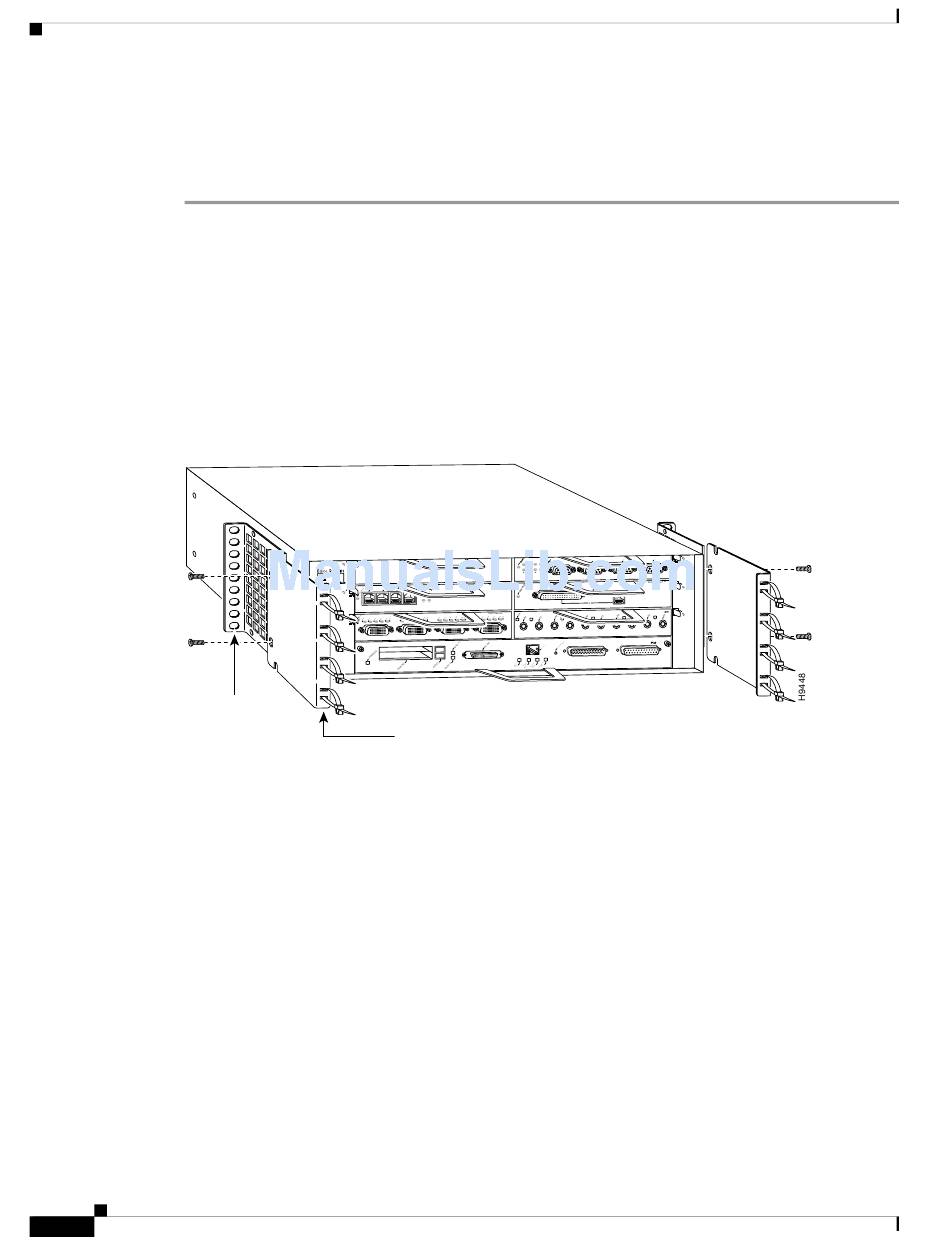

Installing the Rack-Mount Brackets on the Front of the Chassis so the Front
Protrudes from the Rack
Cisco 7200
Series
Rack-mount
bracket
Figure 3-7.
Cable-management bracket
Chapter 3 Installing the Cisco 7206
