Chapter 1 Product Overview

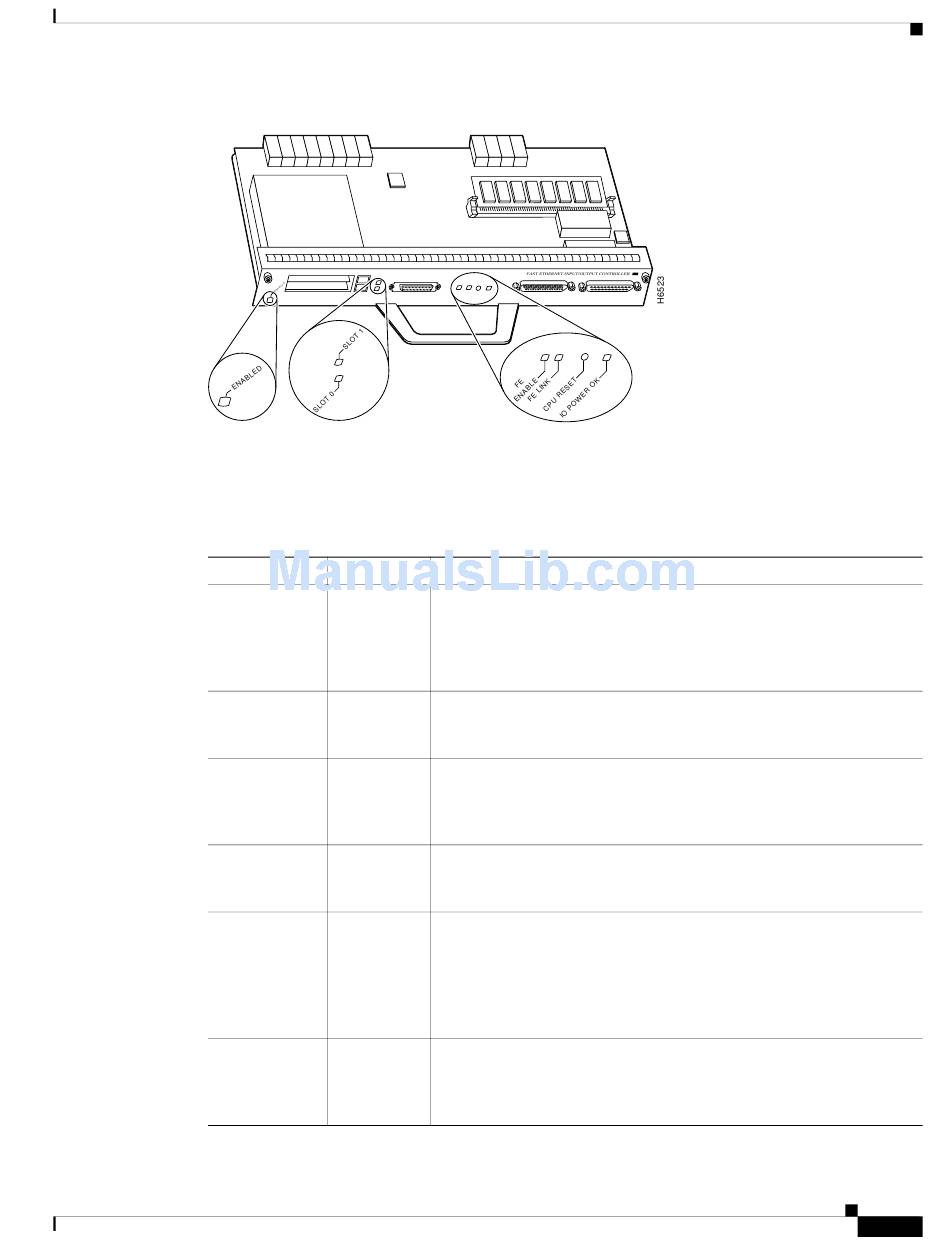

Figure 1-14 C7200-I/O-FE=—LEDs and CPU Reset Button—with Fast Ethernet Port (Single MII Port)
LEDs are either on or off. The LED state (on or off), not the color, determines the status of connection
as described in
OK LED, which is orange when in the on state.
Table 1-7
LED
ENABLED
IO POWER
OK
FE ENABLE
FE LINK
MII EN
RJ45 EN
OL-5102-02
Table 1-7. However, most LEDs are green when on, with the exception of the IO POWER
I/O Controller LEDs
Color Function
Green Indicates that the network processing engine and the I/O controller are
enabled for operation by the system; however, it does not mean that the
Fast Ethernet port on the I/O controller is functional or enabled. This
LED comes on during a successful router boot and remains on during
normal operation of the router.
Orange Indicates that the I/O controller is on and receiving DC power from the
router midplane. This LED comes on during a successful router boot
and remains on during normal operation of the router.
Green Indicates that the Fast Ethernet port is initialized and enabled for
operation by the system. This LED comes on after the
I/O controller has been enabled and remains on during normal
operation of the router.
1
Green Indicates that the Fast Ethernet port has established a valid link with
the network. This LED remains off during normal operation of the
router, unless there is an incoming carrier signal.
Green Indicates that the Fast Ethernet MII port is initialized and enabled by
the system, and is configured for operation. This LED comes on after
the I/O controller has been enabled and the MII port has been
configured as the media type for the Fast Ethernet port (the RJ-45 port
is the default media type for the Fast Ethernet port). This LED remains
on during normal operation of the router.
Green Indicates that the Fast Ethernet RJ-45 port (the default media type for
the Fast Ethernet port) is initialized and enabled by the system. This
LED comes on after the I/O controller has been enabled and remains
on during normal operation of the router.
Cisco 7206 Installation and Configuration Guide
Field-Replaceable Units
1-21
