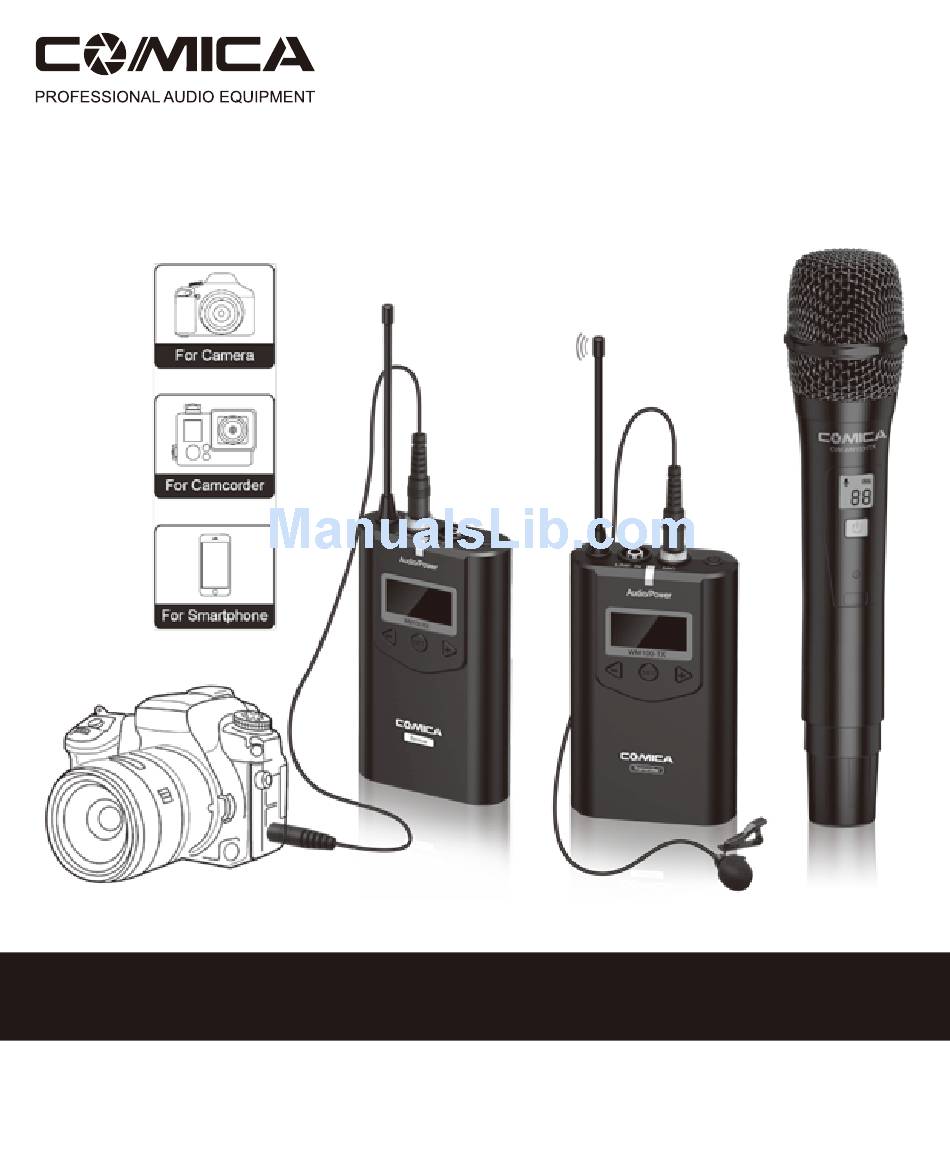

- Page 1 CVM-WM100 UHF Wireless Microphone USER MANUAL...
- Page 2 Specification Hand-held Transmitter HTX Channels Wireless Frequency 520.000MHz ~ 534.100MHz Transmitting Power 15dBm Lavalier Transmitter TX Channels Wireless Frequency 520.000MHz~534.100MHz Transmitting Power 15dBm Receiver RX Channels Wireless Frequency 520.000MHz~534.100MHz...
-
Page 3: Main Features
Foreword Thanks for purchasing the COMICA WM100 UHF wireless microphone. WM100 utilizes UHF wireless technology and LCD lattice screen, it comes with 16-levels adjustable volume, built-in with ‘Adjustable RF Strength’, ‘Local Audio Testing’, ‘Real-time Audio Monitor’ functions,etc., which takes you more professional and convenient recording;... - Page 4 Notice The antenna will affect working distance, be sure to protect it and avoid any man-made damage; Working distance will be affected by surround environment, make sure the background is open with no interference, and turn off the device’s WIFI during usage;...
- Page 5 In Packing List Main Body Hand-held Transmitter Lavalier Transmitter Receiver WM100=Lavalier Transmitter+Receiver WM100H=Handheld Transmitter+Receiver Accessories 3.5mm Audio Mic Wind Muff 3.5mm-3.5mm Audio Output Cable Portable Case 3.5mm-XLR Audio Output Cable User Manual Waist Belt Clip x 2pcs Warranty Card Camera Mount Item is included only in WM100...
-
Page 6: Hand-Held Transmitter
Components and Instruction Components Hand-held Transmitter Microphone LCD Display Power/CH Setting Button IR Screen Low cut/Normal Audio Switch Channel Sequence Switch AA Battery Holder... - Page 7 Lavalier Transmitter Antenna LINE IN Input MIC Input Power/Muting Button Working Indication Light Function Selection Button - Function Setting Button Function Selection Button + AA Battery Holder...
- Page 8 Receiver Antenna 3.5mm Audio Output 3.5mm Audio Monitor Output Power Button Working Indication Light Function Selection Button - Function Setting Button Function Selection Button + AA Battery Holder...
- Page 9 Screen Display Instruction Hand-held Transmitter HTX: Normal recording mode Power Indication Channel Lavalier Transmitter TX : RF Transmitting Strength High Icon： RF Transmitting Strength Low Icon： Normal Audio Mode Icon: Muting Mode Icon： Power Indication 00 520. 000 Channel Channel Frequency Locking/Unlocking Icon Audio Status Indication Bar...
- Page 10 Receiver RX: Power Indication RF Receiving Strength Volume Indication VOL 15 00 520. 000 Channel Channel Frequency Locking/Unlocking Icon Audio Status Indication Bar Indication Light Instruction Green Light Keeps On Work Normally Green Light Flicker Channels Not Match （Only for Receiver） Red Light Keeps On Muting Mode Red Light Flicker...
- Page 11 Function Button Instruction Long Press Power On/Off Power/Muting Button Short Press Muting（Unlocking Mode） Lavalier Locking/Unlocking Long Press Transmitter Function Setting （Unlocking Mode） Set Button and Receiver Short Press Function Selection（Unlocking Mode） Short Press Function Selection + Button Short Press Function Selection - Button Long Press Power On / Off Power/CH Setting...
- Page 12 Installation and Usage Hand-held Transmitter Step 1. Install two AA batteries into the battery tray according to the positive and negative electrode Step 2. Long press the button to turn on the hand-held transmitter...
- Page 13 Step 3. Matching with the receiver VOL 11 Hand-held transmitter’ channel Receiver’ channel A. Short press power button to switch the channel Channel switch...
- Page 14 B. Set HTX and RX into same channel VOL 11 Hand-held transmitter’ channel Receiver’ channel sync Hand-held transmitter Receiver...
- Page 15 C. The green light of RX will turn on after successful match Low cut adjustment switch Channel sequence switch For simple channel setting, please open the battery cover to adjust the channel sequence...
- Page 16 Lavalier Transmitter Step 1: Install Batteries into Battery Holder by following the ‘+’ and ‘-’ Icon, and clip the waist holder onto back of transmitter ; Step 2: Long-press the power button to open the transmitter; Step 3: According to your own requirement, to choose to connect the Mic cable onto ‘Line in’...
- Page 17 Step 5: Refer to the Function Button Instruction to set the relative functions, for example: CH Adjustment, RF Strength Adjustment, LCF Adjustment; A. Unlock： 520. 000 Lock Long press SET button 520. 000 Unlock...
- Page 18 B. CH Adjustment： Short press SET button Adjust CH channel Adjust the CH channel by - + button...
- Page 19 C. RF Strength Adjustment ： Short press SET button Adjust RF Adjust the RF signal strength by - + button D. LCF (Low-cut Filter) LCF OFF LCF ON Choose thin voice with LCF ON or thick voice with LCF OFF.
- Page 20 Receiver Step 1: Install the Receiver onto the device via cold-shoe, and connect one end of the audio cable into Output socket, connect another end of the audio cable into device’s audio input socket; And plug your earphone into the audio monitor’s socket for audio monitor if you need;...
- Page 21 Step 2: Set CH to match the channels, and adjust VOL to set the volume until you’re satisfied; A.Unlock： VOL 11 520. 000 Lock Long press SET button VOL 11 520. 000 Unlock...
- Page 22 B.Set CH to match the channels: Short press SET button VOL 11 Adjust CH channel Adjust CH by - + to match the Transmitter The Green Light will keep on after channel matched.
- Page 23 C.Set the volume until you’re satisfied: Short press SET button VOL 11 Adjust VOL Adjust volume by - + button Step 3: Go for the normal audio recording.
-
Page 24: Specification
Specification Hand-held Transmitter HTX Signal / Noise >65dB Antenna PCB Antenna Stray Radiation <-60dBc Sound Delay <20ms Audio Distortion <0.5% Battery AA Batteries x 2pcs Dimension Φ53.5(MAX) x 253mm Operating Temperature 0 ℃ ~ 50 ℃ -20 ℃ ~ 60 ℃ Storage Temperature... - Page 25 Lavalier Transmitter TX Signal / Noise ＞65dB Antenna 1/4 Wavelength Antenna Stray Radiation ＜-60dBc Sound Delay ＜20ms Audio Distortion ＜0.5% Audio Input Socket 3.5mm Socket Batteries AA Batteries x 2pcs Size 111.5 x 65 x 25.3mm Working Temperature 0℃ ~ +50℃ Storage Temperature -20℃...
- Page 26 Receiver RX Signal / Noise ＞65dB Antenna 1/4 Wavelength Antenna Receiving Sensitivity -95dBm Sound Delay ＜20ms Audio Distortion ＜0.5% Frequency Range 20Hz ~ 18KHz Audio Output 3.5mm Port Batteries AA Batteries x 2pcs Size 111.5 x 65 x 25.3mm Working Temperature 0℃...
- Page 27 Email: support@comica-audio.com...
