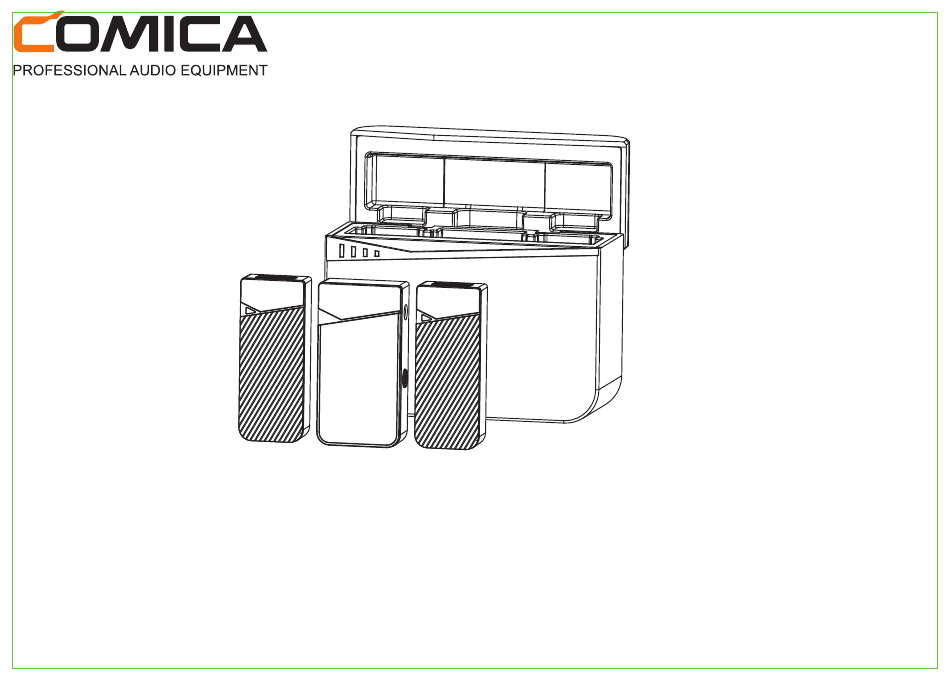

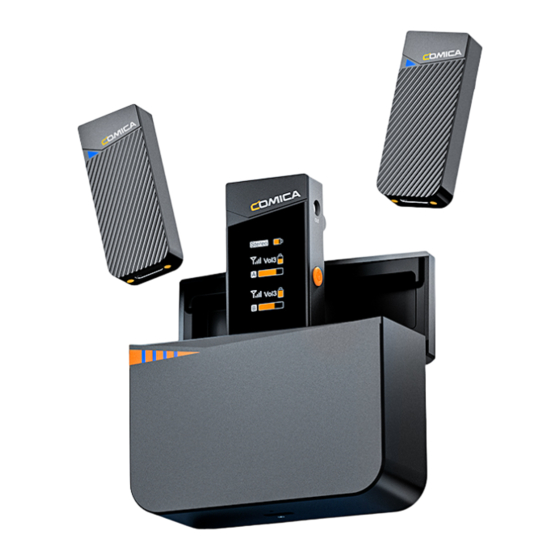

- Page 1 Vimo C 2.4G Dual-channel Mini Wireless Microphone User Manual...
- Page 3 Foreword Thanks for purchasing Comica 2.4G Dual-channel Mini Wireless Microphone Vimo C Features Broadcasting-level Sound Quality, Universal for Camera, Phone and Computer ● Digital Signal Processing, Support One-key Noise Reduction ● Support Real-time Audio Monitor, Mono/Stereo/Safety Mode Switch ● 4-level Adjusted Gain Control and One-click Muting ●...
- Page 4 Notice Due to 2.4G wireless characteristics, please keep face to face when using, and don’t turn your back to the receiver, otherwise it is easy to generate breakpoints, which is a normal phenomenon Please pay attention that it can not realize STEREO function when in single-channel mode Please do not expose the product to rain or moisture, and avoid having water or other liquids spilled on it Please do not use or store the product near any heat sources such as radiators, stoves, or...
-
Page 5: Packing List
Packing List Main Parts: Transmitter(TX) Receiver(RX) Bat Case Multiple Selections: C1=TX+RX C2=TX+TX+RX C3=TX+TX+RX+Bat Case... - Page 6 ⑤ 3 in 1 Charging Cable ⑥ USB C-USB A Charging Cable ⑦ User Manual ① ② ③ ④ ⑧ Warranty Card Vimo C 2.4G Dual-channel Mini Wireless Microphone User Manual ⑤ ⑥ ⑦ ⑧ The accessories of each combination include: C1=①+②+③+④+⑤+⑦+⑧...
-
Page 7: Transmitter (Tx)
Components and Instruction Transmitter (TX): ③ ② ④ ① ⑥ ⑤ ⑦ ① Internal Mic ② Working Status Indicator: Blink blue when unpaired; Show blue when paired; Show green when denoise is on; Show red when muting ③ Belt Clip ④... -
Page 8: Receiver (Rx)
Receiver (RX): ④ ⑤ ① ⑥ ⑧ ③ ② ⑦... - Page 9 ① 3.5mm TRS Audio Output Port ② Power/Mono/Stereo/Safety Mode Switch Button: Long press for On/O ; Short press for mono/stereo/safety mode switch ③ LCD Display ④ Belt Clip ⑤ USB Charging/Monitoring Port: Insert USB-C headphone to monitor or connect the receiver and the power bank/DC power to charge;...
- Page 10 Bat Case: ① ② ③ ① Power Indicator: There are four power indicator lights, one of which represents 25% of the bat case's power ② Reset Hole: If there is an abnormal phenomenon such as a charging problem, insert a reset pin into the reset hole to reset it ③...
-
Page 11: Screen Display
Screen Display Stereo Receiver(RX): Mono Safety Receiver's Battery Level Transmitter's Battery Level Signal Strength Mute Transmitter A Pair Audio Dynamic Bar Transmitter B... -
Page 12: Installation And Usage
Installation and Usage Pairing (All have been paired at the factory. If you need to re-pair, please follow the following description.) When neither of the transmitters are paired, turn on the transmitters and receiver; Long press two pairing buttons on the receiver simultaneously until the display shows “PAIR” (If your receiver’s display is dim, short press any button on it to light up the display first);... - Page 13 When one of the transmitters is not paired, turn o the paired transmitter first and follow the steps above to pair the unpaired one. When it is paired, turn on the other paired transmitter to use...
-
Page 14: Transmitter Installation
Usage 1. Transmitter Installation Install the transmitter on the collar so that the internal mic points to the sound source ① ②... -
Page 15: Receiver Installation
2. Receiver Installation Work with Camera Hold the receiver through the belt clip to the camera's hot shoe mount, then connect the receiver with camera through the 3.5mm TRS-TRS audio cable... - Page 16 Work with Mobile Phone/Computer Connect the receiver and the mobile phone/computer via the 3.5mm TRS-TRRS audio cable and corresponding audio adapter cable (Please purchase audio adapter cable by yourself) Adapter Cable TRRS...
- Page 17 3.Monitoring/Charging Method One Connect USB-C headphones to monitor or connect the power bank/DC power using the USB C-USB A charging cable to charge the receiver Method Two Connect 3.5mm headphones through the 2 in1 charging/monitoring adapter cable for monitoring and connect the power bank/DC power to charge the receiver at the same time...
-
Page 18: Specification
Specification Wireless Type 2.4GHz Antenna Ceramic Antenna Transmitting Power 10dBm Sensitivity -32dB ±2dB Polar Pattern Omnidirectional Frequency Response 80Hz~20kHz 70dB Equivalent Noise 24dBA Maximum SPL 110dB Dynamic Range 86dB Sound Delay <20ms TX: Built-in Li-ion Battery 140mAh 3.7V Battery RX: Built-in Li-ion Battery 230mAh 3.7V Bat Case: Built-in Li-ion Battery 1400mAh 3.7V Charging Time TX: 2 Hours;...
