Summary of Contents for Bluetti AC50B

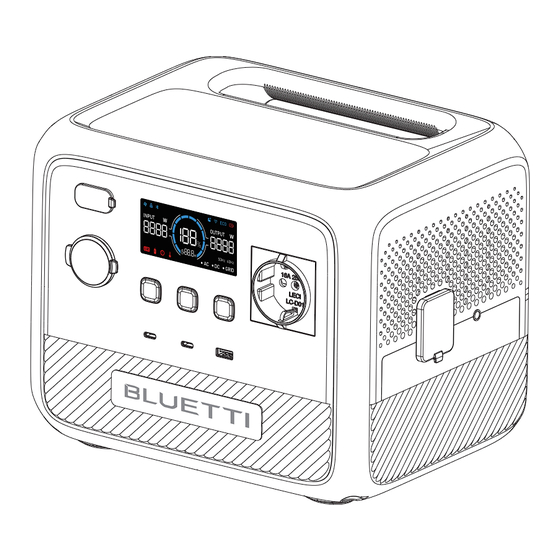

- Page 1 AC50B Portable Power Station User Manual V2.0 Please Read This Manual Before Use And Follow Its Guidance. Keep This Manual For Future Reference.
- Page 2 Warning 1. Charge the unit before first use. 2. Do not use solar panels with open circuit voltage higher than 28V. Solar input voltage range for the unit is 12V-28V. 3. Charge the unit immediately when the SoC drops below 5%. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.
- Page 3 Thank You Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world.
- Page 4 The contents of this manual are subject to change without notice. Please get the latest version from: https://www.bluettipower.com/pages/user-guides If you have any questions or concerns about this manual, please contact BLUETTI support for further assistance. Symbol Conventions...
-
Page 5: Table Of Contents
Contents Safety Instructions Packing List Product Introduction Product Overview Power ON/OFF LCD Display Charging Discharging Settings BLUETTI App Specifications Troubleshooting Appx. 1 Estimating Operation Time Appx. 2 FAQs Appx. 3 Grounding Guidelines... -
Page 6: Safety Instructions
This product is not intended for use with devices that require a high-performance Uninterruptible Power Supply (UPS), including but not limited to data servers, workstations, medical equipment, and other similar devices. BLUETTI shall not be liable for any data loss, equipment damage, or personal injury resulting from the violation of this requirement. - Page 7 • Read all the instructions before using the product. • To reduce the risk of injury, close supervision is necessary when the product is used near children. • Do not put fingers or hands into the product. And do not insert foreign objects into any ports of the product.
- Page 8 • Do not stack anything on top of the product while in storage or use. Do not move the product while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside. • In case of fire, use only a dry powder fire extinguisher appropriate for the product. •...
- Page 9 Please refer to the information on the exterior enclosure for electrical and safety information before installing or operating the apparatus. SAVE THESE INSTRUCTIONS BLUETTI shall not be liable for any equipment damage caused by the violation of the above instructions. JUST POWER ON...
-
Page 10: Packing List
AC Charging Cable Car Charging Cable Solar Charging Cable Grounding Screws User Manual Warranty Card Optional Accessories (Available on the official BLUETTI website: https://www.bluettipower.com) Item Picture USB-C to USB-C Cable (Output) Cigarette Lighter to DC5521 Cable (For 12V devices with DC5521 port, such as routers, cameras, etc.) -
Page 11: Product Introduction
45 minutes at a room temperature of 25°C with proper ventilation. Achieving a full charge takes roughly 70 minutes. If solar charging is your preference, it can fully charge in 3 hours. The AC50B is your practical and efficient power solution for on-the-go energy needs. -
Page 12: Power On/Off
2 seconds to turn off the unit. • AC ON / OFF: When the AC50B is on, press the AC power button to turn it on / off. • DC ON / OFF: When the AC50B is on, press the DC power button to turn it on / off. - Page 13 ① ⑫ Fan Status DC Output ② ⑬ PV Input AC Output ③ ⑭ Bluetooth Connection Charge / Discharge Remaining Time ④ ⑮ Battery Capacity (SoC) Charge / Discharge Status ⑤ ⑯ Power Lifting Mode Temperature Abnormal ⑥ ⑰ Turbo Charging Overload Alert ⑦...
-
Page 14: Charging
Avoid getting the plug and socket wet to prevent any potential damage. 7.1 AC Charging Plug the AC50B into a standard wall outlet and start charging. Once it's fully charged, the AC50B automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI app, which allows for an 80% capacity in just 45 minutes at an ambient temperature of 25°C (77°F). - Page 15 The AC50B also automatically stops charging when it's fully charged. On average, it takes about 5-7 hours to refill the AC50B using a 12V port and 3-4 hours with a 24V port at an ambient temperature of 25°C (77°F).
-
Page 16: Discharging
120V / 220V / 230V AC Outlet Appliances up to 700W power. 50Hz / 60Hz Notice: Do not apply AC50B to loads higher than 700W, as this may cause damage to AC50B and your devices. 8.2 DC Discharging Port Specifications Compatible Loads 12V DC appliances up to 120W power. - Page 17 ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC50B is bearing low (default 10W for AC, 5W for DC) or no load for a while. You can adjust these thresholds using the app if needed.
-
Page 18: Bluetti App
AC50B and your devices. 9.8 Exit Setting Mode To save your AC50B settings and exit the Setting Mode, press and hold both the AC and DC power buttons at the same time. -
Page 19: Specifications
11. Specifications Model AC50B Country / Region EU / UK / AU / SA Battery Capacity 448Wh / 20Ah Cell Type Lithium Iron Phosphate (LFP) AC + DC Input 580W Max. Net Weight About 7.5kg / 16.53lbs Dimensions (L × W × H) 280mm ×... -
Page 20: Troubleshooting
Check if the grid frequency is too low. Contact E116 Grid underfrequency your local power provider if necessary. Disconnect the grid input and contact BLUETTI E117 Grid oscillation support for further assistance. Others Please contact BLUETTI support for assistance. -
Page 21: Appx. 1 Estimating Operation Time
ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC50B is bearing low (default 10W for AC, 5W for DC) or no load for a while. You can adjust these thresholds using the app if needed. -
Page 22: Appx. 3 Grounding Guidelines
The grounding terminal is unnecessary in the following scenarios: • When connecting the AC50B to the wall outlet with a 3-pin cable, it's already grounded effectively. • When the AC50B is not connected to the grid, touching its case won't cause an electrical shock. JUST POWER ON... - Page 23 For more information, please visit: @ BLUETTI Support @ BLUETTI Official @bluetti_australia @bluetti.au @ bluetti_inc sale-au@bluettipower.com Customer Service(AU) Email: sale-au@bluettipower.com Address: Unit 15, 25 Gibbes Street Chatswood NSW 2067 Customer Service(ZA) Email: sale-za@bluettipower.com SHENZHEN POWEROAK NEWENER CO., LTD. F19, BLD No.1, Kaidaer, Tongsha Rd No.168,...
- Page 24 Ce r ti fi cate Inspector: Q C : P/N: 17.0303.0740-01A1...
