Summary of Contents for Jaypro Sports NN1-NET-W

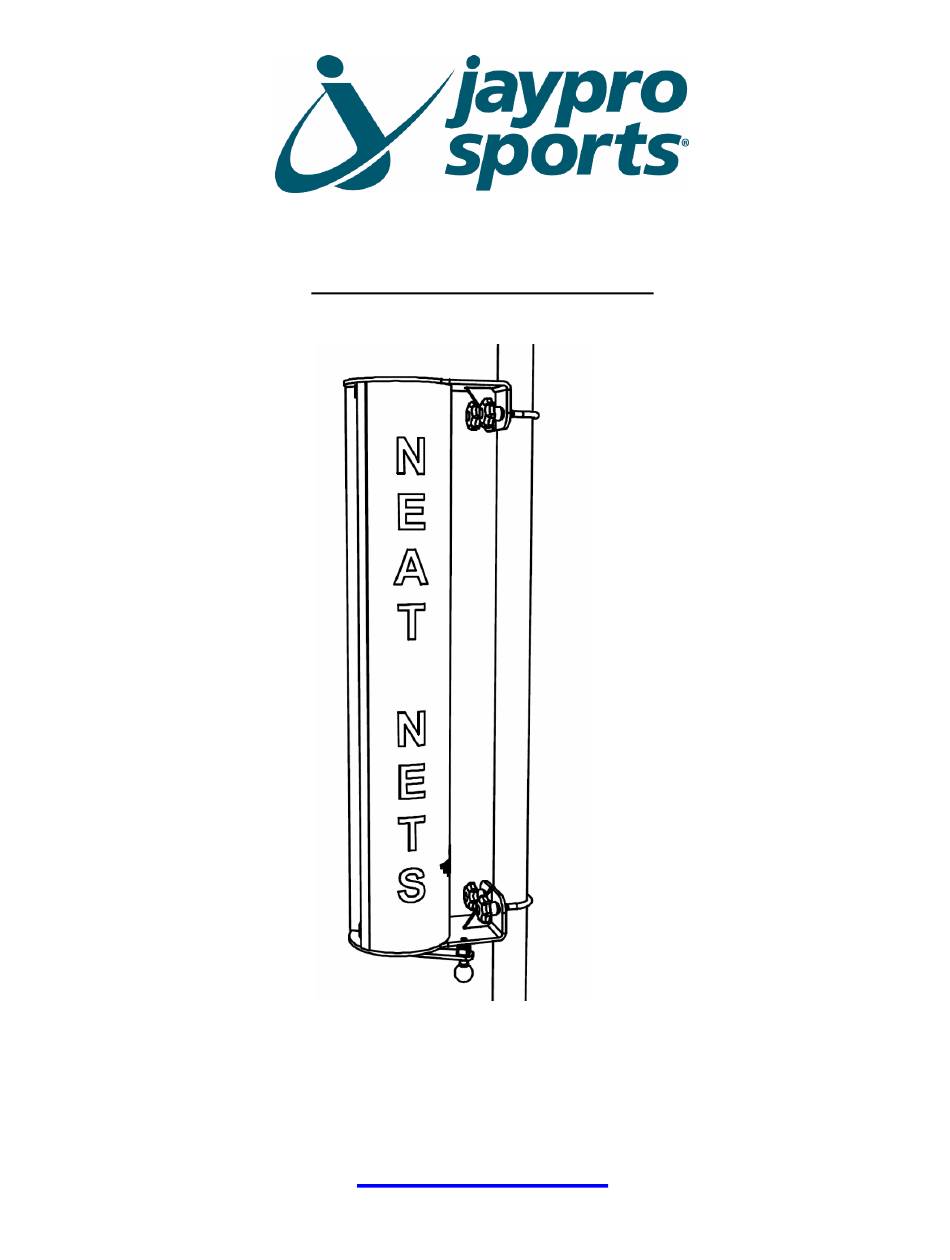

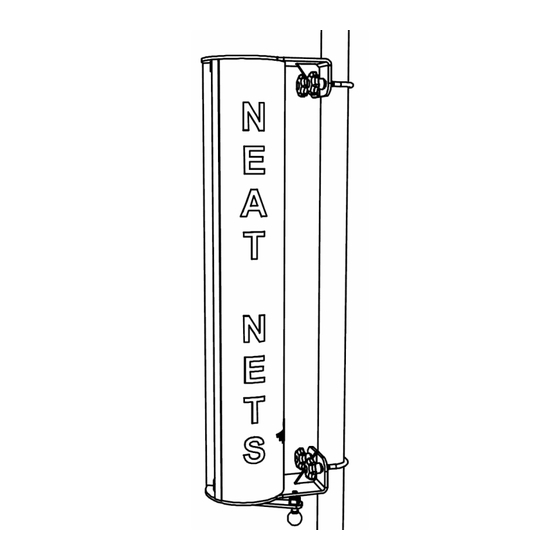

- Page 1 -- Neat Nets -- Installation Instructions Call Jaypro Sports Equipment at 1-800-243-0533 during regular business hours for technical support. www.jaypro.com Rev-10/17 Page 1 of 9...
- Page 2 Neat Net HARDWARE PARTS LIST (QTY: SINGLE UNIT) ITEM IMAGE DESCRIPTION P/N: NN1-NET-W 3/8-16” LOBE KNOB HANDLE P/N: RP5071 3/8"-16 x 3 1/8" LONG x 2 1/2 ID U-BOLT P/N: HB5114 3/8 in SPLIT LOCK WASHER P/N: HW337 INDEX PLUNGER SAFETY LOCK w/NUT P/N: HM6603 7/8"...
- Page 3 IMPORTANT NOTICE: 1. FOR YOUTH PLAY ONLY. 2. ONLY USE ON 220 lbs GAME BASE OR GREATER! 3. DO NOT OVER-TIGHTEN THE NET! 4. OVER TIGHTENING OF NET MAY CAUSE GAME BASE TO TIP OVER. 5. WHEN MOVING GAME BASES, USE ADEQUATE MANPOWER. 6.
- Page 4 Figure 1 Rev-10/17 Page 4 of 9...
- Page 5 Adjust height of Neat Net. Figure 2 Tighten all four hand knobs until the canister is securely attached. Figure 3 Rev-10/17 Page 5 of 9...
- Page 6 Safety pin should always be in the bracket plate when not winding the net Figure 4 Set Up 2 Pole: 1. If desired, set up the 2 pole using two of the sliding collars provided, as shown in Figure 8. Note the orientation of the release lever, which locks in the down position. 2.
- Page 7 Set Up Net: 1. If handle is locked, pull down the safety pin. Rotate the safety pin 90 degrees to lock it in position (Figure 6). 2. Now turn the handle to relieve two snap hooks lock together. This indicates the end of the volleyball net (Figure 7).
- Page 8 Snap hooks to be pulled out, when unwinding. Figure 7 Clip on snap hook. Unwind the net out slowly. Note the orientation of the release lever, which locks in the down position. Figure 8 Rev-10/17 Page 8 of 9...
- Page 9 Storing Neat Net: Storing the net is best done by two people, one holding the end of net and the other winding the net into the canister. 1. When storing the net, first remove the net tension by CAREFULLY releasing the crank handle by removing the safety pin (Figure 6).
