QUICK START GUIDE

XMC7200 Complete System

Motor Control Kit

KIT_XMC7200_MC1

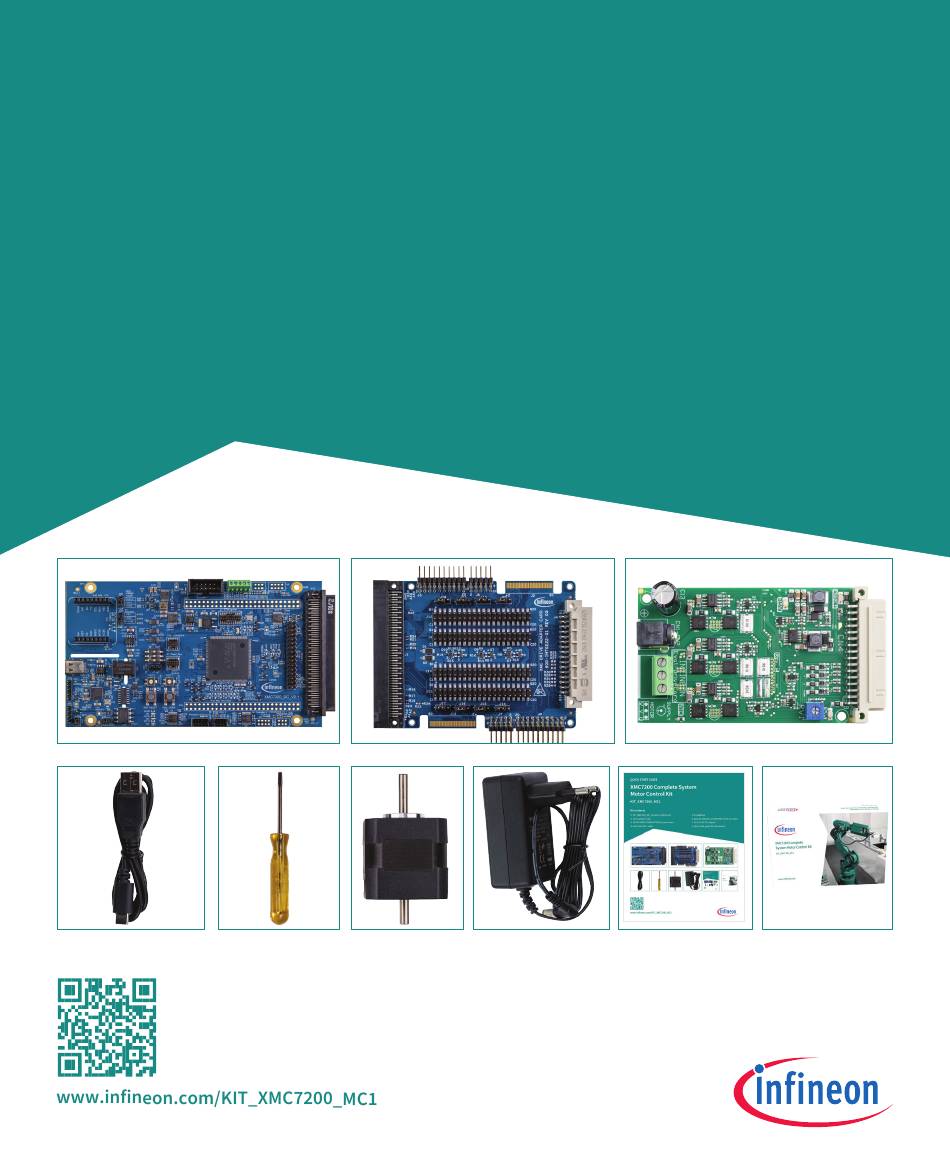

Kit contents

1. KIT_XMC7200_DC_V1 motor control card

2. Drive adapter card

3. KITMOTORDC250W24VTOBO1 power board

4. USB-A to USB-C cable

5. Screwdriver

6. Nanotec DB42S03 or DB42M03 24V BLDC motor

7. 24 V/1 A AC-DC adapter

8. Quick start guide (this document)

Need help?

Do you have a question about the XMC7200 and is the answer not in the manual?

Page 1 QUICK START GUIDE XMC7200 Complete System Motor Control Kit KIT_XMC7200_MC1 Kit contents 1. KIT_XMC7200_DC_V1 motor control card 5. Screwdriver 2. Drive adapter card 6. Nanotec DB42S03 or DB42M03 24V BLDC motor 3. KITMOTORDC250W24VTOBO1 power board 7. 24 V/1 A AC-DC adapter 4.

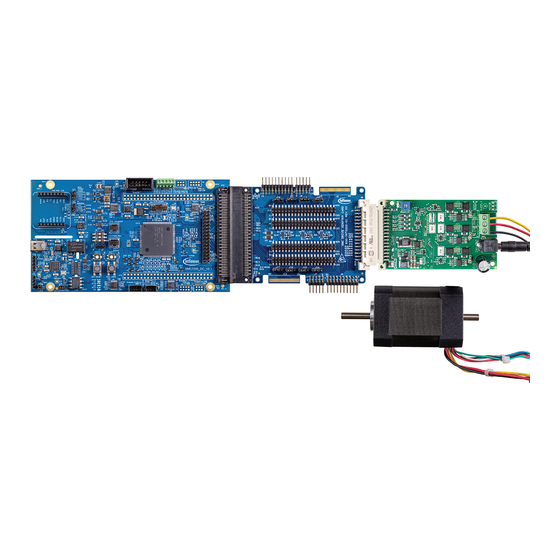

Page 2 Complete setup with motor and adapter Standalone operation 1. The MCU is pre-programmed with the out-of-box (OOB) firmware configured to run the included motor in sensorless field-oriented control (FOC) three shunt mode. 2. Ensure that the 5 V selection jumper (X20) is set to position 2-3 (V5V) and the MCU voltage supply jumper (X21) is set to 1-2 (VDD5).
Page 3 Connect the USB cable to the PC the control card USB socket and open the ModusToolbox Motor Suite GUI. Go to XMC7200, select RFO, and click New Project to open the configurator view. GUI: Open new project Configurator view A green color at the bottom of the suite indicates a successful connection.
Page 4 Visit the kit website and ModusToolbox webpage for more information on code examples supported for this kit and the kit documentation. All rights reserved. © 2024 Published by Infineon Technologies AG Document number: 002-40696 Rev. ** 81726 Munich, Germany Infineon Technologies AG...
