Volt CKIT8 Installation Instructions

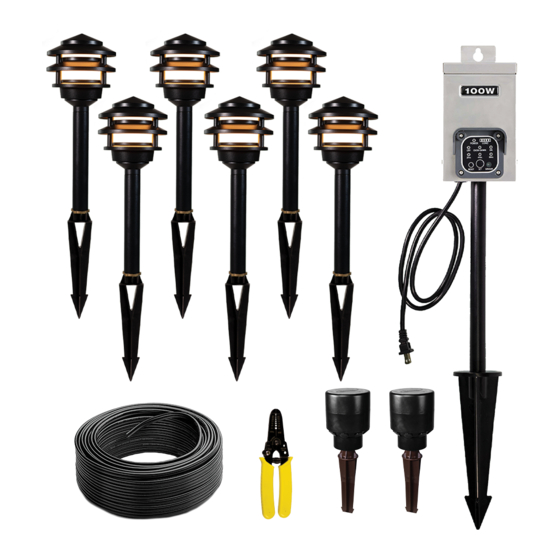

Landscape Lighting Installation Instructions
These are installation instructions for landscape lighting kits and individual products
such as spot lights, path lights, well lights, bulbs, transformers, and hubs. The
products you purchased may be different than those represented in this instruction

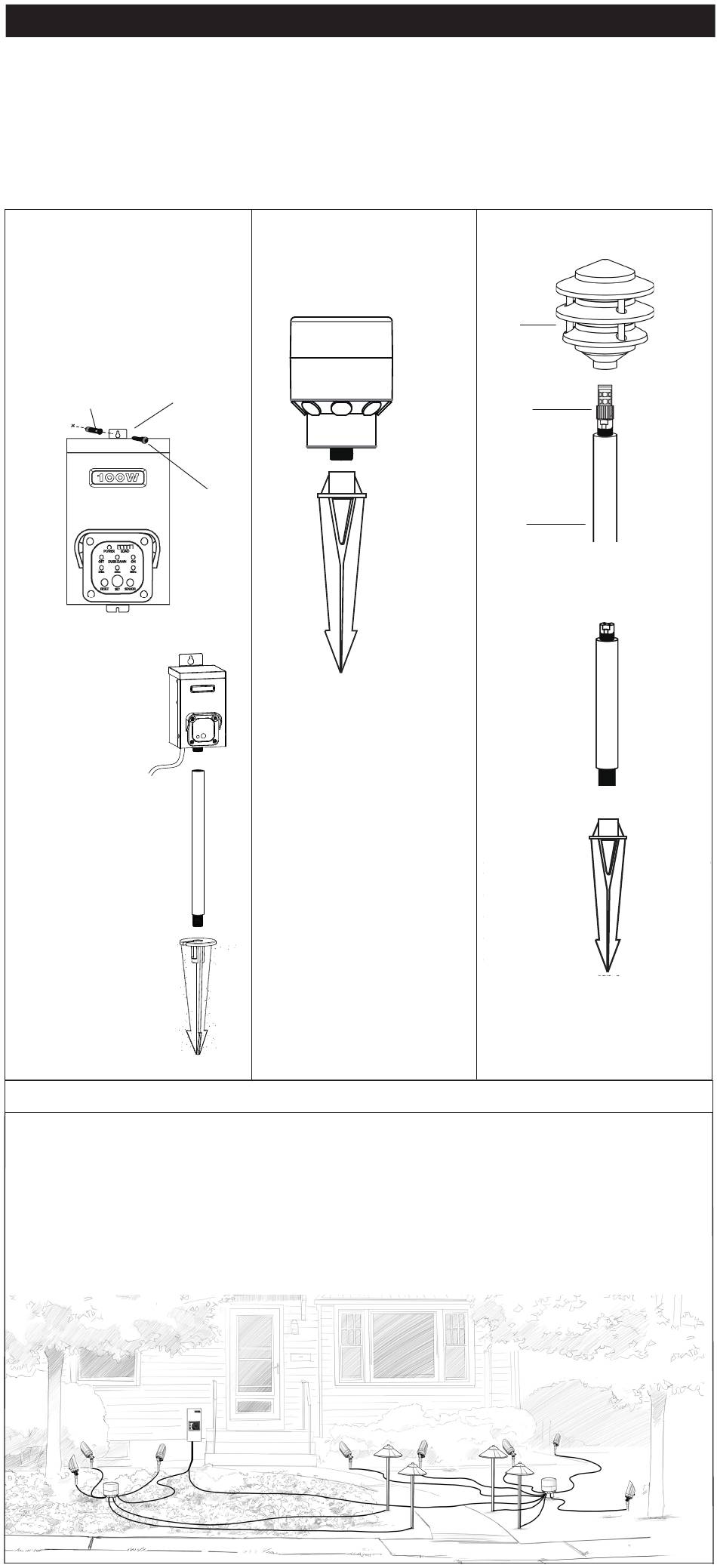

Step 1- Assemble Parts
Transformer
OPTION A: Determine the
desired location for mounting the
transformer. Drill a hole into the
wall surface and insert the wall
anchor. Thread the screw into the
wall anchor leaving enough exposed
to hang the transformer on.Place the
keyhole of the transformer onto the
screw head and tighten.
Wall Anchor
Transformer
OPTION B: Install the
stake in the ground.
Then attach the riser
to the stake. Last,
attach the
transformer to the
riser.
Step 2- Develop a Plan
• Place the transformer on the home near an electrical outlet that meets
electrical codes and allowing the photocell, located on the timer, to sense light
levels.
• Position the light fixtures as desired near plants, trees, walkways or structures
located within 25 feet of the hubs.
• Position each of the hubs so that they're centrally located among the fixtures
per the plan developed.
IMPORTANT PLEASE READ!
1) Attach the smaller
stakes to the hub
Keyhole
Screw
sheet.
Hubs
Hub
Stake
Pathlights
1) Install the LED
Top
LED
Stem
2) Install the top
3) Install Stem to Stake
