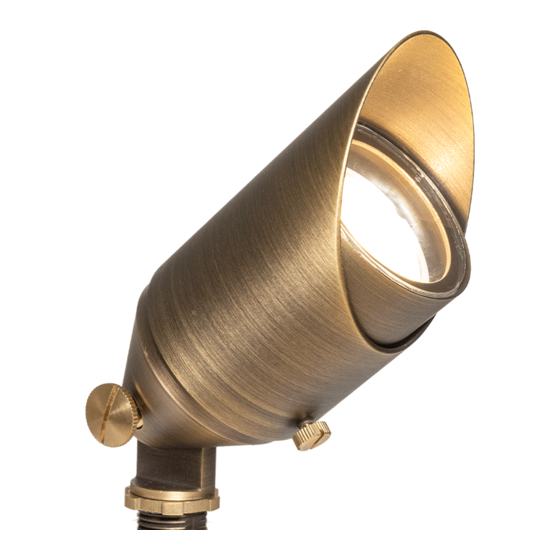

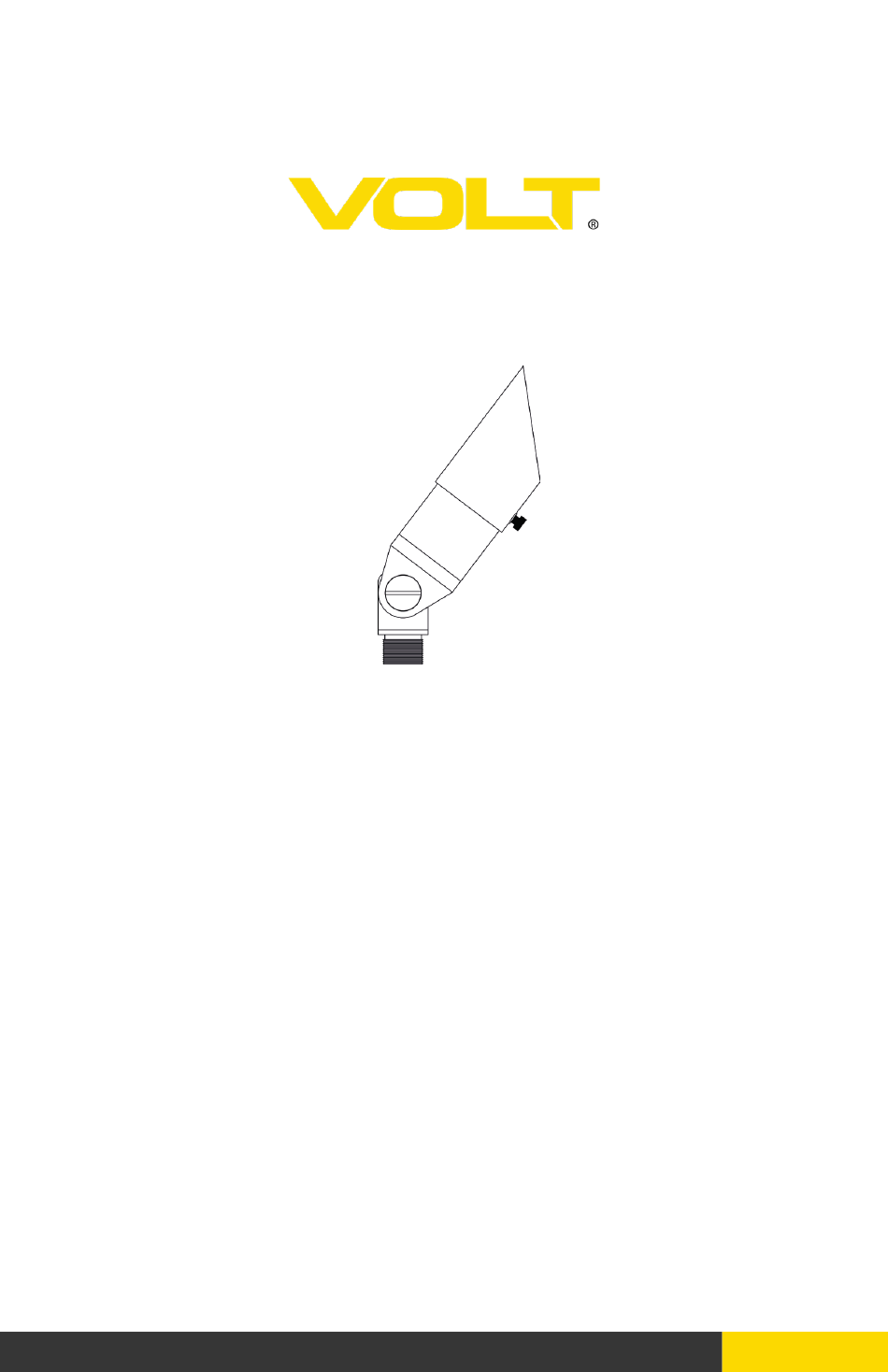

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT® Top Dog Scotty Mini Spotlight ITEM: VAL-1183 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT® Top Dog Scotty Mini Spotlight- VAL-1183 IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. Fixture PRODUCT DIMENSIONS 2.25” 4.5”-5.5” INSTALL STAKE Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT® Top Dog Scotty Mini Spotlight- VAL-1183 INSTALL FIXTURE BODY TO STAKE Wireway Clear away area in the Fixture Slot ground at the wireway slot Pigtail on top of the stake. Lay the Stake luminaire pigtail into the wireway slot and tighten fixture on to stake.
- Page 5 INSTALL LENS Thread the lens onto the luminaire Lens and hand tighten until snug. Fixture Install Glare Guard Place the glare guard over the lens Glare and secure with the set screw. Guard Adjust the luminaire to the desired angle by using the knuckle. Set Screw Lens Knuckle...
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
