Electrical Connection
»

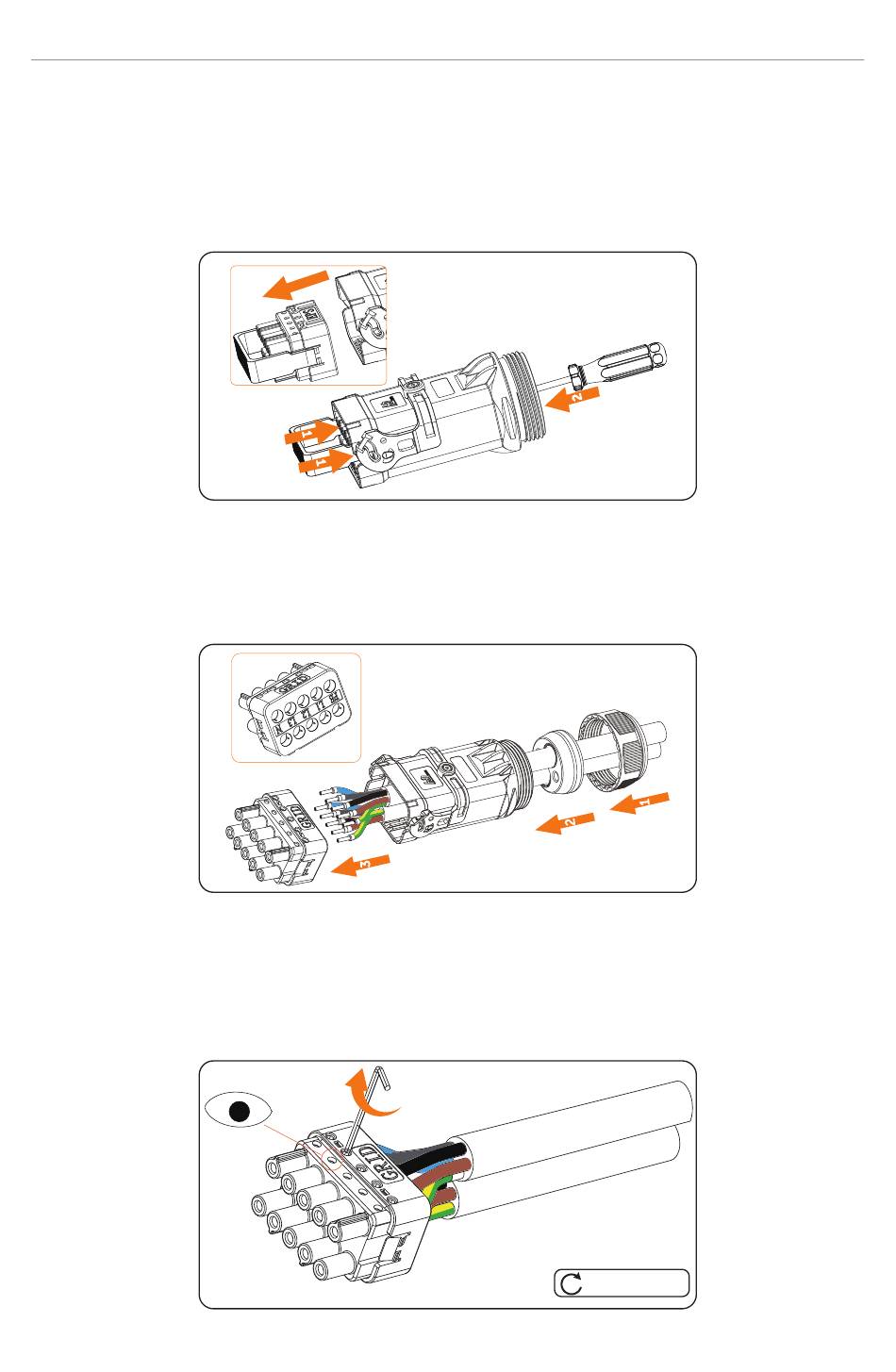

Insert the diassembly tool (part J) for the rubber core into the AC connector.
Press the diassembly tool with one hand, and meanwhile poke the rubber
core from the other end of the AC connector with a screwdriver held by the
other hand, until the rubber core is poked out of the enclosure of the AC
connector.
Step 4: Thread the Grid and EPS cables through the swivel nut, cable support sleeve, and
the enclosure separately. Insert the crimped conductors L1, L2, L3, N, and PE into
the corresponding position of the rubber core and tighten them.
»
For Grid: Insert Condutor L1 of the Grid cable into Position L1 of the Grid
side of the rubber core. Observe whether the conductor is in the right place
through the hole of the rubber core. If yes, tighten the screw with the Allen
key (part K). Connect L2, L3, N, and PE in the same way.
Figure 8-16 Inserting the Grid cable into the rubber core and tightening
54
Figure 8-14 Poking the rubber core out
Figure 8-15 Threading and tightening conductors
2.5±0.1 N·m
