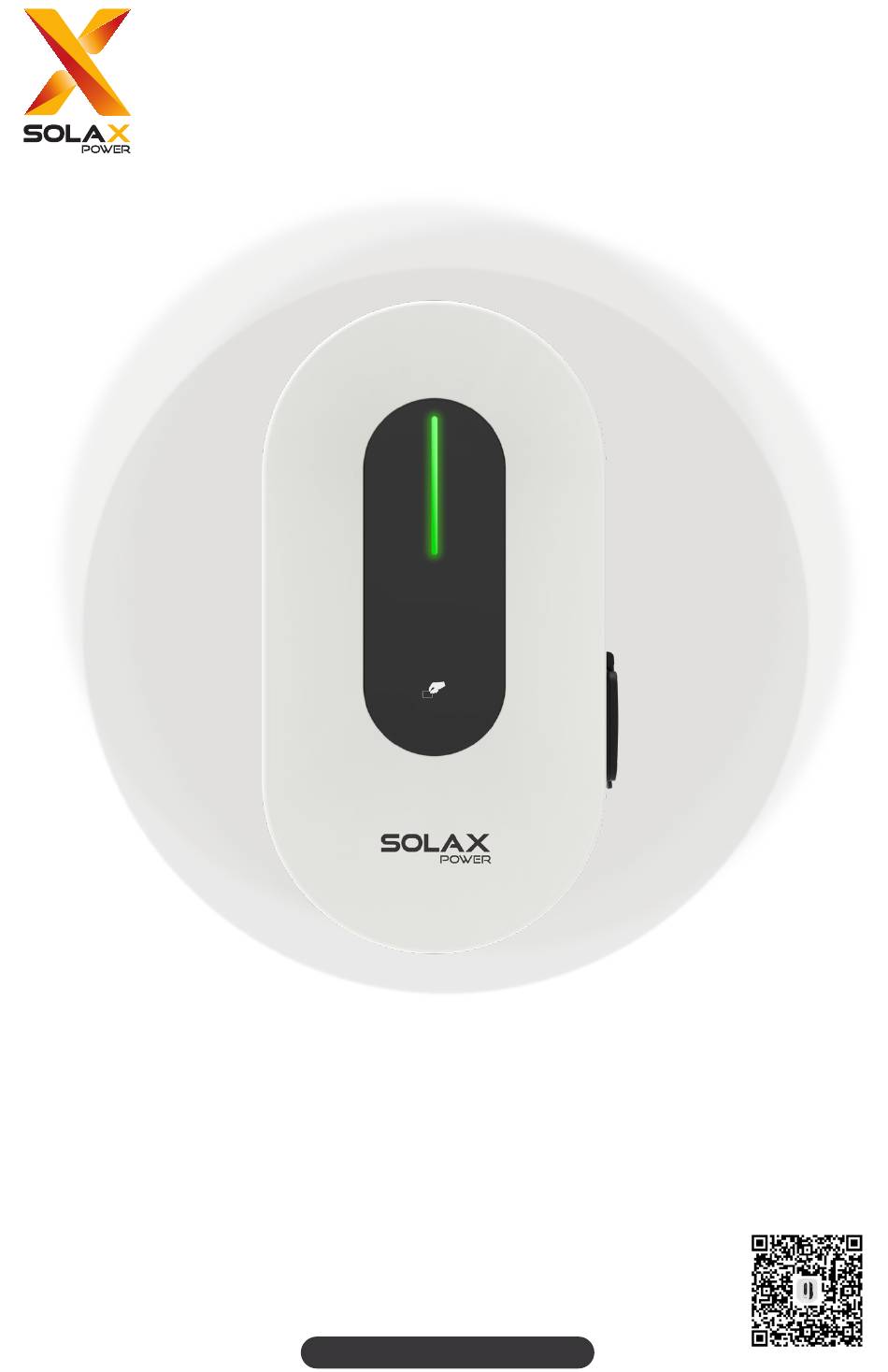

X1/X3-HAC

4.6 kW / 7.2 kW / 11 kW / 22 kW

Installation Manual

www.solaxpower.com

Version 0.0

eManual in the QR code or at

http://kb.solaxpower.com/

Table of Contents

Need help?

Do you have a question about the X1-HAC and is the answer not in the manual?

Questions and answers

Summary of Contents for SolaX Power X1-HAC

Page 1 X1/X3-HAC 4.6 kW / 7.2 kW / 11 kW / 22 kW Installation Manual Version 0.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
Page 3 Safety General Notice 1. Contents may be periodically updated or revised. SolaX reserves the right to make improvements or changes in the product(s) and the program(s) described in this manual without the prior notice. 2. The installation, maintenance and grid-related setting can only be performed by qualified personnel who: •...
Page 4 DANGER! • Danger to life due to output and input high voltages in this device. • Do not open the enclosure in any case without authorization from SolaX. Unauthorized opening will void the warranty and can cause lethal danger or serious injury due to electric shock.
Page 5: Packing List
Packing List Expansion tube EV-Charger Base plate Self-tapping screw R-type terminal Panel M5 screw M4 screw RJ45 terminal adapter Anti-theft accessory (a) RJ45 terminal CT (for single-phase) or Anti-theft accessory (b) RJ45 connector CT (for three-phase) ST3.5 screw RFID card Cable hook Documents (Only for Plug Type)
Page 6 Item Description Quantity Remark For fixing the EV-Charger on the M5 screw base plate Panel M4 screw For securing the panel RJ45 terminal adapter For communication connection RJ45 terminal RJ45 connector For extension connection of CT Single-phase CT for single-phase EV-Charger, three-phase CT for three-phase EV-Charger.
Page 7: Installation Site
Installation Site -30°C-+50°C (without screen) -25°C-+50°C (with screen) 5-95%RH Avoid direct sunlight Avoid rain exposure Avoid snow accumulation NOTICE! • For outdoor installation, precautions against direct sunlight, rain exposure and snow accumulation are recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperature rise poses no safety risks, but may impact the device performance.
Page 8: Installation Angle
Installation Carrier Be suitable for the dimension of the EV-Charger (390 mm × 206 mm × 139 mm, also taking the charging cable and connector into consideration) 25 kg and able to withstand the Fire resistant weight of 25 kg. Installation Angle ≤5°...
Page 9: Installation Tools
Installation Tools Hammer drill Marker Measuring tape Utility knife (drill bit: Ø8 mm) Torque screwdriver Crimping tool (Phillips head: M4 / M5 / Rubber mallet Wire stripper for RJ45 ST3.5 / ST4.8) Crimping tool for Electric screwdriver R-type terminal Spirit level Diagonal pliers (hexagonal head: M5) Heat shrink tubing...
Page 10 Additionally Required Materials Required Material Type Type A RCD with a trip current of ≤ 30 mA; 2P and rated current ≥ 25 A for 4.6 kW, RCBO * 2P and rated current ≥ 40 A for 7.2 kW, 4P and rated current ≥ 20 A for 11 kW, 4P and rated current ≥...
Page 11 Supported Power Grid Models named without "-E" support TN-S, TT (High-voltage), TT (Low voltage) and IT; models named with "-E" support TN-C-S. TN-S 400 V 400 V 400 V L2 L3 Three-phase Single-phase EV-Charger EV-Charger 1. L-N: 230 V; L-L: 400 V 2.
Page 12 230 V 230 V 230 V High resistor L2 L3 Three-phase Single-phase EV-Charger EV-Charger 1. L-L: 230 V TN-C-S 400 V 400 V 400 V L2 L3 Three-phase Single-phase EV-Charger EV-Charger 1. L-N: 230 V; L-L: 400 V 2. L-N: 220 V; L-L: 380 V...
Page 13: Installation And Wiring
Installation and Wiring • Decide the application scenario before installation • Solar Scene: 1) Communication with Inverter Inverter PV array EV-Charger WiFi/LAN Cloud Router RCBO AC distribution box CT/Meter Home loads Grid * If the system has zero injection requirement, the EV-Charger must communicate with the inverter. •...
Page 14 • Solar Scene: 3) Parallel Connection (Take communication with inverter as an example) WiFi/LAN Inverter Primary Secondary PV array EV-Charger EV-Charger Cloud Router RCBO RCBO AC distribution box CT/Meter Home loads Grid • Standard Scene: EV-Charger WiFi/LAN Cloud Router RCBO AC distribution box CT/Meter Home loads...
Page 15 • Installation and wiring steps 350-500 mm 112 mm Note: 56 mm For Plug Type, these two holes are recommended to be drilled horizontally with the top of the cable hook. Note: Take three-phase EV-Charger as an example in this section. Cable hook is only for Plug Type. 90°...
Page 16 ST4.8 1.5-2 N·m (Optional) If the user wants to install the padlock for safety reasons, install the anti-theft accessory (a) before tighten the screw at the bottom part of the base plate: L1L2 L3 Heat shrink tubing (Ø6 mm) AC input cable...
Page 17 Sealing 2.5±0.2 N·m ring L1L2L3 Note: When the outer diameter of the AC input cable is: 11 mm-14 mm: with the sealing ring 14 mm-20.5 mm: without the sealing ring L1L2L3 L1L2L3 2.5±0.2 N·m Hand-tight...
Page 18 1.2±0.1 N·m...
Page 19 Pin Definition of Communication Ports 1) White with orange stripes 2) Orange 3) White with green stripes 4) Blue 5) White with blue stripes 6) Green 7) White with brown stripes COM2 COM1 8) Brown • Pin Definition of COM1-S-: Pin Definition •...
Page 20 * Make sure the unused hole(s) of the stopper are sealed with the plug(s). Hand-tight Note: For Inverter side: For CT side: L wire Grid COM port of the inverter 1. The arrow on the CT must point at the public grid. 2.
Page 21 * When aligning the body with the base plate, align a with a' and b with b'. (Optional) If the user wants to install the padlock for safety reasons, install the anti-theft accessory (b) before aligning the body with the base plate: ST3.5 0.6±0.1 N·m 1.2±0.2 N·m...
Page 22 * For Plug Type. Power on • Turn on the RCBO. • Check the status of the LED indicator: 1. When the device is powered on, the buzzer will give a short sound, and the indicator light will be solid or breathing green ("Available" state) after three seconds by default. The EV-Charger has been successfully connected with network server if the indicator light is solid green and it is off-line if the light is breathing green.
Page 23 Front Panel Status indicator light LCD Screen (Optional) Card swiping position Name Definition The status light will be on according to the state of the Status indicator light EV-Charger. For details, please refer to below table. The information of the EV-Charger will be displayed. (For LCD screen (Optional) details, please refer to the user manual.) Card swiping position...
Page 24 State of the Status of Indicator light colour Remark EV-Charger the light The EV-Charger has Finish Cyan Solid completed charging. The EV-Charger is in fault state. Please check the fault message on the App Faulted Solid and refer to corresponding solutions in the user manual.
Page 25 Wi-Fi Configuration App Store Google play SolaXCloud Scan the QR code to download SolaXCloud App. Create a new account, log in and follow the instructions on the SolaXCloud APP or the App guide at https://www.solaxcloud.com/ to set the WiFi configuration. Note: * If the WiFi connection fails, users can connect to the WiFi signal named after the device registration number and visit the IP address http://192.168.10.10/...
Page 26: General Setting
General Setting Add device (For users who already have the App account) 1. Turn to the Home page or the Device page of the App and select the exact plant from the plant list on the upper left corner. 2. Touch the + icon on the upper right corner of the Home page or the Device page, then touch Add device. 3.
Page 27: Technical Data
Technical Data • Model List Models 4.6 kW 7.2 kW 11 kW 22 kW X1-HAC-7P X3-HAC-11P X3-HAC-22P X1-HAC-7S X3-HAC-11S X3-HAC-22S X1-HAC-7P-L X3-HAC-11P-L X3-HAC-22P-L X1-HAC-4P X1-HAC-7S-L X3-HAC-11S-L X3-HAC-22S-L X1-HAC-4P-B X1-HAC-7P-B X3-HAC-11P-B X3-HAC-22P-B Specific model list X1-HAC-4P-L X1-HAC-7S-B X3-HAC-11S-B X3-HAC-22S-B X1-HAC-4P-L-B X1-HAC-7P-L-B...
Page 28 Models 4.6 kW 7.2 kW 11 kW 22 kW Genaral Data Housing Material Installation Method Wall-mounted (Optional: pedestal-mounted) Socket Type (Socket-outlet) / Charging Outlet Plug Type (Charging cable with connector) Cable Length [m] 6.5 (for Plug Type) Operating Ambient Temperature -30 to +50 (without screen) / Range [°C] -25 to +50 (with screen)
Page 29 • Security & Protection Models 4.6 kW 7.2 kW 11 kW 22 kW Multiple Protection Over/Under voltage protection Overload protection Shorcircuit protection Current leakage monitoring Integrated current failure monitoring (30 mA AC & 6 mA DC) * Grounding protection Surge protection Over temperature protection Cable protection Cable Lock (APP control)
Page 30: Contact Information
Contact Information AUSTRALIA UNITED KINGDOM Unit C-D Riversdale House, Riversdale 21 Nicholas Dr, Dandenong South VIC 3175 Road, Atherstone, CV9 1FA +61 1300 476 529 +44 (0) 2476 586 998 service@solaxpower.com service.uk@solaxpower.com TURKEY GERMANY Fevzi Çakmak mah. aslım cd. no 88 A Am Tullnaupark 8, 90402 Nürnberg, Karatay / Konya / Türkiye Germany...
Page 31: Warranty Registration Form
Warranty Registration Form For Customer (Compulsory) Name Country Phone Number Email Address State Zip Code Product Serial Number Date of Commissioning Installation Company Name Installer Name Electrician License No. For Installer Module ( If Any ) Module Brand Module Size(W) Number of String Number of Panel Per String Battery ( If Any )
