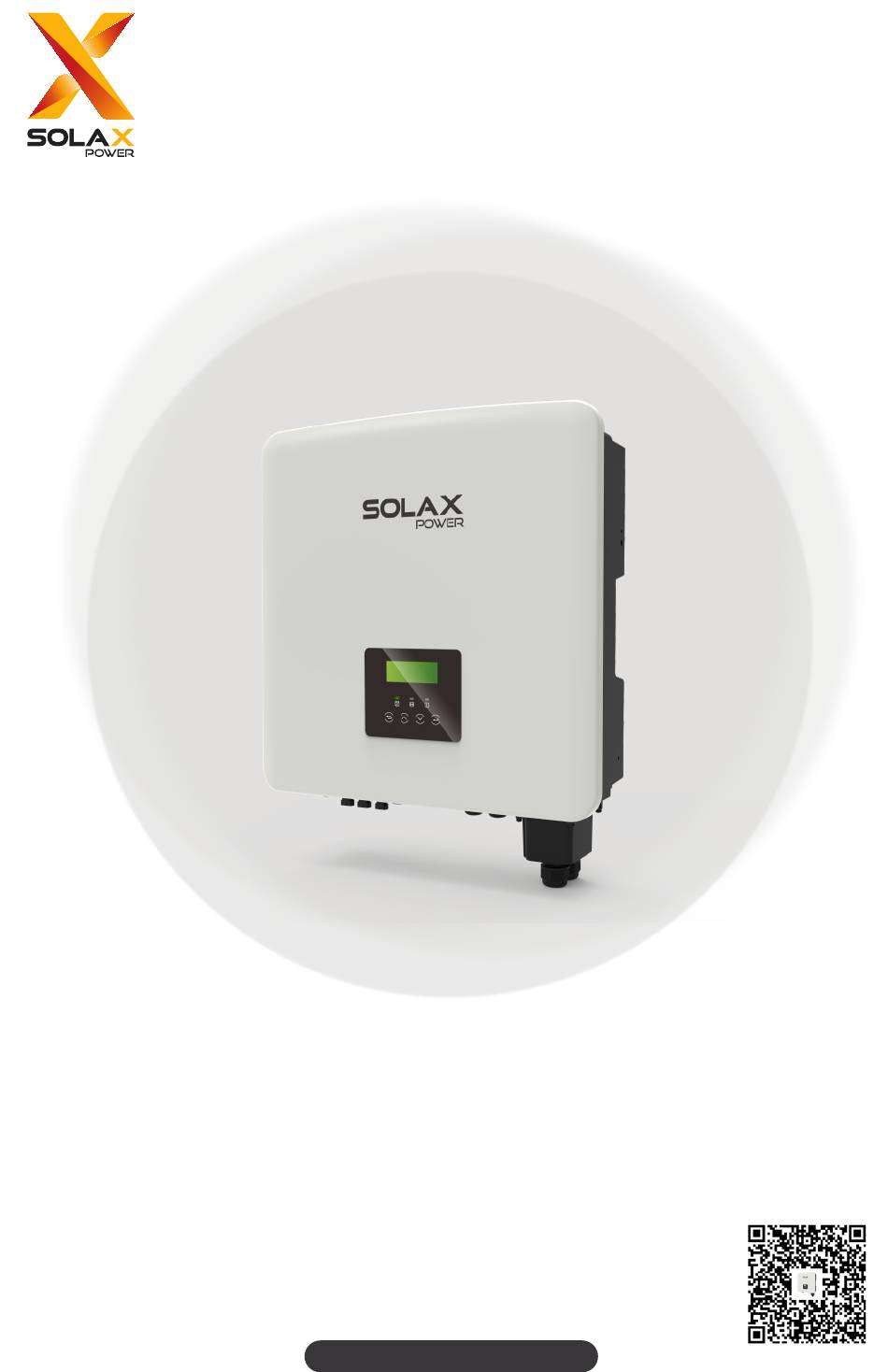

X3-Hybrid G4
5 kW / 5.5 kW /6 kW / 8 kW
8.3 kW /10 kW / 12 kW / 15 kW
User Manual
Version 3.0
www.solaxpower.com
eManual in the QR code or
at http://kb.solaxpower.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3-Hybrid G4 Series and is the answer not in the manual?

Questions and answers

Pavel Dr. Nekvapil
March 6, 2025

Jak nastavit FVE typu Solax X3-Hybrid-G4, aby dodávala elektřinu z baterie do sítě v daném čase anebo přestala nabíjet baterii a přetoky posílala do sítě?

0
1 comments:
Mr. Anderson
March 6, 2025

To set up the SolaX Power X3-Hybrid G4 Series to supply electricity from the battery to the grid at a specific time or stop charging the battery and send excess to the grid, follow these steps:

1. Select the Appropriate Working Mode:
- Use the inverter LCD or the SolaX APP to choose a suitable working mode.
- The "Feed-in Priority" mode allows supplying electricity to the grid first.
- The "TOU (Time-of-Use)" mode enables setting specific time periods for charging and discharging.

2. Set Charging Periods and Battery SOC:
- Adjust the charging periods to control when the battery charges.
- Ensure the actual battery SOC minus the modified Min SOC is at least 2% for changes to take effect.

3. Confirm System Time and Mode Activation:
- Ensure the system time is correctly set for the new schedule to take effect.
- Once the set time is reached, the inverter will follow the configured mode to either discharge to the grid or stop charging.

For detailed settings, refer to the "User Setting" section in the manual.

This answer is automatically generated

-1

Related Manuals for SolaX Power X3-Hybrid G4 Series

Summary of Contents for SolaX Power X3-Hybrid G4 Series

  • Page 1 X3-Hybrid G4 5 kW / 5.5 kW /6 kW / 8 kW 8.3 kW /10 kW / 12 kW / 15 kW User Manual Version 3.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
  • Page 2 The images included in this document are solely for illustrative purposes and may differ based on the specific product models. For more detailed information, kindly visit the website of SolaX Power Network Technology (Zhejiang) Co., Ltd. at www.solaxpower.com. SolaX retains all rights for the final explanation.
  • Page 3 About This Manual Scope of Validity This manual is an integral part of X3-Hybrid G4 series inverter. It describes the transportation, storage, installation, electrical connection, commissioning, maintenance and troubleshooting of the product. Please read it carefully before operating. This manual is valid for the following inverter models: •...
  • Page 4 The rated AC voltage of X3-Hybrid-5.5-D LV and X3-Hybrid-8.3-D LV is 220 V / 127 V. The rated AC voltage of other models are 415 / 240 V, 400 / 230 V, and 380 / 220 V. Target Group The installation, maintenance and grid-related setting can only be performed by qualified personnel who: •...

  • Page 5: Table Of Contents

    Table of Contents Safety ......................1 1.1 General Safety ........................1 1.2 Safety Instructions of PV, Inverter and Grid ...............1 1.2.1 Safety Instructions of PV ..................2 1.2.2 Safety Instructions of Inverter ................2 1.2.3 Safety Instructions of Utility Grid ..............3 Product Overview ..................4 2.1 Product Introduction ......................4 2.2 Appearance .........................4 2.3 Supported Power Grid .....................5...
  • Page 6 Unpacking and Inspection ..............31 6.1 Unpacking ..........................31 6.2 Scope of Delivery.......................32 Mechanical Installation ................34 7.1 Dimensions for Mounting ....................35 7.2 Installation Procedures.....................35 Electrical Connection ................38 8.1 Overview of Electrical Connection ................38 8.1.1 Terminals and Parts of Inverter ................38 8.1.2 Cable Connections of Inverter .................40 8.2 PE Connection ........................42 8.3 AC Connection ........................44 8.4 PV Connection ........................48...
  • Page 7 Operation on SolaX App and Web ............111 11.1 Introduction of SolaXCloud ....................111 11.2 Operation Guide on SolaXCloud App .................111 11.2.1 Downloading and Installing App ..............111 11.2.2 Operation on the App ..................111 11.3 Operations on SolaXCloud Webpage ................112 Troubleshooting and Maintenance ............113 12.1 Power Off ..........................113 12.2 Troubleshooting .........................113 12.3 Maintenance ........................122...
  • Page 8 15.4.4 Settings for DataHub ...................147 15.5 Application of Parallel Function ..................148 15.5.1 Introduction of Parallel Application ..............148 15.5.2 Notice for Parallel Application ................148 15.5.3 System Wiring Diagram ..................149 15.5.4 System Wiring Procedure ...................151 15.5.5 Settings for Parallel Connection ..............154 15.6 Meter/CT Connection Scenarios ..................155 15.6.1 Connection of CT ....................155 15.6.2 Connection of Direct-connected Meter ............159 15.6.3 Connection of CT-connected Meter .............162...

  • Page 9: Safety

    Safety General Safety The series inverter has been meticulously designed and thoroughly tested to comply with the relevant state and international safety standards. Nevertheless, like all electrical and electronic equipment, safety precautions must be observed and followed during the installation of the inverter to minimize the risk of personal injury and ensure a safe installation.

  • Page 10: Safety Instructions Of Pv

    Safety 1.2.1 Safety Instructions of PV DANGER! Potential risk of lethal electric shock associated with the photovoltaic (PV) system • Exposure to sunlight can result in the generation of high DC voltage by PV modules, which can lead to electric shock causing severe injuries or even death. •...

  • Page 11: Safety Instructions Of Utility Grid

    Safety • During operation, avoid touching any parts of the inverter other than the DC switch and LCD panel (if any). • Never connect or disconnect the AC and DC connector while the inverter is running. • Prior to conducting any maintenance, turn off the AC and DC power and disconnect them from the inverter.

  • Page 12: Product Overview

    Product Overview Product Introduction The X3-Hybrid G4 is an energy storage series inverter that supports grid connection of photovoltaic system. It has up to 200% PV mega-capacity, high charging and discharging efficiency, and built-in shadow tracking. The inverter is IP65 rated and supports high power solar panels for durability and compatibility in low temperatures.

  • Page 13: Supported Power Grid

    Product Overview Supported Power Grid There are different ways of wiring for different grid systems. TT / TN-S / TN-C-S are shown as below: * For 5.5 kW and 8.3 kW inverter, Phase-Neutral voltage is 127 V and Phase- Phase voltage is 220 V. 400 V 400 V 400 V...

  • Page 14: Symbols On The Label And Inverter

    Product Overview Symbols on the Label and Inverter Table 2-2 Description of symbols Symbol Description CE mark. The inverter complies with the requirements of the applicable CE guidelines. TUV certified. RCM mark. The inverter complies with the requirements of the applicable RCM guidelines.

  • Page 15: Working Principle

    EPS L1 EPS L2 Relay BAT+ DC EMI EPS L3 DC/DC Filter BAT- EPS N Relay Figure 2-5 Circuit Diagram for X3-Hybrid G4 series inverter NOTICE! • For 5 kW and 6 kW inverter, PV 1 MPPT connects one string only.

  • Page 16: Application Schemes

    Product Overview 2.5.2 Application Schemes Battery Breaker Main breaker Grid Breaker Grid (off-grid) Inverter Load Load ⋯ ⋯ N-BAR for EPS loads N-BAR for loads Distribution box Figure 2-6 Partial home backup for Europe Battery Breaker Breaker Main breaker Main breaker Grid Breaker Grid...
  • Page 17 Product Overview Battery Breaker Main breaker Grid Breaker Grid (off-grid) Inverter Load Load ⋯ N-BAR for EPS loads N-BAR for loads Distribution box Figure 2-8 Partial home backup for Australia Battery Breaker Main breaker Grid Breaker Grid (off-grid) Inverter Load N-BAR for EPS loads Distribution box Figure 2-9 Whole home backup for Australia...

  • Page 18: Working State

    Product Overview Working State The series inverter has Waiting, Checking, Normal, EPS Checking, EPS, Fault, Self-testing, Upgrading, Idle and Standby state. Table 2-3 Description of working state State Description • The inverter is waiting for the conditions to be met in order to Waiting enter Checking state.

  • Page 19: Working Mode

    Product Overview Working mode Six working modes are available for you to choose in on-grid status, i.e Self use, Feed- in priority, Backup, Peak shaving, TOU and Manual. You can choose the working modes according to your lifestyle and environment. When the power supply from the electric power company is stopped due to a power outage, it automatically switches to EPS (off-grid) mode and connects to the distribution board for a specific load, thereby providing power to important electrical appliances.
  • Page 20 Product Overview Time period Inverter working status PV is sufficient (PV → load → battery → grid) • The power generated from PV prioritizes supplying the load. Any excess power is then directed towards charging the battery, and if there is still surplus electricity, it can be sold to the grid.

  • Page 21: Feed-In Priority (Priority: Loads > Grid > Battery)

    Product Overview 2.7.2 Feed-in Priority (Priority: Loads > Grid > Battery) The feed-in priority mode is suitable for areas with high feed-in subsidies. The power generated from PV is directed towards supplying the loads. Any excess power beyond the load requirements will be fed into the grid. Power Feed-in Priority (Assuming peak power from 7:00 to 23:00)

  • Page 22: Backup Mode (Priority: Loads > Battery > Grid)

    Product Overview NOTICE! • You can set two configurable working periods: forced charging period and allowed discharging period. Please refer to "Charge & Discharge Period" for details. • In feed-in priority mode, considering whether the battery can be charged during the daytime.
  • Page 23 Product Overview Time period Inverter working status The working logic remains the same as for self-use mode. The difference lies in: • In self-use mode, the battery goes into hibernation when PV input is not available and the battery SOC reaches Min SOC (on-grid min SOC).

  • Page 24: Peak Shaving Mode

    Product Overview 2.7.4 Peak Shaving Mode Peak shaving mode is set for leveling out peaks in electricity use. The system is intelligently controlled to ensure charging takes place during off-peak hours and discharging occurs during peak hours. Peak Shaving Mode Power (Assuming peak power from 7:00 to 9:00 and 18:00 to 23:00) Battery powers the load...

  • Page 25: Tou Mode

    Product Overview ChargePowerLimits: The charging power from grid. 1000 W by default, range is 0-60000 PeakLimits: The load consumption power from grid side. 0 W by default, range: 0-60000 Reserved SOC: The lower limit of battery SOC required for later peak shaving period. 50% by default, range is 10~100%.

  • Page 26: Eps (Off-Grid) Mode (Priority: Loads > Battery)

    Product Overview 2.7.6 EPS (off-grid) Mode (Priority: Loads > Battery) During a power outage, the system will provide uninterrupted power supply to the EPS (off-grid) loads using the power from PV and the battery. It is important to ensure that the EPS (off-grid) loads should not exceed the maximum output power of the battery.

  • Page 27: Manual Mode

    Product Overview 2.7.7 Manual Mode This working mode is only for the qualified personnel to perform debugging and maintenance. It includes Forced Discharge, Forced Charge and Stop Chrg&Dischrg. The system will restore to the original working mode after six hours Manual mode is set. 2.7.8 Export Control Function Export control is a limit on the amount of energy your solar system can export into the...
  • Page 28 Product Overview 3 kW 0 kW 0 kW 0 kW 0 kW 0 kW Meter Grid Inverter: 15 kW Load: 3 kW Figure 2-16 Zero export control with Phase Unbalance enabled Note: For how to set the Export Control function, please refer to "Setting Export Control".

  • Page 29: System Overview

    EV-Charger Adapter Box G2 Generator DataHub Optional Cloud Control parts Figure 3-1 System diagram NOTICE! • X3-Hybrid G4 series inverter also supports to connect Adapter Box G1 through dry contact. Please refer to Adapter Box G1 installation guide for details.
  • Page 30 Table 3-1 System item description Item Description X3-Hybrid G4 series (the device The X3-Hybrid G4 series is an energy storage inverter that supports covered in this grid connection of a photovoltaic system. manual) PV modules work in MPPT mode. PV modules...
  • Page 31 System Overview Item Description SolaX Cloud is an intelligent, multifunctional monitoring platform that can be accessed either remotely or through a hard wired SolaX Cloud connection. With the SolaX Cloud, the operators and installers can always view key and up-to-date data.

  • Page 32: Transportation And Storage

    Transportation and Storage If the inverter is not put into use immediately, the transportation and storage requirements need to be met: Transportation • Observe the caution signs on the packaging of inverter before transportation. • Pay attention to the weight of the inverter. Carry the inverters by the required number of personnel as specified by local regulations.

  • Page 33: Preparation Before Installation

    Preparation before Installation Selection of Installation Location The installation location selected for the inverter is quite critical in the aspect of the guarantee of inverter safety, service life and performance. It has the IP65 ingress protection, which allows it to be installed outdoor. The installation position shall be convenient for wiring connection, operation and maintenance.
  • Page 34 Preparation before Installation NOTICE! • For outdoor installation, precautions against direct sunlight, rain exposure and snow accumulation are recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperature rise poses no safety risks, but may impact the device performance. •...

  • Page 35: Installation Carrier Requirement

    Preparation before Installation 5.1.2 Installation Carrier Requirement The installation carrier must be made of a non-flammable material, such as solid brick, concrete, etc. and be capable of supporting the weight of the inverter and suitable of the dimensions of the inverter . If the wall strength is not enough (such as wooden wall, the wall covered by a thick layer of decoration), it must be strengthened additionally.
  • Page 36 Preparation before Installation ≥300 mm 120 mm ≥300 mm Single inverter Figure 5-4 Clearance requirement for single inverter ≥300 mm ≥1000 mm Multiple inverters Figure 5-5 Clearance requirement for multiple inverters...

  • Page 37: Tools Requirement

    Preparation before Installation Tools Requirement Installation tools include but are not limited to the following recommended ones. If necessary, use other auxiliary tools on site. Please note that the tools used must comply with local regulations. Hammer drill Multimeter (drill bit: Ø8 mm) Measuring tape Utility knife (≥...

  • Page 38: Additionally Required Materials

    Preparation before Installation Additionally Required Materials Table 5-1 Additionally required wires Conductor Required Material Type Cross-section Dedicated PV wire with a voltage rating PV wire of 1000 V, a temperature resistance of 4-6 mm² °C, a fire resistance grade of VW-1 Communication wire Network cable CAT5E Additional PE wire...

  • Page 39: Unpacking And Inspection

    Unpacking and Inspection Unpacking • The inverter undergoes 100% testing and inspection before delivery. However, damages may still occur during transportation. Before unpacking, please carefully check the external packaging for any signs of damage, such as punctures or cracks. • Unpacking the inverter according to the following figure.

  • Page 40: Scope Of Delivery

    Unpacking and Inspection Scope of Delivery Waterproof connectors with RJ45 Inverter Expansion sets & washers M5 screw RJ45 connector Documents RJ45 terminals OT terminal 6 mm² ferrules Positive PV connectors Negative PV connectors Positive PV pin contacts Negative PV pin contacts AC protective cover Positive battery connectors &...
  • Page 41 Unpacking and Inspection Item Description Quantity Remark Waterproof For COM, Meter/CT and BMS connectors with 3 pairs communication connection RJ45 Documents RJ45 terminals 6 pcs RJ45 connector 1 pc For CT connection OT terminal 1 pc For grounding For Grid and EPS (off-grid) 6 mm²...

  • Page 42: Mechanical Installation

    Mechanical Installation WARNING! • Only qualified personnel are allowed to perform the mechanical installation in accordance with local laws and regulations. • Check the existing power cables or other piping in the wall to prevent electric shock or other damage. •...

  • Page 43: Dimensions For Mounting

    Mechanical Installation Dimensions for Mounting Before installation, check the dimensions of the bracket and ensure that enough space is reserved for the installation and heat dissipation of the entire system. Figure 7-3 Dimensions 1 (Unit: mm) 94.5 Figure 7-4 Dimensions 2 (Unit: mm) Installation Procedures Step 1: Horizontally align the bracket with the wall, adjust the position of the bracket with...
  • Page 44 Mechanical Installation Step 2: Set the bracket aside and drill holes with Ø8 drill bit. The depth of the holes should be 65 mm. Please note that when using a drill, make holes perpendicular to the wall and avoid tilting up or down. Figure 7-6 Drilling holes Step 3: Disassemble the nut, spring washer and flat washer from the expansion sets (part...
  • Page 45 Mechanical Installation Step 6: Lift up the inverter collaboratively by the required number of personnel in accordance with the local regulation and hang it onto the bracket. Make sure that the hanging slot of the inverter are properly inserted into the lug of the bracket. Figure 7-9 Hanging the inverter Step 7: Use M5 screws (part C) to secure the inverter on the bracket.

  • Page 46: Electrical Connection

    Electrical Connection DANGER! • Before electrical connection, make sure the DC switch and AC breaker are disconnected. Otherwise, the high voltage may cause electric shock, resulting in severe personal injuries or even death. WARNING! • Only qualified personnel are allowed to perform the electrical connection following local laws and regulations.
  • Page 47 Electrical Connection Table 8-1 Description of terminals and parts Item Description Remarks DC switch PV input terminal Battery connection terminal Dongle terminal / Upgrade terminal For communicating with other COM communication terminal devices, such as SolaX Adapter Box G2, EV-Charger, etc. Battery communication terminal Meter/CT communication terminal...

  • Page 48: Cable Connections Of Inverter

    Electrical Connection 8.1.2 Cable Connections of Inverter Figure 8-2 Cable connections of inverter Table 8-2 Dsecriptons of connected part Item Part Description Source A PV string is composed of the PV modules connected in series. The Prepared by PV module number of input PV strings varies in user accordance with different models.
  • Page 49 Electrical Connection Item Part Description Source Prepared by System switch Select an ON-OFF switch user SolaX DataHub, Adapter Box G2 and (Optional) SolaX Purchased EV-Charger, etc are supported. Select communication device from SolaX the device as needed. Select a generator equipped with an Automatic Transfer Switching Equipment (ATS), and the rated output Prepared by...

  • Page 50: Pe Connection

    Electrical Connection PE Connection The inverter must be reliably grounded. The PE connection point has been marked with It is recommended to connect the inverter to a nearby grounding point. WARNING! • Do not connect the grounding end of the inverter in series to prevent multi-point grounding.
  • Page 51 Electrical Connection Figure 8-5 Crimping the cable Figure 8-6 Shrinking the tubing Step 4: Disassemble the PE screw on the inverter with torque wrench. Connect the assembled PE cable to the grounding point of the inverter, and secure it with the original screw.

  • Page 52: Ac Connection

    Electrical Connection AC Connection NOTICE! • Before connecting the inverter to the grid, approval must be received by local utility as required by national and state regulations. The inverter supports the EPS (off-grid) mode. When connected to the grid, the inverter outputs go through the Grid connection terminal, and when disconnected from the grid, the inverter outputs go through the EPS (off-grid) connection terminal.
  • Page 53 Electrical Connection etc., ensure that their start power does not exceed the EPS (off-grid) peak power of the inverter. Table 8-4 EPS (off-grid) load information Type of load Equipment Start power Lamp Rated power Resistive load Rated power Hair dryer Rated power Refrigerator 3-5 times rated power...
  • Page 54 Electrical Connection Figure 8-9 Stripping the EPS (off-grid) cable Step 2: Disassemble the AC protective cover (part N) as shown below. Remove the sealing plug. Please note that keep the sealing plug in the hole if it is not in use. Remove Figure 8-10 Disassembling the AC protective cover Step 3:...
  • Page 55 Electrical Connection Grid EPS (off-grid) Figure 8-12 Crimping the conductors Step 5: Remove the dustproof cover from the inverter. Figure 8-13 Removing the dustproof cover Step 6: Insert the crimped conductors into the AC terminal according to the labeling and tighten the terminal screws (torque: 0.7±0.1 N·m).

  • Page 56: Pv Connection

    Electrical Connection DANGER! • Before powering on the inverter, make sure the AC protective cover has been installed correctly on the AC terminal even if the terminal is not wired. Otherwise, electrical shock may be caused by high voltage, resulting in serious personal injury or death.
  • Page 57 Electrical Connection the impact of low temperature on the voltage of the photovoltaic panels, as lower temperatures tend to result in higher voltages. • PV module » The PV modules within the same MPPT channel are of the same brand. Additionally, the strings within the same channel should have identical quantities, and be aligned and tilted identically.
  • Page 58 Electrical Connection Step 2: Insert the stripped cable into the PV pin contact (part K and M). Figure 8-17 Inserting the PV pin contact Step 3: Make sure the the PV cable and PV pin contact are of the same polarity. Crimp it with crimping tool for PV terminal.
  • Page 59 Electrical Connection Step 5: A "Click" will be heard if it is connected correctly. Gently pull the cable backward to ensure firm connection. Tighten the swivel nut clockwise. Verify that the PV connectors have the correct polarity before connection. Click! Click! Figure 8-20 Securing the PV cable Step 6: Use a voltage measuing device which complies with the local regulation to...

  • Page 60: Battery Power Cable Connection

    Electrical Connection Step 7: Remove the PV terminal caps and connect the assembled PV connectors to the corresponding terminals until there is an audible "Click". The PV+ on the string side must be connected to the PV+ on the inverter side, and the PV– on the string side must be connected to the PV–...
  • Page 61 Electrical Connection Requirments for battery connection • Battery » SolaX lithium-ion battery or lead-acid battery » Max charge and discharge current is 30 A. » Make sure the input voltage of BAT terminal is higher than minimum voltage 120 V (180 V for 5.5 kW and 8.3 kW inverter) and lower than maximum input voltage 800 V (650 V for 5.5 kW and 8.3 kW inverter).
  • Page 62 Electrical Connection Wiring procedures Step 1: Strip off the insulation of the battery power cable to an appropriate length. Figure 8-24 Stripping the battery cable Step 2: Insert the stripped end of the battery cables into the positive and negative battery connectors respectively (part P and Q).
  • Page 63 Electrical Connection Step 3: Press down the spring by hand. A "Click" will be heard if it is connected correctly. Make sure that the spring is snapped in. Click! Figure 8-27 Pressing down the spring Step 4: Push the connector into the sleeve and tighten the cable gland. Figure 8-28 Tightening the cable grand Step 5: Remove the battery terminal caps and connect the assembled battery connectors...

  • Page 64: Communication Connection

    Electrical Connection Communication Connection The communication connections are located in the COM, BMS, Meter/CT, CAN1, CAN2, DRM, and OFF communication terminals. The diagram of the completed communication connection is shown below: Meter/CT CAN1 CAN2 DRM OFF Figure 8-30 The completed communication connection 8.6.1 COM Communication Connection The COM terminal is mainly used for communication between the inverter and other...
  • Page 65 Electrical Connection Pin assignment Description 485A For other devices connection, such as SolaX Adapter Box G2, 485B EV-Charger, DataHub, etc. Drycontact_A(out) For generator connection Drycontact_B(out) * Pin 3 (+13V) and Pin 6 (GND) cannot be connected together in the process of cable connection.

  • Page 66: Bms Communication Connection

    Electrical Connection Step 3: Install the network cable of the crimped RJ45 terminals to COM terminal according to the labeling. Click! Figure 8-33 Connecting to COM terminal 8.6.2 BMS Communication Connection The BMS communication terminal is mainly used for communication between the inverter and the battery.
  • Page 67 Electrical Connection Table 8-7 Pin assignment of BMS terminal Pin assignment EXT_NTC BMS_CANH BMS_CANL BMS_485A BMS_485B * The pin assignment of communication terminal on the battery must be consistent with the assignment of Pin 4, 5, 7 and 8 above. Wiring procedure Step 1: Prepare a CAT5E network cable, thread the network cable through waterproof...

  • Page 68: Meter/Ct Connection

    Electrical Connection 1) White with orange stripes 2) Orange 3) White with green stripes 4) Blue 1 2 3 4 5 6 7 8 5) White with blue stripes 6) Green 7) White with brown stripes 8) Brown Figure 8-36 Crimping the network cable Step 3: Install the network cable of the crimped RJ45 terminal to BMS terminal according to the labeling.
  • Page 69 Electrical Connection Pin assignment of COM terminal Table 8-8 Pin assignment of Meter/CT terminal Pin assignment Description CT_R_1 CT_S_1 For CT connection CT_T_1 485A For meter connection 485B CT_R_1 CT_S_1 For CT connection CT_T_1 Meter wiring procedure Step 1: Take out the network cable from the meter box, thread the network cable through waterproof connector (part D) and strip off the 15 mm insulation of the cable.
  • Page 70 Electrical Connection Step 2: Insert the stripped section into the Pin 4 and Pin 5 of RJ45 terminal (from meter box). Crimp it tightly with a crimping tool for RJ45. Pay attention to the pin order of RJ45 terminals. Use a network cable tester to check if the cable has been correctly and properly crimped before connecting to inverter.
  • Page 71 Electrical Connection CT wiring procedure Step 1: Prepare a CAT5E network cable, thread the network cable through waterproof connector (part D) and strip off the 15 mm insulation for two ends of the network cable. Figure 8-42 Stripping the insulation Step 2: Insert the stripped section into the RJ45 terminals (from part D and part F).

  • Page 72: Can1 / Can2 / Drm / Off Communication Connection

    Electrical Connection Step 4: Install the other end of network cables to RJ45 connector (part G) and insert the CT (part O) to RJ45 connector. E P S Waterproof distribution box Figure 8-45 Connecting to CT 8.6.4 CAN1 / CAN2 / DRM / OFF Communication Connection CAN1 / CAN2 communication connection The inverter provides the parallel connection function.
  • Page 73 Electrical Connection DRM communication connection (Applicable to AS/NZS 4777.2) According to AS/NZS 4777.2, the inverter needs to support the function of demand response mode (DRM). With the use of an external control box, active or reactive power regulation can be realized in a timely and fast manner, and the inverter can be operated stably during the process of regulation.
  • Page 74 Electrical Connection Mode Requirement DRM 1 Pin 1 • When S1 is turned on, the inverters do not input active power. DRM 5 Pin 1 • When S5 is turned on, the inverters do not output active power. OFF communication connection OFF terminal is designed to support system switch connection.
  • Page 75 Electrical Connection Step 2: Loosen the swivel nut on the cover, and then remove the sealing plugs from the holes as needed. Keep the sealing plugs in the hole if it is not in use. CAN2 CAN1 Figure 8-48 Removing the sealing plugs Step 3: Thread the network cables through the swivel nut and cover in sequence and strip off approx.
  • Page 76 Electrical Connection and OFF terminal according to the labeling. An audible "Click" will be heard if they are connected correctly. Click! Figure 8-51 Connecting to the inverter Step 6: Tighten the screws and lock the cover on the inverter. And then tighten the swivel nuts.

  • Page 77: Monitoring Connection

    Electrical Connection Monitoring Connection The inverter provides a Upgrade/Dongle terminal, which can transmit data of the inverter to the monitoring website via WiFi+LAN dongle (Optional). The WiFi+LAN dongle is equipped with two kinds of communication modes (Wi-Fi mode or LAN mode). Users can choose based on actual needs.
  • Page 78 Electrical Connection Monitoring wiring procedure Wi-Fi mode: Assemble the dongle. M2.5 0.8 ± 0.1 N·m Figure 8-55 Assembling the dongle Plug the dongle to the inverter. Figure 8-56 Connecting to the inverter CAUTION! • The buckles on the inverter and dongle must be on the same side. Otherwise, the dongle may be damaged.
  • Page 79 Electrical Connection LAN mode: Disassemble the waterproof connector into components 1, 2, 3 and 4; Component 1 is not used. Keep it in a safe place. Figure 8-57 Disassembling the waterproof connector Assemble the dongle. M2.5 0.8 ± 0.1 N·m Figure 8-58 Assembling the dongle Plug the dongle to the inverter.

  • Page 80: System Commissioning

    System Commissioning Checking before Power-on Item Checking details The inverter is installed correctly and securely. Installation The battery is installed correctly and securely. Other device (if any) is installed correctly and securely. All DC, AC cables and communication cables are connected correctly and securely;...
  • Page 81 System Commissioning Step 2: Switch on the AC breaker and wait for the inverter power on. Breaker Meter Main breaker Grid Figure 9-2 Switching on the AC breaker Step 3: Switch on the battery or the breaker, button, DC switch of the battery (see documentation of the battery manufacturer).

  • Page 82: Checking After Power-On

    System Commissioning Checking after Power-on Step 1: Check whether the inverter has any abnormal noise. Step 2: Check whether the indicator lights report an error and whether the LCD screen displays the error message. Step 3: Check whether the data of PV, grid and battery are normal through the LCD screen.
  • Page 83 System Commissioning Figure 9-5 OFF+Lock state Operation of lockable DC switch • Turn on the DC switch: Rotate the DC switch from OFF state to ON state. Figure 9-6 Turning on the DC switch • Turn off the DC switch: Rotate the DC switch from ON state to OFF state. Figure 9-7 Turning off the DC switch •...
  • Page 84 System Commissioning Figure 9-8 Locking the DC switch • Unlock the DC switch: a. Push the lock down (as shown in the diagram below); b. Wait for it to return to OFF state. Figure 9-9 Unlocking the DC switch...

  • Page 85: 10 Operation On Lcd

    10 Operation on LCD 10.1 Introduction of Control Panel Timely output power Power Today's energy Today 0.0KWh Battery Battery SOC Normal Status or error information Battery indicator light Operating indicator light Error indicator light Down Enter Figure 10-1 Control Panel •...

  • Page 86: Introduction Of Main Interface

    Operation on LCD Table 10-2 Definition of keys Definition Exit from the current interface or function ESC key Move the cursor to the upper part or increase the value Up key Move the cursor to the lower part or decrease the value Down key Confirm the selection Enter key...
  • Page 87 Operation on LCD There are seven submenus in the menu that can be selected for relevant setting operations. System ON/OFF: Switch on and off the inverter. • • Mode Select: Select the working mode of the inverter, including Self Use, Feed-in Priority, Backup Mode, Manual, Peaking Shaving and TOU.
  • Page 88 Operation on LCD Date Time Language EPS Mute Self Use Mode User Setting Feed-in Priority Backup Mode Char&Disc Period Peak shaving mode Load Management User PassWord Safety Code Main Breaker Limit Phase Unbalanced Grid Parameters Charger EPS (off-grid) Setting Export Control AS4777 Setting Meter/CT Settings ExternalGen...

  • Page 89: System On/Off

    Operation on LCD 10.4 System ON/OFF Setting path: Menu>System ON/OFF Select ON or OFF to switch on and off the inverter. The interface is displayed ON by default. When you select OFF, the inverter stops running. ====System ON/OFF==== Switch > <...

  • Page 90: System Status

    Operation on LCD » Peak Shaving: When the power consumption from the grid exceeds the set PeakLimits value, the battery is allowed to discharge power. The excess power beyond the limit is provided by the combination of photovoltaic and battery to ensure that the maximum power purchased from the grid does not exceed the set limit.
  • Page 91 Operation on LCD Battery: Information of battery contains the voltage, current, power, SOC, cell • temperature and BMS connection status. Positive value with power means charging; negative value means discharging. ====System Status==== ======Battery1======= >U 0.0V >Battery 0.0A On-grid ======Battery1======= Cell Temp 20°C BMS Connected On-grid: Information contains the voltage, current, frequency, and output power...

  • Page 92: History Data

    Operation on LCD 10.7 History Data Displaying path: Menu>History Data After entering the History Data interface, the status of On-grid, EPS, E_Feedin, E_ USERDEF, Error Log will be displayed on the LCD as follows: On-grid: A record of the output and input electric energy of the inverter today •...
  • Page 93 Operation on LCD » Consume Total: Total electricity bought from grid since the inverter activated for the first time. =====History Data===== >E_Feedin E_USERDEF Error Log ======E_Feedin====== ======E_Feedin====== >Feedin Today >Feedin Total 0.0kWh 0.0kWh ======E_Feedin====== ======E_Feedin====== >Consume Today >Consume Total 0.0kWh 0.0kWh •...

  • Page 94: Setting

    Operation on LCD 10.8 Setting Settings includes User Settings and Advanced Settings. 10.8.1 User Setting Setting path: Menu>Setting ("0 0 0 0 ")>User Setting NOTICE! The default password for User Setting is "0 0 0 0". Setting Date & Time You can set the current date and time of the installation site.
  • Page 95 Operation on LCD Setting Self Use Mode Please refer to "2.7.1 Self-use Mode" for working logic of this mode. • Min SOC: Default: 10%; range: 10%~100% » The minimum SOC of the battery. The battery will not discharge power when the SOC of the battery reaches this value.
  • Page 96 Operation on LCD » You can set your own target value, i.e. during the forced charging period, the inverter will use both PV & grid power to charge the battery SOC to the target SOC value, after the battery SOC meets the target value, if the PV power is still sufficient, the surplus power will be fed into the grid.
  • Page 97 Operation on LCD » Allowed Disc Period End Time: Time to stop discharging; default: 23:59; range: 00:00~23:59 ===Char&Disc Period=== ===Char&Disc Period=== Forced Charg Period Forced Charg Period Start Time End Time 00:00 00:00 ===Char&Disc Period=== ===Char&Disc Period=== Allowed Disc Period Allowed Disc Period Start Time End Time...
  • Page 98 Operation on LCD Once the consumption (from the grid) reaches this value, the inverter will start shaving to keep the consumption lower than this value. » ShavingStartTime: Default: 7:00 The battery starts discharging to shave consumption from the set time. »...
  • Page 99 Operation on LCD » It can be used in specific time period. In this period, the inverter does not allow taking grid energy to charge the battery. PV is the only way to charge the battery and PV will charge the battery first. Inverter will not supply power to loads until battery SOC is higher than the Reverved_SOC in order to save enough energy for later shaving period.
  • Page 100 Operation on LCD ===Load Management=== ===Load Management=== ===Load Management=== >Theresholds on >Minimum duration >Mode Select Feedin power per on-signal SmartSave 3000W ===Load Management=== ===Load Management=== >Theresholds off >Minimum duration Consumption per day 3000W 900M ===Load Management=== ===Load Management=== >Theresholds off Battery SoC >Schedule Enable...

  • Page 101: 10.8.2 Advanced Setting

    Operation on LCD =====User Setting===== =====Dry Contact===== Peak shaving mode >Dry Contact Load Management User PassWord >Generator Setting User Password The default password is "0 0 0 0". You can reset the password here. 10.8.2 Advanced Setting Setting path: Menu>Setting>Advance Setting NOTICE! •...
  • Page 102 Operation on LCD Region Australia A Australia B Australia C Zealand Standard AS4777_2020 AS4777_2020 AS4777_2020 Setting Code Name Zealand Range OV-GV1-T 1.5 s 1.5 s 1.5 s 1.5 s OV-G-V2 275 V 275 V 275 V 275 V 230-300 V OV-GV2-T 0.1 s 0.1 s...
  • Page 103 Operation on LCD Setting Grid parameters The default value is the specified value under the current safety regulations. The contents will be displayed according to the requirements of local laws and regulations. Please refer to the actual contents displayed on the LCD screen on the inverter. ====Grid Parameters==== >Overvoltage_L1 Undervoltage_L1...
  • Page 104 Operation on LCD ======Charger====== >Discharge BackUp 00.0V • Max Charge: Default: 30 A » Maximum charging current of battery. Max Discharge: Default: 30 A • » Maximum discharging current of battery. • Charger upper limit: Default: 60%, range: 10%-100% » The maximum battery SOC when charging.
  • Page 105 Operation on LCD Meter/CT Setting CT or electricity meter is needed to connect with the inverter. CT is set by default. NOTICE! • If the user has other power generation equipment (such as inverter) at home and wants to monitor both, the inverter provides Meter2 communication function to monitor the power generation equipment.
  • Page 106 Operation on LCD » Case 4: Meter 1 for SolaX inverter; Meter 2 for another power generation equipment Refer to Case 2 for Meter 1 setting and Case 3 for Meter 2 setting. You can check the connection status in Meter/CT Check. Setting Self Test (only for CEI 0-21) The self test function allows users to test the following items: Full Test, Ovp (59.S2) test.
  • Page 107 Operation on LCD =======Modbus======= =======Modbus======= =======Modbus======= >Function Control >Baud Rate >EV Charger Addr: EV Charger 9600 NOTICE! • When two equipments need to be connected at the same time, the Baud rate of the two equipments shall be set to the same. Check the connection status.
  • Page 108 Operation on LCD Table 10-4 Items under Power Factor Over Excited PF Value Under Excited PF Value P1 PF P2 PF P3 PF P4 PF Power 1 Curve Power 2 Power 3 Power 4 PflockInPoint PflockOutPoint 3Tua SetQuPower1 SetQuPower2 SetQuPower3 SetQuPower4 QuRespondV1 QuRespondV2...
  • Page 109 Operation on LCD For Q(u), the curve required for the volt-var control mode can be referred to the below. Supplying Absorbing INVERTER VOLTAGE, V Figure 10-2 Curve for Q(u) Reactive power control, reactive power standard curve cos φ = f(P) •...
  • Page 110 Operation on LCD cos φ Leading 0.9/0.95 *) P/PEmax 0.9/0.95 *) Lagging Figure 10-4 Curve B *) Depend on the required Q capacity » For CEI 0-21, the default value of PFLockInPoint is 1.05. When Vac > 1.05Vn, Pac > 0.2 Pn, curve cos φ = f(P) corresponds to curve C. cos φ...
  • Page 111 Operation on LCD Setting Pu Function (Applicable to specific countries, please refer to local grid requirements.) The Pu function is a volt-watt response mode required by certain national standards such as AS/NZS 4777.2. This function can control the active power of the inverter according to the grid voltage.
  • Page 112 Operation on LCD Setting Power Limit Here you can set the rated output power by percentage. The percentage of rated output power is used as the actual output power. Proportion: Default: 1.00; range: 0.00-1.10 (For 8.3 kW and 15 kW inverter, the proportion can only be set to 0.00-1.00 and for other models of this series inverter, the proprotion can be set to 0.00-1.10.) ====Power Limit==== Proportion...
  • Page 113 Operation on LCD Three-phase inverter Load 1 Load 2 Load 3 1 kW 2 kW 3 kW 1 kW 2 kW 3 kW Meter Figure 10-8 Phase Unbalanced enabled Disable mode: Three-phase power balanced output, with equal power in each •...
  • Page 114 Operation on LCD • Super-Backup: Disabled by default. Super-Backup function enables the inverter to enter EPS (off-grid) mode when there is only PV input (no battery input). =====EPS Setting===== >Super-Backup Disable UPS Switch: Disabled by default. UPS Switch function enables the inverter to •...
  • Page 115 Operation on LCD =======Reset======= ====Reset Error Log==== >Reset Error Log Reset Meter/CT >Reset Reset INV Energy > Yes < • Reset Meter/CT =======Reset======= ====Reset Meter/CT==== Reset Error Log >Reset Meter/CT >Reset Reset INV Energy > Yes < Reset INV Energy •...
  • Page 116 Operation on LCD NOTICE! • If the ambient temperature is extremely low, turning on battery heating will consume a significant amount of electrical energy. Setting Extend BAT FUNC This function allows for adding a new battery module to an existing system. It is only applicable and functional in on-grid mode and cannot be used in EPS (off-grid) mode.
  • Page 117 Operation on LCD ======Pgrid Bias====== Pgrid Bias > Grid < BIasPower: Default: 40 W, settable range: 1 ~ 300 W (1 ~ 2%*Pn.max) When you select Grid or INV, the inverter still discharges or charges much power to or from the grid. Please set Bias Power to limit the charging and discharging power.

  • Page 118: About

    Operation on LCD NO/NC: NO (Always on) by default. • » NO (Always on): When the switch is disconnected, the inverter works normally, and when the switch is connected, the inverter shuts down. » NC (Always closed): When the switch is connected, the inverter works normally, and when the switch is disconnected, the inverter shuts down.

  • Page 119: 11 Operation On Solax App And Web

    11 Operation on SolaX App and Web 11.1 Introduction of SolaXCloud SolaxCloud is an intelligent management platform for home energy, which integrates energy efficiency monitoring, device management, data security communication and other integrated capabilities. While managing your home energy device, it helps you optimize the efficiency of electricity consumption and improve the revenue of power generation.

  • Page 120: Operations On Solaxcloud Webpage

    Operation on SolaX App and Web Figure 11-2 Online help on SolaXCloud NOTICE! • The screenshots in this chapter correspond to the SolaX Cloud App V5.5.0. 11.3 Operations on SolaXCloud Webpage Open a browser and enter www.solaxcloud.com to complete registration, login, add site and other related operations according to the guidelines of guide.

  • Page 121: 12 Troubleshooting And Maintenance

    12 Troubleshooting and Maintenance 12.1 Power Off Turn off the system by System ON/OFF on LCD screen. Turn off the AC switch between the inverter and the power grid. Set the DC switch to OFF. Switch off the battery or the breaker, button, DC switch of the battery (see documentation of the battery manufacturer).
  • Page 122 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 04 Grid Freq Fault Grid overfrequency • Wait a moment, if the utility returns to normal, the system reconnects. • Contact SolaX for help. IE 05 PV Volt Fault PV overvoltage •...
  • Page 123 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 14 Temp Over Fault Temperature out of range • Check if the ambient temperature exceeds the limit. • Contact SolaX for help. IE 15 Bat Con Dir Fault Battery direction fault •...
  • Page 124 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 26 INV EEPROM Inverter EEPROM fault • Shut down photovoltaic, battery and grid, reconnect. • Contact SolaX for help if it can not return to normal. IE 27 RCD Fault Residual current device fault •...
  • Page 125 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 37 CTMeterConFault CT Meter Con fault • Check if the CT or meter is well connected. • Contact SolaX for help if it can not return to normal. IE 101 PowerTypeFault Power type fault •...
  • Page 126 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 109 Meter Fault Meter fault • Check if the meter is normal and is compatible with the inverter. • Check if the communication cable is normal and properly connected. • Check if the communication settings such as protocol, address and baud rate of the meter are consistent with those of the inverter.
  • Page 127 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions Over temperature in battery system BE 07 BMS_TemHigh • Contact the battery supplier for help. Battery temperature sensor malfunction BE 08 BMS_TempLow • Contact the battery supplier for help. Battery Unbalanced Fault BE 09 CellImblance •...
  • Page 128 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions Battery charging request no respond BE 22 CR NORespond • Upgrade the battery BMS software. • Contact the battery supplier for help. Battery slave software protection failure BE 23 BMS SW Protect •...
  • Page 129 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions • Check if the load is connected correctly. • Check if the power of load on the LCD screen No readings on displays normally. Load (on App or • Check if the monitoring module works normally. Web) •...

  • Page 130: Maintenance

    Troubleshooting and Maintenance 12.3 Maintenance Regular maintenance is required for the inverter. Please check and maintain the following items based on the instructions below to ensure the optimal performance of the inverter. For inverters working in inferior conditions, more frequent maintenance is required. Please keep maintenance records.

  • Page 131: Upgrading Firmware

    Troubleshooting and Maintenance 12.3.2 Upgrading Firmware WARNING! • Make sure that the type and format of the firmware file are correct. Do not modify the file name. Otherwise, the inverter may not work properly. • Do not modify the folder name and file path where the firmware files are located, as this may cause the upgrade to fail.
  • Page 132 Troubleshooting and Maintenance ===Upgrade Selection=== ====Upgrade (ARM)==== >ARM Cancel >OK Select and confirm the firmware version, and then tap the Enter key to start updating. ARM update takes about 20 seconds, and DSP update takes about 2 minutes. ====Upgrade (ARM)==== ====Upgrade (ARM)==== >XXX.XXXXX.XX_HYB_3P_ ARM_V001.07_0606.usb...

  • Page 133: 13 Decommissioning

    13 Decommissioning 13.1 Disassembling the Inverter WARNING! • Strictly follow the steps below to disassemble the inverter. • Only use the dedicated removal tool delivered with the inverter to disassemble the PV connector. Step 1: Turn off the system by System ON/OFF on LCD screen. Step 2: Disconnect the external AC breaker of the inverter.
  • Page 134 Decommissioning Step 6: Disconnect the battery connectors: Insert the flat-head screwdriver into the notch of connectors and slightly pull the connectors. Figure 13-3 Disconnecting the battery connector Step 7: Disconnect the AC connector: Loosen the swivel nut and the four screws on the AC protective cover;...
  • Page 135 Decommissioning Figure 13-5 Disconnecting the COM / BMS / Meter / CT cable Step 9: Disconnect the CAN1 / CAN2 / DRM / OFF cable: Loosen the swivel nut and four crossscrews on the cover and slight unplug the RJ45 terminal. Figure 13-6 Disconnecting the CAN1 / CAN2 / DRM / OFF cable Step 10: Slight unplug the dongle module.

  • Page 136: Packing The Inverter

    Decommissioning 13.2 Packing the Inverter • Use the original packaging materials if available. Figure 13-8 Packing the inverter • If the original packing material is not available, use the packing material which meets the following requirements: » Suitable for the weight and dimension of product »...

  • Page 137: 14 Technical Data

    14 Technical Data • DC Input X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- 10.0-D 12.0-D X3-Hybrid- X3-Hybrid- X3-Hybrid- Model 5.0-D 6.0-D 8.0-D X3-Hybrid- X3-Hybrid- 15.0-D 5.5-D LV 8.3-D LV 10.0K-D 12.0K-D Max. PV voltage 1000 1000 1000 1000 1000 1000 [d.c. V] Nominal DC operating voltage [d.c.
  • Page 138 Technical Data X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- 10.0-D 12.0-D X3-Hybrid- X3-Hybrid- X3-Hybrid- Model 5.0-D 6.0-D 8.0-D X3-Hybrid- X3-Hybrid- 15.0-D 5.5-D LV 8.3-D LV 10.0K-D 12.0K-D Current (inrush)(at 50 μs) [a.c. A] Rated output 11.6 14.5 17.5 21.8 14.5 21.8 current [a.c. A] Power factor 1 (0.8 leading ...
  • Page 139 Technical Data • Efficiency, Safety and Protection X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- 10.0-D 12.0-D X3-Hybrid- X3-Hybrid- X3-Hybrid- Model 5.0-D 6.0-D 8.0-D X3-Hybrid- X3-Hybrid- 15.0-D 5.5-D LV 8.3-D LV 10.0K-D 12.0K-D MPPT 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% 99.9% efficiency European 97.7% 97.7%...
  • Page 140 Technical Data • EPS (Off-grid) Output X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- X3-Hybrid- 10.0-D 12.0-D X3-Hybrid- X3-Hybrid- X3-Hybrid- Model 5.0-D 6.0-D 8.0-D X3-Hybrid- X3-Hybrid- 15.0-D 5.5-D LV 8.3-D LV 10.0K-D 12.0K-D EPS(Off-grid) 5000 6000 8000 10000 12000 15000 5500 8300 rated power [VA] EPS(Off-grid) rated voltage 400/230...

  • Page 141: 15 Appendix

    15 Appendix 15.1 Application of Generator 15.1.1 Introduction of Generator Application In the event of a power outage, the system can seamlessly switch to the generator for power supply and continue the collaboration with the energy storage system to ensure the uninterrupted operation of the load.

  • Page 142: Ats Control Mode

    Appendix 15.1.3 ATS Control Mode In this operating mode, the generator functions as a substitute for the grid. There is no communication between the generator and the inverter, which means no wiring modifications are required (although the inverter cannot control the generator). The ATS working for the generator determines whether the generator should be turned on or off based on the status of the grid.
  • Page 143 Appendix =====ExternalGen===== >MaxChargePower 5000W » Char&Disc Period: Including Forced Charg Period and Allowed Disc Period. Two periods can be set. These period settings are associated with the same settings under working mode for no need to jump to working mode page to set the working period when using generator mode.

  • Page 144: Dry Contact Mode

    Appendix 15.1.4 Dry Contact Mode In this operating mode, users can intelligently control the system by establishing a dry contact connection between the inverter and the generator. It allows for adjustments to multiple settings so that the system can meet the requirements of different scenarios. Wiring connection diagram Cloud Meter...
  • Page 145 Appendix Table 15-1 Connection pins for generator Assignment Description Drycontact_A(out) For generator connection Drycontact_B(out) • Connection steps: Please refer to "8.6.1 COM Communication Connection" specific wire making and connection. • Inverter settings for dry contact mode Select Menu>Setting>User Setting>Dry Contact>Generator. =====Dry Contact===== Load Management >Generator...
  • Page 146 Appendix » MinRestTime: Minimum time interval for two consecutive starts to avoid frequent generator on and off. (60 Min by default) =====ExternalGen===== >MaxRestTime 0Min » Char&Disc Period: Including Forced Charg Period and Allowed Disc Period. Two periods can be set. These period settings are associated with the same settings under Working mode for no need to jump to working mode page to set the working period when using generator mode.

  • Page 147: Application Of Adapter Box G2

    Appendix 15.2 Application of Adapter Box G2 15.2.1 Introduction of Adapter Box G2 Application With the SolaX Adapter Box G2, users can effectively utilize solar energy by commanding it to power their heat pump using settings available on the SolaX inverter and SolaXCloud. This intelligent integration allows for optimized solar self-consumption and ultimately helps in reducing electricity bills.

  • Page 148: Communication Connection With Inverter

    Appendix 15.2.3 Communication connection with inverter • Connection terminal-COM terminal U pgr adeD ongl e Figure 15-5 Connection terminal for Adapter Box G2 • Connection pins-Pin4 and pin 5 Table 15-2 Pin-to-pin connection for inverter and Adapter Box G2 COM terminal of inverter RS485_INV terminal of Adapter Box G2 Pin assignment Pin assignment...

  • Page 149: Settings For Adapter Box G2

    Appendix 15.2.4 Settings for Adapter Box G2 Select Menu>Setting>Advance Setting>Modbus; Select the AdapBox G2 and set the Baud Rate and corresponding Address. The default Baud Rate is 9600. =======Modbus======= =======Modbus======= =======Modbus======= >Function Control >Baud Rate >AdapBoxG2 Addr: AdapBoxG2 9600 NOTICE! •...

  • Page 150: Application Of Ev-Charger

    Appendix 15.3 Application of EV-Charger 15.3.1 Introduction of EV-Charger Application The EV-Charger is intended for charging electric vehicles. It can communicate with other devices or systems (inverter, meter, CT, third-party charger management platform, etc.) to realize intelligent control of charging process. 15.3.2 Wiring Connection Diagram Cloud...

  • Page 151: Communication Connection With Inverter

    Appendix 15.3.3 Communication Connection with Inverter • Connection terminal-COM terminal U pgr adeD ongl e Figure 15-8 Connection terminal for EV-Charger • Connection pins-Pin 4 and Pin 5 Table 15-3 Pin-to-pin connection for inverter and EV-Charger COM terminal of inverter COM terminal of EV-Charger Pin assignment Pin assignment...

  • Page 152: Setting For Ev-Charger

    Appendix 15.3.4 Setting for EV-Charger Select Menu>Setting>Advance Setting>Modbus; Select the EV Charger and set the Baud Rate and corresponding Address. The default Baud Rate is 9600. =======Modbus======= =======Modbus======= =======Modbus======= >Function Control >Baud Rate >EV Charger Addr: EV Charger 9600 NOTICE! •...

  • Page 153: Application Of Datahub

    Besides, it can work with SolaXCloud to monitor all inverters, allowing for real-time data display and device management. In the entire system, a maximum of 60 X3-Hybrid G4 series inverters can be connected to the DataHub.

  • Page 154: Communication Connection With Inverter

    Appendix 15.4.3 Communication Connection with Inverter • Connection terminal-COM terminal U pgr adeD ongl e Figure 15-11 Connection terminal for DataHub • Connection pins-Pin 4 and Pin 5 Table 15-4 Pin-to-pin connection for inverter and DataHub RS485-1/-2/-3/-4 terminal of COM terminal of inverter DataHub Pin assignment Pin assignment...

  • Page 155: Settings For Datahub

    Appendix 15.4.4 Settings for DataHub Select Menu>Setting>Advance Setting>Modbus; Select the DataHub and set the Baud Rate and corresponding Address. =======Modbus======= =======Modbus======= =======Modbus======= >Function Control >Baud Rate >Datahub Addr: Datahub 9600 NOTICE! • The baud rate, communication protocol and verification method of the inverters connected to the same RS485 terminal of DataHub must be consistent, and the communication addresses of the inverters must be consecutive and not repeated.

  • Page 156: Application Of Parallel Function

    Appendix 15.5 Application of Parallel Function 15.5.1 Introduction of Parallel Application The series inverters supports parallel operation in both Grid and EPS (off-grid) modes. It can be configured with SolaX X3-PBOX-150kW-G2, X3-PBOX-60 kW-G2. Without X3-PBOX device, it supports up to 3 units in the parallel system, while with X3-PBOX- 150kW-G2, it supports up to 10 units;...

  • Page 157: System Wiring Diagram

    Appendix 15.5.3 System Wiring Diagram Inverter Inverter (Master) (Slave) Grid Grid (off-grid) (off-grid) CAN1 CAN2 Grid Meter X3-PBOX- 150kW-G2 Grid Three- Single- Single- Single- Single- phase load phase load phase load phase load phase load Figure 15-13 With X3-PBOX-150kW-G2 system wiring diagram...
  • Page 158 Appendix Inverter Inverter (Master) (Slave) Grid Grid (off-grid) (off-grid) CAN1 CAN2 Grid Meter Three- Single- Single- Single- Single- phase load phase load phase load phase load phase load Figure 15-14 Without X3-PBOX-150kW-G2 system wiring diagram NOTICE! • In the parallel system without X3-PBOX-150kW-G2 and X3-PBOX-60kW-G2, make sure that External ATS in the setting path of Menu>Setting>Advance Setting>External ATS is disabled.

  • Page 159: System Wiring Procedure

    Appendix 15.5.4 System Wiring Procedure With X3-PBOX device • Power cable wiring procedure: User five-core copper cable (for grid connection) and four-core copper cable (for EPS (off-grid) connection) to connect Master-Slave inverter and Master-X3-PBOX device. Grid connection terminal of Master, Slave inverter and X3-PBOX device: L1 connects to L1, L2 connects to L2, L3 connects to L3 and N connects to N.
  • Page 160 Appendix CAN2 CAN1 CAN2 CAN1 2 CAN2 CAN1 Slave 1 Slave 9 Master Slave10 CAN1 PBOX Meter Figure 15-16 Communication wiring with X3-PBOX device Without X3-PBOX device • Power cable wiring procedure User five-core copper cable (for grid connection) and four-core copper cable (for EPS (off-grid) connection) to connect Master-Slave inverter.
  • Page 161 Appendix • Communication cable wiring procedure : Use standard network cables for Master-Slave inverter connection. Master inverter CAN 2 connects to Slave 1 inverter CAN 1. Slave 1 inverter CAN 2 connects to Slave 2 inverter CAN 1. Meter connects to Meter/CT terminal of the Master inverter. Please refer to "8.6.3 Meter/CT Connection".

  • Page 162: Settings For Parallel Connection

    Appendix 15.5.5 Settings for Parallel Connection Meter/CT setting Setting path: Menu>Setting>Advance Setting>Meter/CT Setting. For details, see "Meter/ Setting". Parallel setting Setting path: Menu>Setting>Advance Setting>Parallel Setting. How to build the parallel connection Turn on the power of the entire system, find the inverter which needs to be set as Master and connect the meter to Master inverter, enter the setting page of the Master inverter LCD screen, select the Parallel Setting, and select Master;...

  • Page 163: Meter/Ct Connection Scenarios

    Appendix When the X3-PBOX-150K-G2 or X3-PBOX-60K-G2 is connected in the parallel system, enable the function. =====External ATS===== Function Control > Enable < Parallel Status Displaying path: Menu>Parallel Status NOTICE! • Once inverter enters parallel system, the Today yield will be replaced by Parallel. In Parallel Status interface, the whole system power and individual slave inverter power can be obtained in Parallel Status interface of master inverter.
  • Page 164 Appendix NOTICE! • The CTs referred to in this section are the CT delivered with the inverter. U pgr adeD ongl e Load L2 L3 N The arrow on the CTs must point at the grid. Grid Inverter L Line Grid Figure 15-19 System wiring with CT NOTICE!
  • Page 165 Appendix Accessories required Figure 15-20 Accessories required Figure 15-21 Accessories list Item Description Quantity Source RJ45 terminal 1 pc Delivered with inverter RJ45 connector 1 pc Delivered with inverter Waterproof connectors 1 pc Delivered with inverter with RJ45 CAT5E network cable 1 pc Prepared by user 1 pc...
  • Page 166 Appendix Use the RJ45 connector to connect the extension communication cable and the CTs. E P S Waterproof distribution box Figure 15-23 Connecting the inverter to the CT Setting Procedure After connecting CT to the inverter, set parameters on the inverter. CT is set by default.

  • Page 167: Connection Of Direct-Connected Meter

    Appendix 15.6.2 Connection of Direct-connected Meter NOTICE! • SolaX DTSU666 is used for example. U pgr adeD ongl e Load L2 L3 N Grid Figure 15-24 System wiring with direct-connected meter NOTICE! • For direct-connected meter, the current flow direction should be from grid to the inverter.
  • Page 168 Appendix Accessories required Figure 15-25 Accessories required Figure 15-26 Accessories list Item Description Quantity Source DTSU666 1 pc Two-core network cable 1 pc Delivered with meter (Optional) RJ45 terminal 1 pc Copper wire Prepared by user Waterproof connectors 1 pc Delivered with inverter with RJ45 Wiring Procedure...
  • Page 169 Appendix Figure 15-28 Stripping communication cable for meter Connect the conductors to terminal 24 and 25 of the meter. Meter Inverter 485A Pin 4 485A 485B Pin 5 485B E P S Waterproof distribution box Figure 15-29 Connecting to meter Setting Procedure After connecting meter to the inverter, set parameters on the inverter.

  • Page 170: Connection Of Ct-Connected Meter

    Appendix 15.6.3 Connection of CT-connected Meter NOTICE! • SolaX DTSU666-CT is used for example. • The CTs referred to in this section are CTs that are delivered with the CT-connected meter. U pgr adeD ongl e Grid The arrow on the CTs must point at the inverter. Grid Inverter L2 L3 N...
  • Page 171 Appendix NOTICE! • Terminal 2, 5 and 8 of the meter must be connected to the grid side. Terminal 1, 4 and 7 must be connected to the S1 wire of the CTs, and terminal 3, 6 and 9 be connected to the S2 wire of the CTs.
  • Page 172 Appendix Figure 15-33 Stripping communication cable for meter Connect the conductors to terminal 24 and 25 of the meter. Meter Inverter 485A Pin 4 485A 485B Pin 5 485B E P S Waterproof distribution box Figure 15-34 Connecting to meter Setting Procedure After connecting meter to the inverter, set parameters on the inverter.

  • Page 173: Connection Of Two Meters

    Appendix 15.6.4 Connection of Two Meters If you have another power generation equipment (such as an inverter) at home and wants to monitor both equipment, our inverter provides a Meter 2 Communication function to monitor the other power generation equipment. NOTICE! •...
  • Page 174 Appendix U pgr adeD ongl e Grid Meter 1 Load L1 L2 L3 N Meter 2 Grid L2 L3 N Other power generatation equipment Figure 15-35 Connection diagram of two direct-connected meters...
  • Page 175 Appendix U pgr adeD ongl e Load L2 L3 N Grid Meter 2 L2 L3 N Other power generatation equipment Figure 15-36 Connection diagram of CT and direct-connected meter...
  • Page 176 Appendix Accessories required for two direct-connected meters Figure 15-37 Accessories required Figure 15-38 Accessories list Item Description Quantity Source DTSU666 Two-core network cable 2 sets Delivered with meter (Optional) RJ45 terminal RJ45 terminal 1 pc Delivered with inverter RJ45 splitter adapter Prepared by user CAT5E network cable Prepared by user...
  • Page 177 Appendix Connect to Meter/ CT terminal Waterproof enclosure Meter 1 Meter 2 Figure 15-39 Connecting to RJ45 splitter adapter Setting procedures for two direct-connected meters How to set the parameters of meter 1 and meter 2 Select Menu>Setting>Advance Setting>Meter/CT Setting and enter the Meter/ CT Setting interface according to the setting path.
  • Page 178 Appendix How to check the power detected by Meter 1 and Meter 2 Meter 1: Select Menu>System Status>Meter/CT and enter the Meter/CT interface according to the setting path. This interface displays the information including feed-in power of L1, L2 and L3 detected by the connected meter. Positive value with Pfeedin means power fed into grid;...
  • Page 179 Appendix Figure 15-41 Accessories list Item Description Quantity Source DTSU666 Two-core network cable 1 set Delivered with meter (Optional) RJ45 terminal RJ45 terminal 1 pc Delivered with inverter 1 pc Delivered with inverter RJ45 splitter adapter 1 pc Prepared by user CAT5E network cable 1 pc Prepared by user...
  • Page 180 Appendix Setting procedures for CT and direct-connected meter How to set the parameters of CT and Meter 2 Select Menu>Setting>Advance Setting>Meter/CT Setting and enter the Meter/ CT Setting interface according to the setting path. CT is set by default. Choose the supported CT type. You can check the connection status in Meter/CT Check.
  • Page 181 Contact Information AUSTRALIA UNITED KINGDOM Unit C-D Riversdale House, Riversdale 21 Nicholas Dr, Dandenong South VIC 3175 Road, Atherstone, CV9 1FA +61 1300 476 529 +44 (0) 2476 586 998 service@solaxpower.com service.uk@solaxpower.com TURKEY GERMANY Fevzi Çakmak mah. aslım cd. no 88 A Am Tullnaupark 8, 90402 Nürnberg, Karatay / Konya / Türkiye Germany...
  • Page 182 SolaX Power Network Technology (Zhejiang) Co., Ltd. Add.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320101080603...

This manual is also suitable for:

X3-hybrid-5.0-dX3-hybrid-6.0-dX3-hybrid-8.0-dX3-hybrid-10.0-dX3-hybrid-10.0k-dX3-hybrid-12.0-d ... Show all

Table of Contents

Save PDF
