Manufacturers G100 Product Declaration
Declaration of Conformity in line with Engineering Recommendation G100
SolaX Power Network Technology (Zhe jiang) Co. , Ltd.
Hereby confirms that X3-Hybrid G4 Series inverter(the model shown as
below) complies with the power meter (&CTs) recommended by SolaX Power,
Engineering Recommendation G100 Issue 1 Amendment 2 2018, Technical
Guidance for Customer Export Limiting Schemes, when installed in accordance
with this Engineering G100 Declaration.
(Note:only Support CHNT DTSU666 Power Meter)
This Declaration should be read in conjunction with the inverter user manuals
and meter quick installation guide.

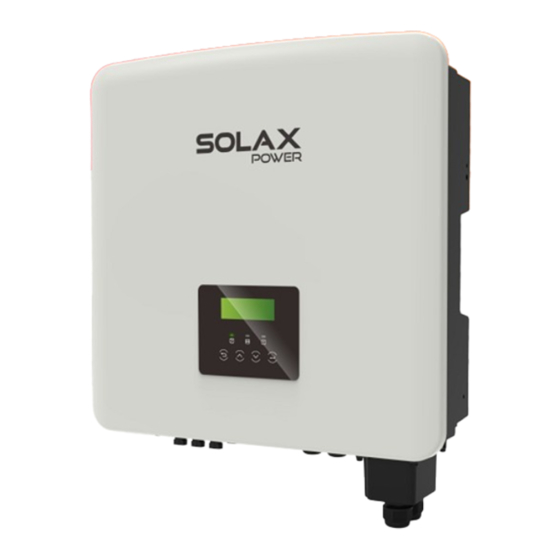

X3-Hybrid-5.0-D
X3-Hybrid-8.0-D
X3-Hybrid-12.0-D X3-Hybrid-12.0-M X3-Hybrid-15.0-D X3-Hybrid-15.0-M
SolaX Power Network Technology (Zhejiang) Co. ,Ltd.
No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA
www.solaxpower.com
TEL:+86-571-56260011
X3-Hybrid-5.0-M
X3-Hybrid-8.0-M
Fax:+86-571-56075753
X3-Hybrid-6.0-D
X3-Hybrid-6.0-M
X3-Hybrid-10.0-D X3-Hybrid-10.0-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X3-Hybrid-5.0-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SolaX Power X3-Hybrid-5.0-D

Summary of Contents for SolaX Power X3-Hybrid-5.0-D

  • Page 1 SolaX Power Network Technology (Zhe jiang) Co. , Ltd. Hereby confirms that X3-Hybrid G4 Series inverter(the model shown as below) complies with the power meter (&CTs) recommended by SolaX Power, Engineering Recommendation G100 Issue 1 Amendment 2 2018, Technical Guidance for Customer Export Limiting Schemes, when installed in accordance with this Engineering G100 Declaration.

  • Page 2: Description Of Operation

    A description of the scheme, its settings, and a single line diagram should be permanently displayed on site. SolaX Power X3-Hybrid G4 inverter can be set the export limiting power on the inverter LCD display based on customer or local rules requirements. SolaX Power named this function “export control”...

  • Page 3: System Schematic

    ER G5. Please confirm product complies with relevant harmonic standards: SolaX Power Network Technology (Zhe jiang) Co. , Ltd. confirms that X3-Hybrid G4 complies with the requirements of the relevant harmonics standards and that the relevant harmonic data has been provided as required by ER G5.
  • Page 4 Under normal operating conditions, The Pgrid <5s time value is reduced to 2000W Inverter response time. SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com TEL:+86-571-56260011 Fax:+86-571-56075753...
  • Page 5 • Scope: Pink trace is CAN communications from the Battery. Yellow shows current at output of EPS current. • Reaction time: 4.10s • Pass/fail: PASS SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com TEL:+86-571-56260011...
  • Page 6 • Scope: Blue trace is AC current of load, Pink shows current at output of AC current. • Pass/fail: PASS SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com...
  • Page 7 Test Category: Only the photovoltaic (PV) Reaction time: 3.64S Test Category: Only the Battery Reaction time: 2.48S SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com TEL:+86-571-56260011...
  • Page 8 • Scope: Blue trace is AC current of load, Pink shows current at output of AC current. • Pass/fail: PASS Test Category: Only the photovoltaic (PV) Reaction time: 4.82S SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com TEL:+86-571-56260011...
  • Page 9 Test Category: Only the Battery Reaction time: 2.72S Test Category: Both batteries and photovoltaic cells Reaction time: 2.70S     SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com TEL:+86-571-56260011...

  • Page 10: Password Protection

    Customer and should only be changed with the written agreement of the DNO. All X3-Hybrid G4 settings are password protected and cannot be altered by the customer. SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com...

  • Page 11: Lcd Display Operation

    4000W, it means the power exported to the grid can not exceed 4000W. 10. Contact information Name: Xiao Yongli Title: R&D Technical Director Date: 2021-10-10 SolaX Power Network Technology (Zhejiang) Co. ,Ltd. No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City, Zhejiang Province, 310000 P. R. CHINA www.solaxpower.com TEL:+86-571-56260011 Fax:+86-571-56075753...
