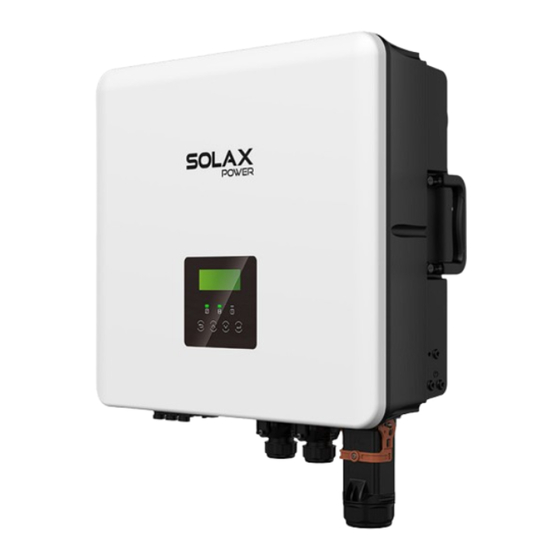

SolaX Power X3-HYB-G4 PRO Series User Manual

Quick Links

Download this manual

X3-HYB-G4 PRO

4 kW / 5 kW / 6 kW / 8 kW / 10 kW / 12 kW / 15 kW

User Manual

Version 0.0

www.solaxpower.com

eManual in the QR code or

at http://kb.solaxpower.com/

Table of Contents

Need help?

Do you have a question about the X3-HYB-G4 PRO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SolaX Power X3-HYB-G4 PRO Series

Page 1 X3-HYB-G4 PRO 4 kW / 5 kW / 6 kW / 8 kW / 10 kW / 12 kW / 15 kW User Manual Version 0.0 www.solaxpower.com eManual in the QR code or at http://kb.solaxpower.com/...
Page 3 The images included in this document are solely for illustrative purposes and may differ based on the specific product models. For more detailed information, kindly visit the website of SolaX Power Network Technology (Zhejiang) Co., Ltd. at www.solaxpower.com. SolaX retains all rights for the final explanation.
Page 4: About This Manual
About This Manual Scope of Validity This manual is an integral part of X3-HYB-G4 PRO series inverter. It describes the transportation, storage, installation, electrical connection, commissioning, maintenance and troubleshooting of the product. Please read it carefully before operating. This manual is valid for the following inverter models: •...
Page 5: Change History
• Have good knowledge of this manual and other related documents. Conventions The symbols that may be found in this manual are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, DANGER will result in death or serious injury. Indicates a hazardous situation which, if not avoided, WARNING could result in death or serious injury.
Page 6: Table Of Contents
Table of Contents Safety ......................1 1.1 General Safety ........................1 1.2 Safety Instructions of PV, Inverter and Grid ...............2 1.2.1 Safety Instructions of PV ..................2 1.2.2 Safety Instructions of Inverter ................2 1.2.3 Safety Instructions of Utility Grid ..............3 Product Overview ..................4 2.1 Product Introduction ......................4 2.2 Appearance .........................4 2.3 Supported Power Grid .....................5...
Page 7 Unpacking and Inspection ..............36 6.1 Unpacking ..........................36 6.2 Scope of Delivery.......................37 Mechanical Installation ................40 7.1 Dimensions for mounting ....................41 7.2 Installation procedures.....................41 Electrical Connection ................44 8.1 Overview of Electrical Connection ................44 8.1.1 Ports and Parts of Inverter .................44 8.1.2 Cable Connections of Inverter .................46 8.2 PE Connection ........................48 8.3 AC Connection ........................51 8.4 PV Connection ........................58...
Page 8 10.6 History Data .........................102 10.7 Settings ..........................104 10.7.1 User Settings ......................104 10.7.2 Advanced Settings ....................110 10.8 About .............................132 Operation on SolaX App and Web ............133 11.1 Introduction of SolaXCloud ....................133 11.2 Operation Guide on SolaXCloud App .................133 11.2.1 Downloading and Installing App ..............133 11.2.2 Operation on the App ..................134 11.3 Operations on SolaXCloud Webpage ................134 Troubleshooting and Maintenance ............135...
Page 9 15.3.4 Communication Connection with Inverter ..........169 15.3.5 Settings for EV-Charger ..................170 15.4 Application of DataHub ....................171 15.4.1 Introduction of DataHub Application .............171 15.4.2 Wiring Connection Diagram ................171 15.4.3 Communication Connection with Inverter ..........172 15.4.4 Settings for DataHub ...................173 15.5 Application of Micro-grid ....................174 15.5.1 Introduction of Micro-grid Application ............174 15.5.2 Wiring Conenction Diagram ................174 15.5.3 Working Modes .....................175...
Page 10: Safety
Safety General Safety The series inverter has been meticulously designed and thoroughly tested to comply with the relevant state and international safety standards. Nevertheless, like all electrical and electronic equipment, safety precautions must be observed and followed during the installation of the inverter to minimize the risk of personal injury and ensure a safe installation.
Page 11: Safety Instructions Of Pv, Inverter And Grid
Safety Safety Instructions of PV, Inverter and Grid Save these important safety instructions. Failure to follow these safety instructions may result in damage to the inverter and injury or even loss of life. 1.2.1 Safety Instructions of PV DANGER! Potential risk of lethal electric shock associated with the photovoltaic (PV) system •...
Page 12 Safety • During operation, avoid touching any parts of the inverter other than the DC switch and LCD panel (if any). • Never connect or disconnect the AC and DC connector while the inverter is running. • Prior to conducting any maintenance, turn off the AC and DC power and disconnect them from the inverter.
Page 13: Product Overview
Product Overview Product Introduction The X3-HYB-G4 PRO series is an energy storage PV grid-connected inverter. It supports various intelligent solutions such as load management, wireless metering, dual battery terminals, and microgrids, to achieve efficient and economical energy utilization. The X3- HYB-G4 PRO series inverter can be used with SolaX batteries in different models.
Page 14: Supported Power Grid
Product Overview Supported Power Grid There are different ways of wiring for different grid systems. TT / TN-S / TN-C-S are shown as below: 400 V 400 V 400 V L1 L2 L3 Inverter 1.L-N: 230 V; L-L: 400 V 2.L-N: 220 V;L-L: 380 V Figure 2-2 Supported power grid-TT 400 V 400 V...
Page 15: Symbols On The Label And Inverter
Product Overview Symbols on the Label and Inverter Table 2-2 Description of symbols Symbol Description CE mark. The inverter complies with the requirements of the applicable CE guidelines. TUV certified. RCM mark. The inverter complies with the requirements of the applicable RCM guidelines.
Page 16: Working Principle
Circuit AC SPD BAT2+ BAT 2 Filter BAT2- Circuit Figure 2-5 Circuit diagram of X3-HYB-G4 PRO series inverter NOTICE! • PV 3 in the dotted box is only available to 8 kW, 10 kW, 12 kW and 15 kW inverters.
Page 17: Application Schemes
Product Overview 2.5.2 Application Schemes Dongle Pocket PV modules Grid Inverter Breaker Main breaker COM1 BAT1&BAT2 BMS1&BMS2 Grid ⋯ ⋯ BAT1 BAT2 Load Load ⋯ ⋯ N-BAR for loads N-BAR for EPS loads Distribution box Figure 2-6 Application scheme without a matebox for most countries...
Page 18 Product Overview PV modules Dongle Pocket Grid X3-Matebox G2 Inverter Grid(inv) EPS(inv) Load Grid R S T N R S T N R S T N R S T N BAT1&BAT2 COM1 BMS1&BMS2 E-BAR Meter Main breaker BAT1 BAT2 Breaker Load R S T N-BAR for EPS loads...
Page 19 Product Overview Dongle Pocket PV modules Inverter Grid Main breaker Breaker COM1 BAT1&BAT2 BMS1&BMS2 Grid ⋯ ⋯ BAT1 BAT2 Load Load ⋯ ⋯ N-BAR for EPS loads N-BAR for loads Distribution box Figure 2-8 Application scheme without a matebox for Australia...
Page 20 Product Overview PV modules Dongle Pocket Grid X3-Matebox G2 Inverter Grid(inv) EPS(inv) Load Grid R S T N R S T N R S T N R S T N BAT1&BAT2 COM1 BMS1&BMS2 E-BAR Meter Main breaker BAT1 BAT2 Breaker Load R S T N-BAR for EPS loads...
Page 21: Working State
Product Overview Working State The series inverter has 9 states: Waiting, Checking, Normal, EPS Checking, EPS, Fault, Idle, Standby and Abnormal Hibernate. Table 2-3 Description of working state State Description The inverter is waiting for the conditions to be met in order to enter Checking state.
Page 22 Product Overview NOTICE! When a device is in idle state, you can wake up the device by setting the following through the device LCD or SolaX Cloud App: • Re-set the working mode. • Re-set the minimum battery SOC. It should be noted that: “the actual battery SOC —...
Page 23: Working Mode
Product Overview Working Mode When an inverter is in on-grid state, there are 6 working modes for you to select: Self use, Feed-in priority, Backup, Peak shaving, TOU, and Manual. You can choose one of them according to your lifestyle and environment. When the power supply from the electric power company is cut off due to a power outage, the inverter will automatically switch to the EPS mode and connect to the distribution board for specific loads, thereby providing power to important loads.
Page 24: Feed-In Priority (Priority: Loads>Grid)
Product Overview Time period Inverter working status PV is sufficient (PV → load → battery → grid) • The power generated from PV is supplied to the load first. After that, the remaining power is used to charge the battery. If there is still surplus electricity, it can be sold to the grid.
Page 25 Product Overview 2.7.2 Feed-in Priority (Priority: Loads>Grid) The feed-in priority mode is suitable for areas with high feed-in subsidies. The power generated from PV is supplied to the loads first. If there is power left, sell the remaining power to the grid. Power Feed-in Priority (Assuming peak power from 7:00 to 23:00)
Page 26: Backup Mode (Priority: Loads>Battery>Grid)
Product Overview range is 10%~100%. NOTICE! • You can set two working periods: forced charging period and allowed discharging period. Please refer to "Charge & Discharge Period" for details. • In feed-in priority mode, consider whether the battery can be charged during the daytime.
Page 27 Product Overview 2.7.3 Backup Mode (Priority: Loads>Battery>Grid) The backup mode is suitable for areas with frequent power outages. In this mode, the battery power amount is maintained at a relatively high level, to ensure that the emergency loads can be used when the inverter disconnects from the grid. Its working logic is same with that of the self use mode.
Page 28 Product Overview Min SOC (off-grid min SOC): Minimum SOC under off-grid conditions. 10% by default, the settable range is 10%~100%. NOTICE! • You can set two working periods: forced charging period and allowed discharging period. Please refer to "Charge & Discharge Period" for details.
Page 29: Peak Shaving Mode
Product Overview 2.7.4 Peak Shaving Mode Peak shaving mode is set for adjusting power consumption in peak hours. Through intelligent control, it is to ensure that the battery charges during off-peak hours and discharges during peak hours. Peak Shaving Mode Power (Assuming peak power from 7:00 to 9:00 and from 18:00 to 23:00) Battery powers the load...
Page 30: Tou Mode
Product Overview settable range is 0-60000 W. PeakLimits: The limit of power of loads taking power from the grid side. 0 W by default, the settable range: 0-60000 W. Reserved SOC: The lowest battery SOC set for a peak shaving period. 50% by default, the settable range is 10~100%.
Page 31 Product Overview Power EPS Mode Ideal: The emergency loads still can be Expected PV used when grid is off. power curve PV and battery Charge the battery power the load with excess PV energy PV and battery Load power curve power the load Battery powers the load Battery powers the load...
Page 32: Manual Mode
Product Overview 2.7.7 Manual Mode Manual mode is only for the qualified debugging and maintenance personnel. It includes Forced Discharge, Forced Charge and Stop Charging. The mode will automatically exit after it has been working for 6 hours. 2.7.8 Export Control Function Export control function is to control the amount of electricity exported from the PV to the grid.
Page 33: System Overview
System Overview System Overview PV modules SolaX Cloud X3-HYB-G4 Grid PV modules Dongle PRO inverter Normal loads Wireless meter Critical loads On-grid inverter Transmitter for Receiver for wireless meter wireless meter DataHub EV-Charger Adapter Box G2 Battery 2 Generator Battery 1 Control Cloud Figure 3-1 System diagram...
Page 34 Item Description X3-HYB-G4 PRO series (the device The X3-HYB-G4 PRO series is an energy storage inverter that models covered by supports grid connection of a photovoltaic system. this manual) PV modules work in MPPT mode. For 4 kW, 5 kW, and 6 kW PV modules inverters, the maximum number of MPPTs is 2.
Page 35 System Overview Item Description 400 V / 230 V and 380 V / 220 V grid are supported. Grid SolaX Cloud is an intelligent, multifunctional monitoring platform that can be accessed in a wired or wireless way. With the SolaX SolaX Cloud Cloud, operators and installers can view important and up-to-date data at any time.
Page 36: Transportation And Storage
Transportation and Storage If the inverter is not put into use immediately, the transportation and storage requirements need to be met: Transportation • Observe the caution signs on the packaging of inverter before transportation. • Pay attention to the weight of the inverter. Carry the inverters by the required number of personnel as specified by local regulations.(gross weight of X3- HYB-G4 PRO: 45 kg) •...
Page 37: Preparation Before Installation
Preparation before Installation Selection of Installation Location A good installation location is critical to the safety, service life and performance of the inverter. This inverter has the IP66 ingress protection, so it can be installed outdoor. Besides, the installation location should be selected for convenience of wire connection, operation and maintainence.
Page 38 Preparation before Installation NOTICE! • For outdoor installation, precautions against direct sunlight, rain exposure and snow accumulation are recommended. • Exposure to direct sunlight raises the temperature inside the device. This temperature rise poses no safety risks, but may impact the device performance. •...
Page 39: Installation Carrier Requirement
Preparation before Installation Installation Carrier Requirement The installation carrier must be made of a non-flammable material, such as solid brick, concrete. It should be capable of supporting the weight of the inverter and suitable for the dimensions of the inverter . If the load-bearing capacity of a wall is not high (such as wooden wall and wall covered by a thick layer of decoration), it must be improved accordingly.
Page 40 Preparation before Installation ≥30 cm 13.5 cm ≥50 cm Single inverter Figure 5-4 Clearance requirement for single inverter ≥30 cm ≥100 cm Multiple inverters Figure 5-5 Clearance requirement for multiple inverters...
Page 41: Tools Requirement
Preparation before Installation Tools Requirement Installation tools include but are not limited to the following recommended ones. If necessary, use other auxiliary tools on site. Please note that the tools used must comply with the local regulations. Multimeter Hammer drill Measuring tape Utility knife (drill bit: Ø10 mm)
Page 42: Additionally Required Materials
Preparation before Installation Additionally Required Materials Table 5-1 Additionally required wires Conductor Required Material Type Cross-section Dedicated PV cable with a voltage rating of 1000 V, a temperature PV cable 4 mm² °C, resistance of 105 a fire resistance grade of VW-1 Communication Network cable CAT5E cable...
Page 43 Preparation before Installation Model 10kW 12kW 15kW 16 A 16 A 16 A 20 A 25 A 32 A 32 A Breaker NOTICE! • For users who purchased the X3-Matebox G2, there is no need to prepare the battery wire because it has been included in the accessory pack. For specific installation steps, please refer to X3-Matebox G2 Series Installation Manual.
Page 44: Unpacking And Inspection
Unpacking and Inspection Unpacking • The inverter undergoes 100% testing and inspection before delivery. However, damages may still occur during transportation. Before unpacking, please carefully check the external packaging for any signs of damage, such as punctures or cracks. • Unpacking the inverter according to the following figure.
Page 45: Scope Of Delivery
Unpacking and Inspection Scope of Delivery Positive PV Positive PV pin contact connector Inverter Bracket Positioning cardboard AC connector Negative PV Negative PV Positive battery Negative battery Disassembly tool pin contact connector connectors connectors Allen key Self-tapping screws M5 screw Expansion tubes 6 mm AC ferrules...
Page 46: Item Description
Unpacking and Inspection Item Description Quantity Remarks Positive PV pin contact 2 pcs for X3-HYB-4.0-P, X3- HYB-5.0-P, and X3-HYB- Positive PV connector 6.0-P Used for connecting to the PV port 3 pcs for X3-HYB-8.0-P, X3- Negative PV pin contact HYB-10.0-P, X3-HYB-12.0-P, and X3-HYB-15.0-P Negative PV connector...
Page 47 Unpacking and Inspection Item Description Quantity Remarks 1 pc Positive PV 3 pcs dustproof buckles Negative PV 3 pcs dustproof buckles Document Dongle 1 pc NOTICE! • The optional accessories are subject to the actual delivery. • “*” : For a 4.0, 5.0, 6.0, or 8.0 kW inverter, we offer you two choices: 6 mm AC ferrules and 4 mm AC ferrules.
Page 48: Mechanical Installation
Mechanical Installation WARNING! • Only qualified personnel are allowed to perform the mechanical installation in accordance with local laws and regulations. • Check the existing power cables or other piping in the wall to prevent electric shock or other damage. •...
Page 49: Dimensions For Mounting
Mechanical Installation Dimensions for mounting The size of the positioning cardboard is consistent with that of the inverter. Before installation, put the positioning cardboard onto the wall, to measure whether the current space is suitable for the dimensions of the inverter and reserve enough installation and heat dissipation space.
Page 50 Mechanical Installation Figure 7-5 Drilling holes Step 3: Attach the bracket (part A) to the wall. Insert self-tapping screws (part M) into the expansion tubes. If necessary, knock them into the holes with a rubber mallet. Tighten the screws with a torque wrench (size: 10 mm). ST6.3*L55 8-10 N·m Figure 7-6 Securing the bracket...
Page 51 Mechanical Installation Figure 7-8 Hanging the device onto the bracket NOTICE! • If the inverter needs to be placed on the ground temporarily, use foam or other protective material to cushion its bottom to avoid damage to the inverter. • Prevent ports at the device bottom from colliding with the ground or other objects, to reduce damages to the ports.
Page 52: Electrical Connection
Electrical Connection DANGER! • Before electrical connection, make sure the DC switch and AC breaker are disconnected. Otherwise, the high voltage may cause electric shock, resulting in severe personal injuries or even death. WARNING! • Only qualified personnel are allowed to perform the electrical connection according to the local laws and regulations.
Page 53 Electrical Connection Table 8-1 Description of ports and parts Item Description Remarks DC switch For inverters 4 kW, 5kW, and 6kW, MPPT1 and MPPT2 are available. MPPT ports For inverters 8kW, 10kW, 12kW, and 15kW, MPPT1, MPPT2, and MPPT3 are available. The battery port and V2X （...
Page 54: Cable Connections Of Inverter
Electrical Connection 8.1.2 Cable Connections of Inverter Figure 8-2 Cable connections of inverter Table 8-2 Dsecriptons of connected part Item Part Description Source A PV string is formed of PV modules connected in string. The number of Prepared by PV module PV modules in a string varies with the user model.
Page 55 Electrical Connection Item Part Description Source Purchased EV charger Support SolaX EV charger. from SolaX Purchased Datahub Support SolaX DataHub. from SolaX Purchased AdapBox Support SolaX AdapBox G2. from SolaX Power grid management Select the devices that meet Prepared by equipment (only the power grid managemen user...
Page 56: Pe Connection
Electrical Connection PE Connection The inverter must be reliably grounded. The PE connection point has been marked with It is recommended to connect the inverter to a nearby grounding point. PE connection procedures Step 1: Strip the insulation of the PE cable to an appropriate length. 6 mm yellow and green cable Figure 8-3 Striping the PE cable...
Page 57 Electrical Connection Figure 8-5 Crimping the cable Figure 8-6 Shrinking the tubing Step 4: Remove the PE screw from the inverter with an Allen key. Figure 8-7 Uninstalling the screw NOTICE! • This inverter has two PE connection points. You can choose either of them. Step 5: Connect the assembled PE cable to the PE connection point of the inverter, and secure it with the original screw.
Page 58 Electrical Connection 2.0±0.2 N·m Figure 8-8 Securing the PE cable...
Page 59: Ac Connection
Electrical Connection AC Connection NOTICE! • According to the national and state interconnection regulations, you must be approved by the local utility before connecting the inverter to the grid. The inverter supports the EPS mode. When connected to the grid, the output of the inverter goes through the Grid port, and when disconnected from the grid, the output of the inverter goes through the EPS port.
Page 60 Electrical Connection Table 8-4 EPS load information Type of load Equipment Start power Resistive load Lamp Rated power 3-5 times rated power Hair dryer 3-5 times rated power Refrigerator 3-5 times rated power Inductive load Air conditioner 3-6 times rated power Washing machine 3-5 times rated power Microwave oven...
Page 61 Electrical Connection Wiring procedures NOTICE! • Here take connecting to Grid and EPS sides as an example, to show you how to connect Grid and EPS cables to the Grid and EPS sides at the same time. In actual situations, users can only connect to the Grid side. Please make corresponding adjustments according to the actual situations.
Page 62 Electrical Connection Step 3: Take out the AC connector (part I) from the accessory pack. Disassemble the AC connector. Figure 8-11 Disassembling the AC connector » Cut the innermost round membrane with a utility knife . Figure 8-12 Cutting the round membrane NOTICE! •...
Page 63 Electrical Connection » Insert the diassembly tool (part J) for the rubber core into the AC connector. Press the diassembly tool with one hand, and meanwhile poke the rubber core from the other end of the AC connector with a screwdriver held by the other hand, until the rubber core is poked out of the enclosure of the AC connector.
Page 64 Electrical Connection » For EPS: Insert Condutor L1 of the EPS cable into the L1 positon of the EPS side of the rubber core. Observe whether the conductor is in the right place through the hole of the rubber core. If yes, tighten the screw with the Allen key (part K).
Page 65 Electrical Connection Figure 8-20 Pulling the latch up Step 7: Insert the AC connector into the Grid & EPS port. If your operation is correct, the latch will automatically go back to the previous location. Lock the AC connector with an Allen key. Figure 8-21 Inserting the AC connector into the port and locking it WARNING! •...
Page 66: Pv Connection
Electrical Connection PV Connection DANGER! • When exposed to the sunlight, PV modules will generate lethal high voltage. Please take precautions. • Before connecting the PV modules, make sure that both DC switch and AC breaker are disconnected, and that the PV module output is securely isolated from the ground.
Page 67 Electrical Connection NOTICE! • The number of PV modules varies with the power of this series inverter. 4 kW, 5 kW, and 6 kW inverters can connect to two strings of PV modules; and 8 kW, 10 kW, 12 kW, and 15 kW inverters can connect to three strings of PV modules. Here only take connecting to one string of PV modules as an example, to show how to wire to the PV port.
Page 68 Electrical Connection Figure 8-24 Crimping the terminal Step 4: Thread the PV cables through the swivel nuts and insert them into the PV connectors (part D and part F) separately. Figure 8-25 Threading the PV cable Step 5: When hearing a sound of "click", gently pull the cables backward to ensure firm connection.
Page 69 Electrical Connection Step 6: Measure the positive and negative voltage of the assembled PV connectors with a voltage measuing device which complies with the local regulation. Make sure the device operation voltage is less than 950 V. Figure 8-27 Measuring the voltage of PV connectors NOTICE! •...
Page 70 Electrical Connection Figure 8-29 Sealing unused ports with buckles WARNING! • According to the safety regulations, you must seal the unused ports with dustproof buckles (parts V and W).
Page 71: Battery Power Cable Connection
Electrical Connection Battery Power Cable Connection DANGER! • Before connecting cables, make sure the breaker, power button (if any) and DC switch (if any) of the battery all are disconnected or turned off. • Always ensure correct polarity. Never reverse the polarity of the battery cables as this will result in inverter damage.
Page 72 Electrical Connection • Battery configuration Battery model Configuration T-BAT-SYS-HV- 2-6 battery modules can be connected S50E-D to a battery port . T-BAT-SYS-HV-3.0 2-4 battery modules can be connected T-BAT-SYS-HV-5.8 to a battery port. T-BAT-SYS-HV-S25 3-13 battery modules can be T-BAT-SYS-HV-S36 connected to a battery port.
Page 73 Electrical Connection Figure 8-32 Seeing the cable in the connector Step 3: Press the spring down until you hear a slight sound of "click", which indicates that the spring is closed successfully. Figure 8-33 Closing the spring Step 4: Move up the lower end of the connector and tighten the lower and upper ends of the connector together with a 15-mm open-ended wrench.
Page 74 Electrical Connection click! Figure 8-35 Connecting the battery connector WARNING! • Keep the port caps in a proper place after connecting battery power cables to the inverter. Reinstall the caps immediately after removing the connectors from the ports.
Page 75: Com 1 Communication Connection
Electrical Connection COM 1 Communication Connection Port COM 1 includes six subports: METER/CT, RS485, BMS 1, BMS 2, PARA 1 and PARA 2. Among them, • METER/CT subport is used for connecting a meter or CT; • RS485 subport is used for connecting an external devices, such as computer; •...
Page 76: Pin Assignment Of Port Com 1
Electrical Connection 8.6.1 Pin Assignment of Port COM 1 The following picture shows the overall layout of Port COM 1 and definition of pins for each subport. METER/CT RS485 1: CT_R_1 2: CT_S_1 3: CT_T_1 3: +12V_COM_EXT 4: METER_485A 4: REMOTE_485A 5: METER_485B 5: REMOTE_485B 6: CT_T_2...
Page 77: Meter/Ct Connection
Electrical Connection 8.6.2 Meter/CT Connection This section only introduces the wiring of the CT/Meter port of the inverter. For wiring procedures of the CT and meter side, refer to “15.7 CT/Meter Connection Scenarios”. CAUTION! • The inverter will shut down and prompt a Meter Fault alarm if a meter/CT is connected to inverter improperly.
Page 78 Electrical Connection Figure 8-36 Disassembling the COM 1 connector Step 2: Loosen the swivel nut of the enclosure, and then remove sealing plugs from the cable support sleeve as needed. remove Figure 8-37 Disassembling the connector enclosure NOTICE! • When processing the cable support sleeve, do not remove the sealing plug from the hole you are not going to use.
Page 79 Electrical Connection • Situation 2 — Cable without the RJ45 terminal. » Thread the cable through the swivel nut, cable support sleeve and connector enclosure in sequence. Strip the insulation of the cable to an appropriate length. Figure 8-39 Threading the cable without the RJ45 terminal and striping »...
Page 80 Electrical Connection Click! 0.6 ± 0.1 N·m Figure 8-41 Connecting to Port COM 1 Step 5: Connect the other side of the cable to a wired meter or CT. MPPT3 MPPT2 Figure 8-42 Connecting to CT MPPT2 MPPT3 Figure 8-43 Connecting to meter...
Page 81: Rs485 Communication Connection
Electrical Connection 8.6.3 RS485 Communication Connection Subport RS485 is used for connecting to the external devices. All devices supporting the Modbus protocol, such as computer, can communicate with the inverter via the port, to further control the inverter. Schematic diagram of connection to external device An external device cannot be directly connected to the RS485 subport.
Page 82: Bms Communication Connection
Electrical Connection 8.6.4 BMS Communication Connection Through communication subports BMS 1 and BMS 2, the inverter can be connected to two independent battery clusters in different capacities. The model of battery modules in either cluster must be the same. BMS connection diagram *For more details about battery-side connection, please...
Page 83: Parallel Connection
Electrical Connection Step 4: Secure the assembled connector on Port COM 1. » Insert the connector enclosure into Port COM 1 of the inverter. » Push the cable support sleeve into the connector enclosure. » Tighten the M3 screw on Port COM 1 to fasten the connector enclosure. Torque: 0.6 ±...
Page 84: Com 2 Communication Connection
Electrical Connection COM 2 Communication Connection Port COM 2 includes six subports: DATAHUB, HEATPUMP, EVC, V2X, DI/DO, and DRM. Among them, • DATAHUB subport is used for connecting a SolaX datahub; • HEATPUMP subport is used for connecting a SolaX adapter box G2; •...
Page 85: Pin Assignment Of Port Com 2
Electrical Connection 8.7.1 Pin Assignment of Port COM 2 The following picture shows the overall layout of Port COM 2 and definition of pins for each subport. DATAHUB HEATPUMP 3: +12V_COM_EXT 3: +12V_COM_EXT 4: DATAHUB_485A_CON 4: HEATPUMP_485A_CON 5: DATAHUB_485B_CON 5: HEATPUMP_485B_CON 6: GND_COM 6: GND_COM 7: DO1_A...
Page 86: Datahub, Heatpump, And Evc Communication Connection
Electrical Connection 8.7.2 Datahub, heatpump, and EVC communication connection Datahub, heatpump, and EV charger all can communicate with the inverter via corresponding subports in Port COM 2. As steps for datahub, heatpump, and EVC communication connection are similar, which are not described in detail, you can refer to the same steps below.
Page 87 Electrical Connection nut, cable support sleeve and connector enclosure in sequence. Figure 8-47 Threading the cable with the RJ45 terminal • Situation 2 — Cable without the RJ45 terminal. » Thread the cable through the swivel nut, cable support sleeve and connector enclosure in sequence.
Page 88 Electrical Connection NOTICE! • If you need to connect to other subports in the COM 2 port, repeat Step 3 until all required cables are threaded through the connector. Step 4: Insert the RJ45 terminal into the DATAHUB subport of Port COM 2. Secure the assembled connector for Port COM 2.
Page 89 Electrical Connection Figure 8-53 Connecting to EVC...
Page 90: Di/Do Communication Connection
Electrical Connection 8.7.3 DI/DO Communication Connection The DI/DO subport is used to connect a generator or system switch through dry contact. To enhance safety and reduce the risk of injury, you can install the system switch in a readily accessible location through dry contact connection. In the event of an emergency, the system switch can be easily reached and pressed to promptly switch off the entire system, ensuring a swift response and preventing further harm.
Page 91 Electrical Connection System switch connection diagram Subport DI/DO System switch Pin 5 Pin 4 Communication Figure 8-54 System switch connection diagram When a system switch is pressed, OFF MODE (INV BTN) will be displayed on the LCD and the system will be powered off. To release the switch, press it again. You need to prepare a system switch by yourself.
Page 92: V2X Connection
Electrical Connection 8.7.4 V2X Connection The V2X subport is used for connecting to a V2X module. For more details about it, please to the corresponding user manual. V2X wiring procedure Step 1: Loosen the securing screw on Port COM 2, and then hold latches on both sides of the connector enclosure to pull it out from the inverter.
Page 93: Drm & Ripple Control Connection
Electrical Connection 8.7.5 DRM & Ripple Control Connection DRED (Demand Response Enabling Device) and RCR (Ripple Control Receiver) are different grid management manners in different country or region. This section introduces the wiring method for a DRED and an RCR. DRED and RCR connect to the inverter through the same port DRM.
Page 94 Electrical Connection Ripple Control In Germany and parts of Europe, grid companies use RCRs to convert grid management signals into dry contact signals. Therefore, the inverter needs to receive the grid management signals in the dry contact manner. Suport DRM COM/DRM0 DRM1/5 DRM2/6...
Page 95 Electrical Connection plugs from the cable support sleeve as needed. Do not remove the sealing plugs from holes you are not going to use. Step 3: Thread the cable through the swivel nut, cable support sleeve and connector enclosure in sequence. Step 4: Secure the assembled connector on Port COM 2.
Page 96: Monitoring Connection
Electrical Connection Monitoring Connection A Wi-Fi + LAN monitoring module can connect to the inverter through the Dongle Pocket port. The module supports two communication modes of Wi-Fi and LAN, so that it can transmit device data to the SolaX Cloud in real time. With a monitoring module, users can monitor, manage, and maintain an inverter by means of mobile phone or web page.
Page 97 Electrical Connection Monitoring wiring procedure Wi-Fi mode: Assemble the dongle. M2.5 0.8 ± 0.1 N·m Figure 8-59 Assembling the dongle Plug the dongle into the inverter. Figure 8-60 Connecting the dongle CAUTION! • The buckles on the inverter and dongle must be on the same side. Otherwise, the dongle may be damaged.
Page 98 Electrical Connection LAN mode: Disassemble the waterproof connector into components 1, 2, 3 and 4; Component 1 is not used. Keep it in a safe place. Figure 8-61 Disassembling the waterproof connector Assemble the dongle. M2.5 0.8 ± 0.1 N·m Figure 8-62 Assembling the dongle Plug the dongle into the inverter.
Page 99: System Commissioning
System Commissioning Checking before Power-on Item Checking details The inverter is installed correctly and securely. Installation The battery is installed correctly and securely. Other devices (if any) are installed correctly and securely. All DC, AC cables and communication cables are connected correctly and securely.
Page 100: Dc Switch
System Commissioning DC Switch This series of inverters are provided with two types of DC switches: • General type (without lock): Applicable to most countries and regions . • Lockable type (with lock): Applicable to Australia and New Zealand only. Status of DC switch The DC switch has 3 states: ON, OFF, and OFF+Lock (only available to the lockable switch).
Page 101 System Commissioning Operation of DC switch • Turn on the DC switch: Rotate the DC switch from OFF to ON. Figure 9-67 Turning on the DC switch • Turn off the DC switch: Rotate the DC switch from ON to OFF. Figure 9-68 Turning off the DC switch The following operations are only available to the lockable switch.
Page 102 System Commissioning Figure 9-69 Locking the DC switch • Unlock the DC switch: a. Push the lock outward (as shown in the diagram below); b. Wait for it to move to OFF. Figure 9-70 Unlocking the DC switch...
Page 103: 10 Operation On Lcd
10 Operation on LCD 10.1 Introduction of Control Panel Real-time output power Power Today 0.0KWh Power generation amount today Battery Battery SOC* Status or fault message Normal Battery connection status* Battery indicator Fault indicator Operation indicator Return Up Down Confirm Figure 10-1 Control Panel •...
Page 104 Operation on LCD Table 10-2 Description of keys Description Exit from the current interface or function. Move the cursor up or increase the value. Move the cursor down or decrease the value. Down Confirm the current selection. Enter Note: • Battery connection status: When the icon flickers, it indicates that no battery cluster communicates with the inverter normally.
Page 105: Introduction Of Menu Interface
Operation on LCD 10.2 Introduction of Menu Interface "System ON/OFF" "Mode Select" "System Status" Menu Parallel Status "History Data" "Setting" "About" There are 7 submenus in the menu that can be selected for relevant setting operations. System ON/OFF: Switch on and off the inverter. •...
Page 106 Operation on LCD ======Parallel Status====== Slave1 ○ Parallel Status Slave2 × Slave3 ○ Slave4 × Slave5 ○ • History Data: Display the history data of On-grid, EPS, E_Feedin, E_USERDEF and Error Log. On-grid History Data E_Feedin E_USERDEF Error Log Settings: Set parameters for the inverter. It includes User Settings and Advanced •...
Page 107 Operation on LCD About: Display the information about Inverter, Battery 1, Battery 2 and Internal • code. Inverter Battery1 About Battery2 Internal Code...
Page 108: System On/Off
Operation on LCD 10.3 System ON/OFF Setting path: Menu>System ON/OFF Select ON or OFF to switch on and off the inverter. The switch is set to be ON by default. When you select OFF, the inverter stops running and displays System OFF. ====System ON/OFF==== Switch >...
Page 109 Operation on LCD ====System Status==== ======Battery1======= =======System Status======= >U 0.0V >Battery1 0.0A >Battery Battery2 On-Grid ======Battery1======= Cell Temp 20°C Connected • On-grid data: It displays the voltage, current, frequency, and output power of Grid port when the inverter is connected to the grid. The "A", "B" and "C" in On-grid A, On-grid B and On-grid C refers to L1, L2 and L3 respectively.
Page 110: History Data
Operation on LCD 10.6 History Data Displaying path: Menu>History Data After entering the History Data interface, the data of On-grid, EPS, E_Feedin, E_USERDEF, Error Log will be displayed on the LCD as follows: On-grid: A record of the output and input electric energy of the inverter today •...
Page 111 Operation on LCD » Consume Total: Total electricity bought from grid since the inverter activated for the first time. =====History Data===== >E_Feedin E_USERDEF Error Log ======E_Feedin====== ======E_Feedin====== >Feedin Today >Feedin Total 0.0kWh 0.0kWh ======E_Feedin====== ======E_Feedin====== >Consume Today >Consume Total 0.0kWh 0.0kWh E_USERDEF: The output electricity of the connected on-grid inverter totay and •...
Page 112: Settings
Operation on LCD 10.7 Settings Settings includes User Settings and Advanced Settings. 10.7.1 User Settings Setting path: Menu>Setting>User Settings NOTICE! The default password for User Settings is "0 0 0 0". Setting Date & Time You can set the current date and time of the installation site. The display format is "2023-06-16 14:00", in which the first four numbers represent the year (e.g.
Page 113 Operation on LCD Setting Self Use Mode Please refer to "2.7.1 Self use Mode" for working logic of this mode. In this mode, you can set: • the minimum SOC of the battery. • whether to take power from the grid to charge the battery and the target value of battery charging.
Page 114 Operation on LCD the SOC of the battery reaches this value. =====User Settings===== ====Feedin Priority==== Self Use Mode >Feed-in Priority >Min SoC Backup Mode • Charge battery to: Default: 100%; range: 10%~100% » Set the target SOC to charge the battery from grid in the forced charging period.
Page 115 Operation on LCD » Forced Charge Period Start Time: Time to start charging; default: 00:00; range: 00:00~23:59 » Forced Charge Period End Time: Time to stop charging; default: 00:00; range: 00:00~23:59 » Allowed Disc Period Start Time: Time allowing to start discharging (The charging or discharging of the battery depends on the working mode.);...
Page 116 Operation on LCD » PeakLimits1: Default: 0 W, range: 0-60000 W Once the consumption (from the grid) reaches this value, the inverter will start shaving to keep the consumption lower than this value. » ShavingStartTime: Default: 7:00 The battery starts discharging to shave consumption from the setting time. »...
Page 117 Operation on LCD • Reserved_SOC: Default: 50%; range: 10%-100% » It can be used in a specific time period. In this period, the inverter does not allow "taking grid energy to charge the battery". The PV is the only and first way to charge the battery.
Page 118: Advanced Settings
Operation on LCD 10.7.2 Advanced Settings Setting path: Menu>Setting>Advanced Settings NOTICE! • All the adjustable parameters including safety code, grid parameter, export control, etc. can be modified under the permissions of installer password. Unauthorized use of the installer password by unauthorized persons can lead to incorrect parameters being inputted, resulting in power generation loss or violation of local regulation.
Page 119 Operation on LCD Safey code Country VDE4105 Germany Thailand For Australia, select Australia Region A / B / C in complicance with AS/NZS 4777.2. Only after the safety code setting is completed, some designated parameters in the inverter system will take effect according to the corresponding safety regulations. Table 10-4 Region settings Region Australia A...
Page 120 Operation on LCD Region Australia A Australia B Australia C Zealand Standard AS4777_2020 AS4777_2020 AS4777_2020 Setting Code Name Zealand Range Recover-FH 50.15 Hz 50.15 Hz 50.15 Hz 50.15 Hz Recover-FL 47.5 Hz 47.5 Hz 47.5 Hz 47.5 Hz Start-VH 253 V 253 V 253 V 253 V...
Page 121 Operation on LCD Enable: Each phase of power will be independently output according to the • corresponding load connected with each phase. Three-phase inverter Load 1 Load 2 Load 3 4 kW 3 kW 2 kW 2 kW 3 kW 4 kW Meter Figure 10-2 Phase Unbalanced enabled •...
Page 122: Setting Grid Parameters
Operation on LCD Setting ripple control To adjust the feed-in power of the PV modules, you need to use an RCR (Ripple Control Receiver) and enable the ripple control function for the inverter. At the inverter, one port is reused for two functions: ripple control and DRM. You can only select one of them according to your needs.
Page 123 Operation on LCD Item Setting range Over Volt_L2 110.0-312.0 V Under Volt_L2 2.0-230.0 V Over Freq_L2 50.00-70.00 Hz Under Freq_L2 40.00-60.00 Hz OvpTime_L1 UvpTime_L1 0-100.00s OfpTime_L1 UfpTime_L1 OvpTime_L2 UvpTime_L2 0-20.00s OfpTime_L2 UfpTime_L2 ReconnectionTime 1-1000s ConnectionTime Connect Slope 1.00-600.00% Reconnect Slope Lower Frequency: 40.00-50.00 Hz Upper Frequency: 50.00-55.00 Hz Lower Voltage: 9.0-230.0 V...
Page 124 Operation on LCD subject to the actual situations. ==== OFPL Settings ==== ==== OFPL Settings ==== ==== OFPL Settings ==== >Pf Function >OFPL Curve >OverFreq Physte Enable/Disable > Symmetric/Asymmetric < xx.xxHz ==== OFPL Settings ==== ==== OFPL Settings ==== ==== OFPL Settings ==== >Ofstart Point >Droop >F_Stop Charge...
Page 125 Operation on LCD Table 10-8 Setting range for parameters Item Setting range Ufstart Point 46.00-50.00 Hz Droop 0-100.0% Delay time 0-10.0s F_stop Charge 48.00-50.00 Hz Fre_Pmin 46.00-50.00 Hz Setting Power Factor The default value is the specified value under the current safety regulations. The content will be displayed according to the requirements of local laws and regulations.
Page 126 Operation on LCD Item Composition P1 PF P2 PF P3 PF P4 PF Power 1 Curve Power 2 Power 3 Power 4 PflockInPoint PflockOutPoint 3Tua SetQuPower1 SetQuPower2 SetQuPower3 SetQuPower4 QuRespondV1 QuRespondV2 Q(u) QuRespondV3 QuRespondV4 3Tua QuDelayTimer QuLockEn Fixed Q Power Q Power Reactive power control, reactive power standard curve cos φ...
Page 127 Operation on LCD cos φ Leading 0.9/0.95 *) P/PEmax 0.9/0.95 *) Lagging Figure 10-4 Curve A *) If the Pmax of the inverter ≤ 4.6 kW, the Power Factor is 0.95 at 1.0 power; if the Pmax of the inverter>4.6 kW, the Power Factor is 0.90 at 1.0 power. »...
Page 128 Operation on LCD Setting Pu Function The Pu function is a volt-watt response mode required by certain national standards such as AS/NZS 4777.2. This function can control the active power of the inverter according to the grid voltage. You can set Response Voltage, 3Tau, PuPower, 3Tau_Charge and Pu Type.
Page 129 Operation on LCD Setting Pgrid Bias This function is to slightly adjust the power of the inverter and the grid side when there is no output in grid-connected state. It is disabled by default. You can do as follows: Check the Meter/CT value by selecting Menu>System Status>Meter/CT. Select Menu>Settings>Advanced Settings>Pgrid Bias .
Page 130 Operation on LCD EPS Settings Select and enter EPS Setting interface and set Frequency, Min SOC, Min ESC SOC and Super Backup. Frequency: Default: 50 Hz. Output frequency of EPS • • Min SOC: Default: 10%, range: 10%-100% » If the battery SOC is lower than the Min SOC, the inverter will prompt BatPowerLow and turn off if there is no PV input.
Page 131 Operation on LCD ======Charger====== ======Charger====== ======Charger====== >Max Charge >Max DisCharge >Charger upper limit Current Current Setting battery heating This function is disabled by default and is only valid when the battery has the heating function. When Battery Heating is enabled, you need to further set the heating period. Enable the Battery Heating function.
Page 132 Operation on LCD Select EV Charger, and set the braud rate and communication address. The braud rate is 9600 by default. =====Solax485===== =====Solax485===== =====Solax485===== >Function Control >Braud Rate >EV Charger Addr: EV Charger 9600 NOTICE! • When two devices are connected to the inverter at the same time, the braud rate and address of the two devices shall be set to the same.
Page 133 Operation on LCD Peripheral Settings Setting external generator There are two methods for switching on/off the external generator: ATS and dry contact. You can refer to the corresponding settings according to the method you selected. • ATS control Select Menu>Settings>Advanced Settings>ExternalGen>ATS Control. =====ExternalGen===== >Function Control ATS Control...
Page 134 Operation on LCD =====ExternalGen===== >MaxChargePower 5000W » Start Gen Method: Two methods for you to select: Reference SOC and Immediately. Reference SOC: Turn on/off the generator according to the set battery SOC. Immediately: Turn on /off the generator immediately when the inverter disconnects from the grid.
Page 135 Operation on LCD default). =====ExternalGen===== =====ExternalGen===== Charge from Gen >Charge battery to > Enable < Setting external ATS The external ATS is used for switchover of the bypass relay. ===External ATS=== Function Control > Enable < Solax485 Through the function, the inverter can communicate with other SolaX devices, such as EV charger, datahub, and adapter box.
Page 136 Operation on LCD Meter/CT Settings A CT or electricity meter needs to be connected to the inverter, to monitor the electricity usage. After connecting a meter or CT, you need to set parameters for it in the path of Advanced Settings > Meter/CT Settings. •...
Page 137 Operation on LCD GMPPT Settings GMPPT (Global Maximum Power Point Tracking) is to find the maximum points of PV modules and maintain them at the maximum power output. You can set the shadow tracking speed with four options, which are Off, Low, Middle, and High. This function is off by default.
Page 138 Operation on LCD ====Micro-grid==== Micro-grid >Disable< Self Test Settings (only for CEI 0-21) The self test function allows users to test the following items: Full Test, Ovp (59.S2) test. Uvp (s1) test, Uvp (27. s2) test, Ofp (81> .S1) test, Ufp (81 <.S1) test, Ufp (81> .S2) test, Ufp (81 <.S2) test, Ovp10 (59.
Page 139 Operation on LCD =======Reset======= ======Reset Wifi====== Reset Meter/CT Reset INV Energy >Reset >Reset Wifi > Yes < • Factory Reset =======Reset======= =====Factory Reset===== Reset INV Energy Reset Wifi >Reset >Factory Reset > Yes < Advanced Password You can re-set the advanced password here. An installer or distributor may acquire the advanced password from service@solaxpower.com.
Page 140: About
Operation on LCD 10.8 About Displaying path: Menu>About Here shows the basic information of the inverter, battery and internal code. After entering the About interfSace, you can check those information. • Inverter » Inverter SN, Register SN, ARM Verion, DSP version, On-grid Runtime, EPS Runtime •...
Page 141: 11 Operation On Solax App And Web
11 Operation on SolaX App and Web 11.1 Introduction of SolaXCloud SolaxCloud is an intelligent home energy management platform. It is integrated with energy efficiency monitoring, device management, data communication and other capabilities. While managing your home energy devices, it also helps you optimize the electricity usage efficiency and improve the power generation revenue.
Page 142: Operation On The App
Operation on SolaX App and Web 11.2.2 Operation on the App After registration and login, select Service>Help Center for text and video operation guidance. Figure 11-2 Register an account on SolaXCloud App NOTICE! • The pages above are from the SolaXCloud App V6.0.0, which may change with version upgrade.
Page 143: 12 Troubleshooting And Maintenance
12 Troubleshooting and Maintenance 12.1 Power off Turn off the system by System ON/OFF on LCD screen. Turn off the AC switch between the inverter and the power grid. Set the DC switch to OFF. Switch off the battery or the breaker, button, DC switch of the battery (refer to documentation of the battery manufacturer).
Page 144 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 03 Grid Volt Fault Power grid voltage overrun • Wait a moment, if the utility returns to normal, the system will reconnect. • Please check if the grid voltage is within normal range.
Page 145 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 12 RC OCP Fault Overcurrent protection fault • Check the impedance of DC input and AC output. • Wait for a while to check if it's back to normal. • Contact SolaX for help. IE 13 Isolation Fault Insulation fault...
Page 146 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 21 InterComFault Internal communication fault • Restart the inverter. • Contact SolaX for help if it cannot return to normal. IE 26 INV EEPROM Inverter EEPROM fault • Shut down photovoltaic, battery and grid, reconnect.
Page 147 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 40 BypassRelayFault Bypass relay fault • Press the ESC key to restart the inverter. • Contact SolaX for help if it cannot return to normal. IE 41 ArcFault Arc fault •...
Page 148 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions IE 109 Meter Fault Meter fault • Check if the meter is normal and is compatible with the inverter. • Check if the communication cable is normal and properly connected. • Check if the communication settings such as protocol, address and baud rate of the meter are consistent with those of the inverter.
Page 149 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions BE 06 DischargeOCP1 Battery fault-discharge over current fault • Contact SolaX for help. DischargeOCP2 BE 07 BMS1_TemHigh Over temperature in battery system • Contact SolaX for help. BMS2_TemHigh BE 08 BMS1_TempLow Battery temperature sensor malfunction •...
Page 150 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions Battery manufacturer mismatch fault MFR Unmatch1 BE 19 • Upgrade the battery BMS software. MFR Unmatch2 • Contact SolaX for help. SW Unmatch1 Battery hardware and software mismatch fault BE 20 •...
Page 151 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions ClusterComAddr1 Cluster address repeated BE 32 • Wait for the system to restore automatically. If the ClusterComAddr2 system fails to restore, try to restart the battery. • Check if the inverter correctly and normally connected to PV, battery or grid.
Page 152 Troubleshooting and Maintenance Error Code Fault Diagnosis and Solutions No data on App or • Check if the monitoring module works normally. • Contact SolaX for help. • If the meter connection is abnormal, reconnect No display on them according to the wiring diagrams. meter after •...
Page 153: Maintenance
Troubleshooting and Maintenance 12.3 Maintenance Regular maintenance is required for the inverter. Please check and maintain the following items based on the instructions below to ensure the optimal performance of the inverter. For inverters working in inferior conditions, more frequent maintenance is required. Please keep maintenance records.
Page 154 Troubleshooting and Maintenance NOTICE! • For details about disassembling the inverter, please refer to "13 Decommissioning". Step 2: Take the inverter down from the wall and slightly put it on a foam cushion with the back surface upforward. Remove 4 fastening screws from the back of the device with a cross screwdriver and unplug the connection cables from the fan.
Page 155: Upgrading Firmware
Troubleshooting and Maintenance 12.3.2 Upgrading Firmware WARNING! • Make sure that the type and format of the firmware file are correct. Do not modify the file name. Otherwise, the inverter may not work properly. • Do not modify the folder name and file path where the firmware files are located, as this may cause the upgrade to fail.
Page 156 Troubleshooting and Maintenance ===Upgrade Selection=== ====Upgrade (ARM)==== >ARM Cancel >OK Select and confirm the firmware version, and then tap the Enter key to start updating. ARM update takes about 20 seconds, and DSP update takes about 2 minutes. ====Upgrade (ARM)==== ====Upgrade (ARM)==== >XXX.XXXXX.XX_HYB_3P_ ARM_PRO_VXXX.XX_XXXX.
Page 157: 13 Decommissioning
13 Decommissioning 13.1 Disassembling the Inverter WARNING! • Strictly follow the steps below to disassemble the inverter. • Only use the dedicated removal tool delivered with the inverter to disassemble the AC connector, PV connector, battery connector and communication connnector. Step 1: Turn off the system through the LCD.
Page 158 Decommissioning Step 6: Slightly pull out the dongle module. Step 7: Disconnect the battery connectors: Insert a flat screwdriver into the notch of connectors and slightly pull out the connectors. Figure 13-3 Disconnecting the battery connector Step 8: Disconnect the AC connector: Loosen the screw on the latch with an Allen key, pull the latch up to 45°, and slightly pull the connector out.
Page 159 Decommissioning cables from the connector. Put the sealing plug and cable support sleeve to the original positions, fasten the swivel nut, connect the connector to the device and tighten the screw on the connector. Figure 13-6 Disconnecting the communication connector Step 10: Put the original ports caps back to the ports.
Page 160: Packing The Inverter
Decommissioning 13.2 Packing the Inverter • Use the original packaging materials if available. Figure 13-8 Packing the inverter • If the original packing material is not available, use the packing material which meets the following requirements: » Suitable for the weight and dimension of product »...
Page 161: 14 Technical Data
14 Technical Data • DC Input X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- Model 4.0-P 5.0-P 6.0-P 8.0-P 10.0-P 12.0-P 15.0-P Max. recommended DC 8000 10000 12000 16000 20000 24000 30000 power[W] Maximum power of The power of each MPPT ≤ rated power of the whole machine each MPPT Max.
Page 162 Technical Data • AC Output (On-grid) X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- Model 4.0-P 5.0-P 6.0-P 8.0-P 10.0-P 12.0-P 15.0-P 5000 10000 15000 ( Norminal AC 4000 (4999 for 6000 8000 (9999 for 12000 14999 for power [VA] AS 4777) AS 4777 ) AS 4777) 5500...
Page 163 Technical Data • AC Input X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- Model 4.0-P 5.0-P 6.0-P 8.0-P 10.0-P 12.0-P 15.0-P Norminal AC 8000 10000 12000 16000 20000 20000 20000 power[VA] Norminal AC current 11.6 14.5 17.4 23.2 29.0 29.0 29.0 Max.
Page 164 Technical Data • EPS Output X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- Model 4.0-P 5.0-P 6.0-P 8.0-P 10.0-P 12.0-P 15.0-P EPS continual apparent 4000 5000 6000 8000 10000 12000 15000 power [VA] EPS rated voltage[V], 400V/230VAC, 50/60 Frequency [Hz] EPS rated current [A] 11.6 14.5 17.5...
Page 165 Technical Data • Power consumption X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- Model 4.0-P 5.0-P 6.0-P 8.0-P 10.0-P 12.0-P 15.0-P Internal consumption <40W for hot standby, <5W for cold standby (night) [W] Idle mode • Standard X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB-...
Page 166 Technical Data X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- X3-HYB- Model 4.0-P 5.0-P 6.0-P 8.0-P 10.0-P 12.0-P 15.0-P Topology Non-isolated COM 1 (including ports Meter/CT, RS485, BMS 1, BMS 2, PARA 1, and PARA 2) and COM 2 (including Communication ports DATAHUB, HEATPUMP, EVC, V2X, DI/DO, and DRM) LCD display Dimensions [mm] 560*503*210...
Page 167: 15 Appendix
15 Appendix 15.1 Application of Generator 15.1.1 Introduction of Generator Application When the utility power supply is unavailable, the system can seamlessly switch to a generator, to form a new energy supply system, thereby ensuring uninterrupted operation of loads. In this case, the generator functions as the utility grid to supply power to the loads, and the hybrid inverter converts the solar energy to electricity.
Page 168 Appendix Wiring connection diagram Cloud Meter Grid EPS loads Common loads Generator Figure 15-1 ATS control wiring diagram Inverter settings for ATS control mode Select Menu>Settings>Advanced Settings>ExternalGen>ATS Control. =====ExternalGen===== >Function Control ATS Control Set the relative parameters as below in accordance with actual needs. »...
Page 169: Dry Contact Mode
Appendix =====ExternalGen===== =====ExternalGen===== >Forced Charg Period >Allowed Disc Period Start Time Start Time 00:00 00:00 =====ExternalGen===== =====ExternalGen===== >Forced Charg Period >Allowed Disc Period End Time End Time 00:00 23:59 » Charge from Gen and Charge battery to: It allows the battery to take power from the generator.
Page 170 Appendix Inverter connection for dry contact mode • Connection port-Subport DI/DO in Port COM 2 DI/DO Figure 15-3 Connection port for generator • Connection pins-Pin 7 and Pin 8 of port DI/DO Table 15-1 Definition of pins of port DI/DO Definition Description DI1_A...
Page 171 Appendix =====ExternalGen===== >MaxChargePower 5000W » Start Gen Method: Two methods for you to select: Reference SOC and Immediately. Reference SOC: Turn on/off the generator according to the set battery SOC. Immediately: Turn on /off the generator immediately when the inverter disconnects from the grid. =====ExternalGen===== =====ExternalGen===== >Start Gen Method...
Page 172 Appendix default). =====ExternalGen===== =====ExternalGen===== Charge from Gen >Charge battery to > Enable <...
Page 173: Application Of Adapter Box G2
Appendix 15.2 Application of Adapter Box G2 15.2.1 Introduction of Adapter Box G2 Application With the SolaX Adapter Box G2, users can effectively utilize solar energy by commanding it to power their heat pump using settings available on the SolaX inverter and SolaXCloud. This intelligent integration allows for optimized solar self-consumption and ultimately helps in reducing electricity bills.
Page 174: Communication Connection With Inverter
Appendix 15.2.3 Communication Connection with Inverter • Connection port-Subport HEATPUMP in Port COM 2 Heatpump Figure 15-5 Connection port for Adapter Box G2 • Connection pins Table 15-2 Pin-to-pin connection for inverter and Adapter Box G2 Subport HEATPUMP of inverter Port RS485 of Adapter Box G2 Definition Definitions...
Page 175: Settings For Adapter Box G2
Appendix 15.2.4 Settings for Adapter Box G2 Select Menu>Settings>Advanced Settings>Peripheral Setstings>Solax485. Select AdapBox G2 and set the Baud Rate and corresponding address. The default Baud Rate is 9600. =====Solax485===== =====Solax485===== =====Solax485===== >Function Control >Baud Rate >AdapBoxG2 Addr: AdapBoxG2 9600 NOTICE! •...
Page 176: Application Of Ev-Charger
Appendix 15.3 Application of EV-Charger 15.3.1 Introduction of EV-Charger Application The EV-Charger is intended for charging electric vehicles. It should be installed in a fixed location and connected to the AC supply. The EV-Charger can communicate with other devices or systems (inverter, meter, CT, third-party charger management platform, etc.) to realize intelligent control of charging process.
Page 177: Communication Connection With Inverter
Appendix up charging power, such as 4.2 kW for three-phase, the shortfall will be drawn from the grid. • Fast mode (Default mode): In Fast mode, the EV-Charger will charge the EV at the fastest rate regardless of whether the power generated by PV is sufficient and import grid electricity if the power generated by PV is insufficient.
Page 178: Settings For Ev-Charger
Appendix NOTICE! • The communication cable between EV-Charger and inverter cannot exceed 100 m. 15.3.5 Settings for EV-Charger Select Menu>Settings>Advanced Settings>Peripheral Setstings>Solax485. Select EVCharger and set the Baud Rate and corresponding address. The default Baud Rate is 9600. =====Solax485===== =====Solax485===== =====Solax485===== >Function Control >Baud Rate...
Page 179: Application Of Datahub
Besides, it can work with SolaXCloud to monitor all inverters, allowing for real-time data display and device management. In the entire system, a maximum of 60 X3-HYB-G4 PRO series inverters can be connected to the DataHub.
Page 180: Communication Connection With Inverter
Appendix 15.4.3 Communication Connection with Inverter • Connection port-Subport Datahub in Port COM 2 DATAHUB Figure 15-11 Connectiong port for DataHub • Connection pins Table 15-4 Pin-to-pin connection for inverter and DataHub Subport DATAHUB of inverter Port RS485-1 of DataHub Definition Definition DATAHUB_485A_...
Page 181: Settings For Datahub
Appendix 15.4.4 Settings for DataHub Select Menu>Settings>Advanced Settings>Peripheral Setstings>Solax485. Select Datahub and set the Baud Rate and corresponding address. The default Baud Rate is 9600. =====Solax485===== =====Solax485===== =====Solax485===== >Function Control >Baud Rate >Datahub Addr: Datahub 9600 NOTICE! • The baud rate, communication protocol and verification method of the inverters connected to the same RS485 port of DataHub must be consistent, and the communication addresses of the inverters must be consecutive and not repeated.
Page 182: Application Of Micro-Grid
Appendix 15.5 Application of Micro-grid 15.5.1 Introduction of Micro-grid Application Due to the islanding effect, an on-grid inverter cannot work during off-grid. This characteristic makes user losing the on-grid inverter PV energy when off-grid. Micro-grid is the function that making hybrid inverter simulate the grid to active on-grid inverter during off-grid by connecting the on-grid inverter to hybrid inverter's EPS port.
Page 183: Working Modes
Appendix 15.5.3 Working Modes Grid on • When PV is sufficient, the hybrid and on-grid inverters power the common and EPS loads together. When there is surplus energy on the on-grid inverter, it will also charge the battery. • When PV is insufficient, the hybrid inverter, on-grid inverter and grid power the loads together.
Page 184 On-grid inverter output power ≤ Max battery charging power NOTICE! • Since X3-HYB-G4 PRO series inverter is unable to control the output power of on- grid inverter in grid connection mode, the series inverter cannot achieve zero export when "loads power + battery charging power < on-grid inverter output power".
Page 185: Cable Connection (Hybrid Inverter)
Appendix 15.5.4 Cable Connection (Hybrid inverter) Please refer to "8.3 AC Connection" for Grid and EPS connection on X3-HYB-G4 PRO series inverter. 15.5.5 Cable Connection (On-grid inverter) Please connect the AC cable of an on-grid inverter to the EPS port of X3-HYB-G4 PRO series inverter.
Page 186 Appendix • Pin assignment Table 15-5 Pin assignment for meter and CT Definition Description CT_R1_CON CT_S1_CON For CT connection CT_T1_CON METER _485A For meter connection METER _485B CT_T2_CON CT_S2_CON For CT connection CT_R2_CON • For meter/CT connection steps, refer to "8.6.2 Meter/CT Connection"...
Page 187 Appendix If meter/CT connection succeeds, check the feed-in power of Meter 1 in the path of Menu>System Status>Meter/CT and check the output power (Output Today and Output Total) of Meter 2 in the path of Menu>History Data>E_USERDEF. NOTICE! • CT and Meter 1 cannot be used at the same time.
Page 188: Application Of Parallel Function
Appendix 15.6 Application of Parallel Function 15.6.1 Introduction of Parallel Application The series inverters supports parallel operation in both Grid and EPS modes. It can be configured with SolaX X3-PBOX-150kW-G2 or without one. Without X3-PBOX-150kW-G2, it supports up to 5 units in the parallel system, while with X3-PBOX-150kW-G2, it supports up to 10 units.
Page 189: System Wiring Diagram
Appendix • Overall system will be running according to master inverter's setting parameters, and most setting parameters of slave inverter will be kept but not be cancelled. • Once slave inverter exits from the system and be running as an independent unit (the network cable is disconnected simultaneously), its all setting will be re- activated.
Page 190 Appendix Inverter Inverter (Master) (Slave) Grid Grid Parallel-2 Parallel-1 Meter Grid Three- Single- Single- Single- Three- phase load phase load phase load phase load phase load Figure 15-18 Without X3-PBOX-150kW-G2 system wiring diagram...
Page 191: System Wiring Procedure
Appendix 15.6.4 System Wiring Procedure Power cable wiring-Grid and EPS port • With X3-PBOX-150kW-G2: Connect the master inverter, slave inverters and Master-X3-PBOX-150kW-G2 with the five-core copper cable. Grid port of the master, slave inverters and X3-PBOX-150kW-G2: L1 connects to L1, L2 connects to L2, L3 connects to L3 and N connects to N. EPS port of the master, slave inverters and X3-PBOX-150kW-G2: L1 connects to L1, L2 connects to L2, L3 connects to L3 and N connects to N.
Page 192 Appendix Master inverter Slave inverter 1 Slave inverter 2 Slave inverter 3 Slave inverter 4 Figure 15-20 Power cable wiring without X3-PBOX-150kW-G2 Communication cable wiring-COM1 port • With X3-PBOX-150kW-G2. Connect the master inverter, slave inverters and X3-PBOX-150kW-G2 with a standard network cable. Master inverter Parallel-1 connects to the COM port of X3-PBOX-150kW-G2.
Page 193 Appendix • Parallel connection without X3-PBOX-150kW-G2. Connect the master inverter and slave inverters with a standard network cable. Master inverter Parallel-2 connects to Slave 1 inverter Parallel-1. Slave 1 inverter Parallel-2 connects to Slave 2 inverter Parallel-1. Meter connects to Meter/CT subport of the Master inverter. Please refer to "8.6.2 Meter/CT Connection".
Page 194: Settings For Parallel Connection
Appendix 15.6.5 Settings for Parallel Connection Meter/CT setting Setting path: Menu>Settings>Advanced Settings>Meter/CT Settings. For details, refer to "Meter/CT Settings". Parallel setting Setting path: Menu>Settings>Advanced Settings>Parallel Settings. How to build the parallel connection Open the power supply for all inverters. Select an inverter and connect a meter to the inverter.
Page 195 Appendix When a X3-PBOX-150K G2 is connected in the parallel system, you need to enable the function. =====External ATS===== Function Control > Disable < Parallel display Displaying path: Menu>Parallel Status NOTICE! • Once an inverter enters the parallel system, the Today yield will be replaced by Parallel.
Page 196: Ct/Meter Connection Scenarios
Appendix 15.7 CT/Meter Connection Scenarios X3-HYB-G4 PRO inverter series can be connected to a single batch of CTs, a direct- connected meter, or a CT-connected meter, and also support a Meter 2 function for you to monitor another power generation device at home. The following are the detailed wiring and setting procedures of these scenarios.
Page 197 Appendix Inverter COM1 Grid (Meter/CT) RCD(optional) Load Neutral bus bar L2 L3 N The arrow on the CT must point to the Grid side. Grid Inverter L line Grid Figure 15-1 System wiring with CT * The arrow on the CTs must point at the public grid. *Markings on the CTs might be R, S and T or L1, L2 and L3.
Page 198 Appendix Wiring Procedure Step 1: Clip CT_R, CT_S and CT_T respectively onto the L1, L2 and L3 cables of the grid. Make sure the arrow on the CTs is pointing to the grid side from the inverter. CT_R Grid Inverter CT_S CT_T Figure 15-2 Clipping CTs to grid cables...
Page 199: Connection Of Direct-Connected Meter
Appendix 15.7.2 Connection of Direct-connected Meter NOTICE! • SolaX DTSU666 is used as an example. Inverter Grid RCD(optional) Load Neutral bus bar L2 L3 N Grid Figure 15-4 System wiring with direct-connected meter *For direct-connected meter, the current flow direction should be from grid to the inverter . *Terminals 1, 4 and 7 of the meter must be connected to the grid side, and terminals 3, 6 and 9 be connected to the inverter side of the system.
Page 200 Appendix Meter Terminal Definition Table 15-1 Terminal defintion of SolaX direct-connected meter Terminal No. Definition Description Voltage input terminal of the three phases (the grid side), 1, 4, 7 respectively connected to L1, L2 and L3 Voltage output terminal of the three phases (the inverter 3, 6, 9 side), respectively connected to L1, L2 and L3 Phase N voltage input and output terminal, connected to...
Page 201 Appendix Step 3: Connect the conductors to terminal 24 and 25 of the meter. MPPT2 MPPT3 Waterproof distribution box Figure 15-7 Connecting inverter to meter Setting Procedure After connecting the meter to the inverter, set parameters for it on the inverter. Step 1: Select Advanced Settings >...
Page 202: Connection Of Ct-Connected Meter
Appendix 15.7.3 Connection of CT-connected Meter NOTICE! • SolaX DTSU666-CT is used as an example. • The CTs referred to in this section are only CTs that are delivered with the CT- connected meter. Inverter COM1 Grid (Meter/CT) Grid INV/Load Grid Figure 15-8 System wiring with CT-connected meter *Terminal 2, 5 and 8 of the meter must be connected to the grid side.
Page 203 Appendix Meter Terminal Definition Table 15-2 Terminal defintion of SolaX CT-connected meter Terminal No. Definition Description Voltage input terminal of the three phases, 2, 5, 8 respectively connected to L1, L2 and L3 Phase N voltage input terminal, connected to the N wire Current input terminal of the three phases, 1, 4, 7...
Page 204 Appendix Step 4: Strip 15 mm wire insulation off the other end of the communication cable. Figure 15-10 Stripping communication cable for meter Step 5: Connect the conductors to terminal 24 and 25 of the meter. MPPT3 MPPT2 Waterproof distribution box Figure 15-11 Connecting inverter to meter Setting Procedure After connecting the CT-connected meter to the inverter, set parameters for it on the...
Page 205: Connection Of Two Meters
Appendix 15.7.4 Connection of Two Meters If you have two power generation devices (this inverter and the other one) and want to monitor both of them, this inverter provides Meter 2 communication function to help you achieve it. NOTICE! • For connecting CT and meter, or connecting two meters, prepare an RJ45 splitter adapter and a proper waterproof enclosure for it in advance.
Page 206 Appendix Inverter COM1 Grid (Meter/CT) RCD(optional) Load Neutral bus bar L2 L3 N RJ45 splitter adapter Meter 2 Grid L1 L2 L3 N Another power generation device Figure 15-12 Connection diagram of CT and direct-connected meter...
Page 207 Appendix Inverter COM1 Grid (Meter/CT) RCD(optional) Meter 1 Load Neutral bus bar L2 L3 N Meter 2 Grid L2 L3 N Another power generating device Figure 15-13 Connection diagram of two direct-connected meters...
Page 208 Appendix Wiring Procedure Step 1: Follow the above steps to connect the meter, CT and inverter. Step 2: Connect the RJ45 terminal to the RJ45 splitter adapter. Setting Procedure After connecting the CT and meter to the inverter, you need to set parameters on the inverter LCD before the they can work normally for the system.
Page 209: Contact Information
Contact Information AUSTRALIA UNITED KINGDOM Unit C-D Riversdale House, Riversdale 21 Nicholas Dr, Dandenong South VIC 3175 Road, Atherstone, CV9 1FA +61 1300 476 529 +44 (0) 2476 586 998 service@solaxpower.com service.uk@solaxpower.com TURKEY GERMANY Fevzi Çakmak mah. aslım cd. no 88 A Am Tullnaupark 8, 90402 Nürnberg, Karatay / Konya / Türkiye Germany...
Page 210 SolaX Power Network Technology (Zhejiang) Co., Ltd. Add.: No. 278, Shizhu Road, Chengnan Sub-district, Tonglu County, Hangzhou, Zhejiang, China E-mail: info@solaxpower.com Copyright © SolaX Power Network Technology (Zhejiang) Co., Ltd. All rights reserved. 320101107100...

This manual is also suitable for:

X3-hyb-4.0-p X3-hyb-5.0-p X3-hyb-6.0-p X3-hyb-8.0-p X3-hyb-10.0-p X3-hyb-12.0-p ... Show all
