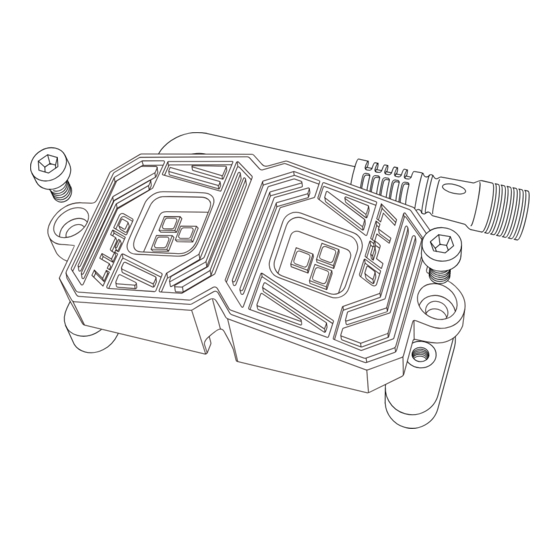

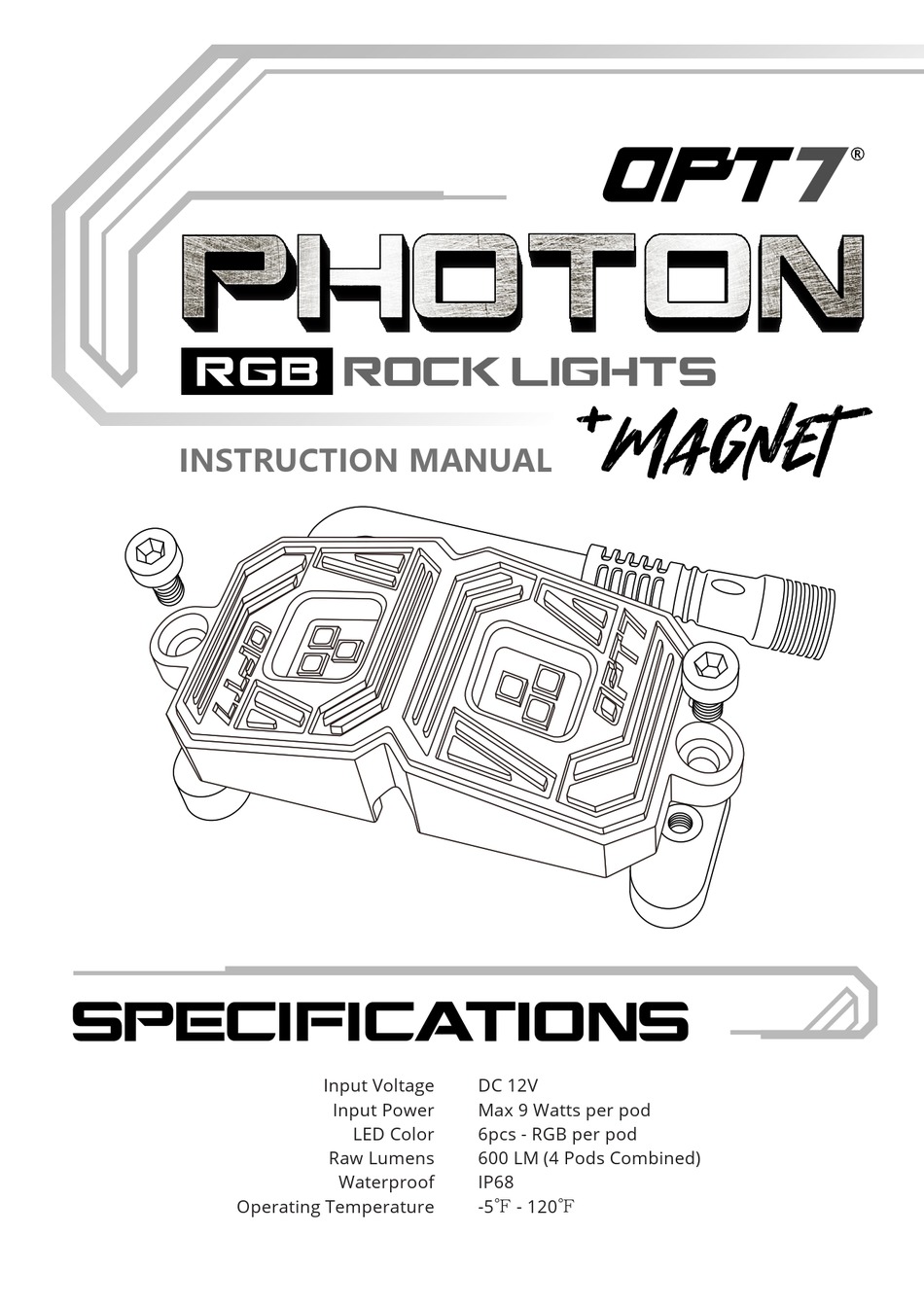

- Page 1 ROCK LIGHTS + Magnet INSTRUCTION MANUAL SPECIFICA TIONS Input Voltage DC 12V Input Power Max 9 Watts per pod LED Color 6pcs - RGB per pod Raw Lumens 600 LM (4 Pods Combined) Waterproof IP68 Operating Temperature -5℉ - 120℉...
- Page 2 MAIN COMPONENTS 4 X PHOTON RGB 4 X VHB DOUBLE SIDED ROCK LIGHT POD ADHESIVE TAPE AUTO CONTROL BOX EZ-REMOTE 8 X HIGH QUALITY 16 X MOUNTING MAGNETS SCREWS FUSE TAP KIT 30 X ZIP TIE 10FT EXTENSION WIRE CIGARETTE LIGHTER POWER SUPPLY 12V POWER HARNESS...
- Page 3 REMOTE WHERE CONTROL TO INSTALL BUTTON LAYOUT FRONT AUTO Power-ON Automatic Color Change Power-OFF REAR Speed +/- 8 Levels Mode +/- 19 Mode Dimmer 8 Levels Recommended locations Color Selection 12 Colors for Rock Light Pods...
- Page 4 Once the pods and wires are all safely installed onto your vehicle, you can now begin to use your Photons! Feel free to share a review along with a photo of installations so others users like yourself can enjoy the OPT7 Off-Road too! Rock on! Rock Light Pods become extremely hot during use-keep away from any CAUTION...
- Page 5 2 WA YS TO INSTALL THE CONTROL BOX STEP 1 As show below, connect all the Rock Light Pods to the control box with the included extension wires. CONTROL BOX 4 X EXTENSION WIRE 4 X ROCK LIGHT POD CAUTION Avoid installation areas of the engine bay + heated surfaces.
- Page 6 The installation guide is provided as assistance to reduce set up time. DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation. If you are unfamiliar with your vehicle or inexperienced with aftermarket upgrades, please seek professional assistance.
