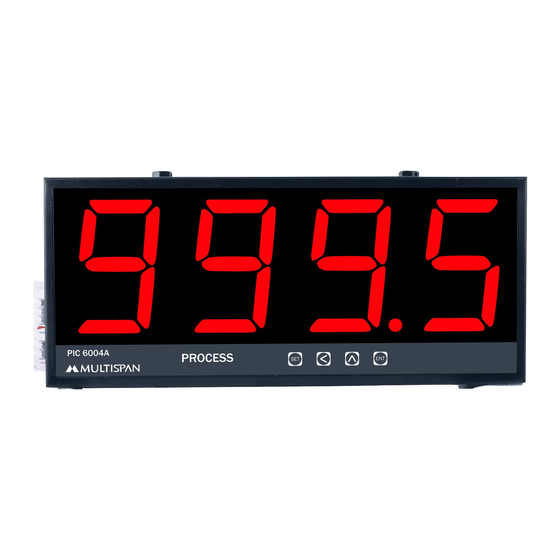

- Page 1 ProductManual JumboDisplay PIC-6004A MultispanControlInstrumentsPvtLtd 72/B,Phase1,GIDCEstate,Vatva,Ahmedabad-382445,Gujarat,India. marketing@multispanindia.com +91-9978991482 www.multispanindia.com...
-
Page 2: Technical Specification
TechnicalSpecification Model No PIC-6004A Description Micro controller based, Single Side & Dual Side Display 4 Digit 7 seg 4 Inch”, Red LED Display Display Single display :- 165(H) X 380(W) X 50(D)mm Size Dual display :- 165(H) X 380(W) X 75(D)mm... -
Page 3: User Configuration
Press Signal Low Level (ampere range : 0-5mA) S L L only for 4-20mA Press Press 0. 0 Press & key to set value between 0.0 to 5.0 Press key for sec to save & exit www.multispanindia.com PIC-6004A Page-2... -
Page 4: Connection Diagram
0 To 20mA DC Range: Range: -999 To 9999 -999 To 9999 0 To 10V DC 0 - 10V DC 0/4 To 20mA 0/4 -20mA 250V AC 50/60 Hz 250V AC 50/60 Hz Made in India Made in India PIC-6004A www.multispanindia.com Page-3... -
Page 5: TestCertificate
Q.A. Engineer WARRANTY Multispan Warrants that the product supplied here under this Test Certificate is guranteed against our design, our manufacturing and our workmanship defects for a time period of 12 Months from the date of product dispatch from our permises. -
Page 6: Safety Precautions
1) The equipment should be cleaned regularly to avoid blockage of ventilating parts. 2) Clean the equipment with a clean soft cloth. 3) Do not use isopropyl alcohol or any other cleaning agent. 4) Fusible resistor must not be replaced by operator. PIC-6004A Page-5 www.multispanindia.com... - Page 7 MechanicalInstallation Single www.multispanindia.com 9 9 9 9 Input: 0 To 10V DC 4 To 20mA DC 0 To 20mA DC PIC-6004A Range: Process -999 To 9999 0 - 10V DC 0/4 -20mA MODEL 250V AC DIMENSIONS 165mm 380mm 50mm 165mm...
- Page 8 Note:- Productimprovementandupgradeisaconstantprocedure.SoformoreupdatedoperatinginformationandSupport, PleasecontactourHelping:+91-9978991474/76/82orEmailatservice@multispanindia.comVer:2006 PIC-6004A www.multispanindia.com Page-7...
