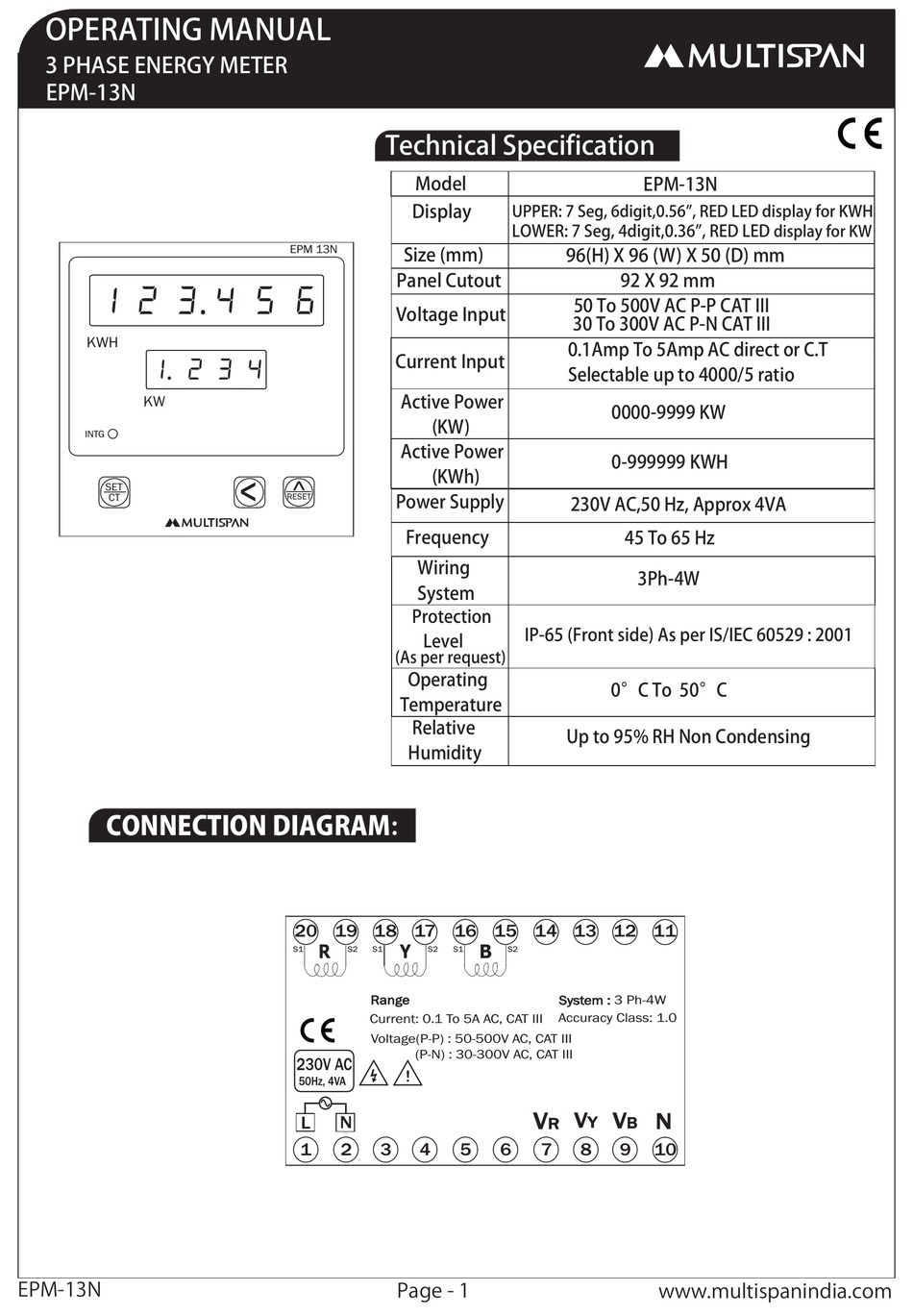

MULTISPAN EPM-13N Operating Manual

OPERATING MANUAL

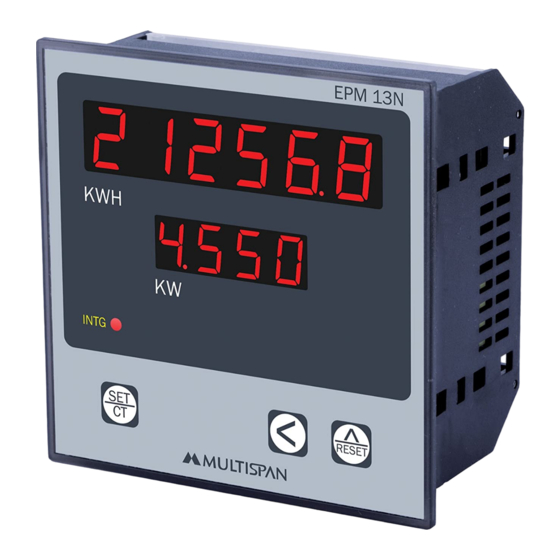

3 PHASE ENERGY METER
EPM-13N
. 
KWH
.
KW
INTG
SET
CT
CONNECTION DIAGRAM:
EPM-13N

Technical Specification

Model
Display
EPM 13N
Size (mm)
Panel Cutout
Voltage Input
Current Input
Active Power
(KW)
Active Power
(KWh)
Power Supply
Frequency
Wiring
System
Protection
Level
(As per request)
Operating
Temperature
Relative
Humidity
20 19 18 17 16
R Y
S1 S2 S1 S2 S1
Range
Current: 0.1 To 5A AC, CAT III
Voltage(P-P) : 50-500V AC, CAT III
(P-N) : 30-300V AC, CAT III
230V AC
!
50Hz, 4VA
L N
1 2 3 4 5
Page - 1
EPM-13N
UPPER: 7 Seg, 6digit,0.56 , RED LED display for KWH
LOWER: 7 Seg, 4digit,0.36 , RED LED display for KW
96(H) X 96 (W) X 50 (D) mm
92 X 92 mm
50 To 500V AC P-P CAT III
30 To 300V AC P-N CAT III
0.1Amp To 5Amp AC direct or C.T
Selectable up to 4000/5 ratio
0000-9999 KW
0-999999 KWH
230V AC,50 Hz, Approx 4VA
45 To 65 Hz
3Ph-4W
IP-65 (Front side) As per IS/IEC 60529 : 2001
0°C To 50°C
Up to 95% RH Non Condensing
15 14 13 12
B
S2
System : 3 Ph-4W
Accuracy Class: 1.0
V V V
Y
B
R
6 7 8 9
11
N
10
www.multispanindia.com
