6. Installation Procedure

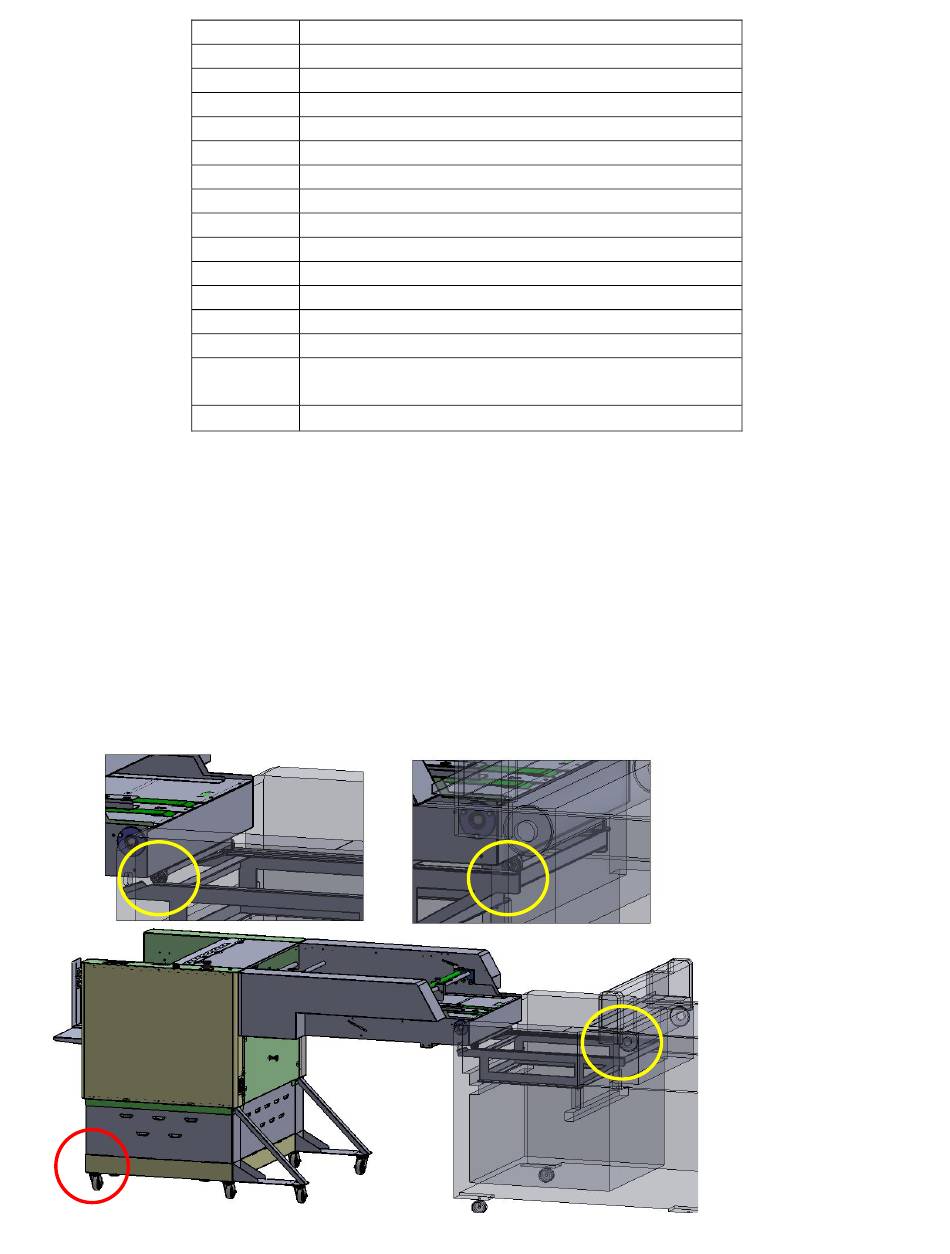

Integrate the feeder into cutter as shown below:
a. The front bottom of feeder conveyor has 2 ball bearings. Align the bearing with the guides
on the feeder supporting chassis.
b. Push the feeder all the way into position, the bearing will contact the limit both sides.
c. Lock the caster brake.
d. Connect the interface cable with the cutter.
e. Connect the grounding wire between feeder and cutter.
Item
1 Base Stand
2 Feeder Body
3 Conveyor Asm
4 Conrol Panel
5 LED Display LED
6 Emergency Stop
7 Feed Tray
8 Back Stop
9 Side Guide
10 Leading Edge Index Sensor
11 Suction Feed Components
12 Blower Fan
13 Double Feed Separator
14 Upper 6-pin Interfaces with Cutter
Lower 8-pin interfaces with Stacker
Restart Brushless Motor Switch
15
Key Components
