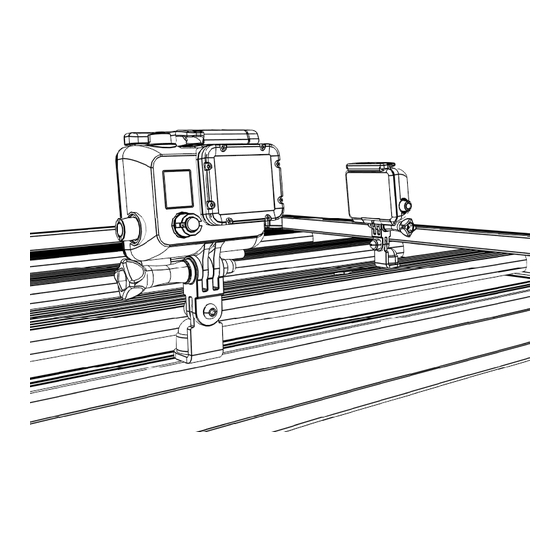

Gopro Rack mount bracket

RRAC098

INSTALL TIME: 15 mins

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR

VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY

INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER

PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE

PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE

INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO

NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT

THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A

PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

RRAC097_REV_A01

Need help?

Do you have a question about the RRAC098 and is the answer not in the manual?

Page 1 VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
Page 2 GET ORGANIZED... Here is what you are looking at: Item # Quantity Description M5x16 BUTTON HD SOCKET SCREW You will need: M5 FLAT WASHER 13 mm Flat or Socket Wrench GoPro and HOUSING (NOT INCLUDED) 8 mm Flat or Socket Wrench M5 NYLOC HEX NUT 3 mm Hex Key M5 PLASTIC BOLT CAP...
Page 3 Rack mount assembly Disassemble your three way pivot arm as shown below ( A ) LONG PIVOT ARM SHORT PIVOT ARM Select your Short Pivot Arm from Step2A and the Angle ( b ) bracket (Item 9), push the Pivot Arm over the Angle bracket as shown.
Page 4 Mounting on to Slat Place the M8 Hex Bolt (Item 10) into the desired slat opening of your Front Runner Rack. ( A ) Have the supplied M8 Nyloc Hex Nut and M8 Flat Washer (Item 7,8) in hand with the assembled ( b ) mounting bracket from Step2C.
Page 5 Hex Bolt into the M8 Nyloc Hex Nut from Step4A. Position as desired and tighten fully, ( C ) cover the Hex Bolt Head with the M8 Plastic Nut Cap (Item 6). Congratulations you have just mounted your GoPro to your Front Runner Rack! RRAC098_REV_A01...
