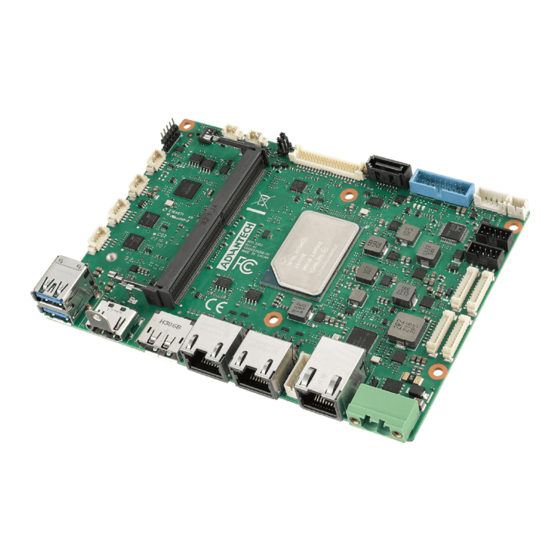

User Manual
AFE-E350
Intel® Atom™ x6000E Series and
Intel® Celeron® J Series (Code
Name: Elkhart Lake)
3.5" SBC

Advertisement

loading
Need help?

Need help?

Do you have a question about the AFE-E350 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech AFE-E350

Summary of Contents for Advantech AFE-E350

  • Page 1 User Manual AFE-E350 Intel® Atom™ x6000E Series and Intel® Celeron® J Series (Code Name: Elkhart Lake) 3.5" SBC...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.

  • Page 3: Product Warranty (2 Years)

    Product Warranty (2 Years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.

  • Page 4: Declaration Of Conformity

    This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.

  • Page 5: Packing List

     If any of these items are missing or damaged, contact your distributor or sales repre- sentative immediately. Optional Accessories Part number Description CPU Heat spreader of AFE-E350 MIOE-PSE-DPA1 MIOe-PSE dual-port PSE power module 1700035016-01 4-wire COM RS-422/485 cables 1700032181-01 USB 3.0 USB-A 9P(F) x 2 35cm...
  • Page 6 AFE-E350 User Manual...

  • Page 7: Table Of Contents

    Figure 2.1 AFE-E350 Mechanical Diagram (Top Side) ....6 Figure 2.2 AFE-E350 Mechanical Diagram (Bottom Side) ..7 Figure 2.3 AFE-E350 Mechanical Diagram (Coastline)....7 Figure 2.4 AFE-E350 Mechanical Diagram (With 0 ~ 6°C Heat- sink) ................8 Figure 2.5 AFE-E350 Mechanical Diagram (With -40 ~ 85°C Heat- sink) ................
  • Page 8 Advanced BIOS Features Setup..........36 4.1.3 Chipset Configuration ..............58 4.1.4 Security..................68 4.1.5 Boot .................... 70 4.1.6 Save & Exit ................. 71 Appendix A ............73 System I/O Ports..................74 1st MB Memory Map................74 Interrupt Assignments ................75 AFE-E350 User Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter General Information This chapter gives background information on the AFE-E350. Sections include:  Introduction  Specifications  Block Diagram...

  • Page 10: Introduction

    The AFE-E350 is designed for Electric Vehicle Supply Equipment (EVSE) solutions and harsh industrial environment applications. It features a wide voltage range of 12V to 24V and multiple I/O options. The AFE-E350 includes three Ethernet ports (one for out-of-band management) and two optional PoE ports, CAN bus, and high-speed UARTs.
  • Page 11 Operating: 40°C @ 95% relative humidity, non-condensing ment Humidity Storage: 60°C @ 95%relative humidity, non-condensing Vibration 3.5 Grms Resistance Certifica- CE, FCC Class B tions Mechanical Dimensions 146 x 102 mm (5.7″ x 4″) *Note: Supported by request   AFE-E350 User Manual...

  • Page 12: Block Diagram

    Block Diagram AFE-E350 User Manual...

  • Page 13: Chapter 2 Mechanical

    Chapter Mechanical This chapter privides mechanical information on the AFE-E350. Sections include:  Mechanical Drawings  Assembly Drawing...

  • Page 14: Board Layout: Dimensions

    This chapter includes dimensions for the motherboard and the standard thermal solu- tion. Board Layout: Dimensions 102.0 98.7 92.7 86.7 57.0 27.2 20.5 Figure 2.1 AFE-E350 Mechanical Diagram (Top Side) AFE-E350 User Manual...
  • Page 15 102.0 98.7 92.7 86.7 46.3 31.5 27.2 18.3 Figure 2.2 AFE-E350 Mechanical Diagram (Bottom Side) 16.3 10.5 Figure 2.3 AFE-E350 Mechanical Diagram (Coastline) AFE-E350 User Manual...
  • Page 16 102.0 98.7 92.7 86.7 57.0 27.2 20.5 16.3 10.5 Figure 2.4 AFE-E350 Mechanical Diagram (With 0 ~ 6°C Heatsink) AFE-E350 User Manual...
  • Page 17 102.0 98.7 92.7 86.7 57.0 27.2 20.5 16.3 10.5 Figure 2.5 AFE-E350 Mechanical Diagram (With -40 ~ 85°C Heatsink) Figure 2.6 AFE-E350 PoE Module Assembly Guide (Optional MIOe-PSE Module) AFE-E350 User Manual...
  • Page 18 AFE-E350 User Manual...

  • Page 19: Chapter 3 Installation

    Chapter Installation This chapter explains the setup procedures for the AFE-E350 hardware, including instructions on setting jumpers and connect- ing peripherals, switches, and indicators. Be sure to read all safety precautions before you begin the installation procedure.

  • Page 20: Jumpers & Switches

    Jumpers & Switches The AFE-E350 has a number of jumpers that allow you to configure your system to suit your application. The table below lists the functions of the various jumpers. 3.1.1 Panel Voltage Selection Jumper: VDD1 VDD1 LCD Power Setting Jumper position for +3.3V (Default)

  • Page 21: Connectors

    GPI (no function) LOAD_BIOS_DEFAULT (On) AT_DET# (Default) Connectors Onboard connectors link the AFE-E350 to external devices such as hard disk drives and a keyboard. The table below lists the function of each of the board's connectors. Description Part Reference I2C_1...

  • Page 22: Locating Connectors

    PoE_PWR1 USB2 HDMI1 LAN3 LAN2 LAN1 DCIN Opt. PoE Opt. PoE Figure 3.2 AFE-E350 Connector Locations (Top Side) M2_M1(M.2 M-Key 2280) M2_B1(M.2 B-Key 3042/3052) SIM1 M2_E1 (M.2 E-Key 2230) BAT1(RTC) Figure 3.3 AFE-E350 Connector Locations (Bottom Side) AFE-E350 User Manual...

  • Page 23: Setting Jumpers

    Generally, you simply need a standard cable to make most connections. 3.4.1 I2C Internal Connector: I2C_1 Table 3.1: I2C Internal Connector: I2C_1 Signal Pin Definition EC_I2C0_z_DAT EC_I2C0_z_CLK +V33_I2CCONN 3.4.2 Smart Fan Internal Connector: FAN1 AFE-E350 User Manual...

  • Page 24: Com-Port Internal Connector 3: Com3

    COM-Port Internal Connector 3: COM3 Table 3.3: COM-Port Internal Connector 3: COM3 Signal Pin Definition COM3_RS232-TXD_RS422-RX+ COM3_RS232-RTS#_RS422-RX- COM3_RS232-RXD_RS422-TX+_RS485-DAT+ COM3_RS232-CTS#_RS422-TX-_RS485-DAT- 3.4.4 COM-Port Internal Connector 4: COM4 Table 3.4: COM-Port Internal Connector 4: COM4 Signal Pin Definition COM4_RS232-TXD_RS422-RX+ COM4_RS232-RTS#_RS422-RX- COM4_RS232-RXD_RS422-TX+_RS485-DAT+ COM4_RS232-CTS#_RS422-TX-_RS485-DAT- AFE-E350 User Manual...

  • Page 25: Poe Power Internal Connector: Poe_Pwr1

    Table 3.5: POE Power Internal Connector: POE_PWR1 Signal Pin Definition +V48_LAN2+ +V48_LAN2- +V48_LAN3+ +V48_LAN3- +VDCIN (12V~24V) 3.4.6 COM-Port Internal Connector 1: COM1 Table 3.6: COM-Port Internal Connector 1: COM1 Signal Pin Definition COM1_RI# COM1_DTR# COM1_CTS# COM1_TXD COM1_RTS# COM1_RXD COM1_DSR# COM1_DCD# AFE-E350 User Manual...

  • Page 26: Com-Port Internal Connector 2: Com2

    Table 3.7: COM-Port Internal Connector 2: COM2 Signal Pin Definition COM2_RI# COM2_DTR# COM2_CTS# COM2_TXD COM2_RTS# COM2_RXD COM2_DSR# COM2_DCD# 3.4.8 DB9 Connector Pinout Table 3.8: DB9 Connector Pinout RS-485/RS-422 RS-485 DB9 Pin RS-232 Full Duplex Half Duplex Data- Data+ Ground AFE-E350 User Manual...

  • Page 27: Front Panel Internal Connector: Cn1

    Table 3.9: Front Panel Internal Connector: CN1 Signal Pin Definition BUZZER- BUZZER+ RDC_CASEOPEN FP_HDD_A_LED# FP_a_PSIN# FP_a_RST# +V3.3 3.4.10 GPIO Internal Connector: GPIO1 Table 3.10: GPIO Internal Connector: GPIO1 Signal Pin Definition EC_P1_GPIO7 EC_P1_GPIO2 EC_P1_GPIO6 EC_P1_GPIO1 EC_P1_GPIO5 EC_P1_GPIO0 EC_P1_GPIO4 +V5_P1_GPIO EC_P1_GPIO3 AFE-E350 User Manual...

  • Page 28: Usb 2.0 Dual-Port Internal Connector: Usb3

    Table 3.11: USB2.0 Dual-Port Internal Connector: USB3 Signal Pin Definition +V5_USB3 +V5_USB3 USB_HUB0_D1- USB_HUB0_D2- USB_HUB0_D1+ USB_HUB0_D2+ 3.4.12 Audio Internal Connector: AUDIO1 Table 3.12: Audio Internal Connector: AUDIO1 Signal Pin Definition A-FROUT_R LINR AUD_CONN_GND AUD_CONN_GND A-FROUT_L LINL AUD_CONN_GND FRONT_JD MIC1R MIC1L AFE-E350 User Manual...

  • Page 29: Can Bus Internal Connector: Canbus1, Canbus2

    Signal Pin Definition CAN1_D+ CAN1_D- 3.4.14 SATA Power Connector: SATA_PWR1 Table 3.14: SATA Power Connector: SATA_PWR1 Signal Pin Definition +V5SATA0 3.4.15 Panel Inverter Connector: BL1 Table 3.15: Panel Inverter Connector: BL1 Signal Pin Definition +V12_1_INVERTER_0 LVDS1_z_ENABKL EC_LVDS1_z_PWM +V5_1_INVERTER_0 AFE-E350 User Manual...

  • Page 30: Usb 3.2 Dual-Port Internal Connector: Usb1

    3.4.16 USB 3.2 Dual-Port Internal Connector: USB1 Table 3.16: USB 3.2 Dual-Port Internal Connector: USB1 Signal Pin Definition +V5_USB2 USB32X3_SSRX- USB32X3_SSRX+ USB32X3_z_TX- USB32X3_z_TX+ USB_D3- USB_D3+ USB3_CONN_OC# USB_D4+ USB_D4- USB32X4_z_TX+ USB32X4_z_TX- USB32X4_SSRX+ USB32X4_SSRX- +V5_USB2 AFE-E350 User Manual...

  • Page 31: Lvds Connector: Lvds1

    3.4.17 LVDS Connector: LVDS1 Table 3.17: LVDS Connector: LVDS1 Signal Pin Definition +V_LCD +V_LCD +V_LCD +V_LCD LVDS1_0_D0- LVDS1_1_D0- LVDS1_0_D0+ LVDS1_1_D0+ LVDS1_0_D1- LVDS1_1_D1- LVDS1_0_D1+ LVDS1_1_D1+ LVDS1_0_D2- LVDS1_1_D2- LVDS1_0_D2+ LVDS1_1_D2+ LVDS1_0_CLK- LVDS1_1_CLK- LVDS1_0_CLK+ AFE-E350 User Manual...

  • Page 32: Rtc Battery Connector: Bat1

    LVDS1_0_D3+ LVDS1_1_D3+ LVDS1_VCON 3.4.18 RTC Battery Connector: BAT1 Table 3.18: RTC Battery Connector: BAT1 Signal Pin Definition +VBAT_a1 3.4.19 M.2 E-Key Connector: M2_E1 Table 3.19: M.2 E-Key Connector: M2_E1 Signal Pin Definition +V3.3A_M.2_E USB_HUB0_z_P3+ +V3.3A_M.2_E USB_HUB0_z_P3- M2E1_WiFi_LED# AFE-E350 User Manual...
  • Page 33 Table 3.19: M.2 E-Key Connector: M2_E1 BT_I2S_SCK_R BT_I2S_WS_R BT_I2S_SDIN_R BT_I2S_SDOUT M2E1_BT_LED# M2E1_UART0_WAKE# BT_UART0_RX BT_UART0_TX BT_UART0_CTS# PCIE1X2230_a_TX+ BT_UART0_RTS# PCIE1X2230_a_TX- PCIE1X2230_RX+ PCIE1X2230_RX- CLK100M_a_M2E1+ CLK100M_a_M2E1- M2E1_SUSCLK M2E1_PERST# M2E1_a_CLKREQ# M2E1_BT_DISABLE2# M2E1_PCIEWAKE# M2E1_WIFI_DISABLE1# AFE-E350 User Manual...

  • Page 34: M.2 M-Key Connector: M2_M1

    Table 3.19: M.2 E-Key Connector: M2_E1 +V3.3A_M.2_E +V3.3A_M.2_E 3.4.20 M.2 M-Key Connector: M2_M1 Table 3.20: M.2 M-Key Connector: M2_M1 Signal Pin Definition +V3.3A_M.2_M +V3.3A_M.2_M PCIE4X2280_RX3- PCIE4X2280_RX3+ M2M1_PLN# PCIE4_KEY-M_a_TX3- +V3.3A_M.2_M PCIE4_KEY-M_a_TX3+ +V3.3A_M.2_M +V3.3A_M.2_M PCIE4X2280_RX2- +V3.3A_M.2_M AFE-E350 User Manual...
  • Page 35 Table 3.20: M.2 M-Key Connector: M2_M1 PCIE4X2280_RX2+ PCIE4_KEY-M_a_TX2- PCIE4_KEY-M_a_TX2+ PCIE4X2280_RX1- PCIE4X2280_RX1+ PCIE4_KEY-M_a_TX1- PCIE4_KEY-M_a_TX1+ M2M1_SCLK0_SMBUS MSATA_MPCIE_RX+ M2M1_SDATA0_SMBUS MSATA_MPCIE_RX- MSATA_MPCIE_TX- MSATA_MPCIE_TX+ PLTRST_MKEY_BUFFER# CLK2_M2M1_a_PCIE_REQ# CK_100M_a_MKEY_N M2M1_PCIEWAKE# CK_100M_a_MKEY_P M2M1_SUSCLK M2M1_SATA#_PCIE_SEL +V3.3A_M.2_M +V3.3A_M.2_M AFE-E350 User Manual...

  • Page 36: M.2 B-Key Connector: M2_B1

    Table 3.20: M.2 M-Key Connector: M2_M1 +V3.3A_M.2_M 3.4.21 M.2 B-Key Connector: M2_B1 Table 3.21: M.2 B-Key Connector: M2_B1 Signal Pin Definition M2B1_CFG3 +V3.3A_M.2_B +V3.3A_M.2_B M2B1_FULL_CARD_OFF# USB_M2B1_P M2B1_W_DISABLE1# USB_M2B1_N M2B1_LED1# M2B1_PCIE_DIS M2B1_CFG0 M2B1_ANT_CFG M2B1_ANT_TUNER DM2B1_DPR M2B1_W_DISABLE2# M2B1_USB31_RX- M2B1_UIM_RESET M2B1_USB31_RX+ M2B1_UIM_CLK M2B1_UIM_DATA M2B1_USB31_TX- M2B1_UIM_PWR AFE-E350 User Manual...
  • Page 37 Table 3.21: M.2 B-Key Connector: M2_B1 M2B1_USB31_TX+ PCIE1_M2B1_RX0- PCIE1_M2B1_RX0+ M2B1_PCIE_TX- M2B1_PCIE_TX+ M2B1_PERST# M2B1_a_CLKREQ# CLK100M_a_M2B1- M2B1_PCIEWAKE# CLK100M_a_M2B1+ M2B1_a_RESET# M2B1_SUSCLK M2B1_CFG1 +V3.3A_M.2_B +V3.3A_M.2_B +V3.3A_M.2_B M2B1_CFG2 AFE-E350 User Manual...

  • Page 38: Dc Power Input Connector: Dcin1

    +VIN_DCIN (DC12V~24V) 3.4.23 DC Power Input Connector: DCIN2 Table 3.23: DC Power Input Connector: DCIN2 Signal Pin Definition +VIN_DCIN (DC12V~24V) +VIN_DCIN (DC12V~24V) 3.4.24 Nano SIM Connector: SIM1 Table 3.24: Nano SIM Connector: SIM1 Signal Pin Definition RESET Clock AFE-E350 User Manual...
  • Page 39 Table 3.24: Nano SIM Connector: SIM1 DATA AFE-E350 User Manual...
  • Page 40 AFE-E350 User Manual...

  • Page 41: Bios Setup

    Chapter BIOS Setup...
  • Page 42 AMIBIOS has been integrated into a plethora of motherboards for decades. With the AMIBIOS Setup program, you can modify BIOS settings and control the various sys- tem features. This chapter describes the basic navigation of the AFE-E350 BIOS setup screens.

  • Page 43: Entering Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that your CPU‘s system status is valid.

  • Page 44: Advanced Bios Features Setup

    4.1.2 Advanced BIOS Features Setup Select the Advanced tab from the AFE-E350 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub-menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 45 4.1.2.1 RC ACPI Settings Native PCIE Enable  Enable/Disable PCIE Native Control reported in the ACPI Table. Native ASPM  Choose if the ASPM feature is controlled by OS or BIOS. AFE-E350 User Manual...
  • Page 46 This item allows users to set how many processor cores should be active. AP threads Idle Manner  AP threads Idle Manner for waiting signal to run.  Enable/Disable AES (Advanced Encryption Standard). MachineCheck  Enable/Disable Machine Check. MonitorMWait  Enable/Disable MonitorMWait. AFE-E350 User Manual...
  • Page 47 4.1.2.3 Power & Performance CPU – Power Management Control  CPU – Power Management Control Options. GT – Power Management Control  GT – Power Management Control Options. AFE-E350 User Manual...
  • Page 48 Enable/Disable Platform Power Limit 1 programming. Platform PL2 Enable  Enable/Disable Platform Power Limit 1 programming. Power Limit 4 Override  Enable/Disable Power Limit 4 override. C states  Enable/Disable CPU Power Management. Power Limit 3 Settings  Power Limit 3 Settings. AFE-E350 User Manual...
  • Page 49 2-Core Turbo Ratio Limit Ratio (TRLR) Override  2-Core Turbo Ratio Limit Ratio (TRLR). 3-Core Turbo Ratio Limit Ratio (TRLR) Override  3-Core Turbo Ratio Limit Ratio (TRLR). 4-Core Turbo Ratio Limit Ratio (TRLR) Override  4-Core Turbo Ratio Limit Ratio (TRLR). AFE-E350 User Manual...
  • Page 50 Power Limit 3 Settings Power Limit 3 Override  Enable/Disable Power Limit 3 override. 4.1.2.3.2 GT - Power Management Control AFE-E350 User Manual...
  • Page 51 ME Unconfig on RTC Clear  When Disabled, ME will not be unconfigured on RTC Clear. Core BIOS Done Message  Enable/Disable Core BIOS Done message sent to ME. Firmware Update Configuration  Configure Management Engine Technology Parameters. AFE-E350 User Manual...
  • Page 52 Enables or disables the system’s ability to hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State  Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. AFE-E350 User Manual...
  • Page 53 Serial Port 2 Configuration  Set Parameters of Serial Port 2. Serial Port 3 Configuration  Set Parameters of Serial Port 3. Serial Port 4 Configuration  Set Parameters of Serial Port 4. Hardware Monitor  Monitor hardware Status. AFE-E350 User Manual...
  • Page 54 Enable or Disable USB SS/HS Port Power in S4/S5. 4.1.2.6.1 Serial Port 1 Configuration Serial Port  Enable or Disable Serial Port (COM). Change Settings  Select optimal settings for a Super IO device. COM Port Mode  COM Port Mode Select. AFE-E350 User Manual...
  • Page 55 4.1.2.6.2 Serial Port 2 Configuration Serial Port  Enable or Disable Serial Port (COM). Change Settings  Select optimal settings for a Super IO device. COM Port Mode  COM Port Mode Select. AFE-E350 User Manual...
  • Page 56 4.1.2.6.3 Serial Port 3 Configuration Serial Port  Enable or Disable Serial Port (COM). Change Settings  Select optimal settings for a Super IO device. COM Port Mode  COM Port Mode Select. AFE-E350 User Manual...
  • Page 57 4.1.2.6.4 Serial Port 4 Configuration Serial Port  Enable or Disable Serial Port (COM). Change Settings  Select optimal settings for a Super IO device. COM Port Mode  COM Port Mode Select. AFE-E350 User Manual...
  • Page 58 Select the Critical Temperature value at which OSPM must shut down the sys- tem. Case Open Detection  Enable or Disable Case Open Detect Function. Watch Dog Timer  Enable or Disable the Watch Dog Timer Function. AFE-E350 User Manual...
  • Page 59 4.1.2.7.1 Watch Dog Timer Configuration Watch Dog Timer  Enable or Disable the Watch Dog Timer Function. AFE-E350 User Manual...
  • Page 60 4.1.2.7.2 GPIO Configuration GPIO Control Enable  Choose to control GPIO by EC or user override during the POST stage. GPIO0/1/2/3/4/5/6/7  Configure GPIO0/1/2/3/4/5/6/7. AFE-E350 User Manual...
  • Page 61 4.1.2.7.3 EdgeBMC Network Configuration 4.1.2.8 Trusted Computing TPM Device Selection  Select TPM Device: fTPM or dTPM. AFE-E350 User Manual...
  • Page 62 TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support to TPM 2.0 devices. 4.1.2.9 S5 RTC Wake Settings Wake system from S5  Enable or disable System wake on alarm event. Select FixedTime for the sys- tem to wake on the hr:min:sec specified. AFE-E350 User Manual...
  • Page 63 Serial Port Console Redirection Console Redirection  This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS). Console Redirection  This item allows users to configure console redirection detail settings. AFE-E350 User Manual...
  • Page 64 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses the default value: for a Root port it is 100 ms, for a Hub port the delay is taken from the Hub descriptor. AFE-E350 User Manual...
  • Page 65 4.1.2.12 Network Stack Configuration Network Stack  Enable/Disable UEFI Network Stack. 4.1.2.13 NVMe Configuration AFE-E350 User Manual...

  • Page 66: Chipset Configuration

    4.1.3 Chipset Configuration Select the Chipset tab from the AFE-E350 setup screen to enter the Chipset BIOS Setup screen. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec- tion.
  • Page 67 System Agent Geyserville. Enable RH Prevention  Actively prevent Row Hammer. Power Down Mode  CKE Power Down Mode Control. Page Close Idle Timeout  Page Close Idle Timeout Control. Memory Scrambler  Enable/Disable Memory Scrambler support. AFE-E350 User Manual...
  • Page 68 Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. DVMT Total Gfx Mem  Select DVMT 5.0 Total Graphics Memory size used by the Internal Graphics Device. LCD Control  LCD Control. AFE-E350 User Manual...
  • Page 69 LCD Control LVDS Panel Type  This item allows the user to select the LVDS panel resolution type. 4.1.3.2 PCH-IO Configuration AFE-E350 User Manual...
  • Page 70 Enable or Disable PCIE to wake the system from S5. Restore AC Power Loss  Specify what state to go to when power is re-applied after a power failure (G3 state). PinCntrl Driver GPIO Scheme  Enable/Disable PinCntrl Driver GPIO Scheme. AFE-E350 User Manual...
  • Page 71 4.1.3.2.1 PCI Express Configuration DMI Link ASPM Control  This item controls Active State Power Management of the DMI Link. PCI Express Root Port 7 AFE-E350 User Manual...
  • Page 72 Set the ASPM Level. L1 Substates  PCI Express L1 Substates settings. PCIe Speed  Configure PCIe Speed. Extra options  PCI Express Root Port extra options. Extra options Detect Non-Compliance Device  Detect Non-Compliance PCI Express Device. AFE-E350 User Manual...
  • Page 73 Enable/Disable SATA Device. SATA Mode Selection  Determine how the SATA controller operates. Aggressive LPM Support  Enable PCH to aggressively enter link power state. SATA Controller Speed  Indicates the maximum speed the SATA controller can support. AFE-E350 User Manual...
  • Page 74  Selectively Enable/Disable the corresponding USB Port from reporting a Device Connection to the Controller. USB SS Physical Connector #1/2/3/4  Enable/Disable this USB Physical Connector. USB HS Physical Connector #1/2/3/4/5/6/7/10  Enable/Disable this USB Physical Connector. AFE-E350 User Manual...
  • Page 75 Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM. BIOS Lock  Enable or Disable the PCH BIOS Lock Enable feature. Force unlock on all GPIO pads  If Enabled, BIOS will force all GPIO pads to be in the unlock state. AFE-E350 User Manual...

  • Page 76: Security

    4.1.3.2.5 HD Audio Configuration HD Audio  Control Detection of the HD-Audio device. Disabled = HDA will be uncondition- ally disabled. Enabled = HDA will be unconditionally Enabled. 4.1.4 Security AFE-E350 User Manual...
  • Page 77 Select Security Setup from the AFE-E350 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub-menu for the following items, select the item and press <Enter>:...

  • Page 78: Boot

    It has no effect for BBS boot options. Load Built-in EFI Shell  Load/Unload the internal built-in EFI shell image inside BIOS. (Built-in EFI Shell will still be loaded into any bootable device found). AFE-E350 User Manual...

  • Page 79: Save & Exit

    This item allows you to save the changes done so far as user defaults. Restore User Defaults  This item allows you to restore the user defaults to all the options. Boot Override  Boot device select can override your boot priority. AFE-E350 User Manual...
  • Page 80 AFE-E350 User Manual...
  • Page 81 Appendix...

  • Page 82: System I/O Ports

    1st MB Memory Map Address Range (Hex) Device E0000h - FFFFFh System board D0000h - DFFFFh PCI Bus C0000h - CFFFFh System board A0000h - BFFFFh PCI Bus A0000h - BFFFFh Intel® HD Graphics 00000h - 9FFFFh System board AFE-E350 User Manual...

  • Page 83: Interrupt Assignments

    IRQ5 Communications Port (COM3) IRQ6 Reserved IRQ7 Available IRQ8 System CMOS / real time clock IRQ9 Microsoft ACPI-Compliant System IRQ10 Available IRQ11 Display Controller IRQ12 Available IRQ13 Numeric Data Processor IRQ14 GPIO Controller IRQ15 Communications Port (COM4) AFE-E350 User Manual...
  • Page 84 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2024...
