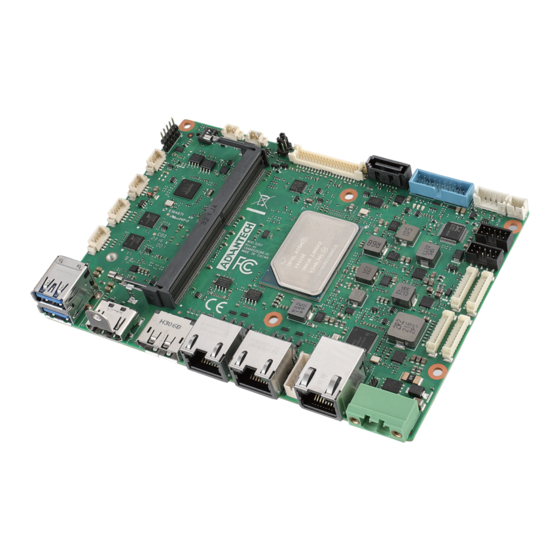

AFE-E350 3.5" SBC, Intel® Atom® x6000E and Cel-
eron® J Series, DDR4, HDMI, DP, 3 x GbE, PoE, HDMI,
DP, CAN-FD, M.2 E-Key 2230/80, M.2 B-Key 3042/52,
DC-In 12-24V, and EdgeBMC
Startup Manual
Packing List
Please ensure the following items have been shipped
before installing your board:
• 1 x SATA Cable 30cm (P/N: 1700006291)
• 1 x SATA Power Cable 35cm (P/N: 1700031583-01)
• 1 x USB 2.0 Cable 20cm (P/N: 1700030406-01)
• 2 x COM RS-232/422/485 Cable 20cm (P/N:
1700030404-01)2 x COM RS-232/422/485 Cable 20cm
(P/N: 1700030404-01)
• 2 x COM RS-232 4-Wire Cable 20cm (P/N: 1700031582-
01)
• 1 x Heatsink 0-60C (P/N: 1970005873T001) or
1 x Heatsink -40-85C (P/N: 1970005855T001)
• 1 x Screw Kit (2 sets of screws for the M.2 device & 4 sets
of screws and stand-off for the heatsink/cooler)
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note1:
For detailed content regarding AFE-E350, please
refer to information on the support website: http://
support.advantech.com.tw
Adobe Reader is required to view any PDF file.
Note2:
Adobe Reader can be downloaded at: http://
get.adobe.com/reader (Adobe is a trademark of
Adobe Systems Incorporated.)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for AFE-E350.
Part No. 2046E35001
Printed in China
Specifications
General
• CPU:
- Intel® Atom® x6425E (Quad-Core, 2.00 GHz)
- Intel® Atom® x6413E (Quad-Core, 1.50 GHz)
- Intel® Atom® x6211E (Dual-Core, 1.30 GHz)
- Intel® Celeron® J6412 (Quad-Core, 2.00 GHz)
• System Memory:
Single-channel, SODIMM DDR4-3200MT/s, up to 32GB
• BIOS: AMI EFI 256Mbit
• Watchdog Timer: 65536 levels, 0~65535 sec
• iManager 3.0: Yes
• Battery: Lithium 3V/210mAH
• Audio: Supports High Definition Audio (HD), Line-In,
Line-Out, and Mic-In.
Expansion Interface
• 1 x M.2 E-Key 2230 module (PCIe x1, USB 2.0 to support
the wireless module)
• 1 x M.2 B-Key 3042/3052 module (Default USB 2.0,
optional PCIe x2 to support the 5G_GNSS/LTE module)
• 1 x M.2 M-Key 2280 module (Default SATA III, optional
PCIe x1)
Display
• Controller: Intel® Gen11 Graphics Engines (SoC
integrated)
• Maximum Resolution:
- 1 x LVDS Dual Channel 18-/24-/48-bit LVDS
- 1 x HDMI 2.0 up to 4096x2160x24bpp @60Hz
- 1 x DP 1.4 up to 4096x2160x36bpp @60Hz
Ethernet Interface
• Max. Speed: LAN1:1Gbps, LAN2&3: 2.5Gbe/port
• Controller: LAN1: Intel® i210; LAN2&3: Intel® i226
• EdegBMC OOB LAN Port: LAN1
• PoE (Optional): LAN2 & LAN3 features PoE support
802.3af 15.4W/port or 802.3at 30W single port by optional
MIOe-PSE power module.
I/O
• Internal I/O: 1 x SATA, 2 x USB 2.0, 2 x USB 3.2, 2 x RS-
232/422/485, 2 x RS-232, 1x I2C/SMB (optional), 8-bit
GPIO, HD Audio, PoE, Front Panel, 2 x CANBus 2.0/FD
• Power Connector Type: 2-pin Phoenix connector
2nd Edition
May 2024
AFE-E350 Startup Manual 1
