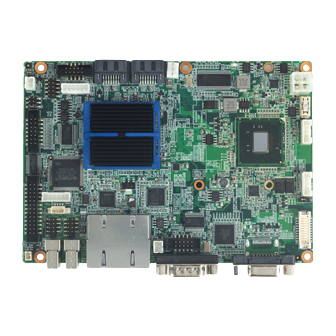

Advantech PCM-9363 Startup Manual

PCM-9363 Intel
24-bit LVDS, CRT or HDMI, 2 Giga LANs, Mini PCIe,
3 COMs
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. 1 PCM-9363 SBC
2. 1 Startup Manual
3. 1 Utility CD
4. 1 Mini jumper pack
5. 1 SATA cable
6. 1 Keyboard/Mouse cable
7. 1 Audio cable
8. 1 COM2 cable
9. 2 USB 2 port cables
10. 1 SATA power cable
11. 1 LPT cable
12. 1 COM port cable
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of PCM-9363, please refer
to information on the enclosed CD-ROM (in PDF
format).
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/suppot/
This manual is for the PCM-9363 Series Rev. A1
Part No. 2006936300
Printed in China
Atom N455/D525 3.5" SBC, DDR3,
® TM
p/n: 9689000002
p/n: 1700008941
p/n: 1703060191
p/n: 1700018839
p/n: 1701140201
p/n: 1703100121
p/n: 1703150102
p/n: 1700260250 p/n: 1700260250 1700260250
p/n: 1700100250
1st Edition
December 2010
Specifications
General
• CPU: Intel® Atom™ Processor N455 1.66 GHz / D525
1.8 GHz
• System Chipset: Intel® Atom™ N455/D525+ICH8M
• System Memory: DDR3 800 MHz up to 2 GB for N455,
and D525 up to 4 GB
• BIOS: AMI 16 Mbit Flash BIOS
• Watchdog Timer: 255 level interval timer
• Expansion Interface: Mini-PCIe
• Battery: Lithium 3 V/220 mAH
• SATA interface: Two SATA ports supporting 300 MB/s
• Keyboard/mouse connector: Internal pin-header sup-
ports KB/mouse use
• USB: Six USB 2.0 compliant universal serial bus ports
• Audio: High Definition audio (HD), line-in, line-out, mic-in
• GPIO: 8-bit general purpose Input/Output
CompactFlash® Card
• Supports one 50-pin socket for CFC type I/II
VGA/LVDS Interface
• Chipset: Embedded Gen3.5+ GFX Core
• Memory Size: Up to 224 MB of dynamic video memory
allocation
• Resolution:
- CRT: Intel Atom N455 up to 1400 x 1050 (SXGA)
Intel Atom D525 up to 2048 x 1536
- LVDS: Single channel 24-bit LVDS up to WXGA
1366 x 768
• LVDS LCD:
- Support 18 or 24-bit LVDS LCD
• Dual Display: CRT+LVDS

Ethernet Interface

• LAN1 Intel® 82567V Giga LAN,
LAN2 Intel® 82583V Giga LAN ® 82583V Giga LAN 82583V Giga LAN
• Ethernet interface: IEEE 802.3,IEEE 802.3u, IEEE
802.3x, IEEE 8023y, IEEE802.ab (100 Mbps) protocol
compatible
Mechanical and Environmental
• Dimensions: 146 x 102 mm (5.7" x 4")
Mechanical Drawings are on pages 5 and 6.
• Power Supply Type: AT/ATX
• Power Requirement:
Single 12 V input
