Fujitsu Microelectronics Europe
UG-910062-13-EMA-MB91F467T-LS-144M08
User Guide
FR60 FAMILY

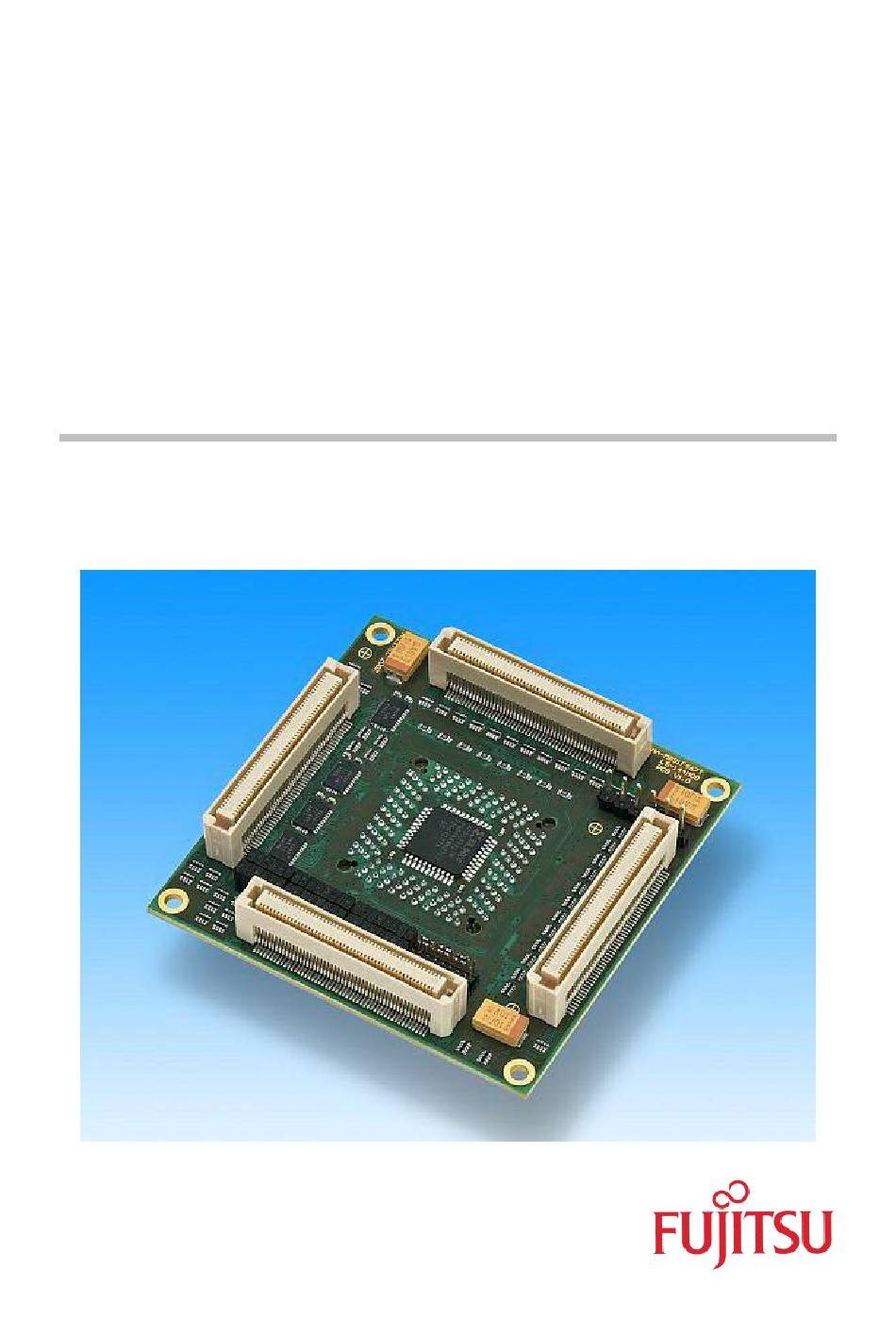

SOCKET ADAPTER BOARD
EMA-MB91F467T-LS-144M08
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the FR60 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fujitsu FR60 Series

Summary of Contents for Fujitsu FR60 Series

  • Page 1 Fujitsu Microelectronics Europe UG-910062-13-EMA-MB91F467T-LS-144M08 User Guide FR60 FAMILY SOCKET ADAPTER BOARD EMA-MB91F467T-LS-144M08 USER GUIDE...

  • Page 2: Revision History

    V1.1, Amendments to tables 3.4.1 to 3.4.3; table 3.4.4 deleted 25.10.2007 V1.2, Removing of headlines 19.01.2009 V1.3, CEy Description for EMA-MB91FV460B-001 added, updated CPLD code Schematic version: PCB version: CPLD version: This document contains 21 pages. UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 2 -...

  • Page 3: Warranty And Disclaimer

    Product or parts thereof, if the Product is returned to Fujitsu Microelectronics Europe GmbH in original packing and without further defects resulting from the customer’s use or the transport.

  • Page 4: Table Of Contents

    Default Jumper Setting ..................14 4 MECHANICAL DIMENSIONS..................16 5 CPLD ..........................17 CPLD Verilog Code ....................17 CPLD programming jumper (J491) ................ 19 6 INFORMATION IN THE WWW..................20 7 RECYCLING ........................21 UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 4 -...

  • Page 5: Overview

    1 Overview 1.1 Abstract The EMA-MB91F467T-LS-144M08 in combination with the EMA-MB91V460A-002B/-80/003 or EMA-MB91FV460B-001 is a development system for the Fujitsu FR60 MB91V460 Flash microcontroller. The EMA-MB91F467T-LS-144M08 is an adapter board with level shifters to support the MB91V460A external bus interface at 3.3V levels.

  • Page 6: Functional Restrictions

    Configuring each pin of these ports separately as input or output is not applicable! For details on how to configure the port input and output direction please see chapter 3.4 Level-shifter direction control jumper! UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 6 -...

  • Page 7: Installation

    M2.5 x 12 MB91V460 Washer (optional) M2.5 (Fiber) Connector for extension board (optional) EMA-MB91V460A-002B/003 Connector EMA-MB91V460A-002B/003 to EMA-MB91F467T-LS-144M08 EMA-MB91F467T-LS-144M08 120,8 mm YQPACK / CSICE adapter NQPACK / CSPACK Target board Figure 2-1: Installation © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 7 -...

  • Page 8: Switches And Jumpers

    R403 P10_0 SYSCLK 0603 Closed R404 P10_1 0603 Closed R405 P10_3 0603 Closed R406 P08_0 WR0# 0603 Closed R407 P08_1 WR1# 0603 Closed R408 P08_4 0603 Closed R410 P08_7 0603 Closed UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 8 -...

  • Page 9: Level-Shifter Direction Control Jumper

    Target board A[8..15] MB91V460 A[8..15] S400-2 (Direction U407) Target board A[8..15] MB91V460 A[8..15] Target board A[16..23] MB91V460 A[16..23] S400-3 (Direction U408) Target board A[16..23] MB91V460 A[16..23] Default: S400-1, S400-2, S400-3: OFF © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 9 -...

  • Page 10: Bus Control Jumpers

    Description Closed P08_7 Open P08_7 Closed Prohibited Default: R410: Closed, S401-8: OFF 3.3.5 CS0# (P09_0) R400 S400-4 Description Closed P09_0 CS0# Open P09_0 CS0# Closed Prohibited Default: R400: Closed, S400-4: OFF UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 10 -...
  • Page 11 R404 S400-8 Description Closed P10_1 Open P10_1 Closed Prohibited Default: R404: Closed, S400-8: OFF 3.3.10 WE# (P10_3) R405 S400-9 Description Closed P10_3 Open P10_3 Closed Prohibited Default: R405: Closed, S400-9: OFF © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 11 -...
  • Page 12 UG-910062-13-EMA-MB91F467T-LS-144M08 3.3.11 CS select (CPLD) S401_2 S401_1 Description CS0# is selected CS1# is selected CS2# is selected Do not set Default: S401_1, S401_2: OFF UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 12 -...

  • Page 13: Port Jumpers

    P27_2 pulldown J255 P20_1 P27_3 P27_3 pulldown J256 P20_2 P27_4 P27_4 pulldown J257 P20_4 P27_5 P27_5 pulldown J258 P20_5 P27_6 P27_6 pulldown J259 P20_6 P27_7 P27_7 pulldown Default: all 1-2 and 3-4 © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 13 -...

  • Page 14: Default Jumper Setting

    UG-910062-13-EMA-MB91F467T-LS-144M08 3.5 Default Jumper Setting The following jumper setting is the default setting. R400 R402 R404 R406 R401 R403 R405 R407 J491 Figure 3-1: Jumper default setting, top UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 14 -...
  • Page 15 UG-910062-13-EMA-MB91F467T-LS-144M08 S400 R409 U100 R410 R408 R411 R412 R413 S401 R100 Figure 3-2: Jumper location, bottom © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 15 -...

  • Page 16: Mechanical Dimensions

    4 Mechanical dimensions 33 mm Top view Pin1 YQ Socket 66 mm EMA-MB91V460A-002B/003 EMA-MB91F467T-LS-144M08 YQSOCKET / YQPACK / NQPACK (socket dimension depends on socket type) Target board 29 mm Figure 4-1: Mechanical Dimensions UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 16 -...

  • Page 17: Cpld

    CSx, // P09_7..P09_0 WRx, // P08_3..P08_0 RDx, // P08_4 ASx, // P10_1 BAAx, // P10_2 WEx, // P10_3 IORDx, // P11_0 IOWRx, // P11_1 S401, DIR_U400, DIR_U401, DIR_U404, DIR_U405, OEx_U400_U401, OEx_U404_U405); © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 17 -...
  • Page 18 OEx_U404_U405 = !ECSx | (CSx[0] & CSx[1] & CSx[2]); endcase OEx_U400_U401 = 1; // check schematic for DIR level (different on LS boards) DIR_U400 = 1; DIR_U401 = 1; DIR_U404 = !RDx; DIR_U405 = !RDx; endmodule UG-910062-13-EMA-MB91F467T-LS-144M08 © Fujitsu Microelectronics Europe GmbH - 18 -...

  • Page 19: Cpld Programming Jumper (J491)

    UG-910062-13-EMA-MB91F467T-LS-144M08 5.2 CPLD programming jumper (J491) The CPLD is re-configurable by programming via J491. Please refer to www.xilinx.com details and tools for Xilinx CPLD configuration. J491 pin Name VREF © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 19 -...

  • Page 20: Information In The Www

    UG-910062-13-EMA-MB91F467T-LS-144M08 6 Information in the WWW Information about FUJITSU MICROELECTRONICS Products can be found on the following Internet pages: Microcontrollers (8-, 16- and 32bit), Graphics Controllers Datasheets and Hardware Manuals, Support Tools (Hard- and Software) http://www.fme.gsdc.de/gsdc.htm Linear Products: Power Management, A/D and D/A Converters http://www.fujitsu.com/emea/services/microelectronics...

  • Page 21: Recycling

    According to the European WEEE-Directive and its implementation into national laws we take this device back. For disposal please send the device to the following address: Fujitsu Microelectronics Europe GmbH Warehouse/Disposal Monzastraße 4a 63225 Langen © Fujitsu Microelectronics Europe GmbH UG-910062-13-EMA-MB91F467T-LS-144M08 - 21 -...
